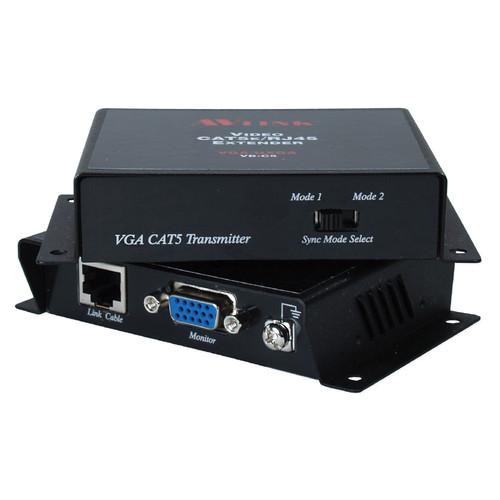

Product description The VB-C5 VGA/UXGA over CAT5e/6 Passive Extender Kit from QVS includes a non-powered transmitter unit and a receiver unit, and is designed to passively extend video signals up to 330' away via a CAT5e/6 cable (sold separately). You can connect VGA/UXGA displays to any computer, LCD, switch, or distribution amplifier. This extender kit provides a 5-position DIP switch equalization setting and standard RJ45 port connection. It supports resolutions of 1600 x 1200 60 Hz for up to 164', and 1024 x 768 60 Hz for up to 330'. It can be mounted on the wall, and it provides cable grounding. - Transmits video via a CAT5e/6 cable
- Extends video signals up to 330' @ 1024 x 768 with virtual DDC
- Provides grounding when using CAT5e STP cable
- Sync-mode provides support for larger video screens
- Sync-filter provides CAT5e/6 signal level adjustment
- Supports VGA/UXGA up to 1600 x 1200 @ 60 Hz
- RoHS, FCC, and CE compliant
UPC: 037229007305 In the Box QVS VB-C5 VGA/UXGA over CAT5e/6 Passive Extender Kit Mounting Screws 1' 15-Pin Sub-D M/M Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS VB-C5 VGA UXGA over CAT5e 6 Passive Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VB-C5 Specs | Signal Type | VGA/SVGA, XGA/UXGA | | Video Bandwidth | Up to 100 MHz | | Connectors | Transmitter:
1 x 15-pin Sub-D, VGA input
1 x RJ45
Receiver:
1 x 15-pin Sub-D, VGA output
1 x RJ45 | | Compatibility | PC & LCD | | Insertion Loss | < 3 dB | | Impedance | RGB: 75 ohms, unbalanced
CAT5e: 100 ohms, balanced | | Video Signal Return Loss | -15 dB max from DC to 60 MHz | | Cable Equalization | CAT5e: 5-position DIP switch, 32 settings | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Certification and Compliance | RoHs, FCC, and CE | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 4.7 x 4.5 x 3.4" |
