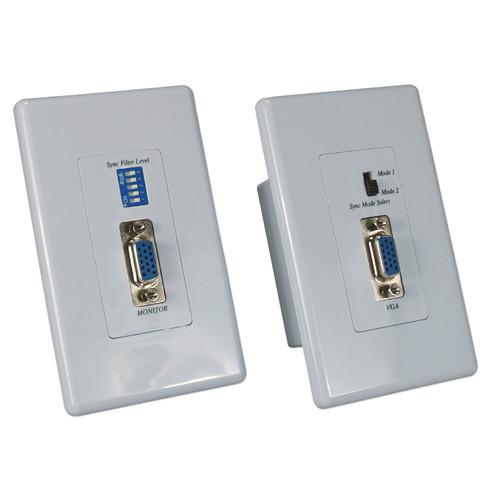

User Manual for QVS VB-C5WP VGA RGB over CAT5e Wall Plate Passive Extender Kit Click to enlarge the picture
Contents of the user manual for the QVS VB-C5WP VGA RGB over CAT5e
- Product category: Video Extenders & Repeaters QVS
- Brand: QVS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for QVS Video Extenders & Repeaters
|
User manual for the QVS VB-C5WP VGA RGB over CAT5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any QVS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official QVS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a QVS product will considerably shorten its lifespan!
|
Product description The VB-C5WP VGA/RGB over CAT5e Wall Plate Passive Extender Kit from QVS includes a transmitter unit and a receiver unit. This CAT5e non-powered extender kit passively extends video signals up to 330' away via a CAT5e/6 cable. This extender kit provides a DIP switch cable equalization and shielded RJ45 port connection. It supports resolutions of 1600 x 1200/60 Hz for up to 150', and 1024 x 768/60 Hz for up to 330'. It connects VGA/UXGA video displays to any computer, projector, LCD, switch, or distribution amplifier. - Transmits video via a CAT5e/6 cable
- Extends up to 330' @ 1024 x 768 with virtual DDC
- Sync-mode provides support for larger video screens
- Sync-Filter provides CAT5e/6 signal level adjustment
- Supports VGA/UXGA up to 1600 x 1200 @ 60 Hz
UPC: 037229007343 In the Box QVS VB-C5WP VGA/RGB over CAT5e Wall Plate Passive Extender Kit 2 x White Decora Wall Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the QVS VB-C5WP VGA RGB over CAT5e Wall Plate Passive Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersQVS VB-C5WP Specs | Signal Type | VGA/SVGA, XGA/UXGA | | Distance | Up to 330' (100 m) | | Video Bandwidth | Up to 100 MHz | | Connectors | Transmitter:
15-pin Sub-D, VGA
RJ45
Receiver:
15-pin Sub-D, VGA
RJ45 | | Insertion Loss | < 3 dB | | Impedance | RGB: 75 ohms, unbalanced
CAT5e: 100 ohms, balanced | | Video Signal Return Loss | -15 dB max from DC to 60 MHz | | Cable Equalization | CAT5e: DIP switch, 32 settings | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Certification and Compliance | RoHS, FCC, CE
PC & LCD compatible | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 5.8 x 5.1 x 3.2" |
