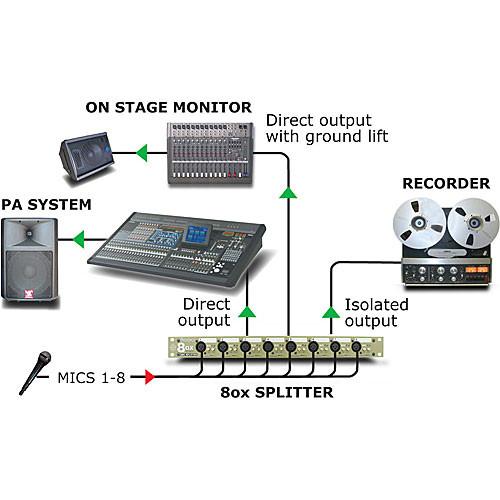

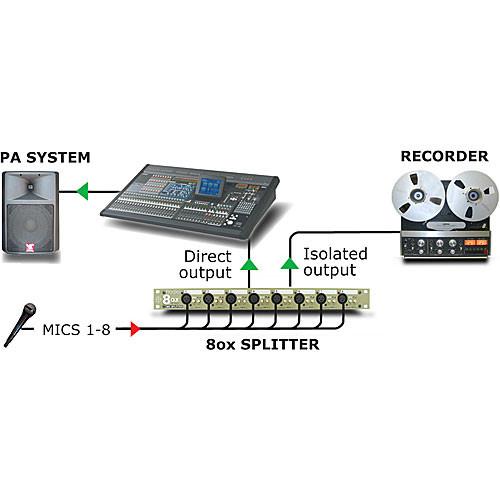

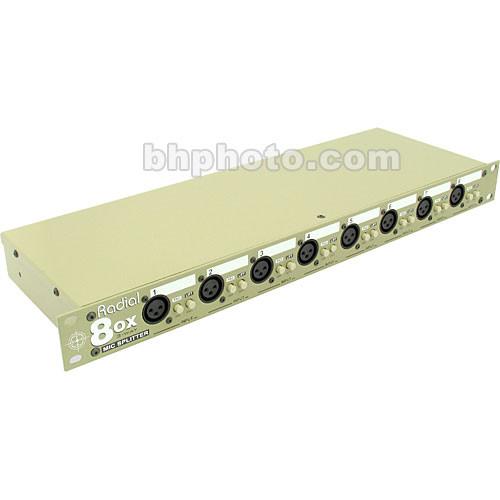

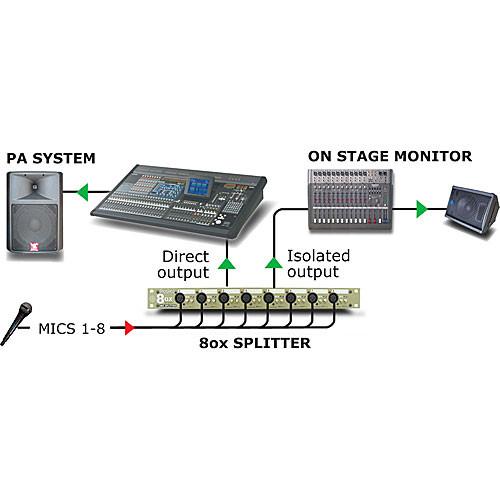

Product description The 8ox-rm-r from Radial Engineering is a rack-mountable eight-channel, three-way mic splitter. It splits up to eight microphone signals into three outputs, allowing you to feed three mic preamps from a single source. The 8ox-rm-r also has a pad on each channel for line-level sources. This makes the unit very flexible for all types of signal splitting, but particularly for live recording because it will deliver transformer-isolated audio to the recording engineer and a direct feed to the front of house and monitor consoles.

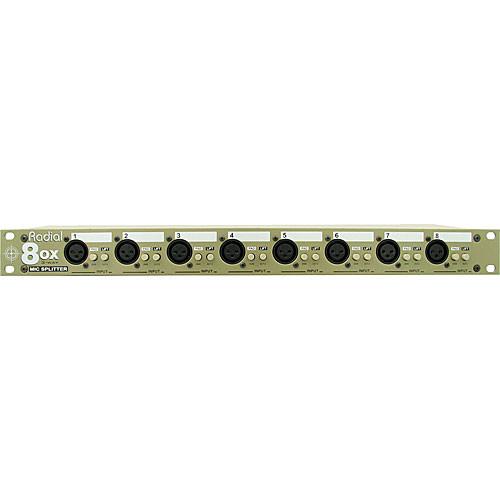

Multiple types of connectors are included on the 8ox-rm-r for maximum flexibility. Front-panel XLR and rear-panel 25-pin D-sub and phoenix screw-down connectors each provide input access. A direct output enables 48V phantom power return, while an auxiliary output with a ground-lift switch helps minimize hum and buzz. The unit is completely passive and requires no power source for operation. - Single rack-space unit with rugged steel construction
- Splits eight microphone signals into three outputs
- Pad on every channel for line-level signals
- Ideal for live recording and signal distribution
- Multiple types of input connectors for flexibility
- 48V phantom power return on direct output and ground-lift switch on auxiliary output
UPC: 676101036943 In the Box Radial Engineering 8ox-rm-r - Rack-Mount Eight-Channel, Three Way Microphone Splitter with Radial Transformers 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering 8ox-rm-r - Rack-Mount Eight-Channel, Three Way Microphone Splitter with Radial Transformers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering 8ox-rm-r Specs | Connectors | 8 x Front-Panel XLR Female Input Jacks

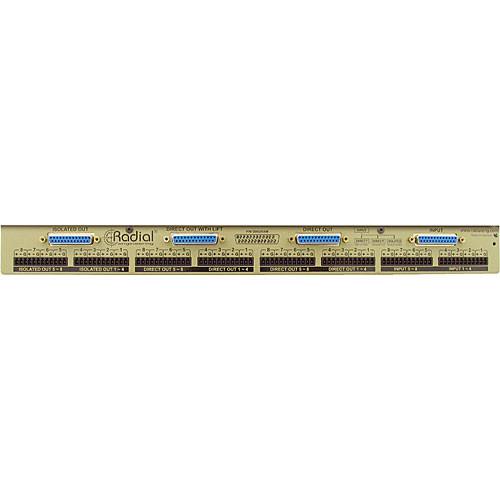

4 x Rear-Panel DB-25 Connectors (1 Each for Input, Direct Out, Direct Out with Lift, and Isolated Out)
8 x Rear-Panel Euroblock Connectors (2 x Each for Input, Direct Out, Direct Out with Lift, and Isolated Out) | | Controls | 8 x Front-Panel Pad Buttons
8 x Front-Panel Lift Buttons | | Dimensions (HxW) | 1.75 x 19" (44 x 483 mm) (Depth Not Specified by Manufacturer) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 21.9 x 10.4 x 4.7" |
