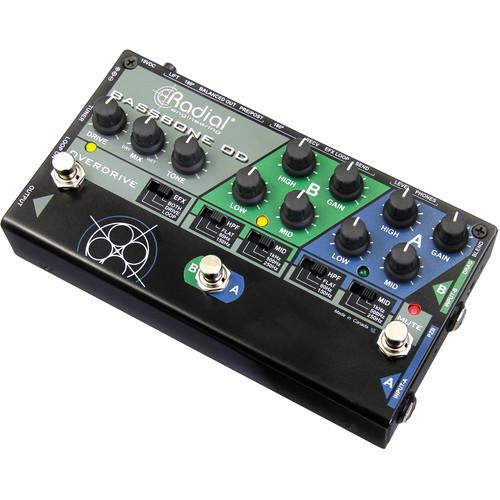

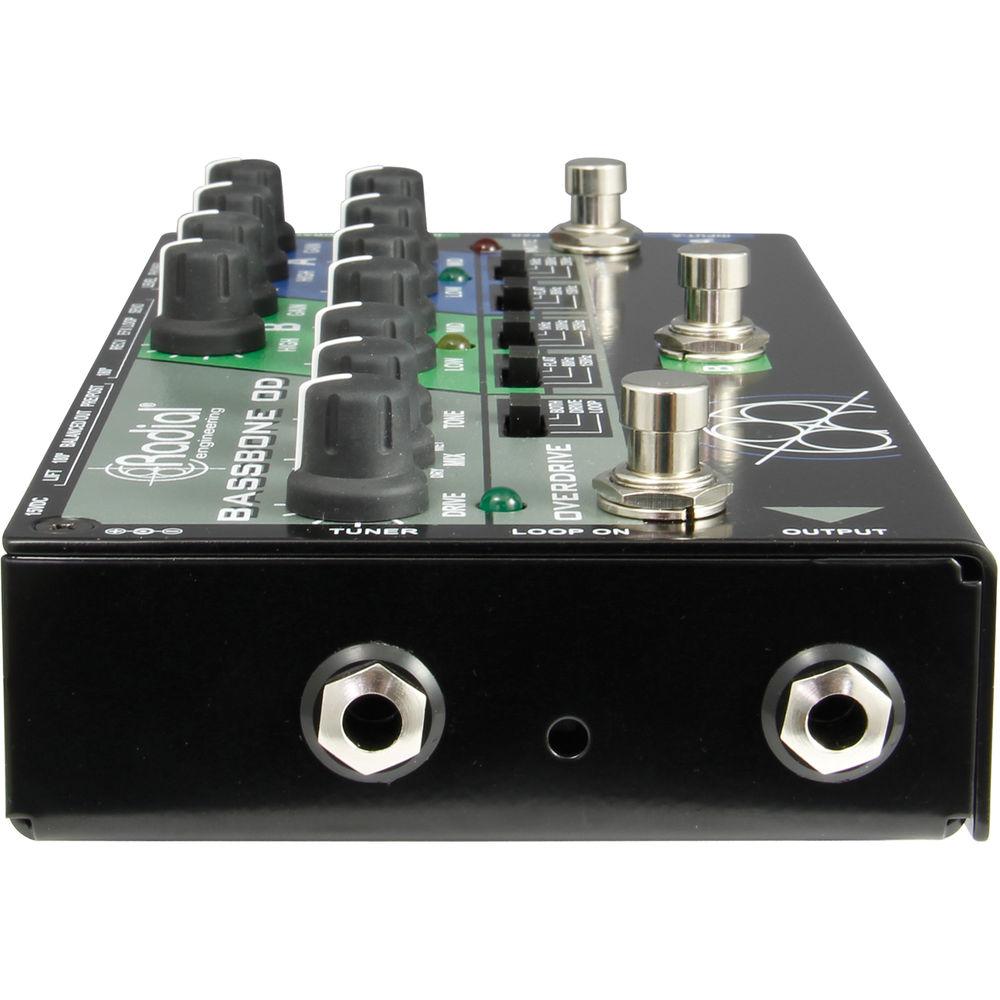

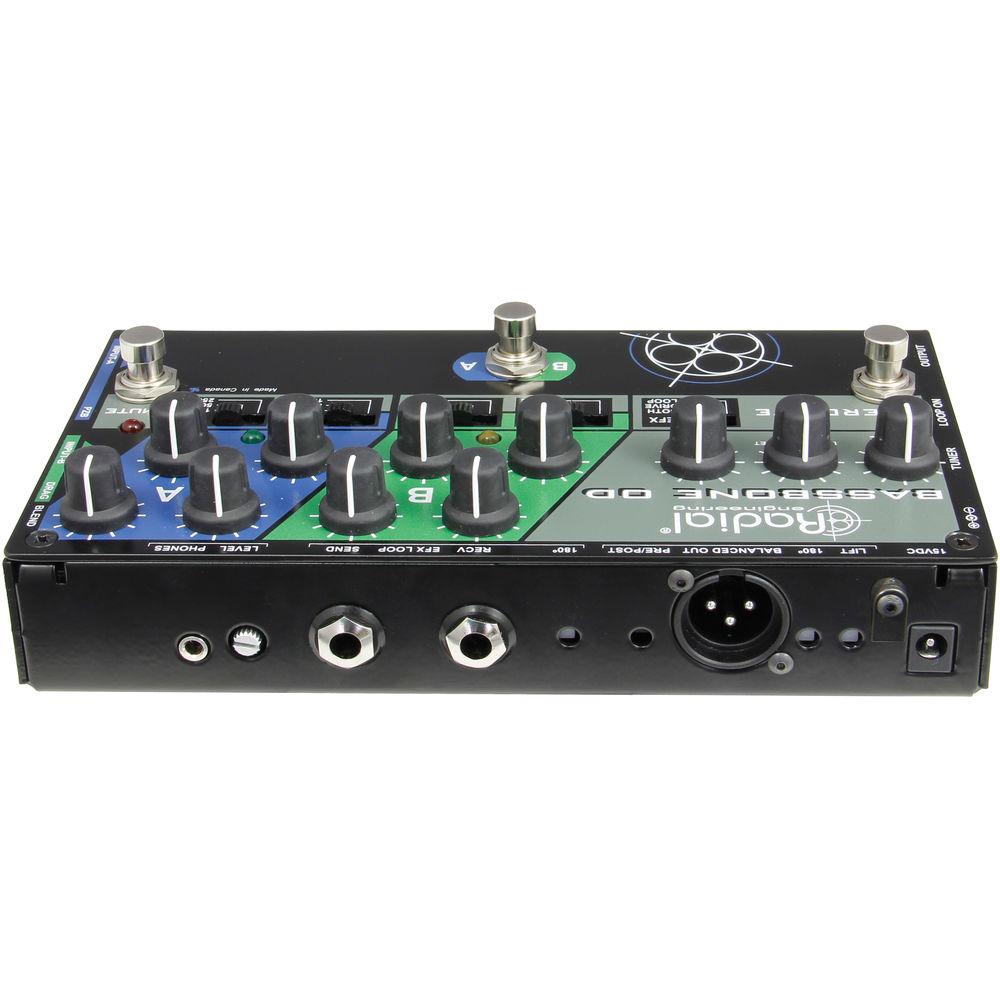

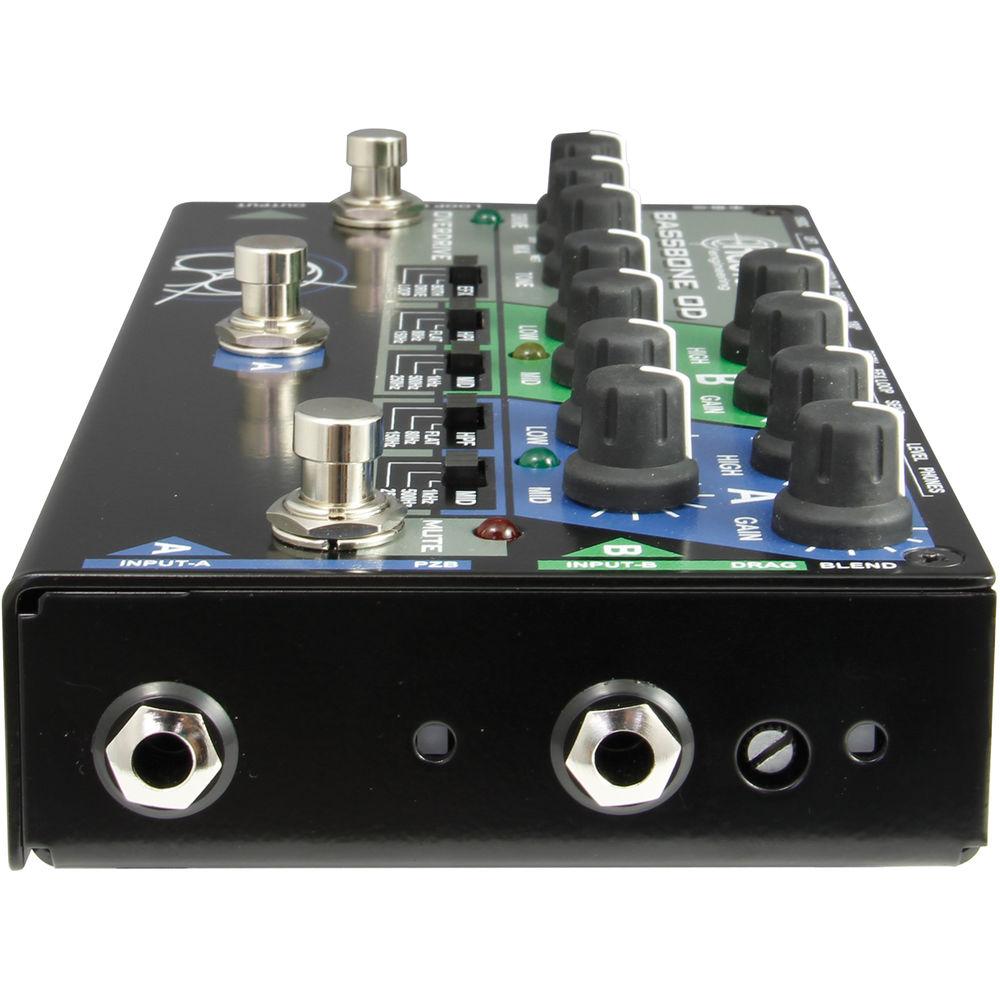

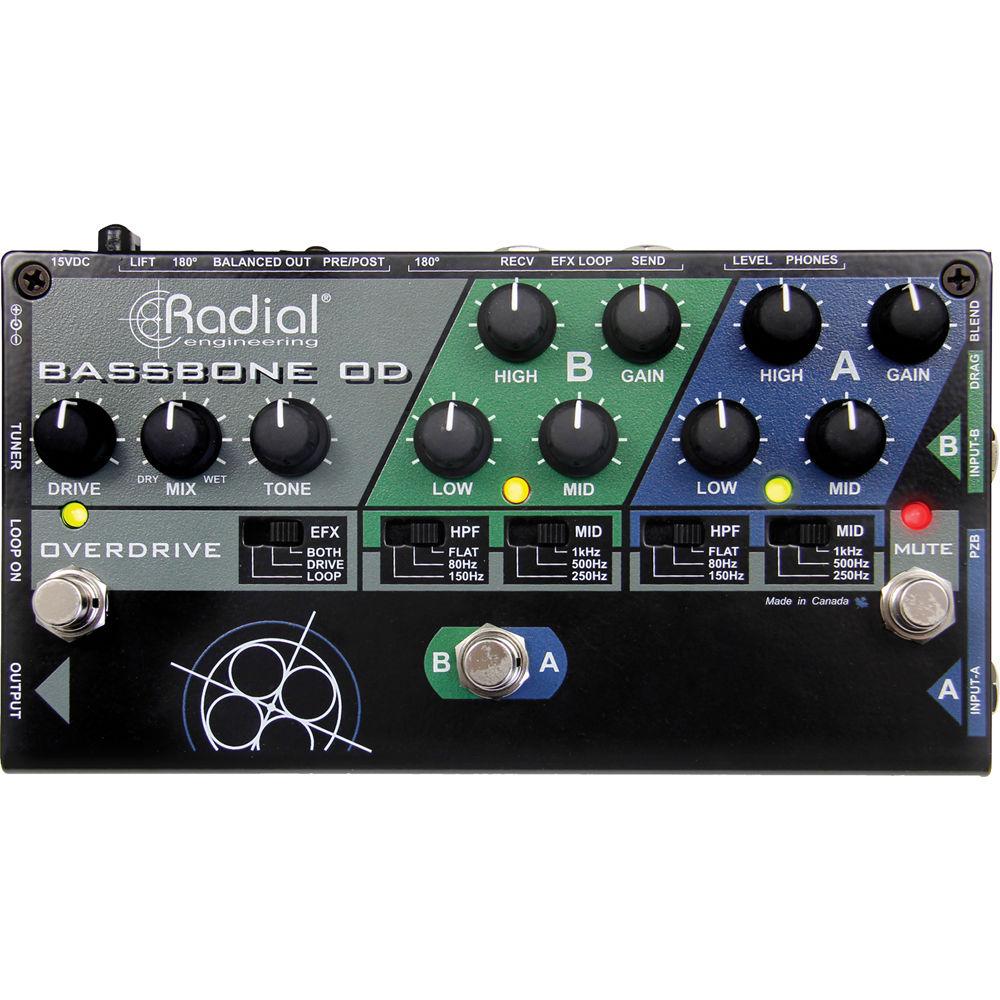

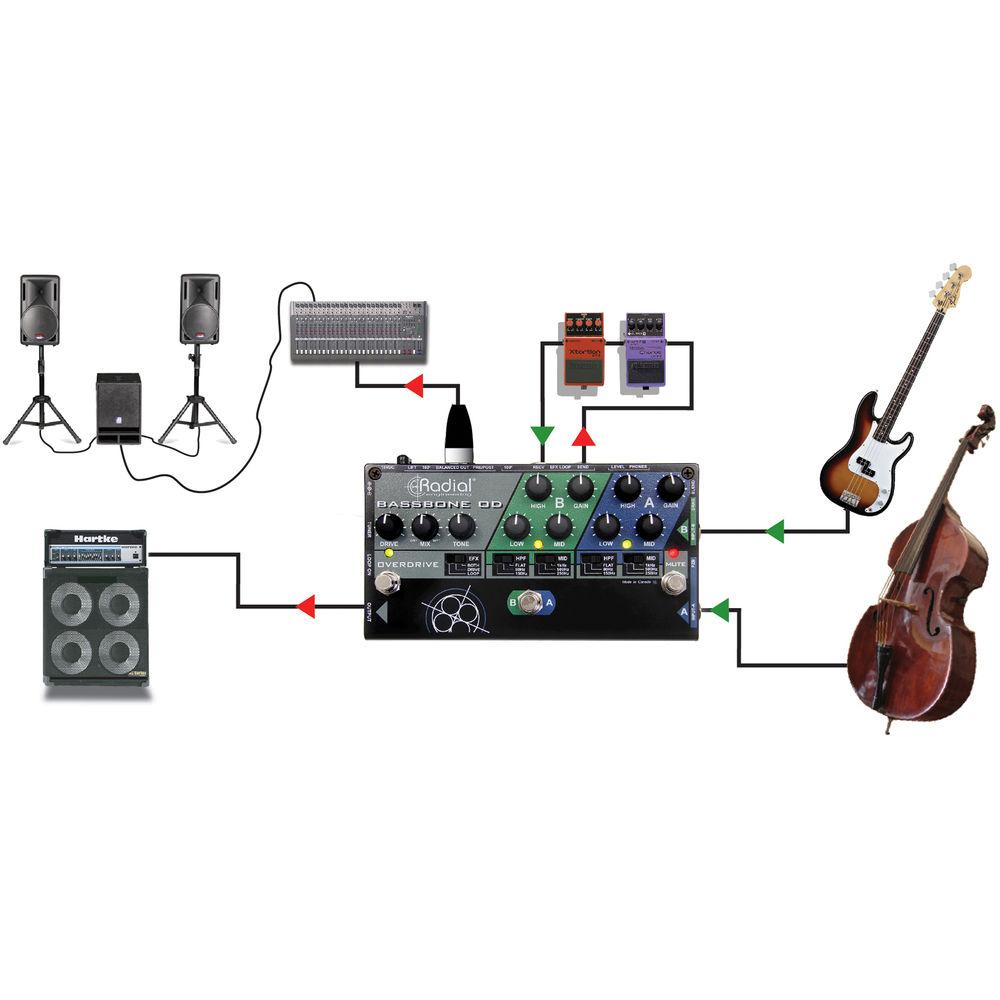

Product description The Bassbone OD from Radial Engineering is a bass preamp with two instrument input channels, each of which is fully equipped with a level control, a passive-interactive EQ, and a low-frequency filter to help eliminate resonance. Channel-A is equipped with a PZB booster switch that increases the sensitivity and load to 10 MOhms to optimize it for use with piezo transducers as commonly used on upright bass. Channel-B is equipped with Drag Control load correction to optimize the tone and feel when using a passive instrument such as a vintage Fender bass. Toggling between channels is done using a footswitch. When using a dual pickup system, both channels may be mixed together by depressing the blend switch. Outputs include a 1/4" instrument level output to feed the artist's on-stage amplifier, plus a balanced low-Z Radial DI box output to feed the PA system. The XLR output can be assigned pre or post effects to suit your preference. A separately buffered tuner output works with the mute footswitch for quiet on-stage tuning.

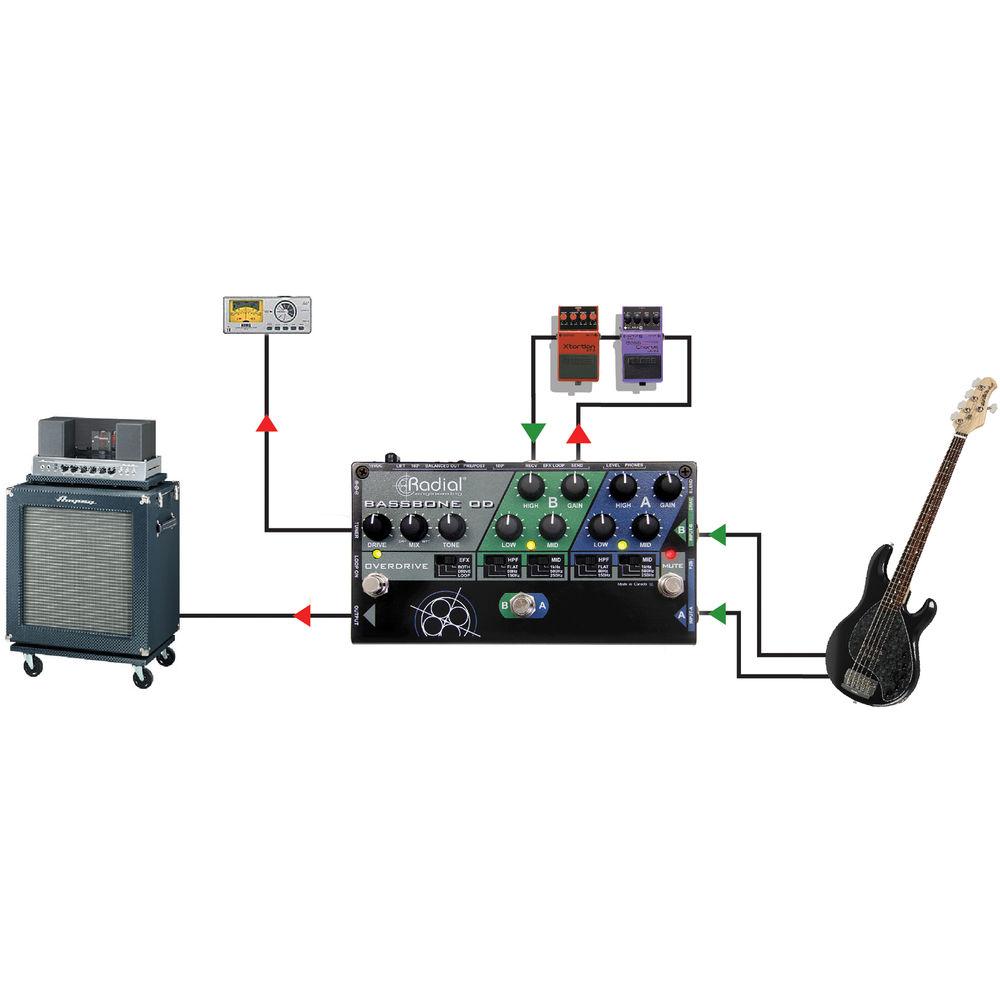

If you use effects, both input channels can share the same pedals by connecting via the built-in send & receive effects loop. This is augmented with an on-board bass overdrive with control over the drive level and tone. The OD footswitch may be assigned to the loop, overdrive, or both. The Bassbone also features a built-in headphone amp with 3.5mm output. - Toggle between any two basses with ease
- Bass overdrive with wet-dry control for extra grit
- Drag control load correction for vintage basses
- PZB booster and 10 meg piezo input for upright
UPC: 676101041169 In the Box Radial Engineering Bassbone OD 2-Channel Bass Preamp Power Adapter Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Bassbone OD 2-Channel Bass Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 7072 Specs | Audio Circuit Type | Discrete class-A FET input with low noise ICs | | Frequency Response | 20 Hz - 18 kHz | | Total Harmonic Distortion | 0.05% @ -15 dBu | | Intermodulation Distortion | 0.2% @ -20 dBu | | Dynamic Range | 85 dB | | Input Impedance | Input A: 220 kOhms / 10 MOhms
Input B: Variable from 22 kOhms to 1.8 MOhms | | Output Impedance | 300 ohms at XLR | | Maximum Input | +7 dBu | | Gain | Unity gain device
Boost Drive: 0 to 25 dB
PZB Boost: +10 dB on channel A | | Output Clip Level | +10 dBu at XLR | | Noise Floor | -100 dB | | Equivalent Input Noise | -92 dBu at XLR | | Audio Connections | 1/4" Output High-Z instrument-level
3.5 mm output Headphone, mono with volume control
XLR output, balanced mic level, AES standard (pin-2 hot) | | Controls | 2 x Gain
2 x Low
2 x Mid
2 x High
1 x Drive
1 x Mix
1 x Tone in OD
1 x Drag | | Switches | 1 x PZB
1 x Blend
1 x FX 180
1 x XLR G/L & 180
1 x LOOP Mode
1 x EFX Mode
2 x HPF
2 x Mid Frequency | | Low-Cut Filter | Flat, 80 Hz and 150 Hz | | Filter Type (Slope) | 6 dB / octave | | Merge Function | Recessed Blend switch mixes ch-1 & ch-2 together | | XLR Configuration | Pin 1 Ground
Pin 2 +
Pin 3 - | | Ground Lift | Lifts pin-1 on the XLR | | Power | +15 VDC / 400 mA (adapter included) | | Construction | 14-gauge steel | | Finish | Powder-coat | | Operating Conditions | Humidity: Dry locations
Temperature: 41 to 104°F (5 to 40°C) | | Dimensions | 8.0 x 4.2 x 2.0" (20.3 x 10.7 x 4.8 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 11.8 x 4.8 x 2.8" |
