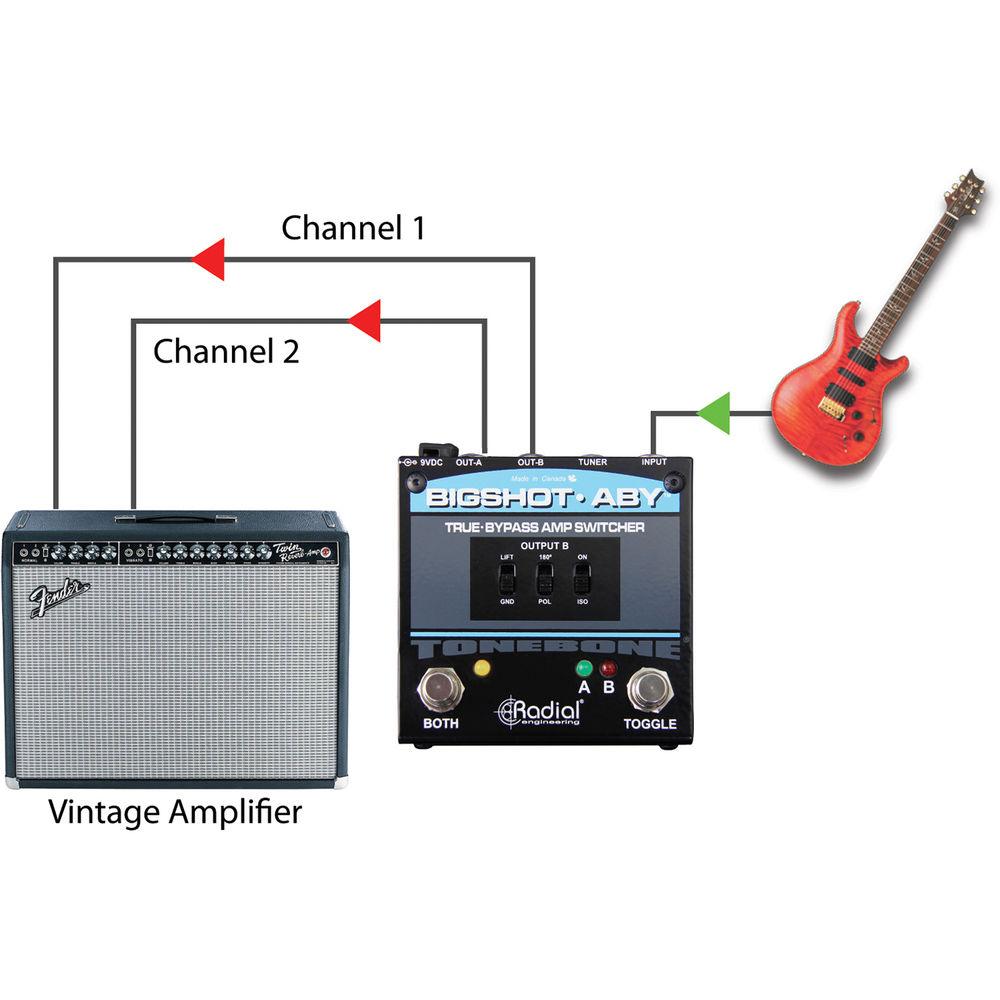

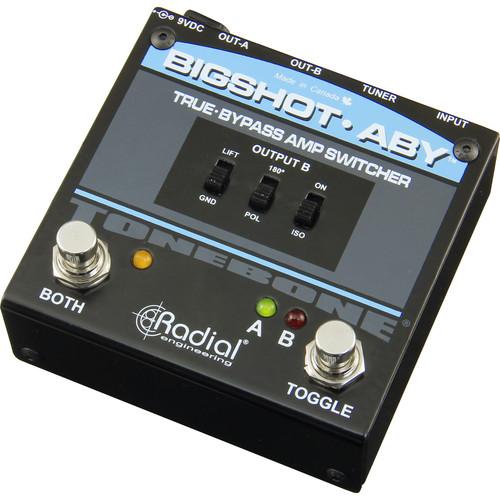

Product description Designed for guitar players, the BigShot from Radial Engineering is a true-bypass ABY switcher that lets you choose between two different output points, such as two guitar amplifiers. The pedal features two footswitches which allow you to toggle between amplifiers or route your signal to both of them simultaneously. Via the pedal's ground-lift switch and on-board isolation transformer, you'll be able to eliminate any hum or buzz sounds that might infect your power, and the pedal's circuitry ensures your tone will remain pristine throughout its pathways and into either resulting amplifier.

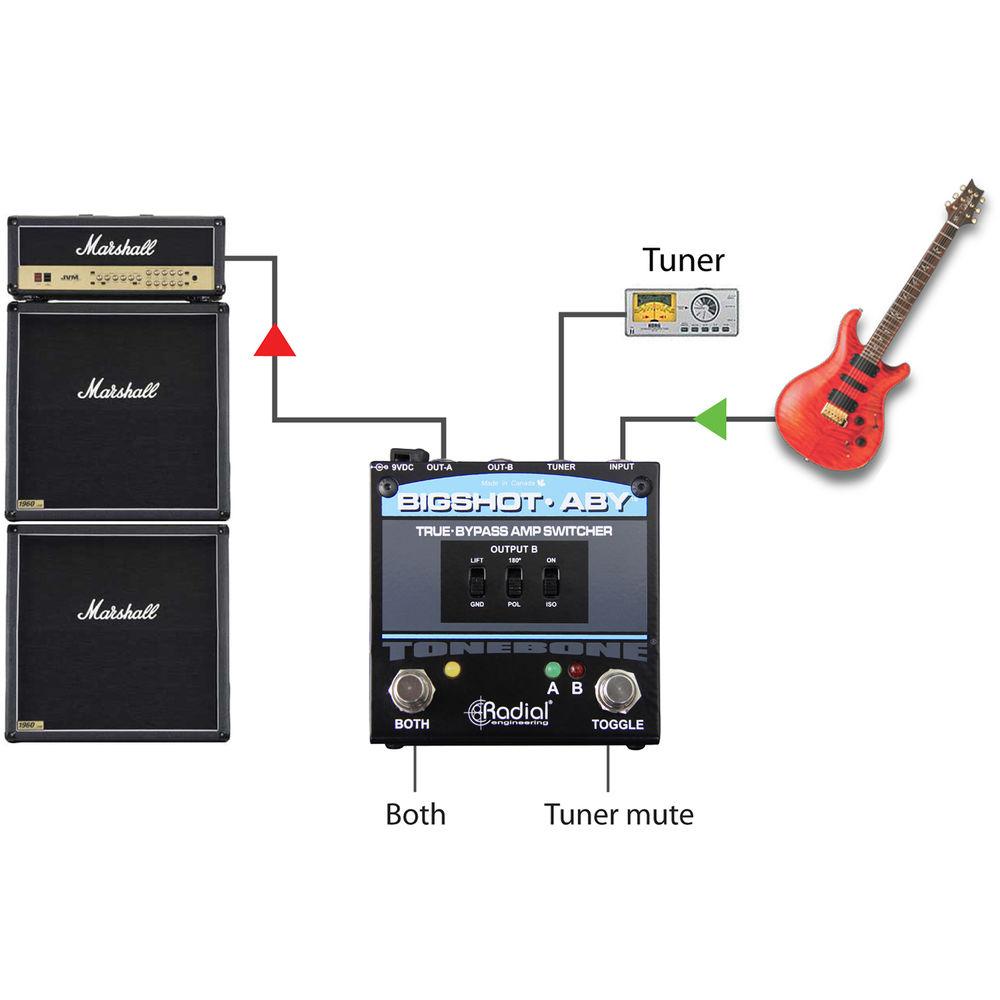

Another useful feature is the 180° polarity switch, which helps calibrate any differences in phase between both of your amplifiers, ensuring your low end sounds as massive as it ought to be. This pedal is passive, meaning that without power, its signal paths will work, completely unaffected. Plug in a 9V battery or power it up from your pedalboard, and the LEDs will illuminate to indicate your outputs, allowing you to make crucial amp-switching decisions on a darkened stage. This pedal also provides a dedicated tuner output which is always on, allowing you to constantly monitor your tuning and keep any such module out of your signal chain. - Polarity Reverse

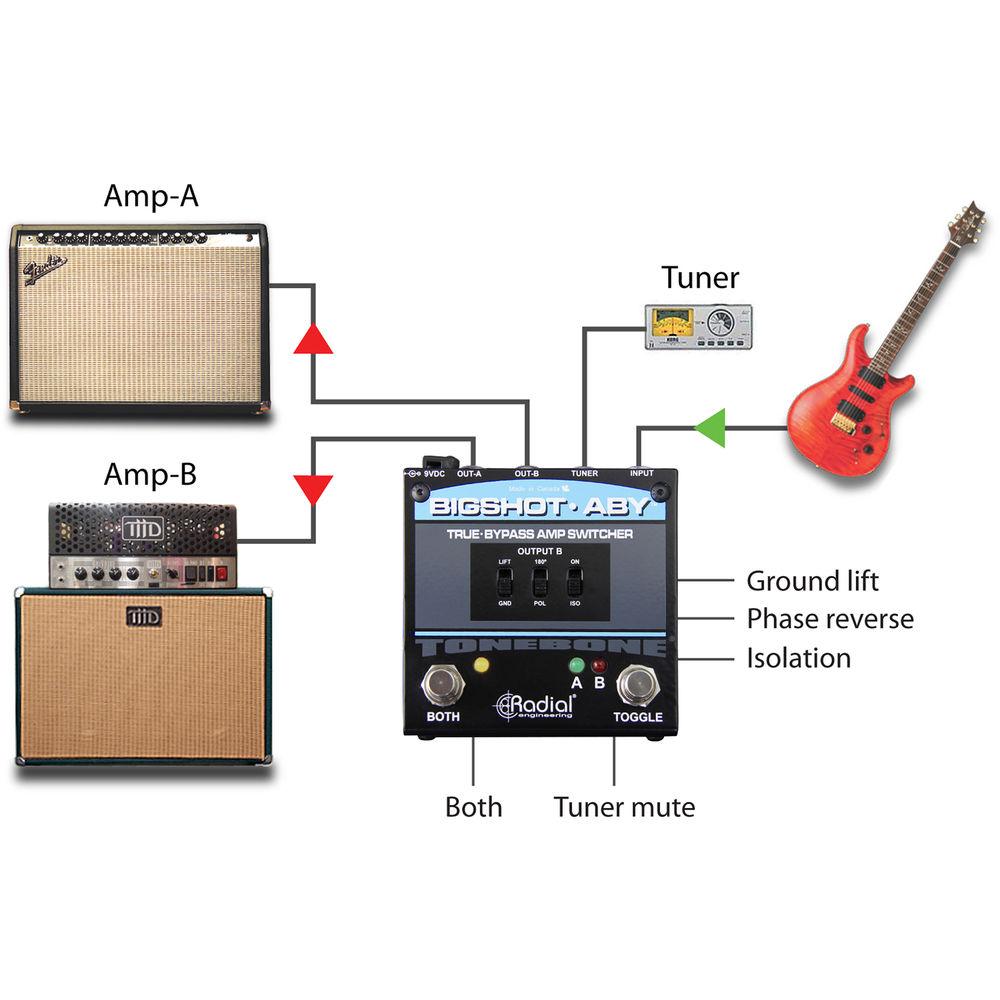

- This switch reverses the phase on output-B, allowing you to correct for phasing issues between amps. This switch only works with the ISO transformer is engaged
- Isolation Transformer Switch
- When engaged, this switch will help eliminate any hum and buzz on output-B

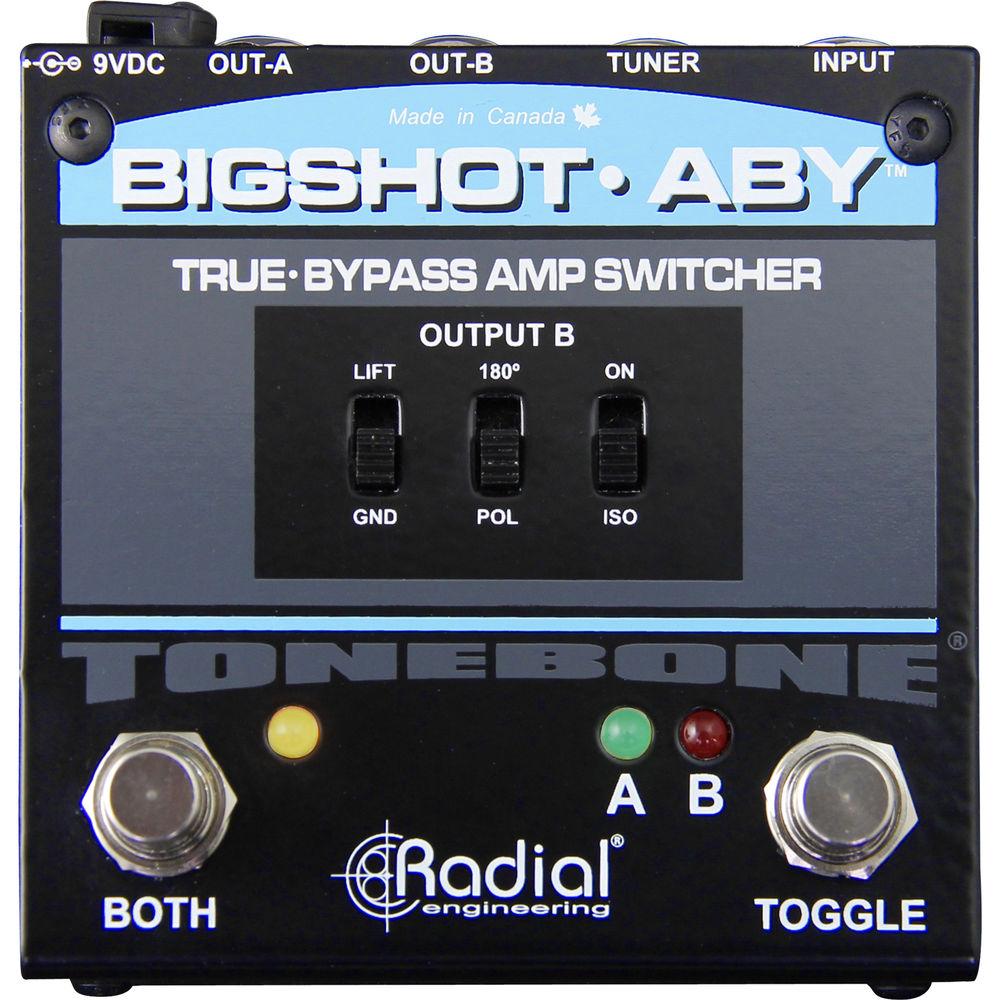

- Both and Toggle Footswitches
- Two footswitches help in triggering output signal. Toggle selects between output-A and output-B, while Both allows you to have both outputs on at the same time. Three separate LEDs will let you know, visually, if you're outputting A (green), B (red), or both at the same time (yellow)

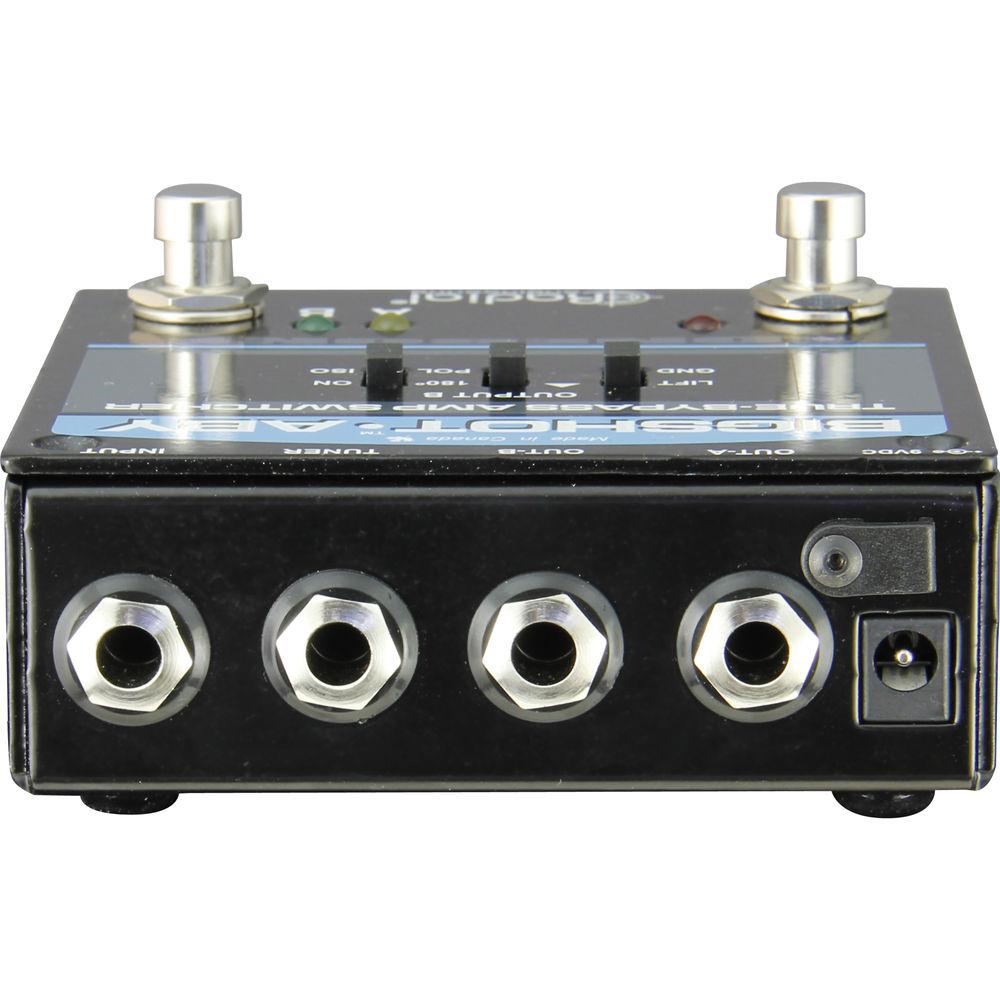

- 1/4" Outputs
- This ABY switcher provides three 1/4" outputs—two for connection to your amplifiers, and one for a dedicated tuner
- Durable Encasement
- Glass-filled nylon housing provides isolation and helps reduce noise. Nickel-silver contacts won't tarnish. 14-gauge steel prevents the circuit board from being torqued. These are some of the BigShot's durable aspects
UPC: 676101044283 In the Box Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering BigShot ABY True-Bypass Amplifier Switcher with Tuner Out and LED Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 7210 00 Specs | | | Circuit Type | Passive, true bypass | | Frequency Response | 20 Hz to 20 kHz | | Gain | -0.3 dB | | Phase Response | <1° | | Switching | Passive | | | | Outputs | 1 x 1/4" direct output, output-A
1 x 1/4" switchable transformer-isolated or direct output, output-B
1 x 1/4" tuner output | | LED Indicator | Large 3 mm OD ultra-bright LEDs | | Ground Lift | Lifts ground at output-B | | Polarity Reverse | 180° (phase) reverse at output-B | | Transformer Isolation | Switchable isolation transformer on output-B | | | | Power Supply | 9 VDC, center pole negative | | Construction | 14-gauge steel | | Finish | Powder coat | | Operating Conditions | For use in dry locations at temperatures of 41 to 104°F / 5 to 40°C | | Dimensions (W x L x H) | 3.6 x 3.9 x 2.0" / 9.1 x 9.9 x 5.1 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 6.4 x 4.25 x 3.0" |
