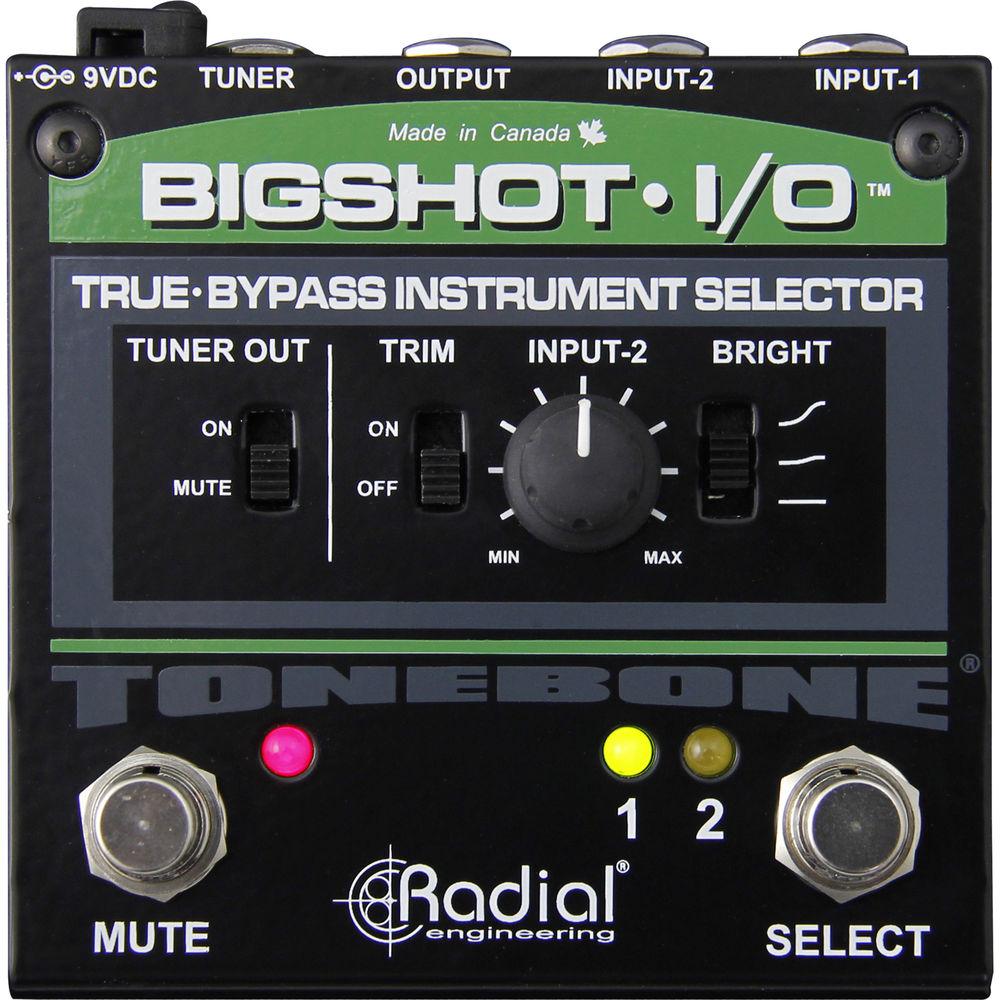

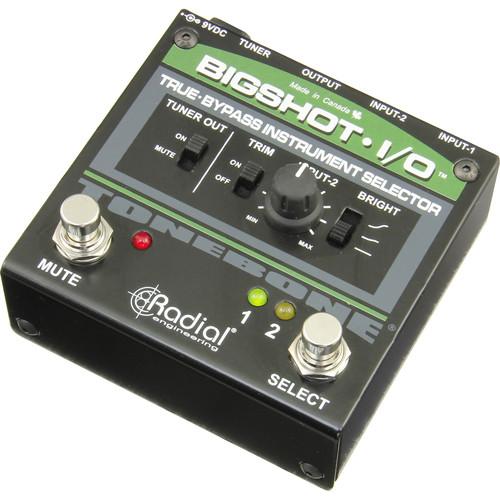

Product description The BigShot i/o Instrument Selector from Radial Engineering is a passive true-bypass signal switcher that allows you to switch back and forth between two instruments, match their respective volumes, or mute your entire rig.
Built like a tank from 14-gauge steel with heavy-duty footswitches, the BigShot i/o features a separate output for your tuner, removing it from your signal path while giving instant access, even while the BigShot is muted. Differences in signal between two instruments can be equalized with the Trim switch and Input-2 level control dial. Additionally, a 3-way Bright switch offers load compensation for longer cable runs. With its passive circuit, the BigShot i/o does not require any powering, other than to illuminate the LEDs. So when using the pedal without using a power supply your audio signal will pass with all switching and controls functioning properly. A 9 VDC power supply is required for operation with the LEDs. -
- Toggle between two instruments with a single foot stomp
- Adjustable volume control to match instrument levels
- Separate tuner output and mute switch with LEDs
- Load compensation 'Bright switch' for long cables
UPC: 676101044269 In the Box Radial Engineering BigShot i/o True-Bypass Instrument Selector with LEDs Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering BigShot i o True-Bypass Instrument Selector with LEDs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

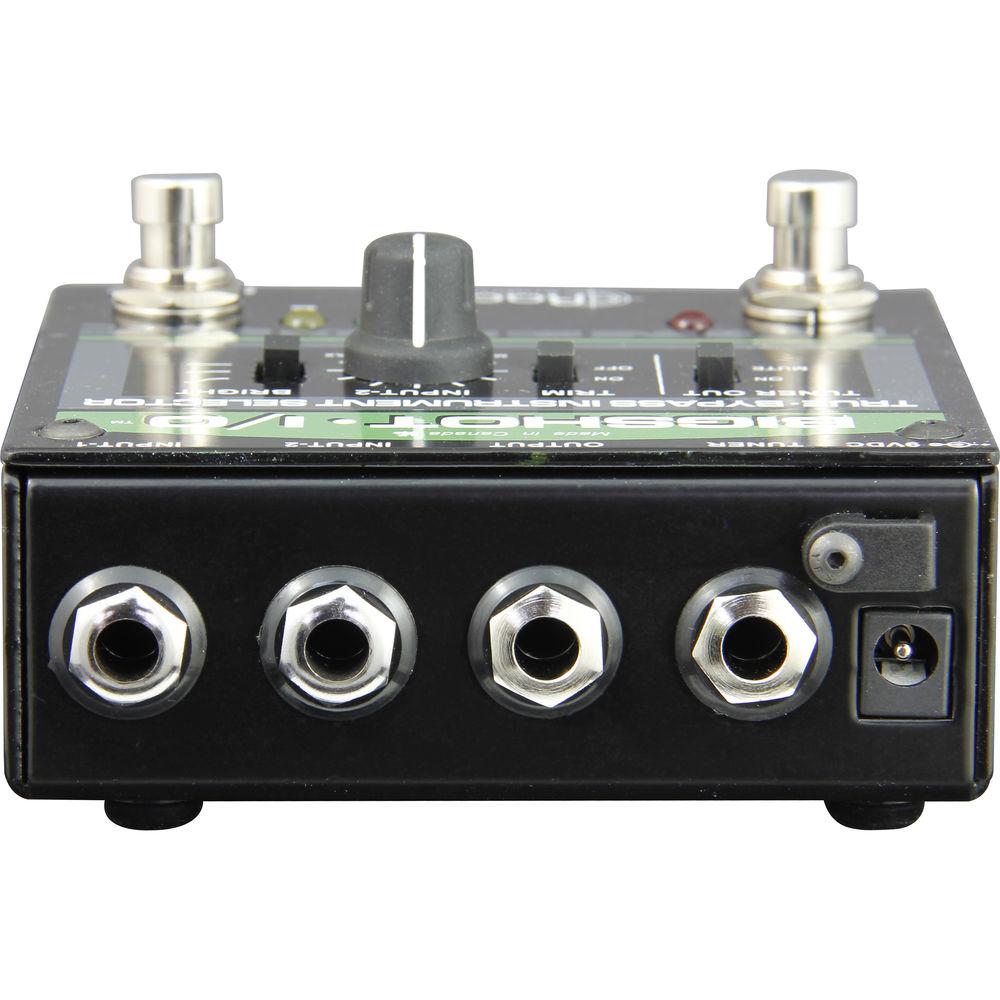

Technical parametersRadial Engineering R800 7212 00 Specs | Inputs | 2 x 1/4" / 6.35 mm Input jacks | | Outputs | 1 x 1/4" / 6.35 mm Output jack
1 x 1/4" / 6.35 mm Tuner Out jack | | Circuit Type | Passive, true bypass | | Frequency Response | 20 Hz to 20 kHz | | Gain | -0.3 dB | | Phase Response | <1° | | Trim/Gain Range | -25 dB | | Controls | Tuner On/Off switch
Input 2 Trim switch
Input 2 Bright switch
Input 2 Level knob
Mute footswitch
Input Select toggle footswitch | | Power Supply | 9 VDC, center pole negative | | Construction | 14 AWG steel | | Dimensions (WxDxH) | 3.6 x 3.9 x 2.0" / 92 x 99 x 51 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.4 x 4.2 x 3.0" |
