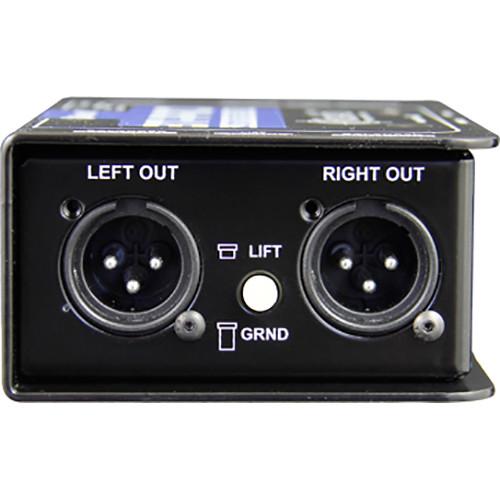

User Manual for Radial Engineering BT-Pro Bluetooth Direct Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering BT-Pro Bluetooth Direct Box
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering BT-Pro Bluetooth Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

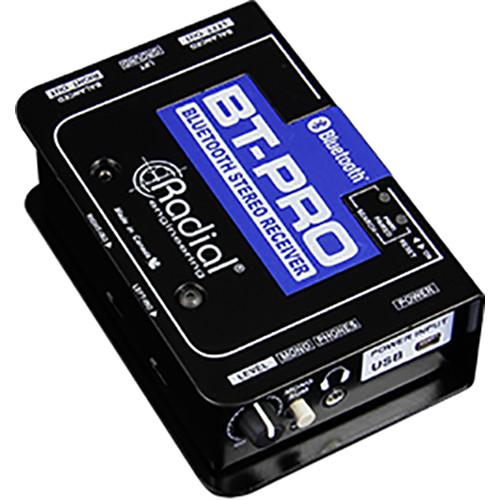

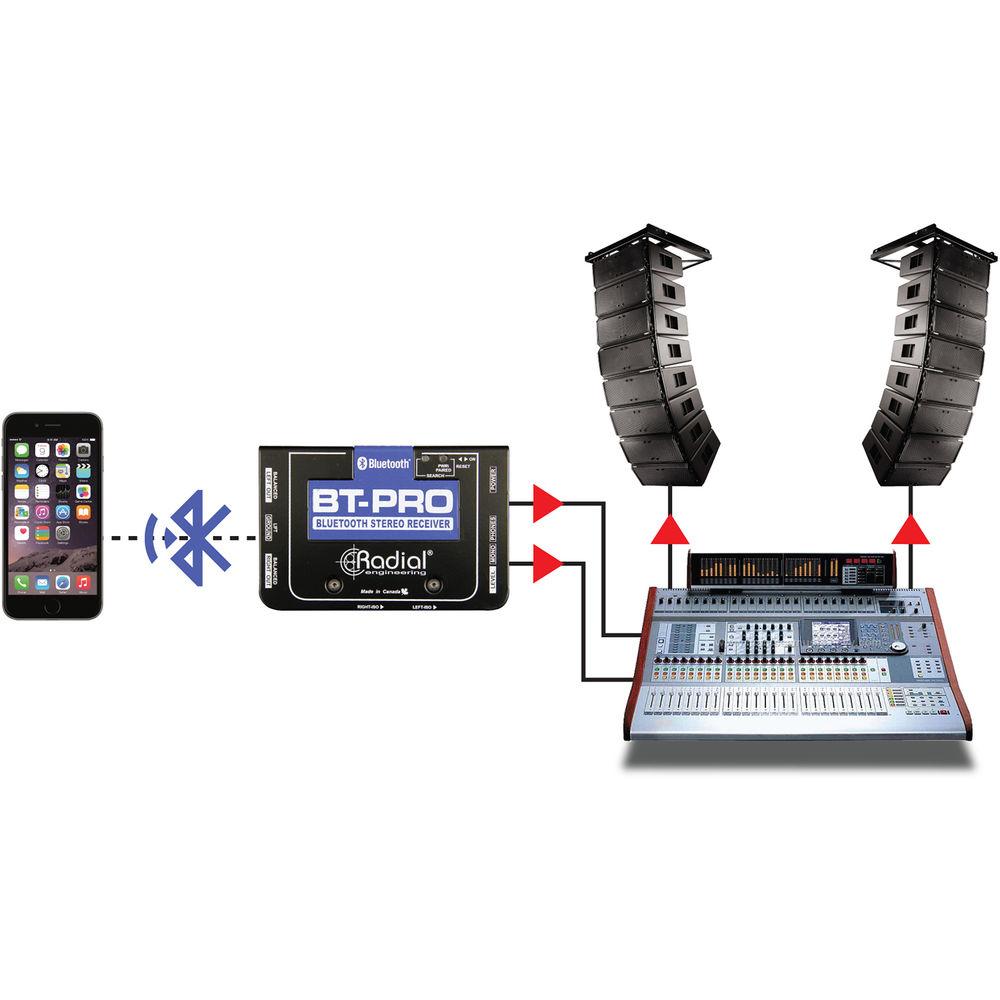

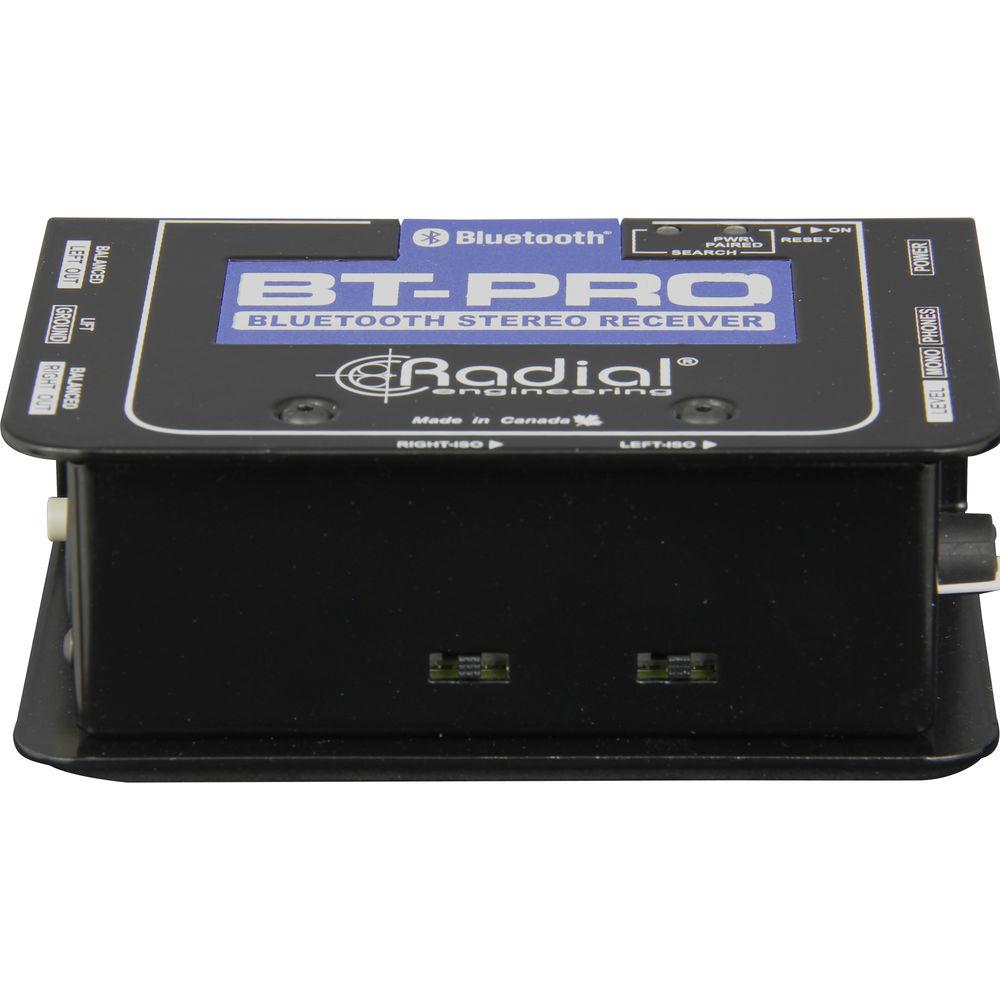

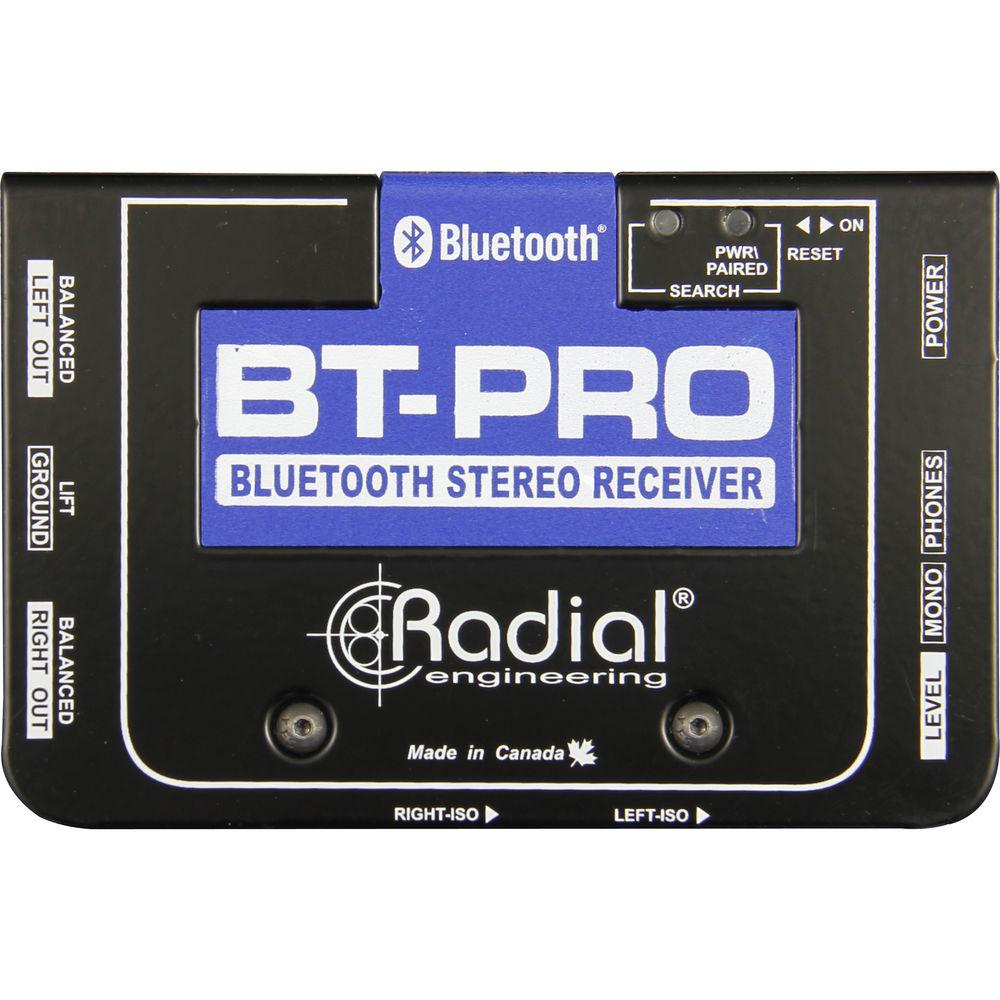

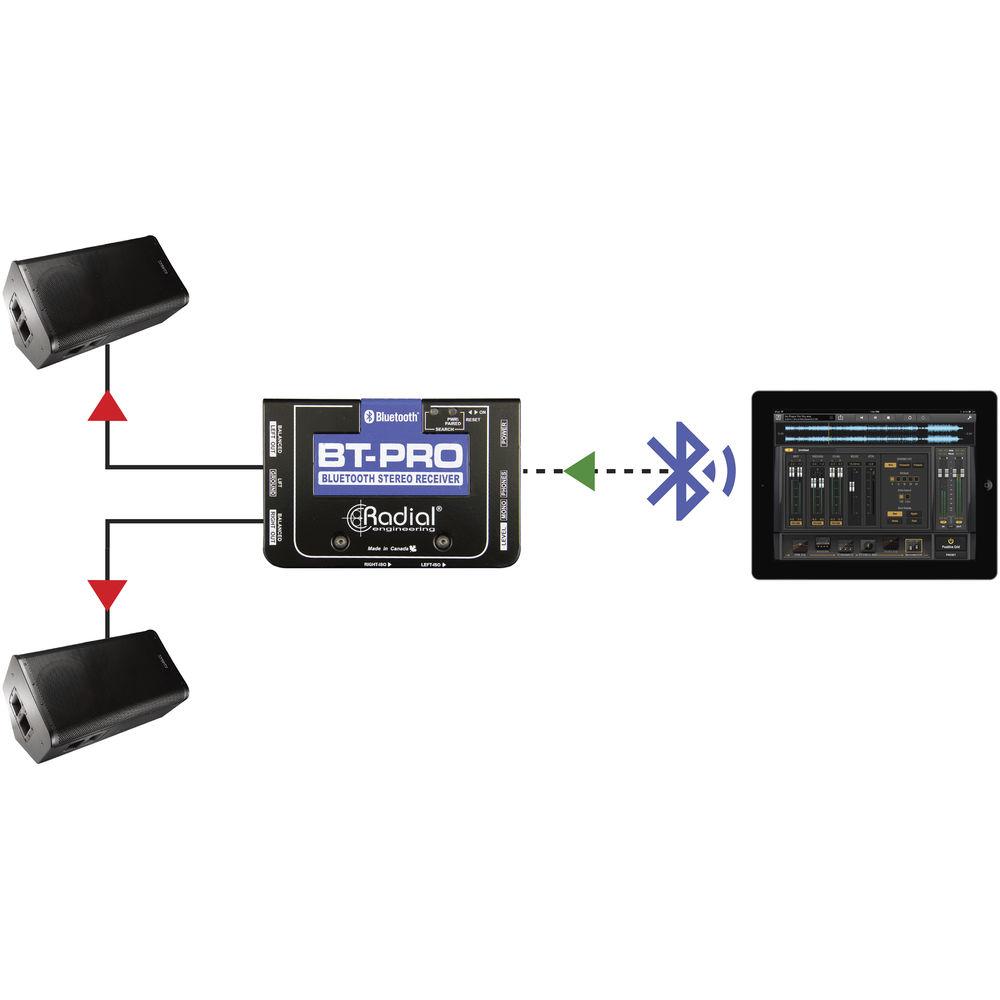

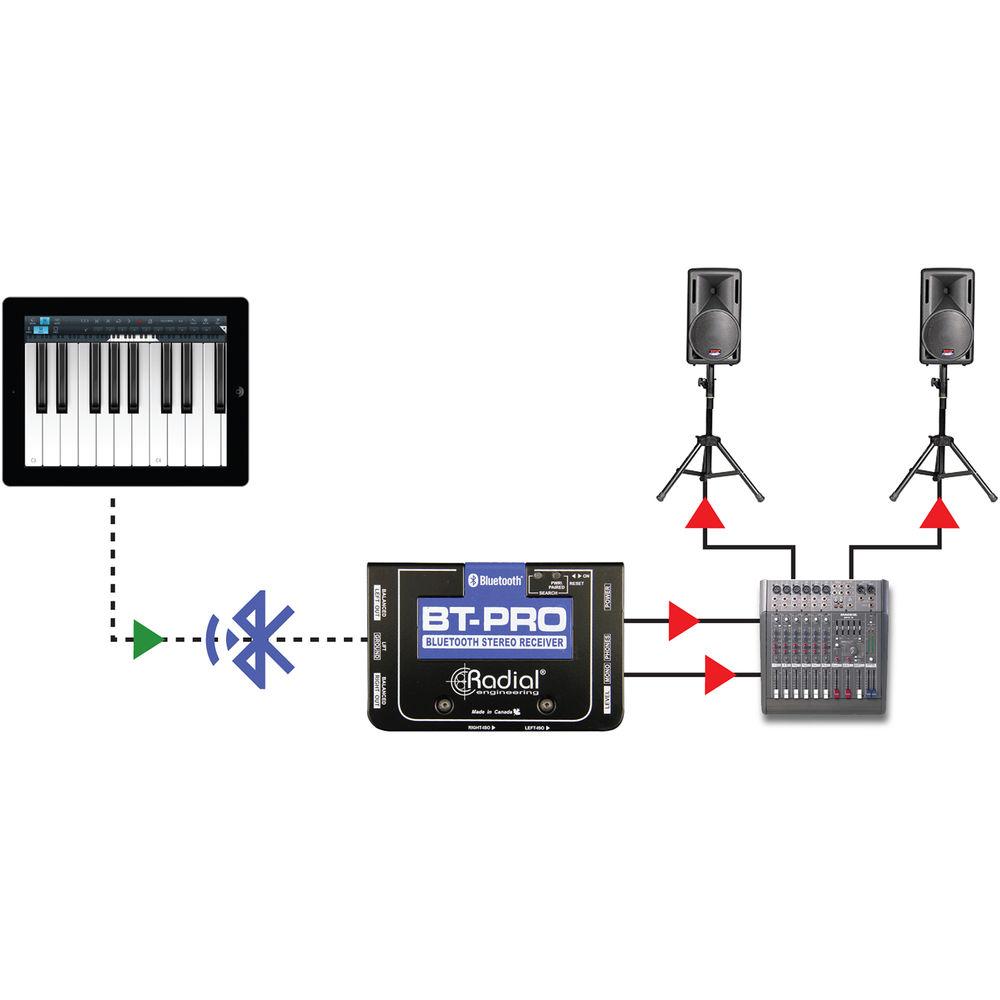

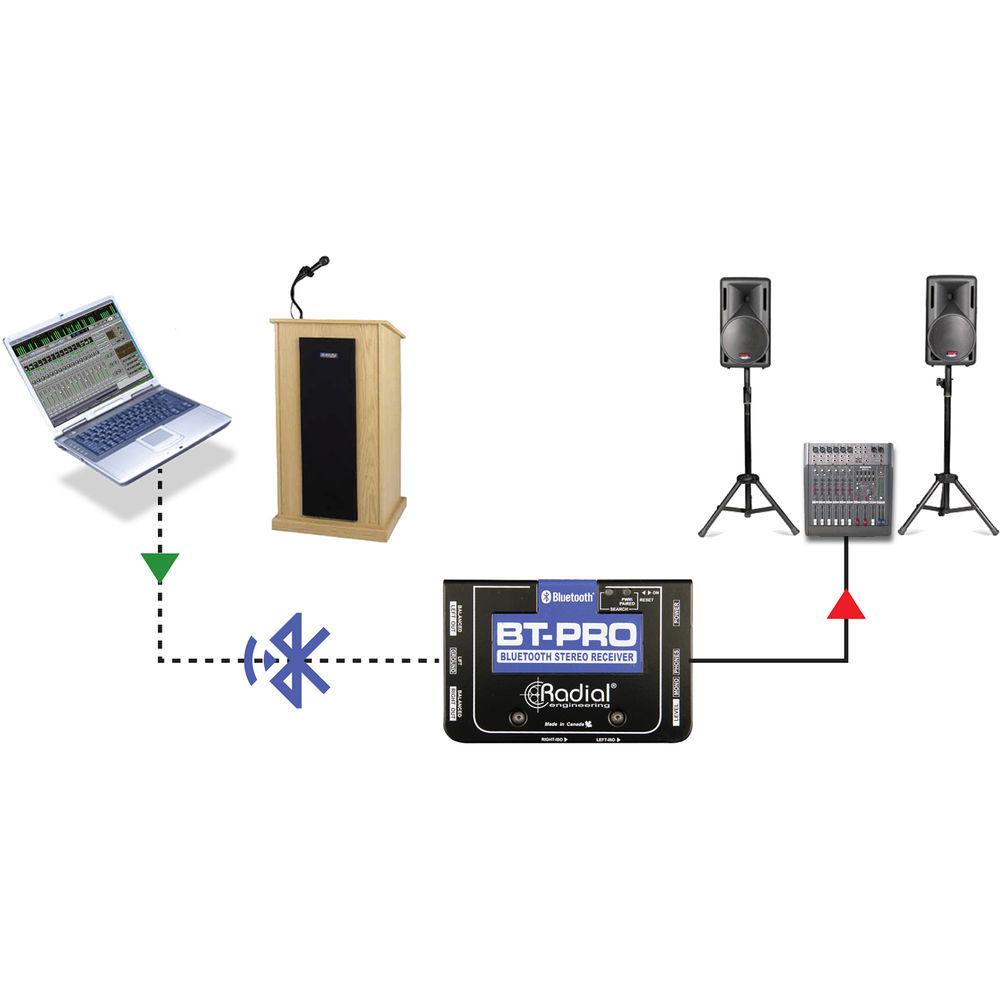

Product description Designed by Radial Engineering to capture wireless transmission from Bluetooth devices, the BT-Pro converts Bluetooth signal to a balanced audio path for use in PA or recording systems. Using the Bluetooth 2.0 EDR standard, this device employs a 16-bit wireless compressed format which allows the source-device to determine the actual bit-rate. Then, the BT-Pro converts the transmission to a stereo analog signal whose output level can be manipulated and whose stereo-image can be summed from the device itself. - Noise & Hum Eliminators
- Isolation transformers and a ground-lift switch can be utilized to mitigate external noise, hum, and buzz
- Long Range
- The BT-Pro offers a range of 40'
- Buss-Powered
- The BT-Pro is powered by an external 5V supply via mini-USB port, and thus, can be powered from a laptop or USB hub
- Headphone Amp

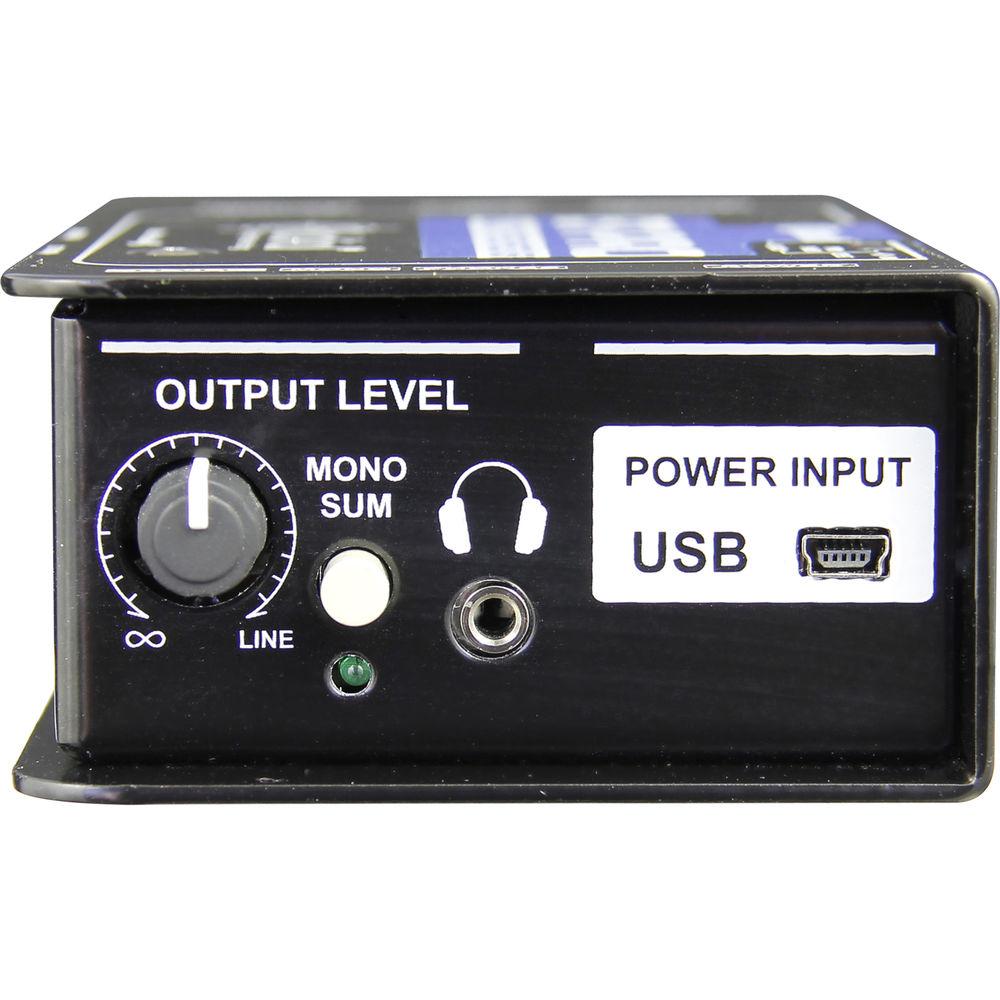

- A built-in headphone amp with a 3.5mm stereo output is provided for trouble-shooting and other uses
UPC: 676101044153 In the Box Radial Engineering BT-Pro Bluetooth Direct Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering BT-Pro Bluetooth Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1055 Specs | | | Bluetooth | 2.0 with EDR | | Bluetooth Range | 40.0' / 12.2 m | | Audio Circuit Type | Bluetooth A2DP transceiver with audio line drive | | Bluetooth Compatibility | All Bluetooth A2DP compliant devices | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 96 dB | | S/N | 96 dB | | Maximum Gain | +8 dBu (source-file dependent) | | Harmonic Distortion | 0.01% | | Stereo Separation | 75 dBu | | Output Impedance | 300 Ohms nominal | | | | Audio Output | 2 x XLR stereo balanced, mic level | | Headphone Output | 1/8" / 3.5 mm TRS | | Level Control | Variable, works on headphone and XLR | | Transformer Isolation | Independent for each channel | | Mono / Dual | Mono switch sums left and right channels | | Ground Lift | Lifts pin 1 on both XLR outputs | | | | Finish | Powder coat | | FCC Compliance | Complies with section 15 of the FCC Rules | | Temperature & Humidity | For use in dry locations only between 41°F and 104°F (5°C and 40°C) | | Power | USB-Mini connector (power only) | | Dimensions | 3.3 x 5.0 x 2" (84 x 127 x 48 mm) | | Weight | 1.5 lb (680 g) | | | | Package Weight | 1.96 lb | | Box Dimensions (LxWxH) | 11.8 x 5.0 x 2.7" |
