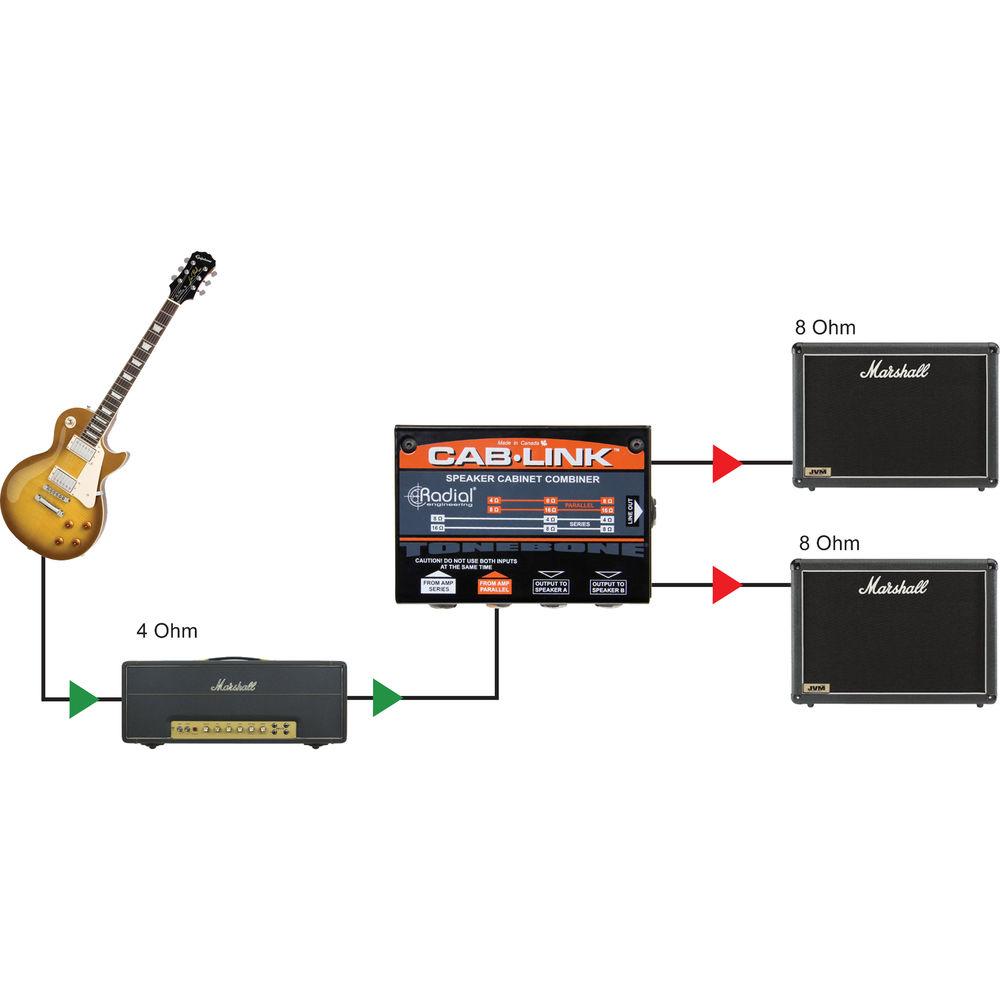

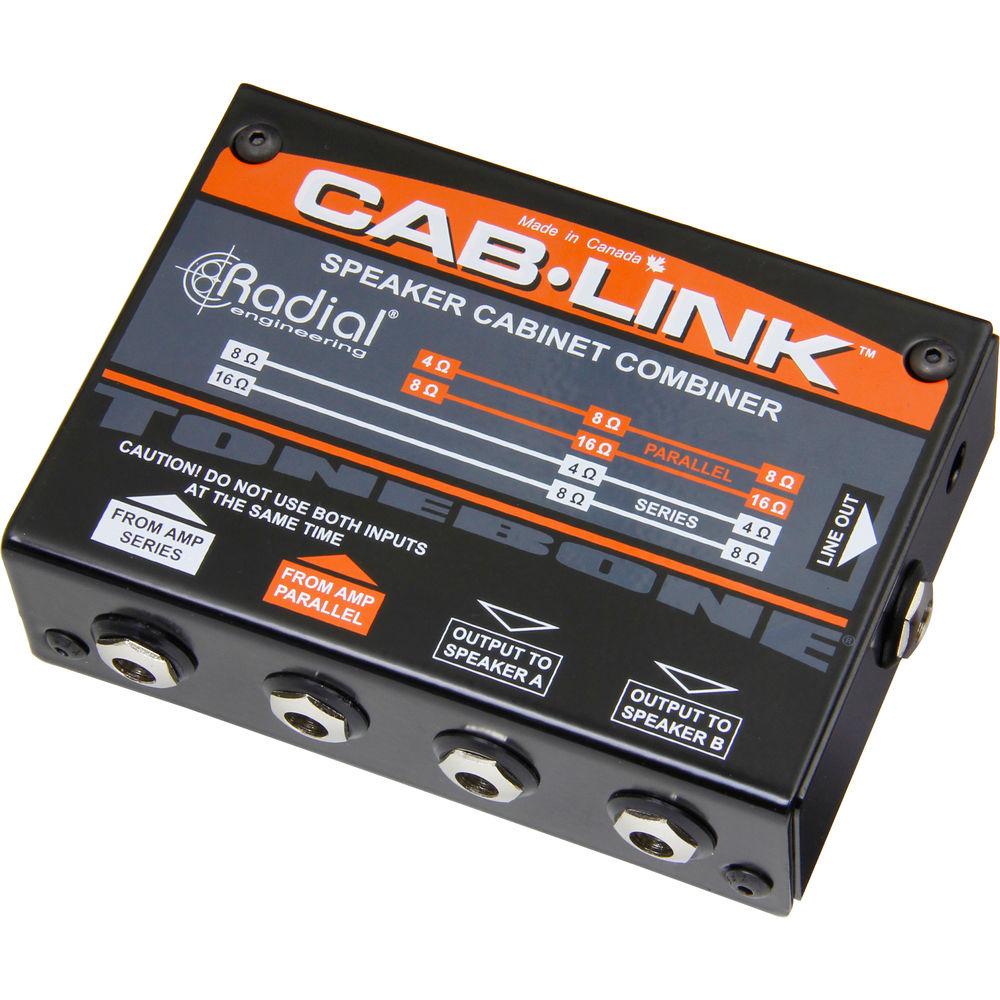

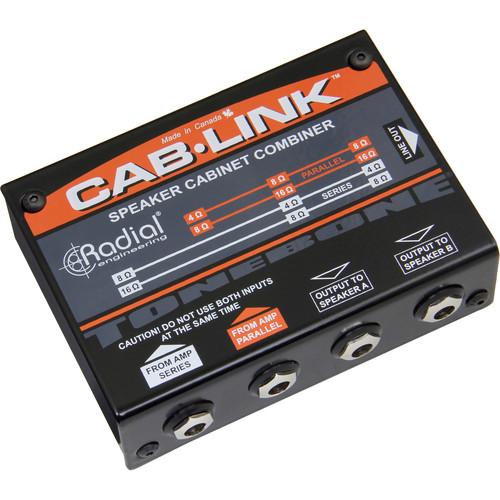

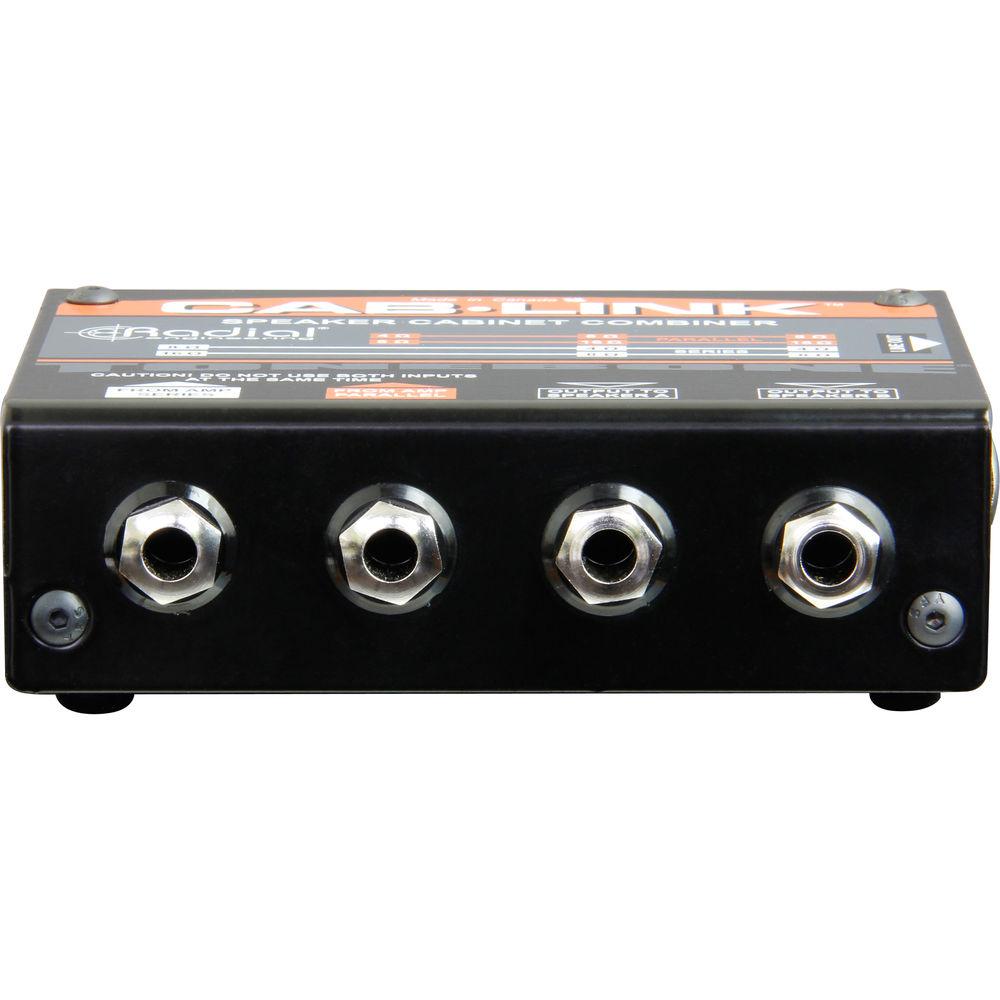

Product description The Radial Cab-Link from is a compact signal router designed to allow one amp head to feed two speaker cabinets in series or parallel. Intended for guitarists and bassists in live and studio productions, the Cab-Link is passive and requires no power source.A top-mounted impedance guide indicates which of the two 1/4” inputs should be used, based upon the Ohm rating of the source head. Once a speaker-level signal from an amplifier head has been connected to the correct input, it will be available at the two 1/4” speaker-level outputs. Connect those to two different speaker cabinets for expanded tonal options.The 1/4” line-level output features a trim control and allows for a dedicated connection to a recording device, stompbox, or another amplifier. The Cab-Link’s 14-gauge steel enclosure provides sturdiness and durability. -
- Connect one amp head to two cabinets
- Configure in series or parallel
- Passive design requires no power

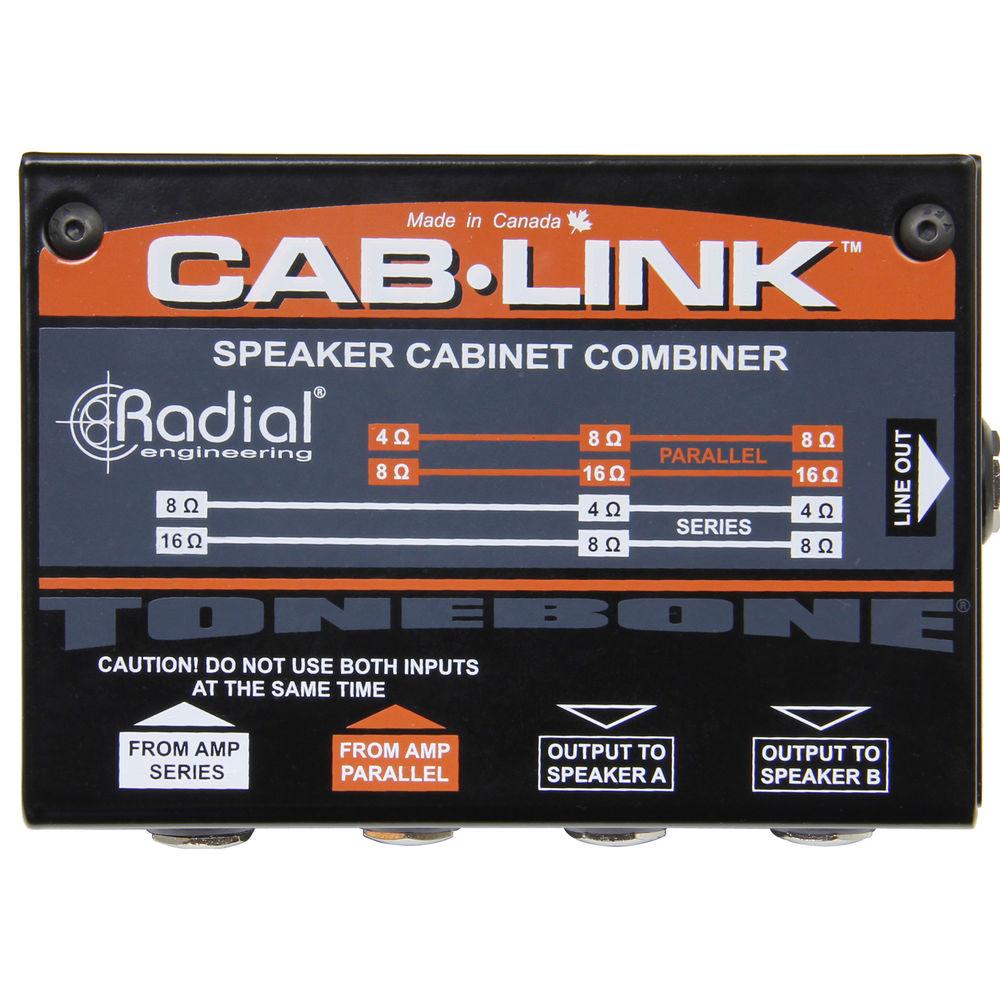

- Top-mounted impedance guide shows which input to use
- Series circuit supports inputs at 4 and 8 Ohms
- Parallel circuit supports inputs at 8 or 16 Ohms

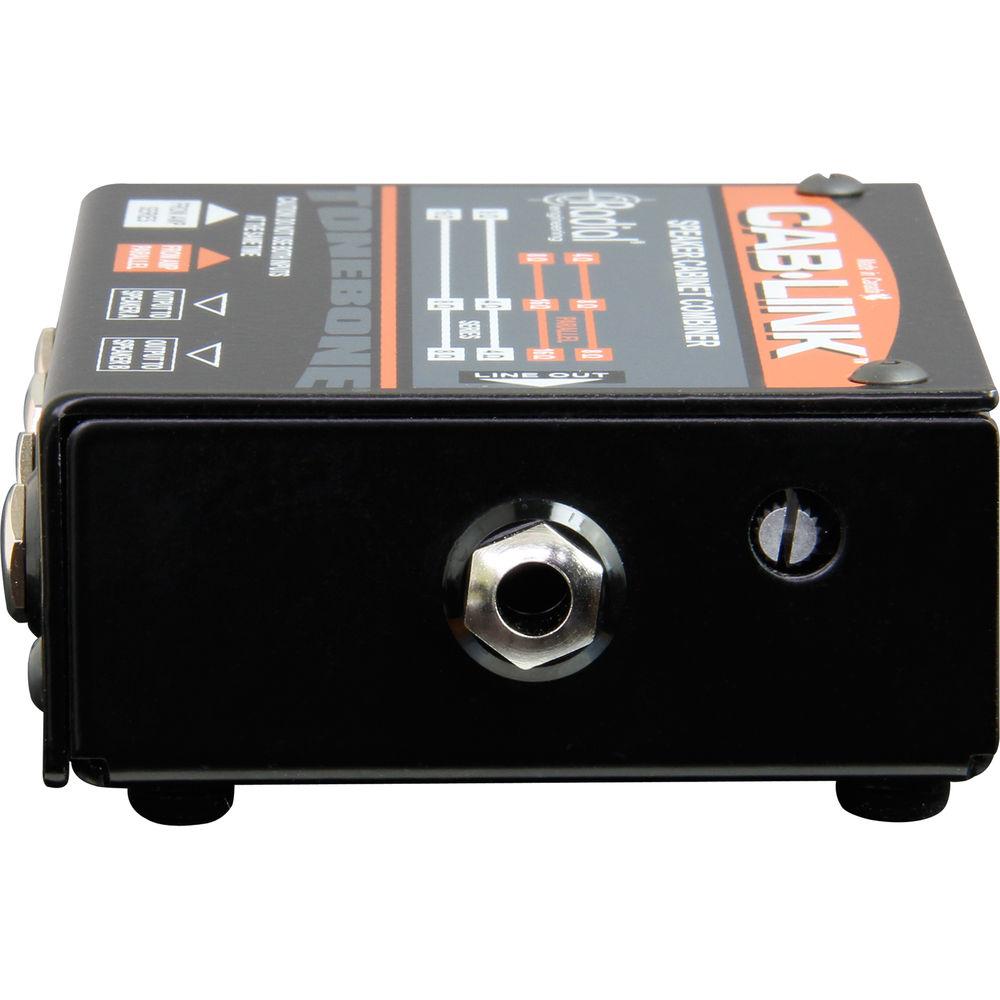

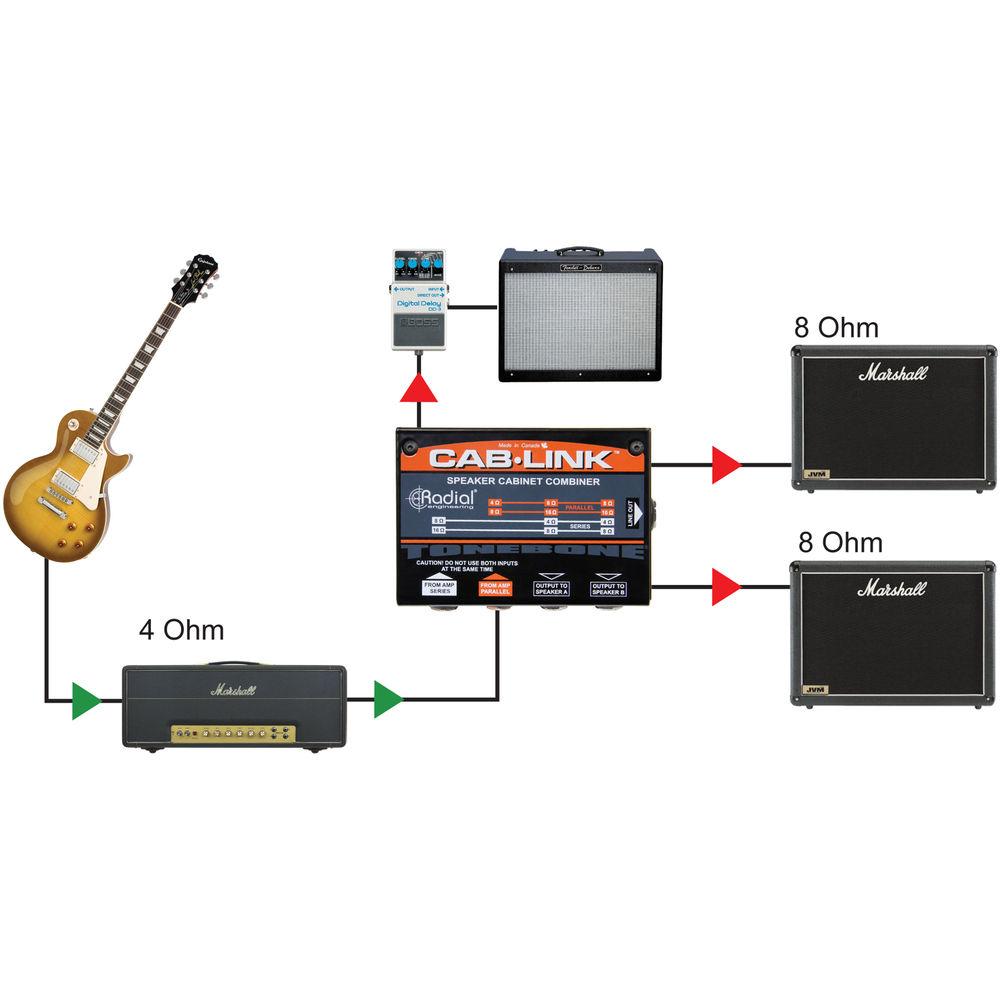

- Line output for connection to another amp or pedal
UPC: 676101044603 In the Box Radial Engineering Cab-Link Passive Speaker Cabinet Splitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Cab-Link Passive Speaker Cabinet Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 7088 Specs | Inputs | 2 x 1/4" (speaker level) | | Outputs | 2 x 1/4" (speaker level)
1 x 1/4" (line level) | | Controls and Indicators | Trim | | Maximum Power Rating | 400 W | | Power Supply | No power supply required | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Construction Material | 14-gauge steel | | Finish | Powder coat | | Dimensions (L x W x H) | 4.6 x 3.3 x 1.4" / 11.7 x 8.4 x 3.6 cm | | Weight | 1.2 lb / 0.5 kg |
