User Manual for Radial Engineering Catapult Mini RX 4-Channel Cat 5 Audio Snake Click to enlarge the picture
Contents of the user manual for the Radial Engineering Catapult Mini RX 4-Channel
- Product category: Video Extenders & Repeaters Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Video Extenders & Repeaters
 |
User manual for the Radial Engineering Catapult Mini RX 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

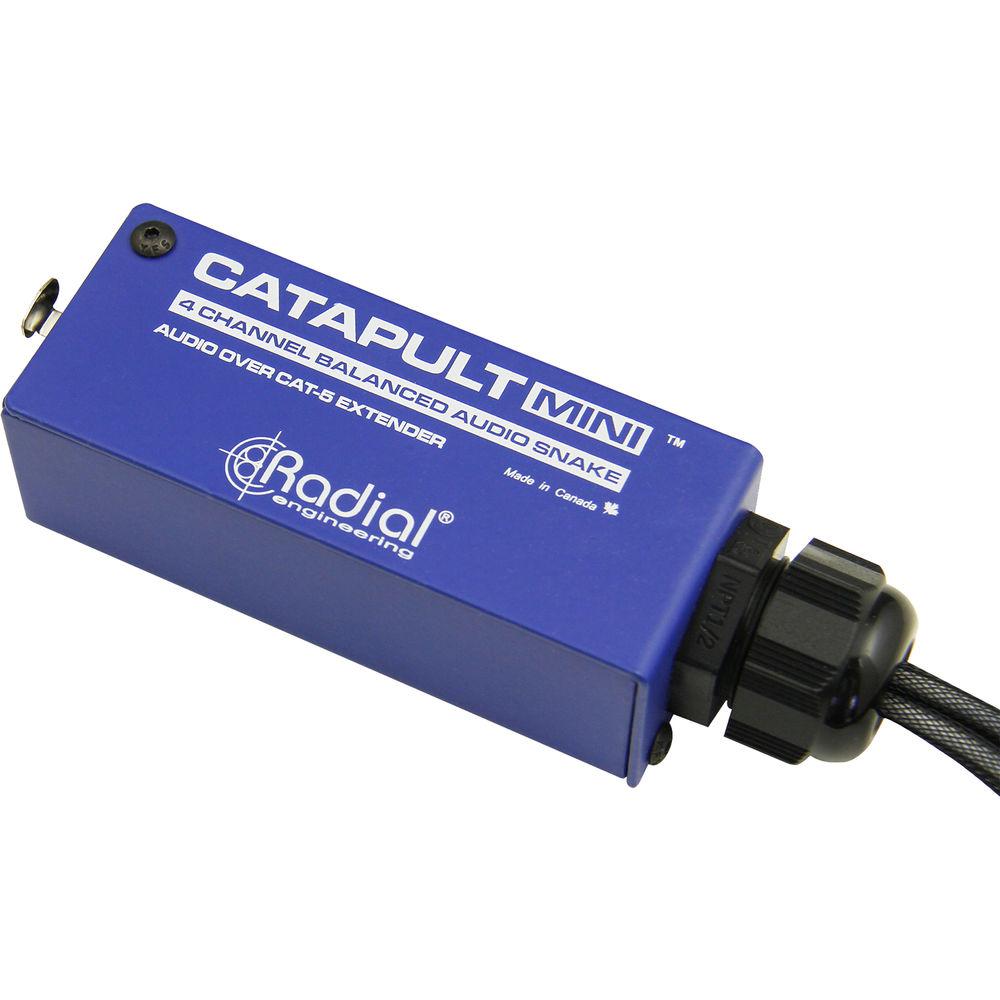

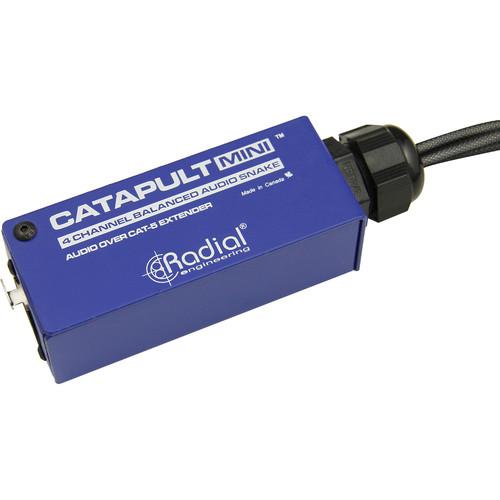

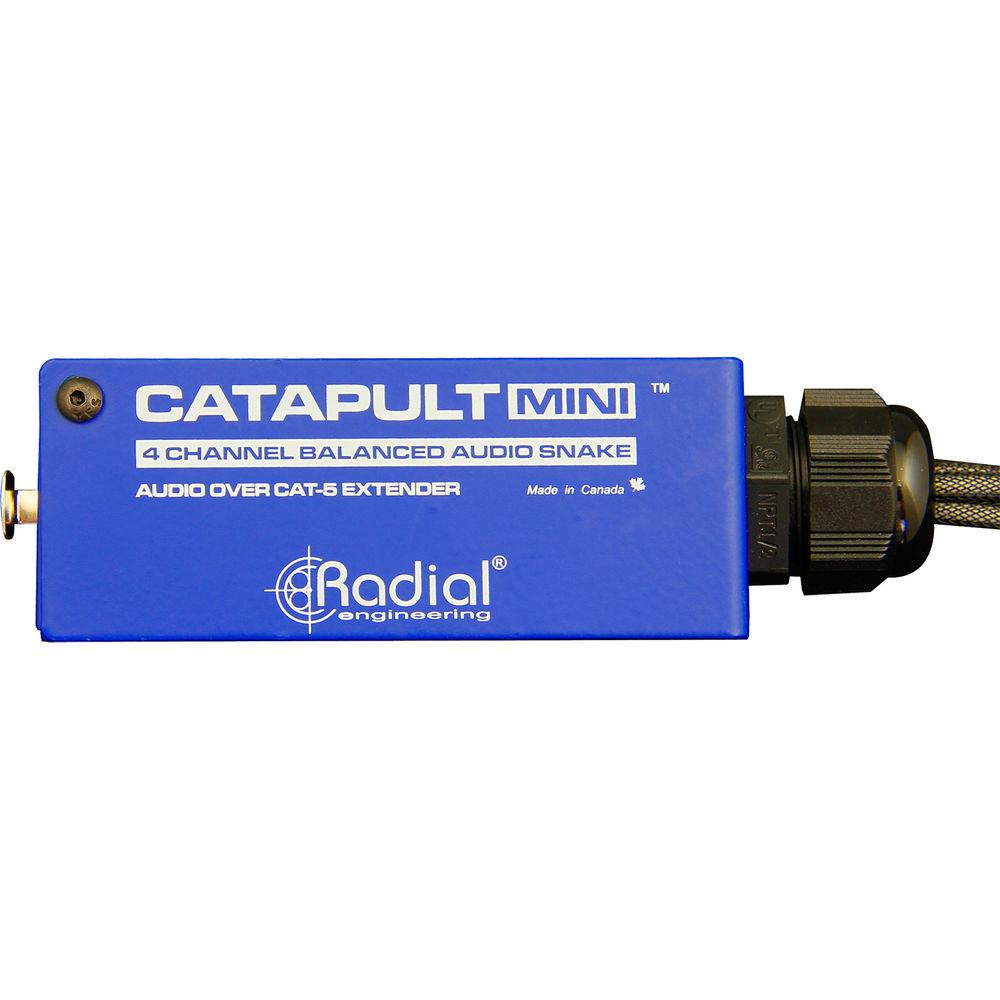

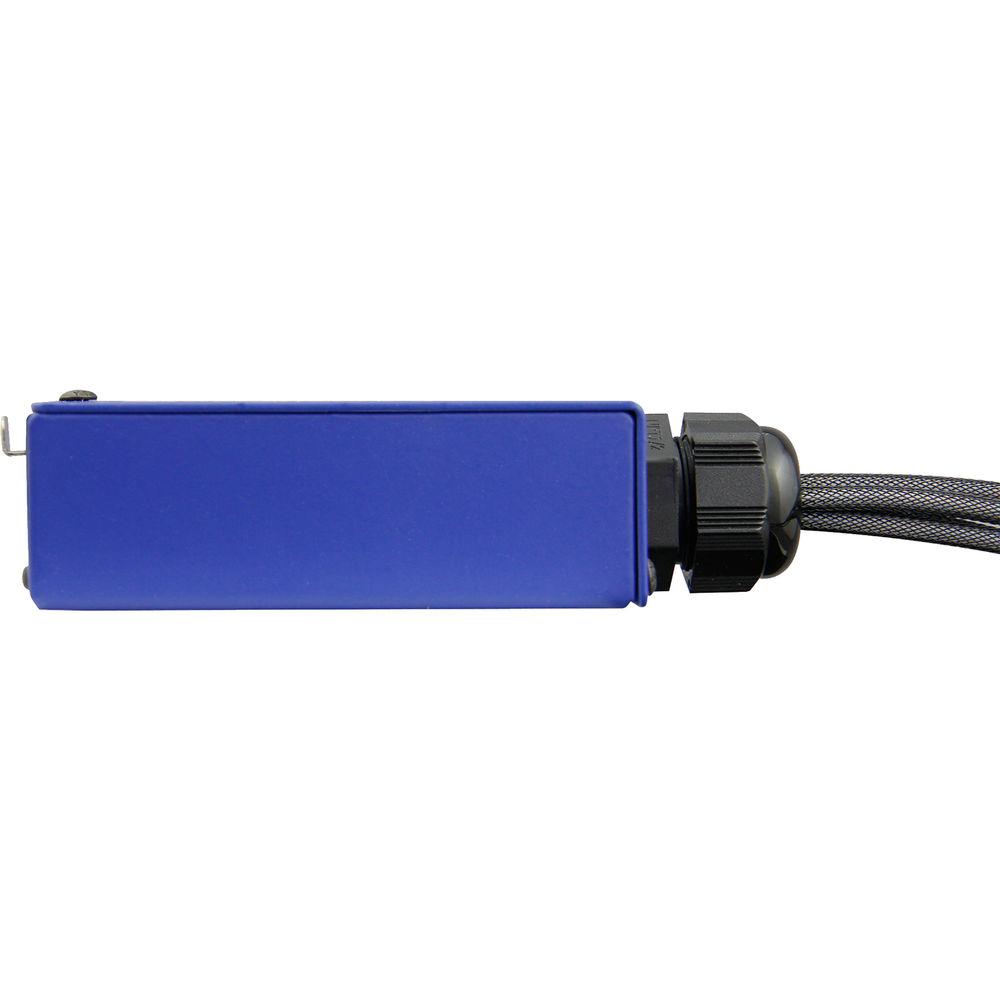

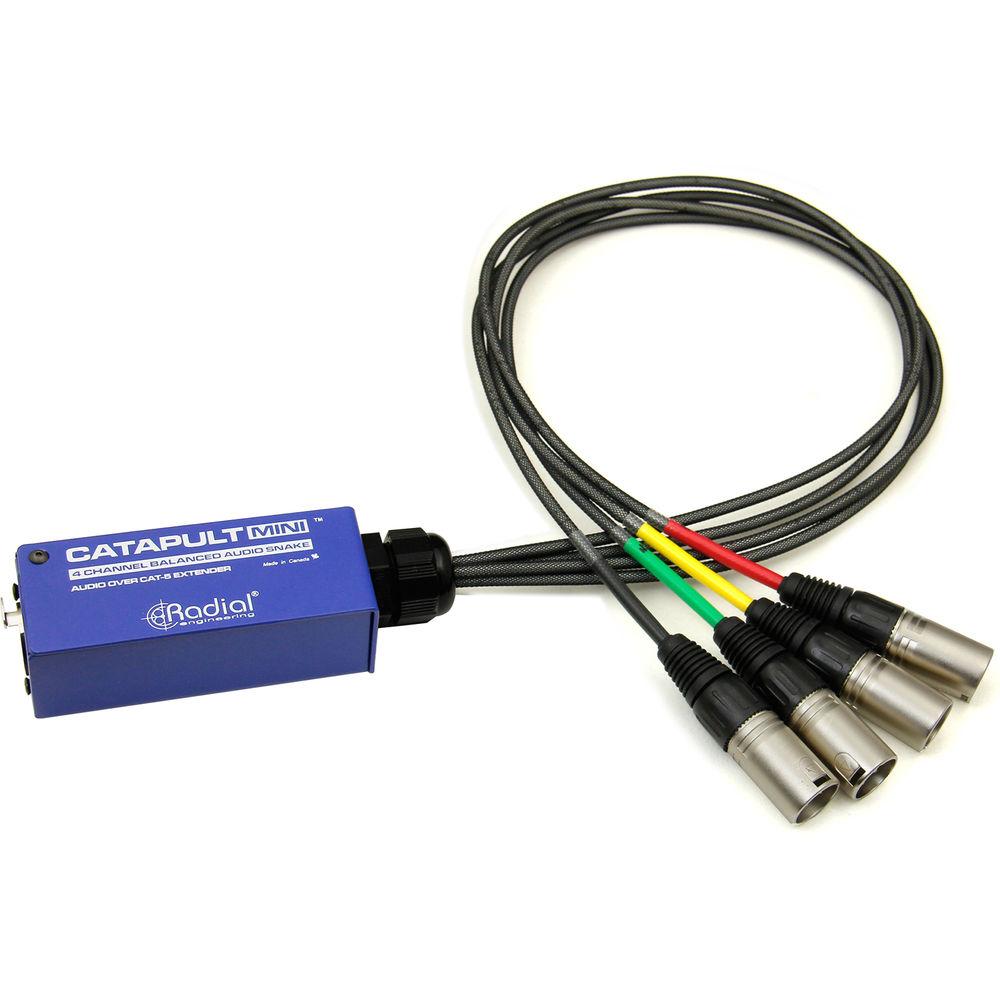

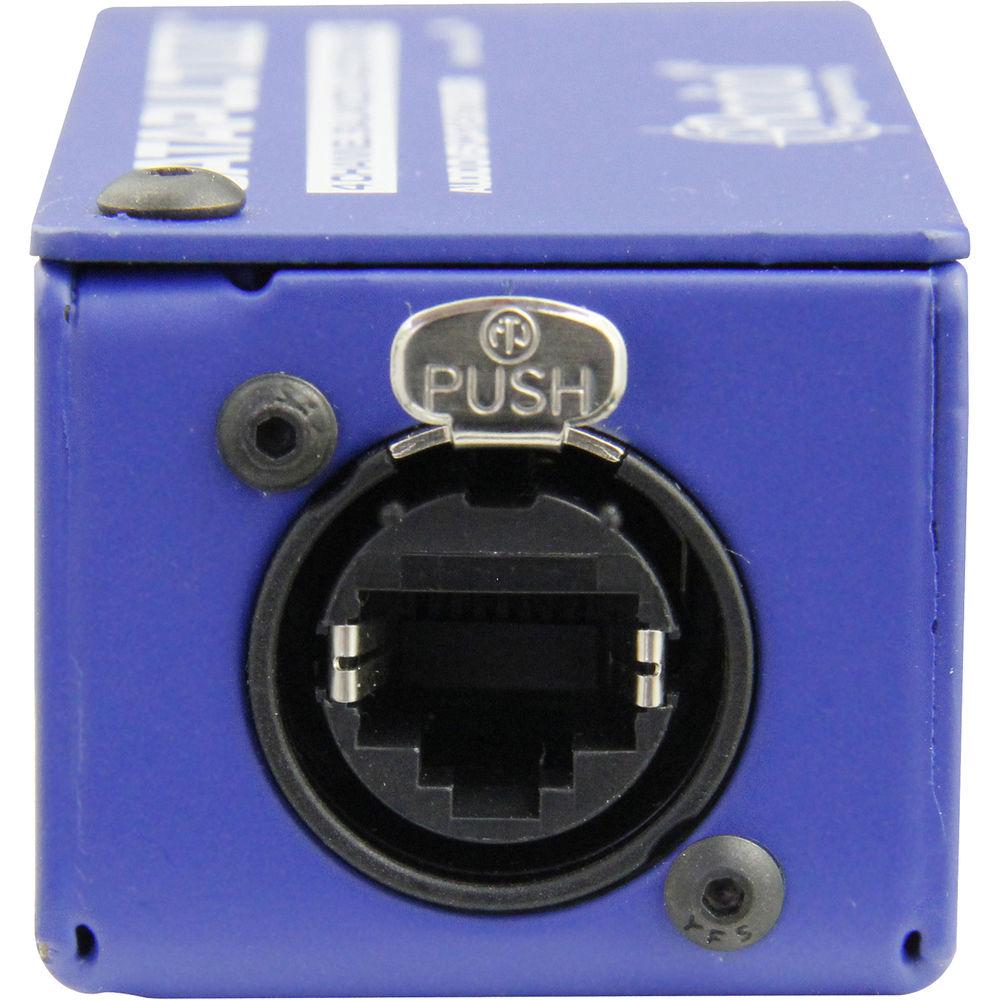

Product description The Catapult Mini RX from Radial Engineering acts as a 4-channel audio snake. It features an RJ45 input, which receives four channels of analog audio over Cat 5/6 Ethernet cables. Four male XLR outputs on cable tails allow you to plug directly into inputs of a mixer or recording interface. The housing is made of 16-gauge steel for handling any environment and is powder coated. - Expando mesh sheathing provides extra durability and protects cables from damage
- Color-coded heatshrink labels for identifying channels at a glance
- Can be used with Catapult Mini TX with a Cat 5 cable
UPC: 676101044764 In the Box Radial Engineering Catapult Mini RX 4-Channel Cat 5 Audio Snake Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Catapult Mini RX 4-Channel Cat 5 Audio Snake in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering Catapult MINI Specs | Input | RJ45 Port | | Outputs | 4 x 3-Pin XLR Male, Audio Connector Cable Tail | | Frequency Response | 7 Hz to 20 kHz | | THD + N | 0.0005%, 1 kHz | | Dynamic Range | 140 dB | | Maximum Input | 35 dBu | | Minimum Load Impedance | 100 Ohms | | Common Mode Rejection | > 103 dB | | Construction | 16-Gauge Steel Chassis and Outer Shell | | Cable Length | 2' / 0.6 m | | Dimensions | 4.2 x 1.3 x 1.6" / 10.7 x 3.4 x 4.1 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.3 x 4.2 x 2.9" |
