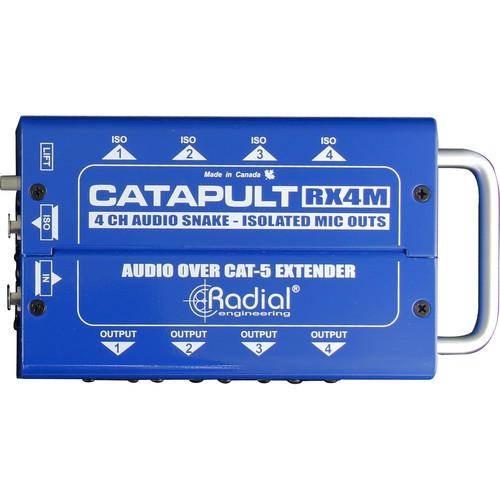

User Manual for Radial Engineering Catapult RX4 Cat 5Snake for Audio AES Routing Click to enlarge the picture
Contents of the user manual for the Radial Engineering Catapult RX4 Cat 5Snake
- Product category: Video Extenders & Repeaters Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Video Extenders & Repeaters
|
User manual for the Radial Engineering Catapult RX4 Cat 5Snake contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|
Product description Designed for use with the TX4, the Radial Engineering Catapult RX4 is a snake which accepts four channels of analog or AES audio signal over Ethernet, and routes them into the eight XLR jacks provided. It's useful in live-sound reinforcement applications, as it allows live-sound stage techs to use relatively affordable cable to secure quality audio connections around large stages and venues. It’s also suitable for system contractors, who can now utilize pre-wired networks to move audio throughout disparate rooms. The Catapult RX4 gives you 2 banks of XLR channels, each sporting four channels. Thus, you can split audio to multiple sources, if that's your desire. You'll also note the two RJ45-type EtherCON connections. One is a multi-channel input, for use with the TX4 on the transmission end. The other is a through-put, and can be implemented in routing signals to additional Catapults. A ground-lift switch helps in eliminating any noise issues on the Cat 5 line, while a steel handle provides easy transport, and four bumpers protect the Ethernet jacks and ground-lift switch from wear and tear. - Key Features at a Glance
-
- Glass-filled nylon XLR connectors
- Nickel-silver contacts
- Minimal signal degradation over long cable runs
- Low-noise and flat frequency response
- 4 x XLR through-outputs for additional routing
- 1 x Ethernet through-output for feeding additional Catapult models
- Protective steel handle facilitates convenient transportation
- Durable powder coat
- Ground lift for the Cat 5 cable's ground path to mitigate ground-loop noise
- 4 x bumpers used to protect Ethernet connectors and ground-lift switch from damage
- Double-sided military-spec grade circuit board for durability, full ground plane, and a marked reduction in radio-frequency interference
- Radial push switches with durable metal outer casing, rated at over 20,000 cycles
UPC: 676101044382 In the Box Radial Engineering Catapult RX4 Cat 5Snake for Audio/AES Routing (Receiver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Catapult RX4 Cat 5Snake for Audio AES Routing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 8025 Specs | Audio Circuit Type | Passive splitter, transformer based | | I/O | 8 x XLR outputs (2 banks)
1 x RJ45-type EtherCON input
1 x RJ45-type EtherCON through-output | | Frequency Response | 7 Hz to approximately 20 kHz | | Total Harmonic Distortion | 0.0005% at 1 kHz | | Dynamic Range | 140 dB | | Maximum Input | +35 dBu | | Minimum Load Impedance | 100 Ohms | | Common Mode Rejection | > 103 dB | | Ground Lift | Disconnects ground on RJ45 connector | | Construction | 14-gauge steel chassis and outer shell | | Finish | Durable powder coat | | Dimensions (L x W x H) | 8.1 x 4.1 x 2.0" / 20.6 x 10.5 x 5.1 cm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 2.59 lb | | Box Dimensions (LxWxH) | 11.75 x 4.95 x 2.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
