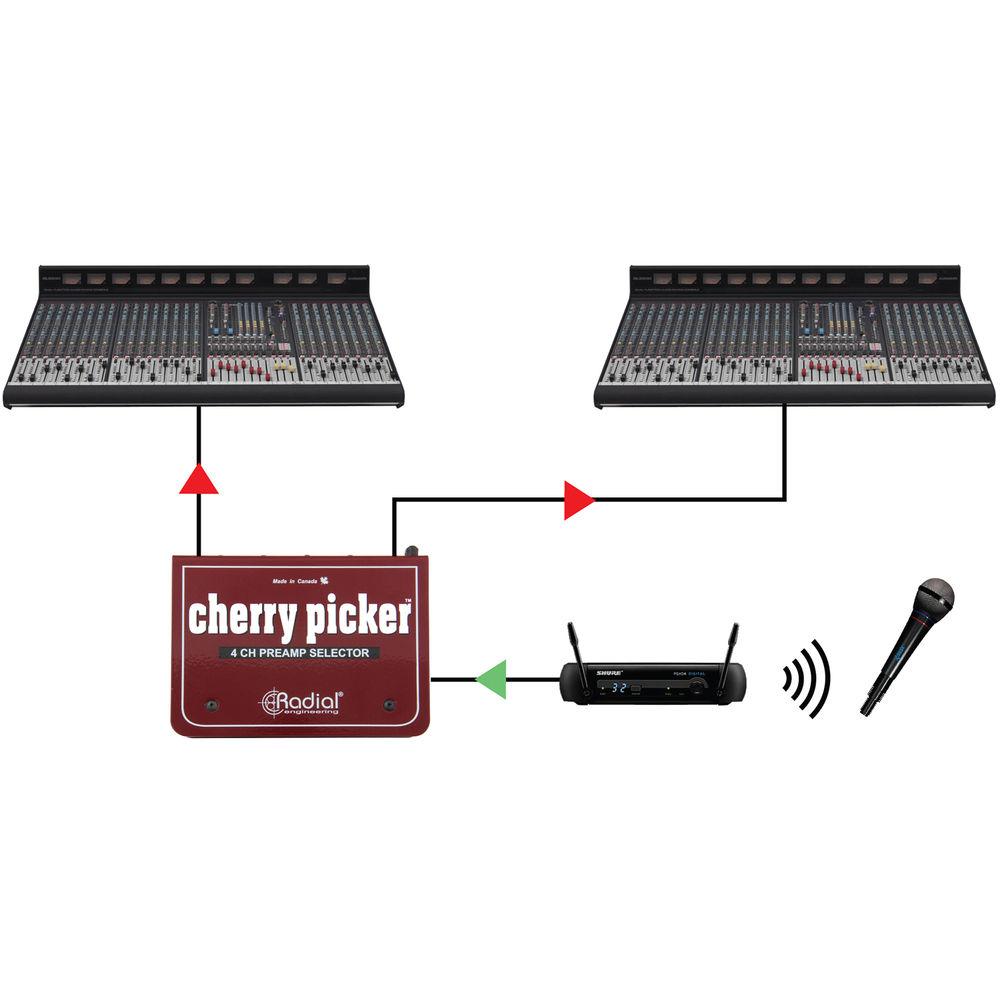

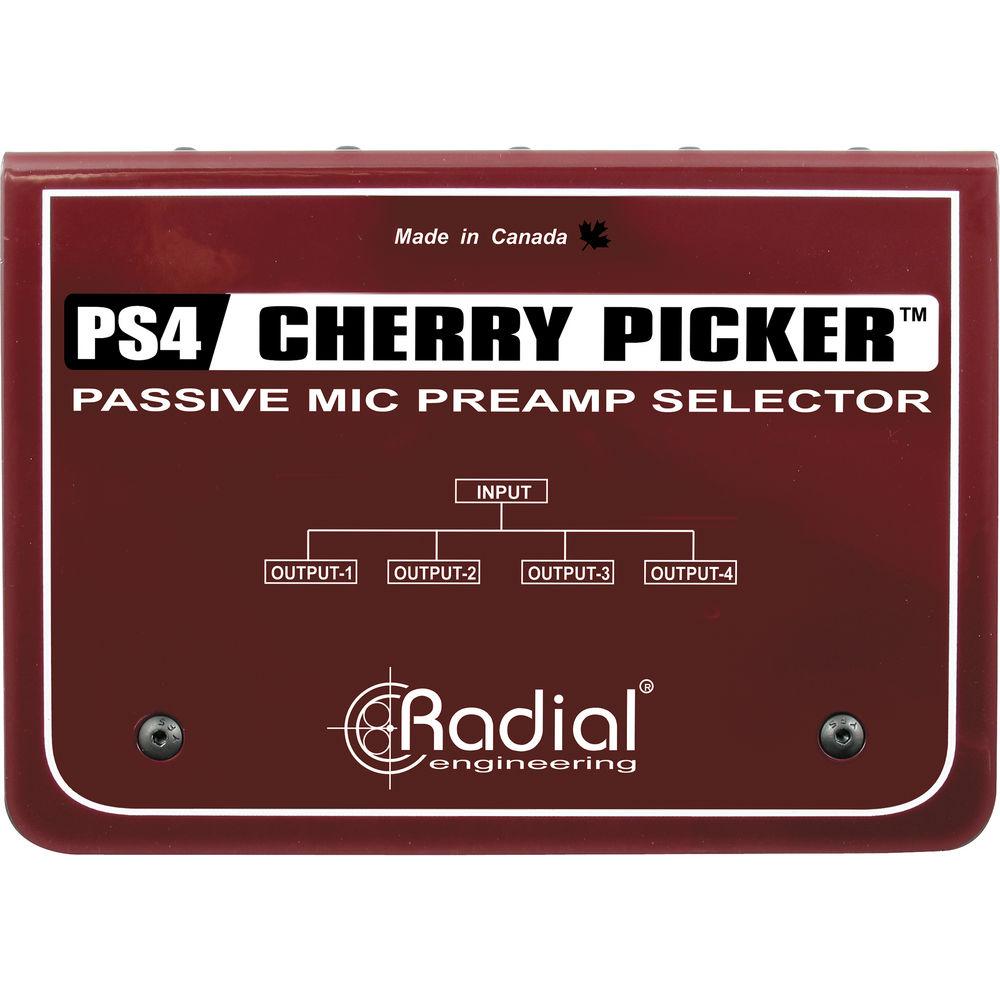

Product description The Cherry Picker MIC-Line Switcher from Radial Engineering is a straight wire passive switcher that enables you to compare several preamps using the same microphone. Because the switching is done quickly, it significantly improves workflow. This lets you optimize the signal path by combining one mic with the most appropriate preamp for a vocal track or instrument.Configured as a 1-in, 4-out device, the Cherry Picker employs a series of gold contact sealed relays to ensure straight-wire connectivity. This ensures that the signal will pass through the Cherry Picker without introducing distortion, coloration, or artefact of any kind. To eliminate switching noise, this device generates 48V phantom power internally. You simply have to plug in any type of microphone, select one or more preamps, and audition. It will automatically turn off the other outputs. - Passive straight wire color-free signal path for transparent sound with active 1x4 routing via gold sealed relays

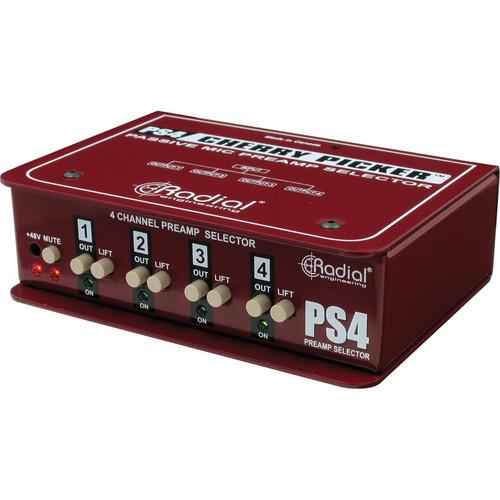

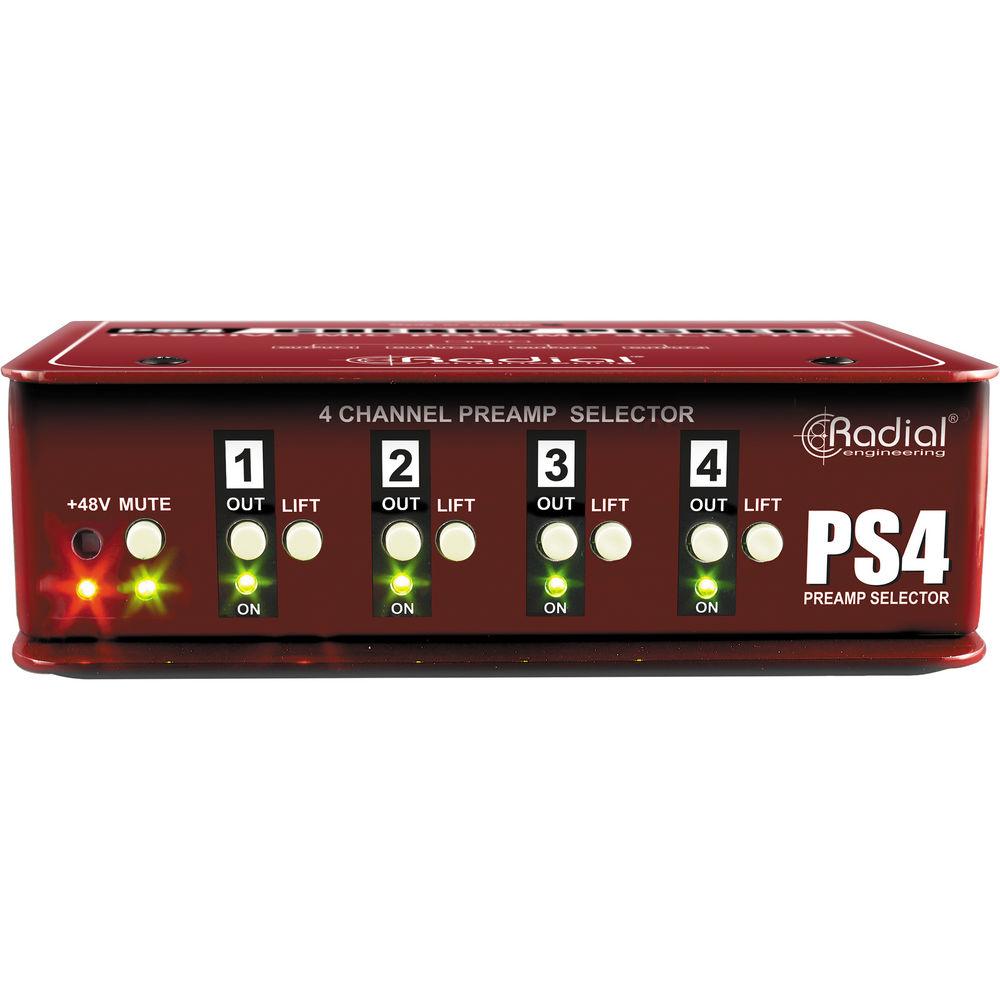

- Radio style selector switches with LED to select active output
- Internally generated 48V phantom power for condenser mics and active DI's; switch is recessed to prevent accidental turn-on
- Balanced XLR input for easy microphone, direct box, or line source connection

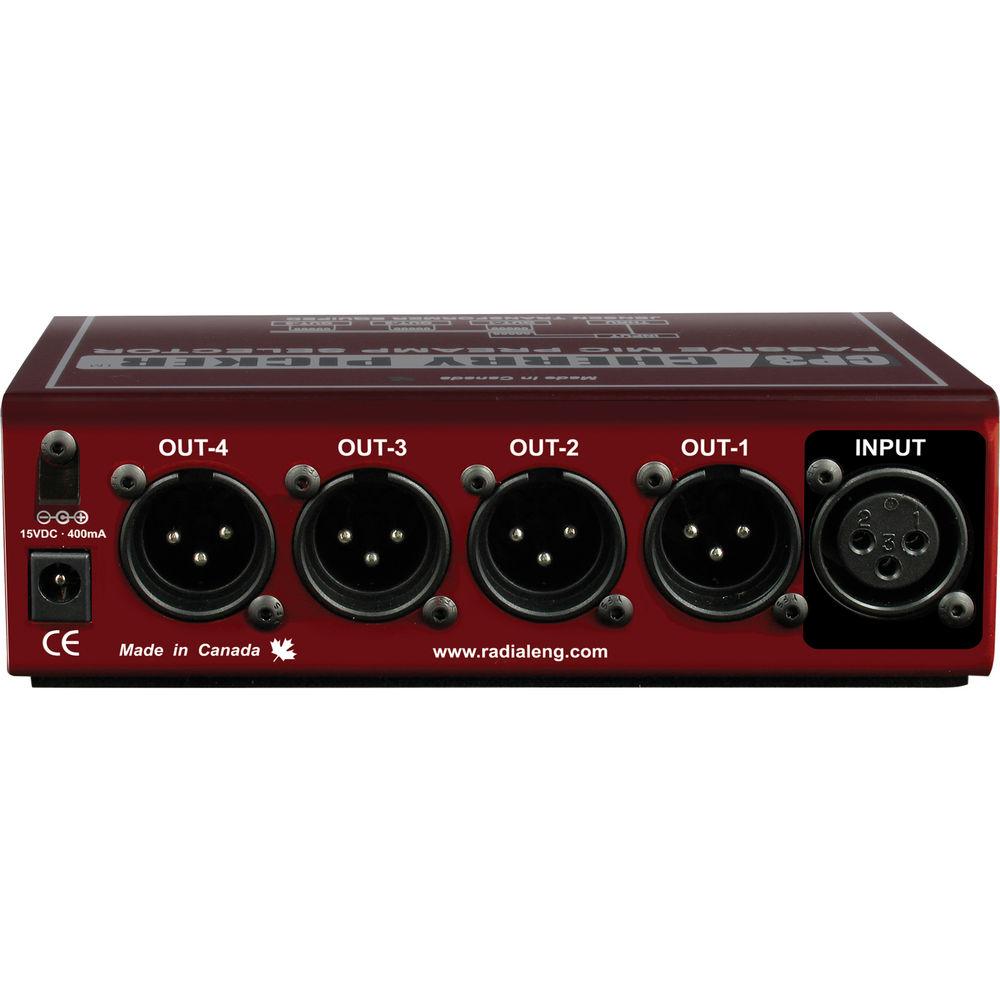

- Four balanced XLR outputs to connect to preamps or other audio destinations
- Ground lift for each output helps reduce hum & buzz caused by ground loops

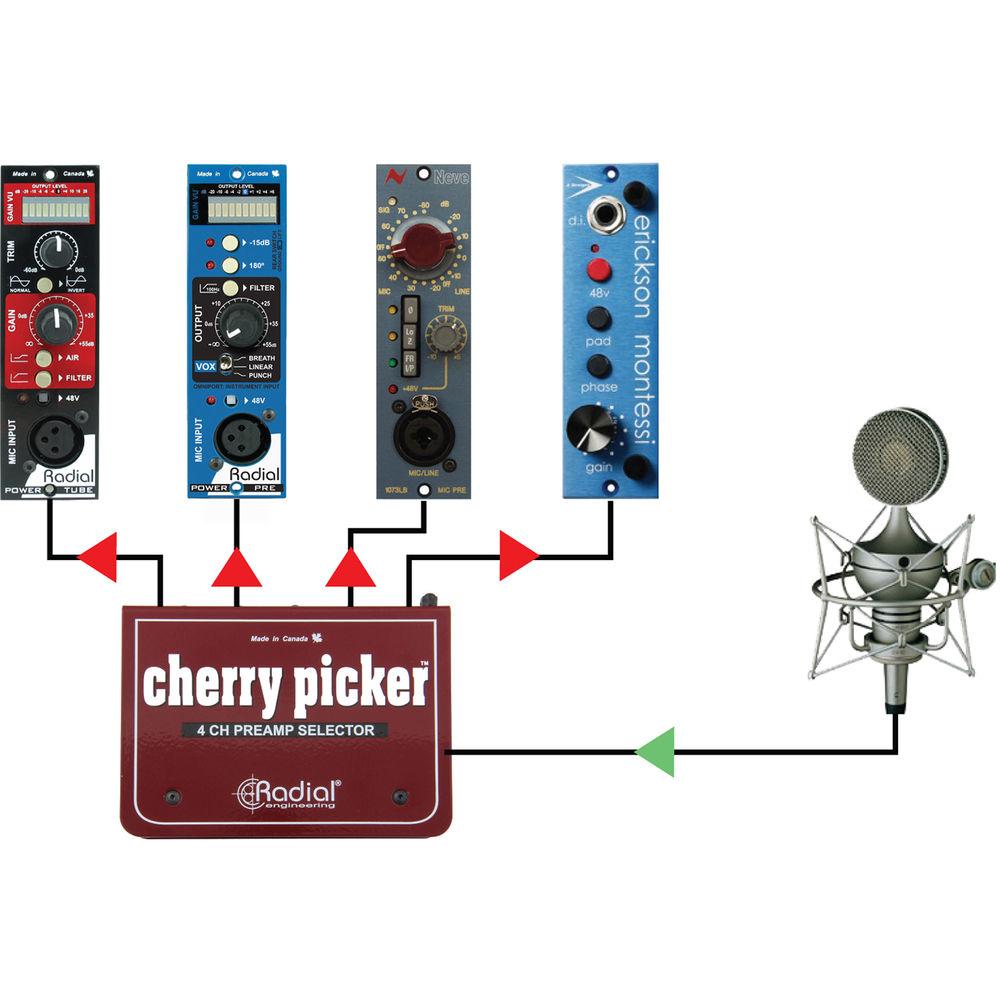

- Allows comparing of preamps for optimal signal path
- Enables switching between balanced line level devices
- Creates a more comfortable sound for the artist
- Helps in improving workflow in the studio
- Gets the vocalist involved in the recording
- Delivers a better all-round performance
- Compact design, fits anywhere

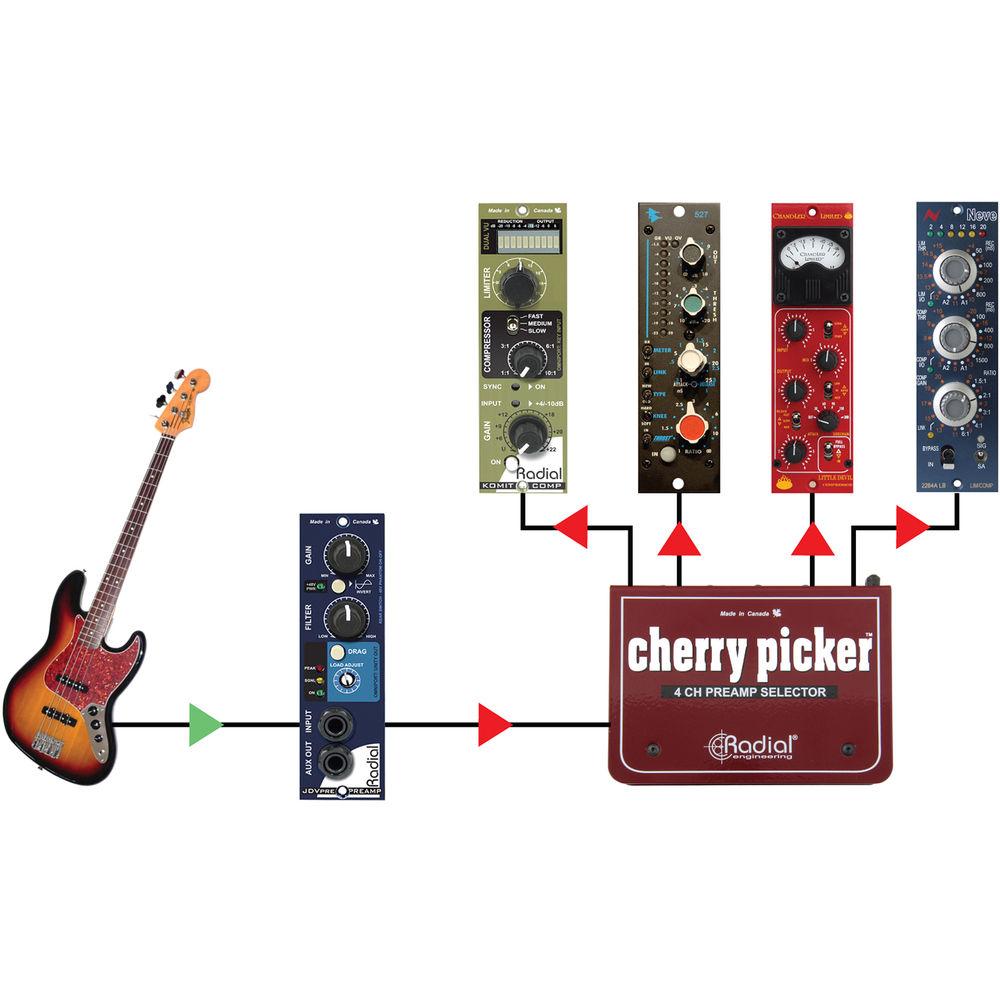

- Can be used to switch all types of audio signals
- Power & cable clamp for the included 15VDC power supply
- Clamp prevents disconnection
- Book-end design creates a protected zone to prevent damage to the front panel controls
- 14 gauge steel construction protects the PCB from stress and shields against EMI and RF noise
UPC: 676101040520 In the Box Radial Engineering Cherry Picker MIC-Line Switcher 15VDC Radial Power Adapter Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Cherry Picker MIC-Line Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1442 Specs | Circuit Type | Passive signal path with active relay switching | | Frequency Response | DC to 80 MHz ±0.05 dB | | Dynamic Range | >-115 dBu (above ability to measure) | | Equivalent Input Noise | <-115 dBu (below measurement threshold) | | CMRR | -97 dB @ 55 Hz | | Input Impedance | 10 kΩ in parallel with load impedance | | Output Impedance | Same as source impedance + 200 Ω | | S/N Ratio | <-115 dB (below measurement threshold) | | Configuration | XLR:
Follows AES Spec: pin-1 ground, pin-2 hot (+), pin-3 cold (-) | | Power Requirement | 15 VDC / 400 mA | | Dimensions (W x H x D) | 5.80 x 1.88 x 4.50" (147.30 x 47.75 x 114.30 mm) | | Weight | 2.10 lb (0.95 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 10.9 x 4.9 x 2.7" |
