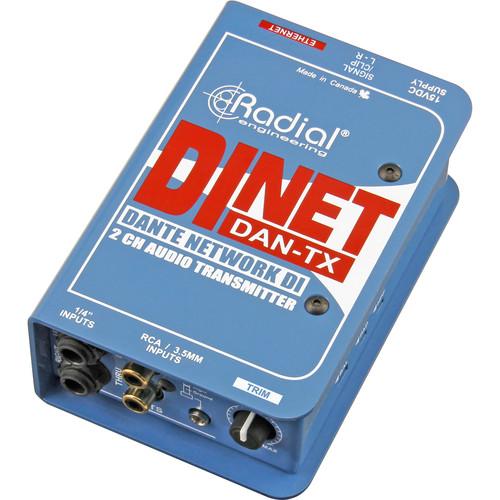

User Manual for Radial Engineering DiNET DAN-TX Dante-Enabled Stereo DI Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering DiNET DAN-TX Dante-Enabled Stereo
- Product category: Networked Audio Systems Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Networked Audio Systems
 |
User manual for the Radial Engineering DiNET DAN-TX Dante-Enabled Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

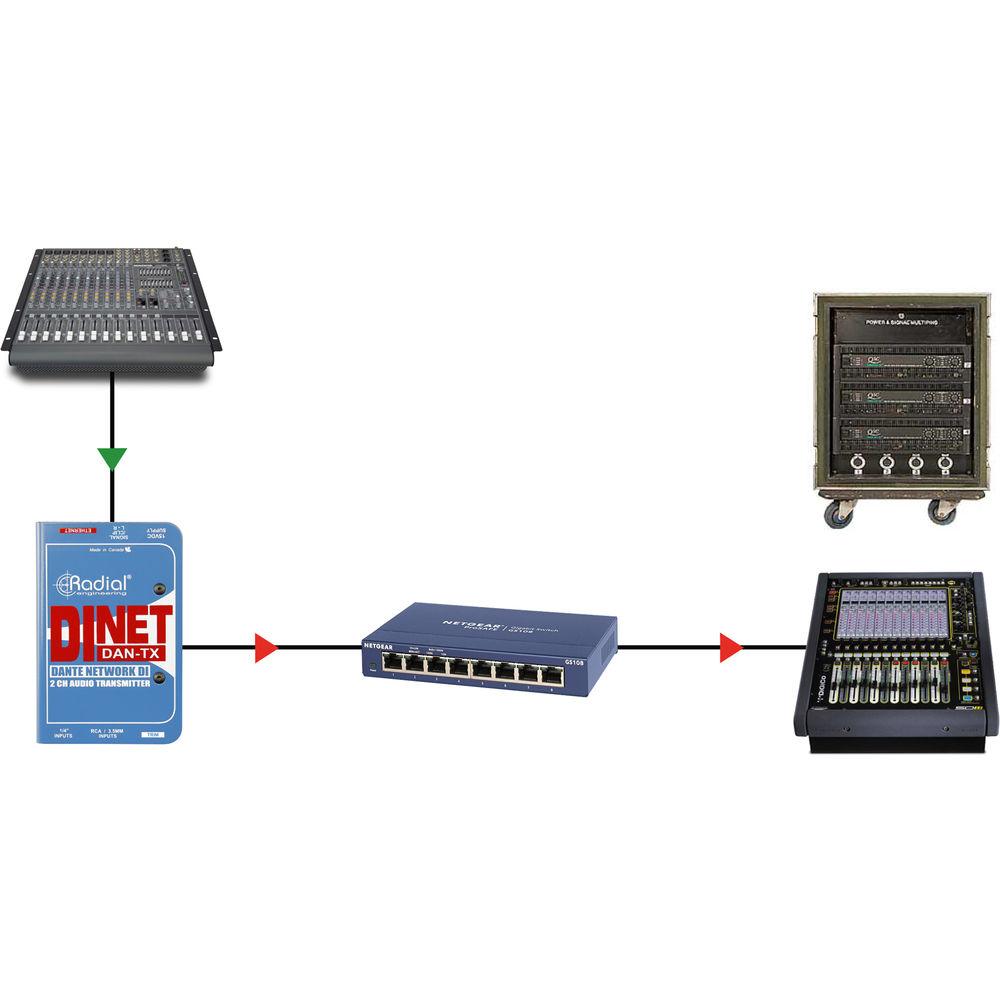

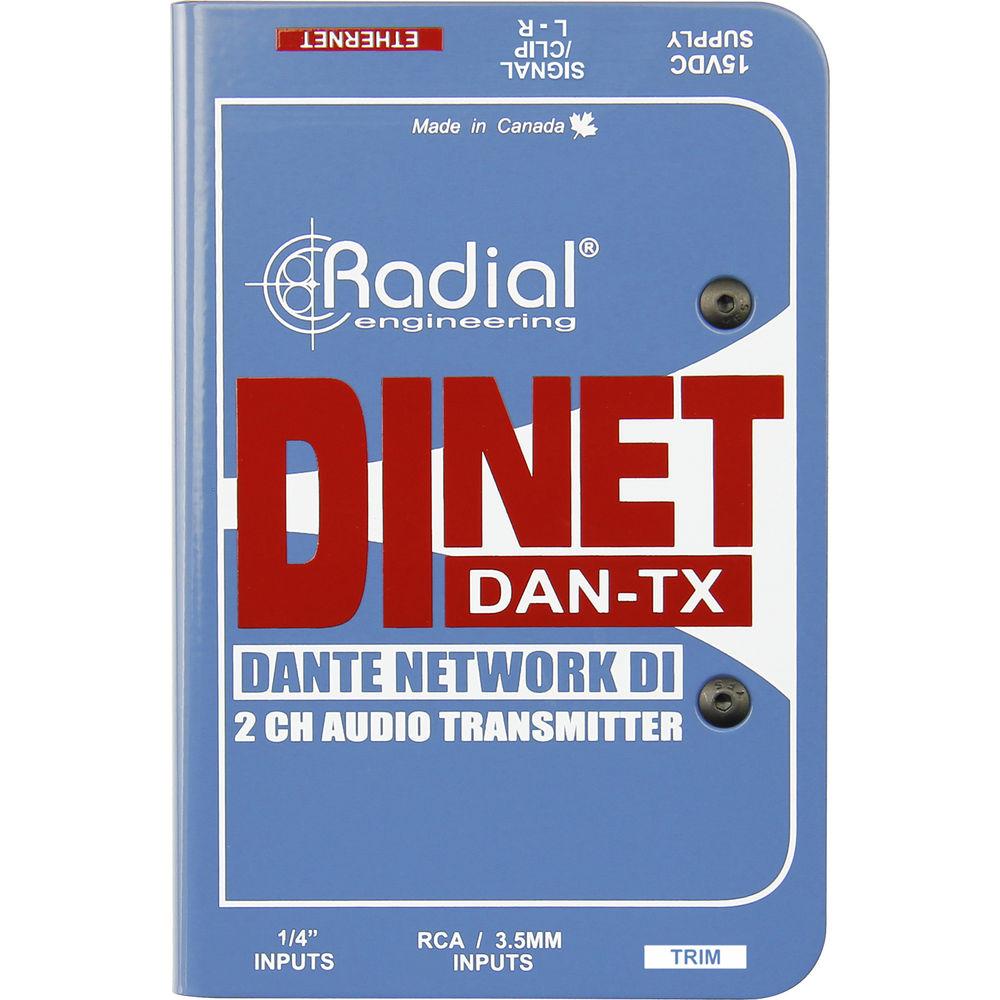

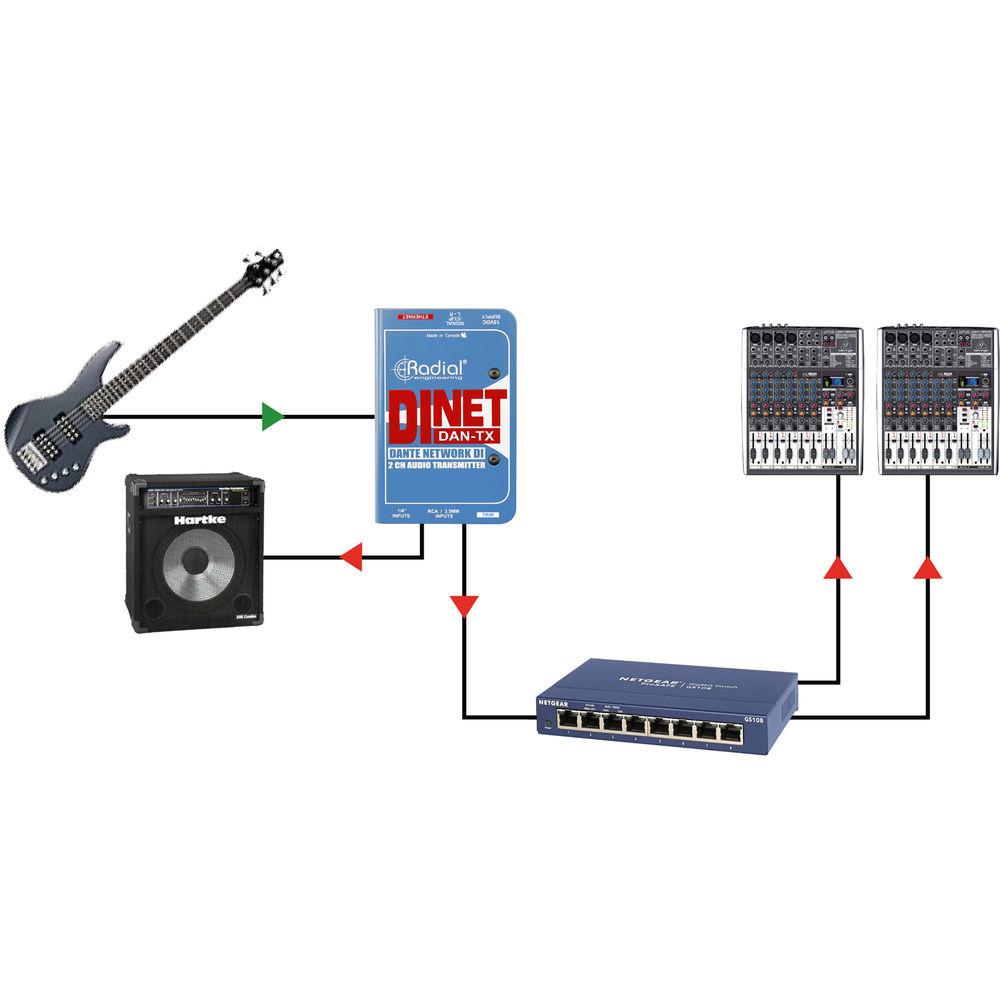

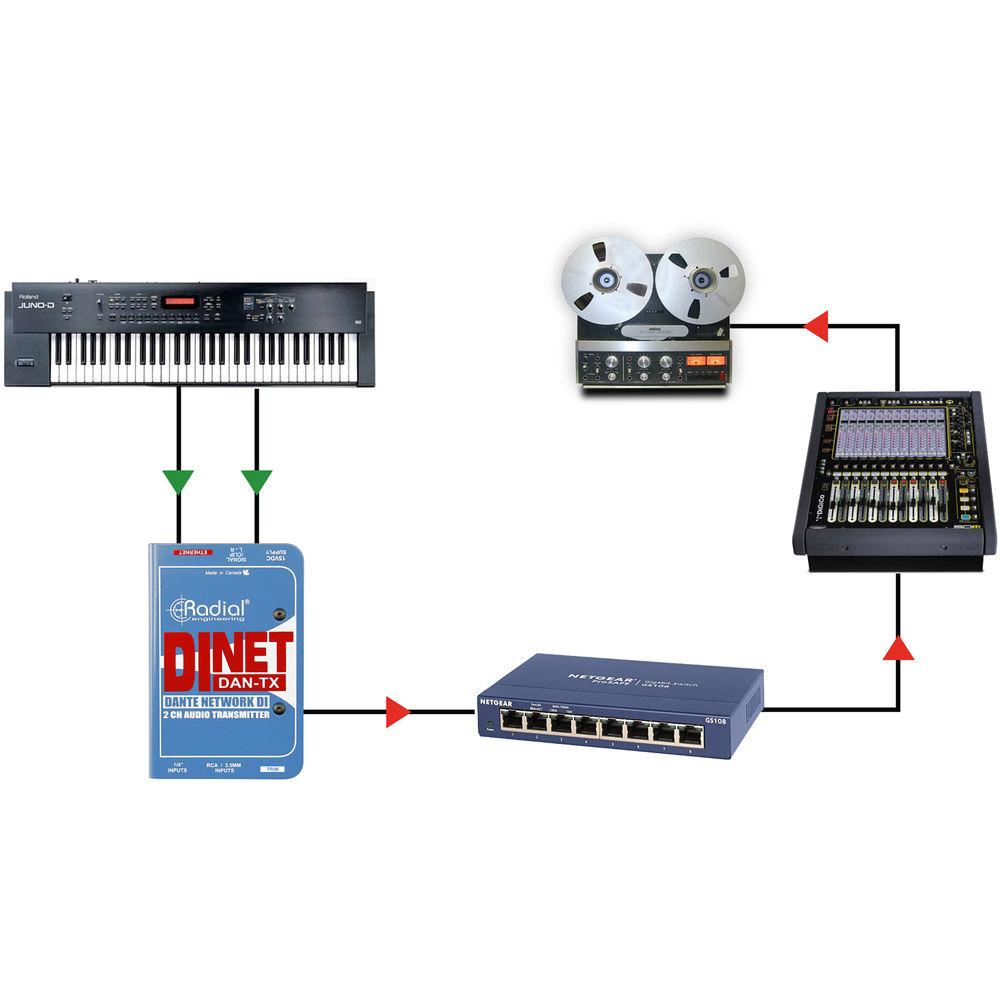

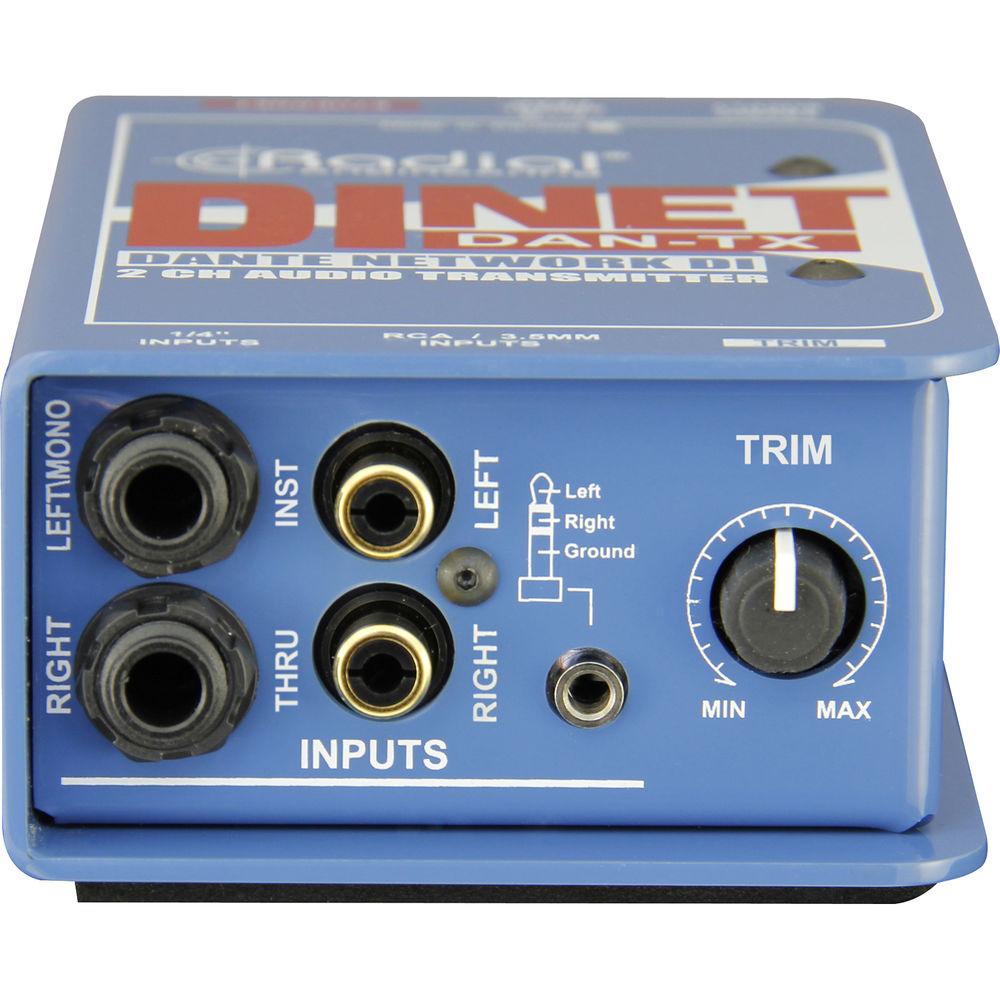

Product description The Radial DiNET DAN-TX is a Dante-enabled stereo DI box designed to route a mono or stereo analog source to a Dante-networked audio system in live sound, broadcast, and high-tech studio productions. When used with a mono instrument such as a guitar or bass, one of the 1/4" jacks can be used as a pass-thru to an amplifier. The DAN-TX offers adjustable gain, a selectable high-pass filter, and a -20 dB pad.Connect instruments or line-level signals via 1/4”, RCA, or 3.5mm input jacks. The built-in, high-resolution A/D converter outputs Dante-compliant digital signal at the Ethernet jack, allowing easy integration into a Dante network.The Di-NET DAN-TX features a 14-gauge steel enclosure for durability. Power can be supplied via the included 15 VDC power supply or PoE (Power over Ethernet). -
- Dante-enabled stereo DI box

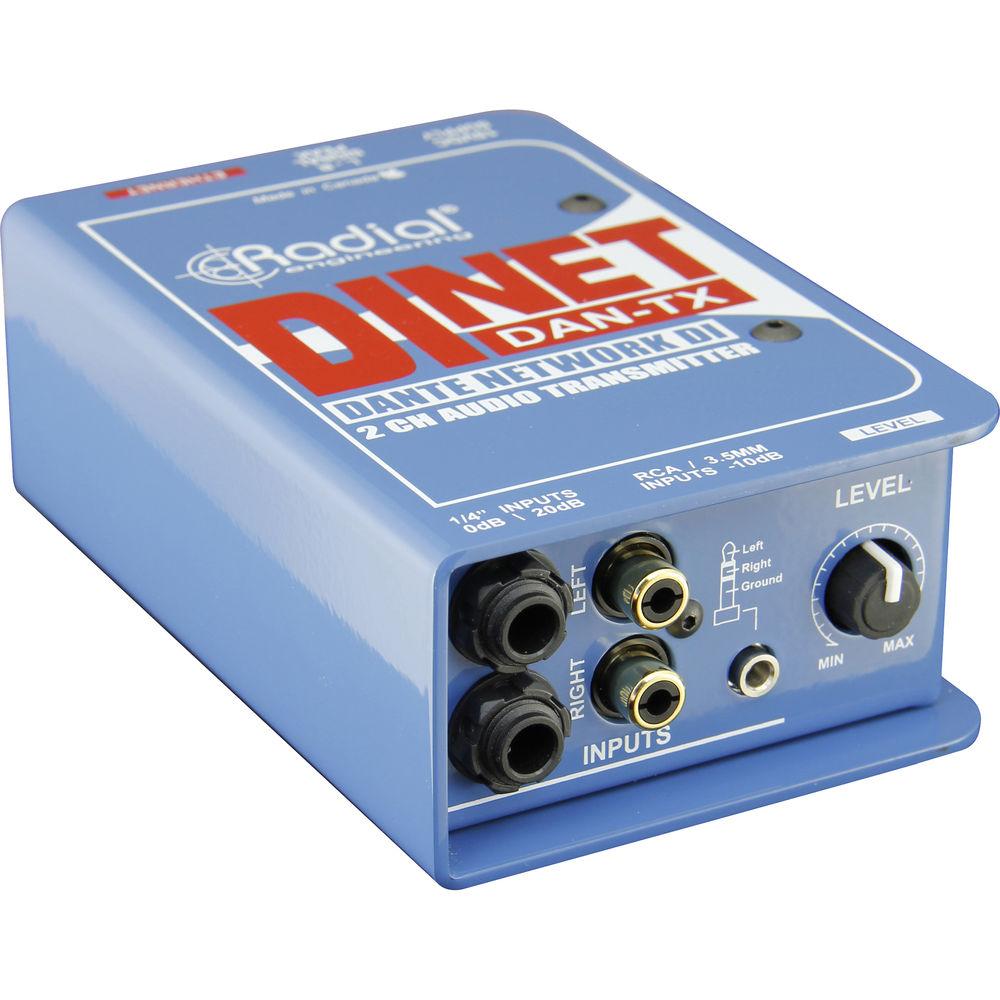

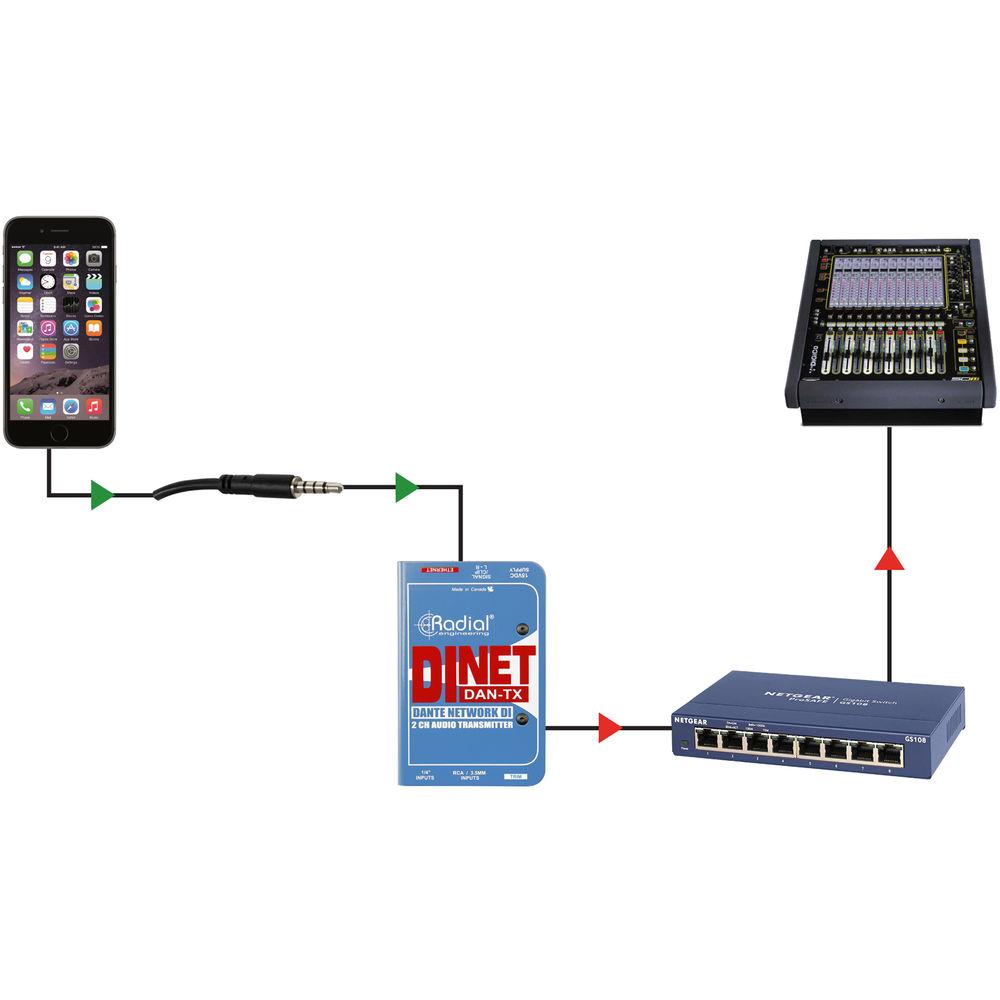

- Connect stereo instruments or line-level sources via 1/4”, RCA, or 3.5mm (1/8”) input jacks
- Built-in A/D converter supports resolutions up to 24-bit/96 kHz
- Connect the Dante-enabled Ethernet output to networked audio systems
- Trim control provides adjustable gain (+/- 10 dB)
- Selectable high-pass filter to reduce problematic low frequencies
- Switchable -20 dB pad to prevent distortion when routing high-level sources
- Sturdy 14-gauge steel enclosure
UPC: 676101044412 In the Box Radial Engineering DiNET DAN-TX Dante-Enabled Stereo DI Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering DiNET DAN-TX Dante-Enabled Stereo DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1062 Specs | ADC | 2-channel | | Sample Rates | Up to 96 kHz | | Analog Inputs | 2 x 1/4" (L/R pair)
2 x RCA (L/R pair)

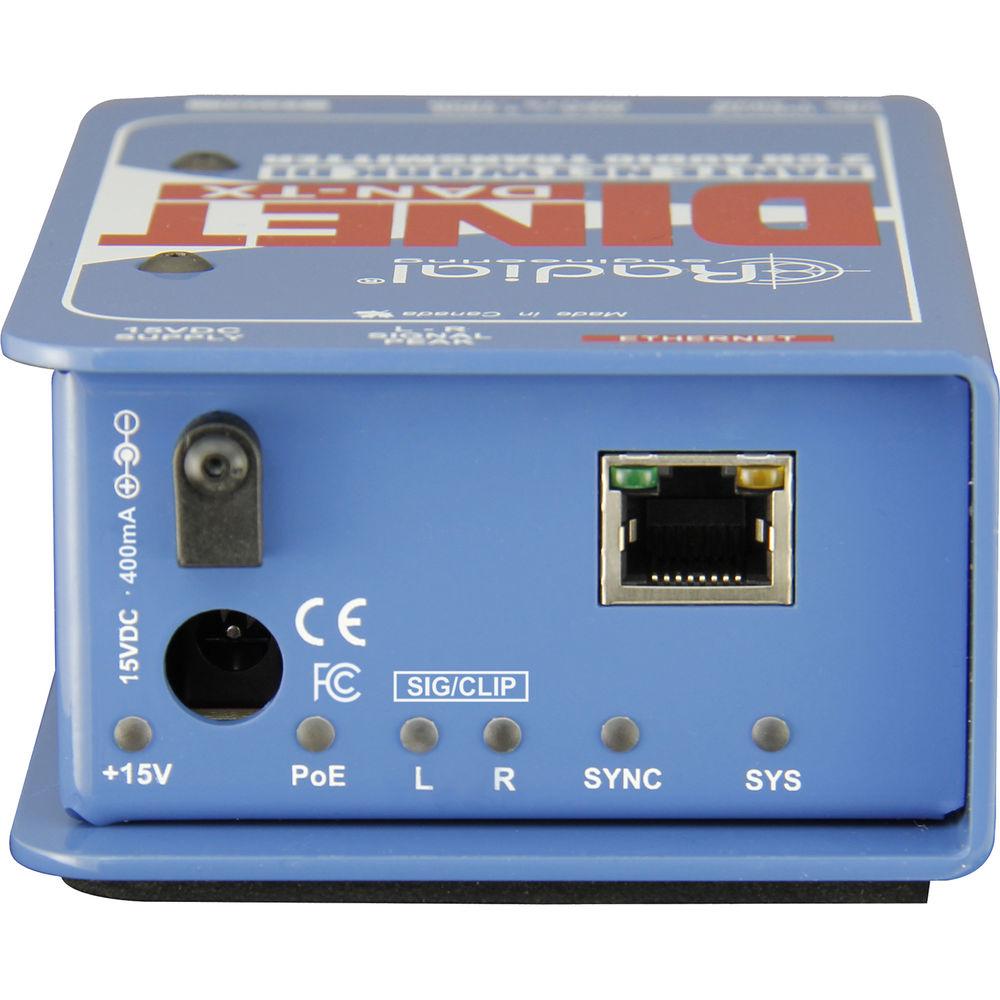

1 x stereo 1/8" (3.5 mm) TRS | | Digital Outputs | RJ45 (8-pin Ethernet) | | Maximum Input Level | +24 dB | | Controls | Trim

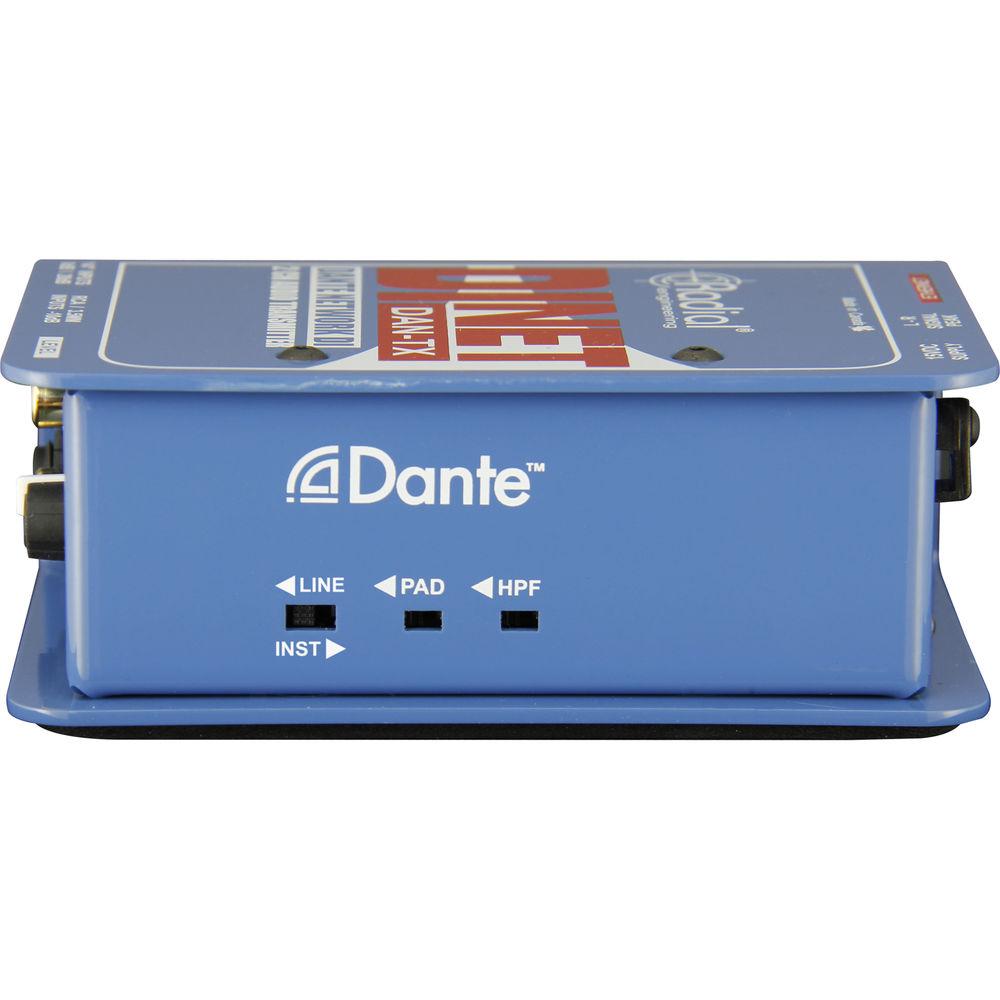

High-pass filter
-20 dB pad
Line/Inst switch | | Power Requirements | 15 VDC power adapter or PoE (Power over Ethernet) | | Construction Material | 14-gauge steel | | Dimensions (W x D x H) | 3.3 x 5 x 2" / 84 x 127 x 48 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 2.14 lb | | Box Dimensions (LxWxH) | 11.8 x 5.05 x 2.65" |
