Product description

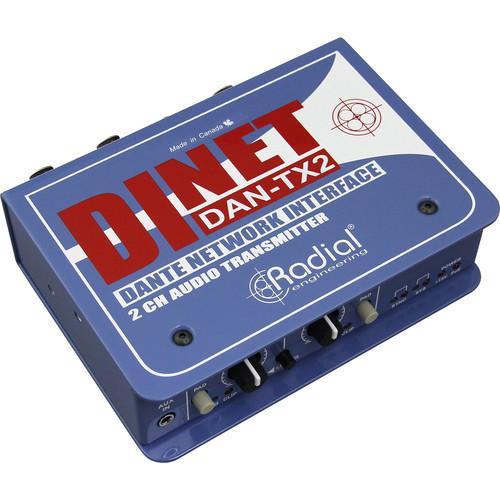

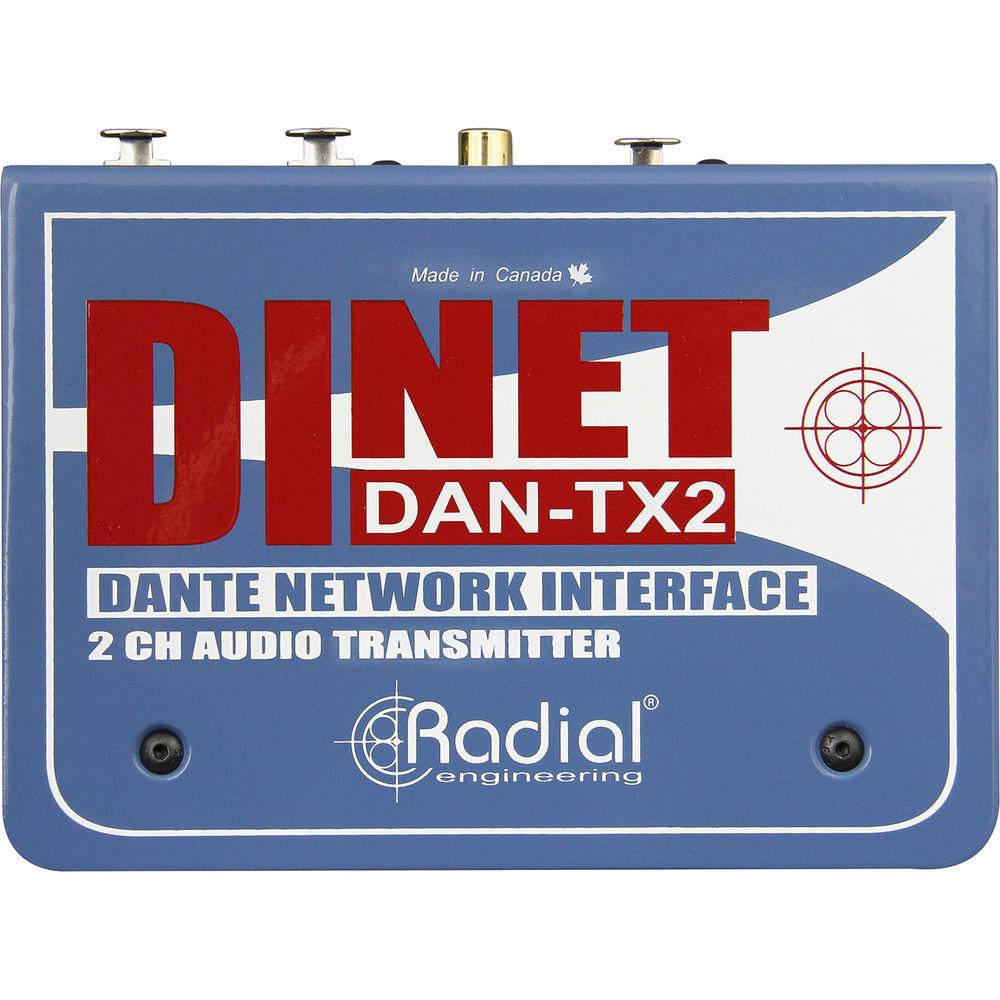

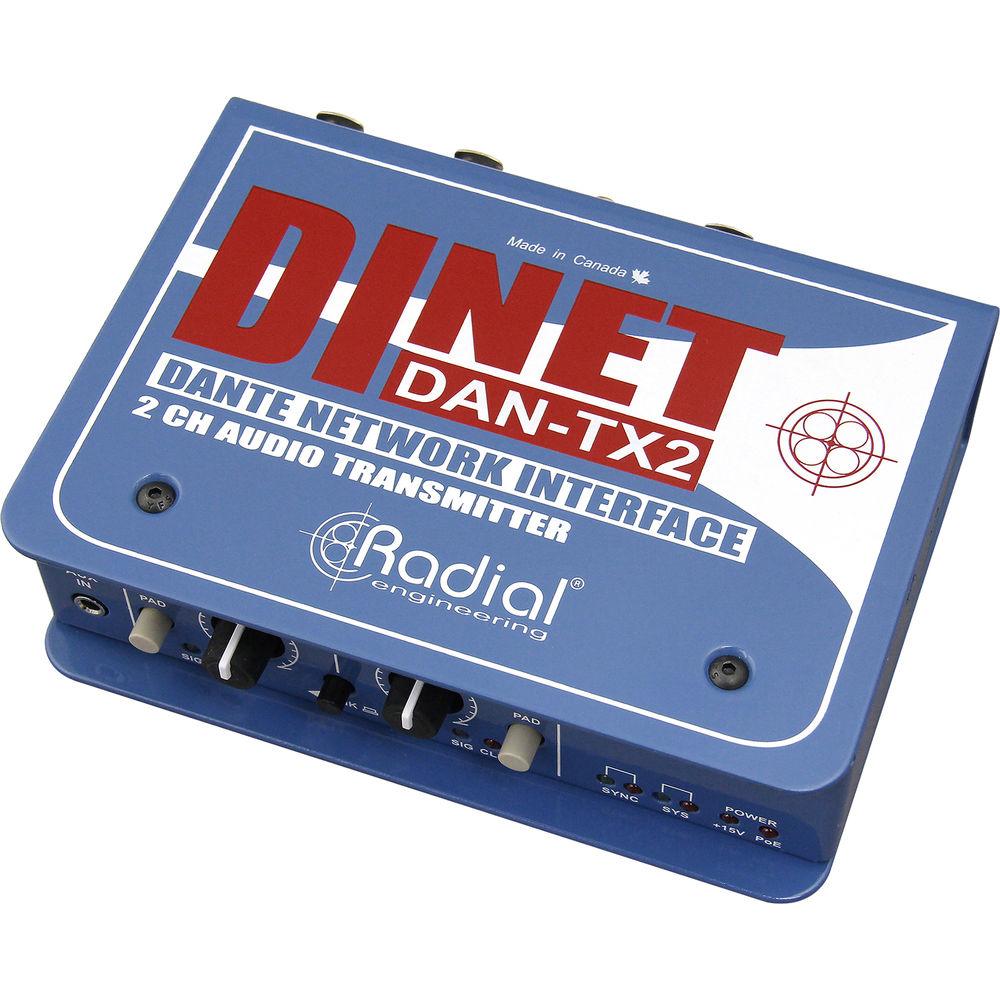

Conveniently route a stereo analog line-level source into your Dante or AES67 audio network with the Radial Engineering DiNET DAN-TX2, a compact two-channel Dante network transmitter designed for use in live sound, broadcast, and high-tech studio productions. The DAN-TX2 offers linkable trim controls and -18 dB pads for simple management of your gain stage, and a host of LEDs for indication of signal status, power, sync, and more.Connect a balanced line-level signal from a mixer or audio interface to the XLR-1/4” combo jacks, or hook up an unbalanced source, such as a CD player or mobile device, to the RCA or 3.5mm inputs. The built-in, high-resolution A/D converter outputs Dante-/AES67-compliant digital signal at up to 24-bit / 96 kHz resolution to the locking etherCON jack, allowing easy integration into your audio network.The DiNET DAN-TX2 features a powder-coated, 14-gauge steel enclosure for rugged durability and tour-worthy dependability. Power can be supplied via the included 15 VDC power supply or PoE (Power over Ethernet).
    • Converts a stereo analog line-level source to a digital Dante/AES67 output

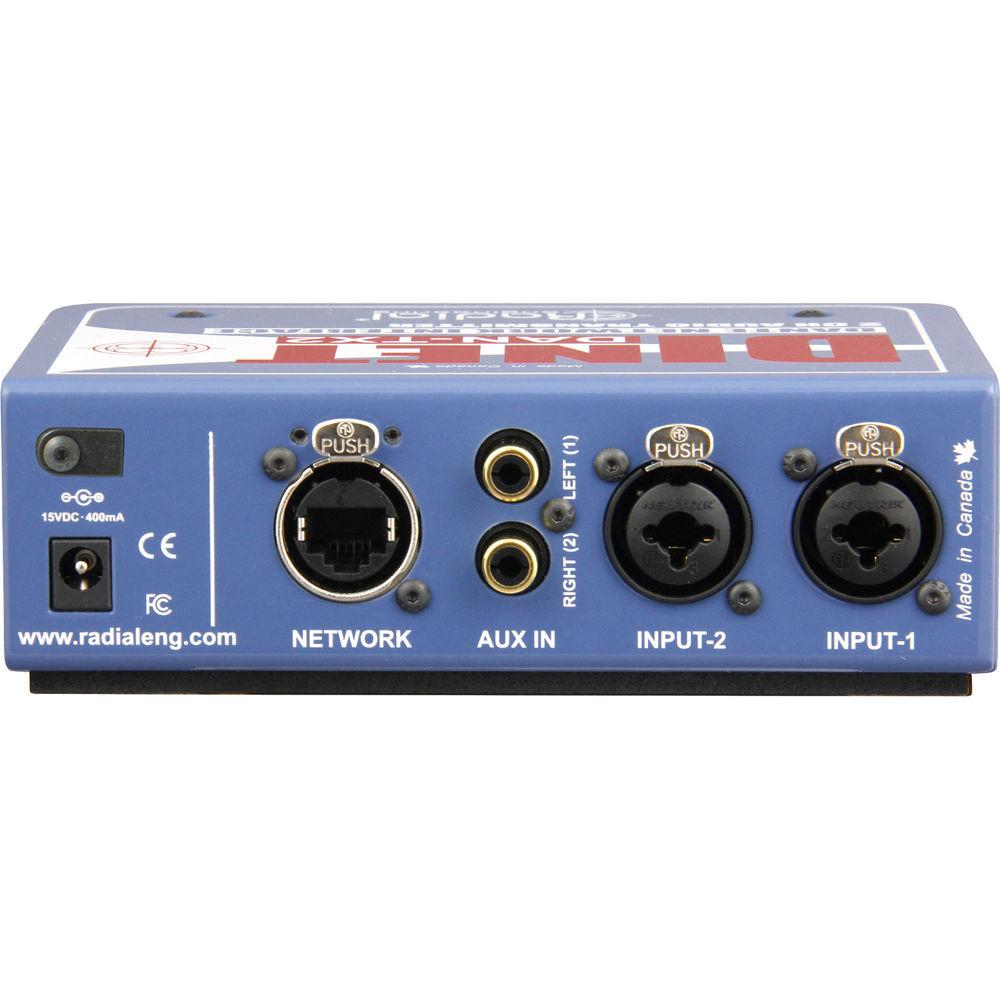

    • Accepts line-level inputs via XLR-1/4” combo jacks, RCA coaxial inputs, or a 3.5mm mini jack
    • Built-in A/D converter supports resolutions up to 24-bit / 96 kHz
    • Locking etherCON output easily connects to a Dante or AES67 audio network via a Cat5e or Cat6 Ethernet cable (available separately)
    • Linkable trim controls provide adjustable gain (up to 10 dB of boost or cut)
    • Switchable -18 dB pad mitigates distortion when routing high-level sources

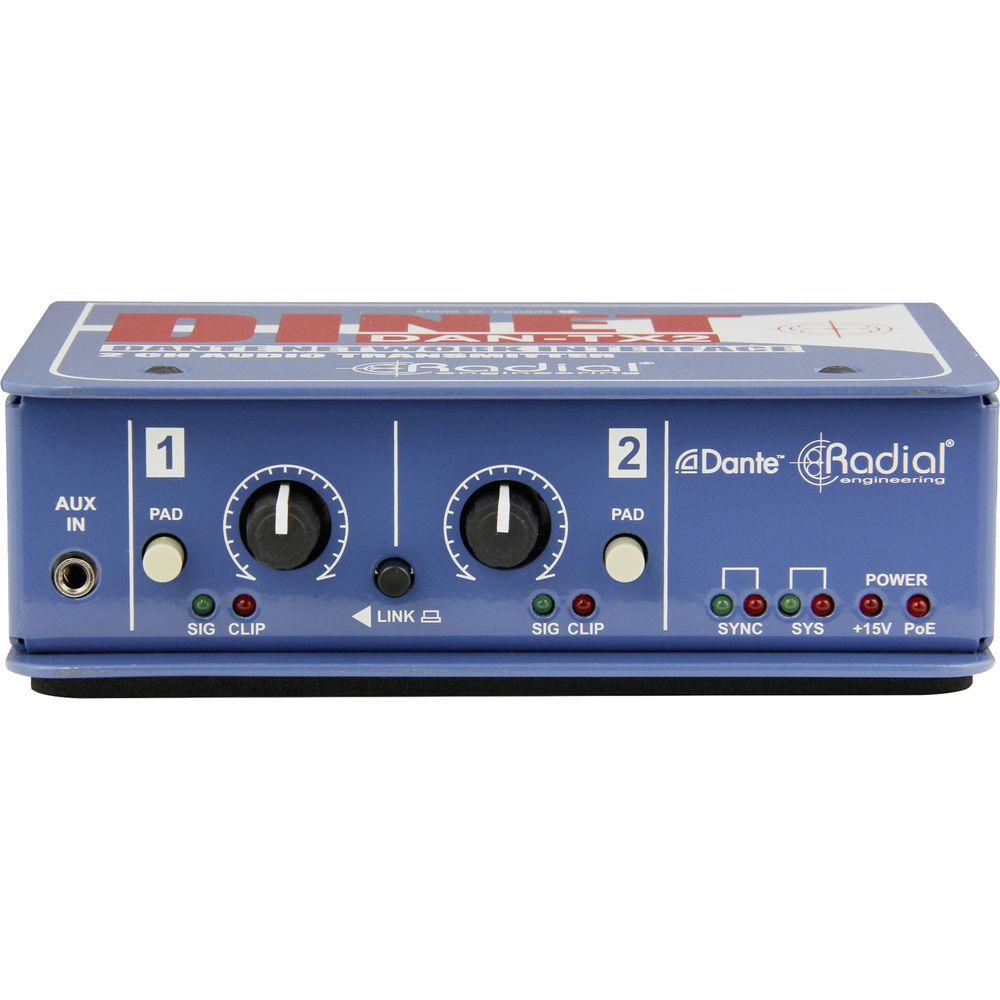

    • LED indicators for signal presence, clipping, power, sync, and Dante processor status
    • Integrated cable clamp secures power supply cable to prevent accidental disconnection
    • Supports operation via PoE or the included power supply
    • Sturdy 14-gauge steel enclosure finished in a durable powder coat
    • Nonslip pad provides electrical and mechanical isolation and keeps the unit from sliding around
UPC: 676101044795 In the Box Radial Engineering DiNET DAN-TX2 2-Channel Dante Network Transmitter
  • 15 VDC Power Supply
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Radial Engineering DiNET DAN-TX2 2-Channel Dante Network Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Radial Engineering DAN-TX2 Specs

    ADC 2-Channel
    Sample Rates Up to 96 kHz
    Bit Depth 24-Bit
    Analog Inputs 2 x XLR-1/4" Combo Jacks (Balanced, Stereo Pair)
    2 x RCA Coaxial (Unbalanced, Stereo Pair)
    1 x 1/8" / 3.5 mm TRS Stereo Mini Jack
    Digital Outputs 1 x RJ45 etherCON
    Input Impedance Balanced: 40 kOhms
    Unbalanced: 20 kOhms
    Frequency Response 20 Hz to 20 kHz
    Noise Idle Channel: -108 dB
    Dynamic Range >103 dB
    Channel Separation >85 dB
    Maximum Input Level +28 dBu
    Equivalent Input Noise -98 dB
    THD + N 0.008% at -6 dBFS
    IMD 0.0017% at -10 dBFS
    Controls Trim per Channel
    -18 dB Pad per Channel
    Link Switch
    Power Consumption 1.25 W
    Power Requirements 15 VDC, 400 mA Power Adapter or PoE (Class 1 IEEE 802.3af)
    Operating Temperature 41 to 104°F / 5 to 40°C
    Approvals FCC Part 15B Class A
    Construction Material Powder-Coated 14-Gauge Steel
    Dimensions (L x W x D) 4.5 x 2.0 x 6.0" / 11.4 x 5.1 x 15.2 cm
    Weight Not Specified by Manufacturer
    Package Weight 2.535 lb
    Box Dimensions (LxWxH) 11.8 x 4.9 x 2.7"
