User Manual for Radial Engineering DRAGSTER - Guitar Pickup Impedance Load Correction Device Click to enlarge the picture
Contents of the user manual for the Radial Engineering DRAGSTER - Guitar Pickup
- Product category: Effects Pedal Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Effects Pedal Accessories
 |
User manual for the Radial Engineering DRAGSTER - Guitar Pickup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

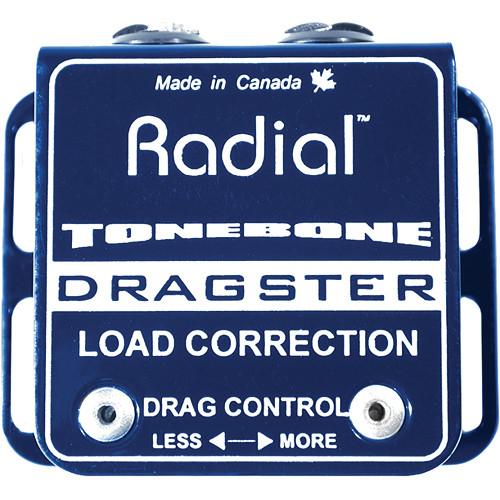

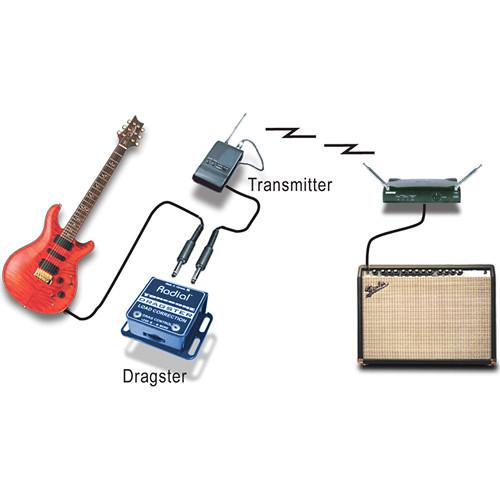

Product description The Radial Engineering DRAGSTER is a passive, miniature impedance correction device, designed to match the high impedance of a typical electric guitar pickup with the low impedances characteristic of buffered input devices such as wireless transmitters, effects pedals and multi-effects processors, and direct recording audio interfaces. This load mismatch often results in severe loss of guitar tone and character, and the DRAGSTER, with it's thumb wheel adjustment, basically emulates the behavior of a high impedance guitar amplifier input, passing the matched, optimized signal on to the buffered device, with the full tone produced by the guitar. - Passive Load corrrection for guitar pickups for use with low impedance buffered inputs on wireless system transmitters, effects pedalboards, and direct recording audio interfaces
- Emulates high impedance of guitar amplifier
- Used with connection of guitar to any buffered input, restores natural tone of instrument and eliminates frequency loss caused by low impedance buffered inputs

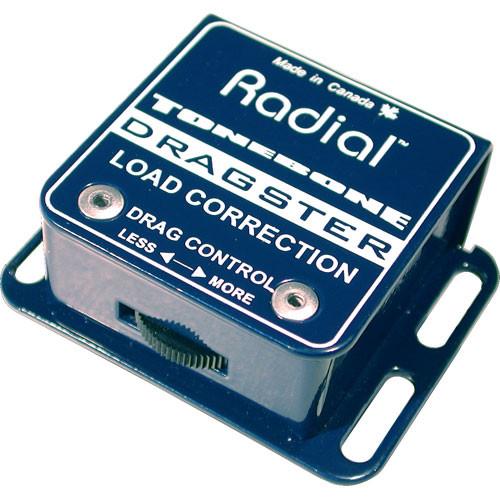

- Easy-access Thumb wheel control for Drag control, very lightweight but durable aluminum case
- Completely passive, no power supply required
- Flanged bracket for connection to guitar stap or pedalboard
UPC: 676101034895 In the Box Radial Engineering DRAGSTER - Guitar Pickup Impedance Load Correction Device 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering DRAGSTER - Guitar Pickup Impedance Load Correction Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering Dragster Specs | Connectors | 2 x 1/4" TS Phone | | Switches | 1 x Less/More Drag Control Increment Wheel | | Indicators | No | | Construction | Aluminum | | Power Supply | No | | Dimensions (WxDxH) | 2.5 x 2.1 x 1" (63.5 x 53.3 x 25.4mm) | | Weight | 5 oz (141.7 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.7 x 3.3 x 1.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
