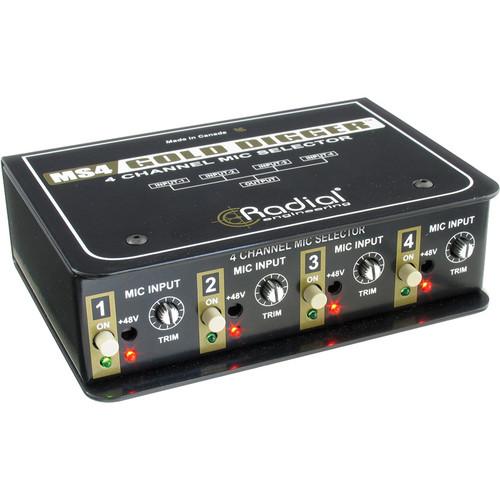

User Manual for Radial Engineering Gold Digger 4-Channel Mic Selector Click to enlarge the picture
Contents of the user manual for the Radial Engineering Gold Digger 4-Channel Mic
- Product category: Splitters & Combiners Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Splitters & Combiners
 |
User manual for the Radial Engineering Gold Digger 4-Channel Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

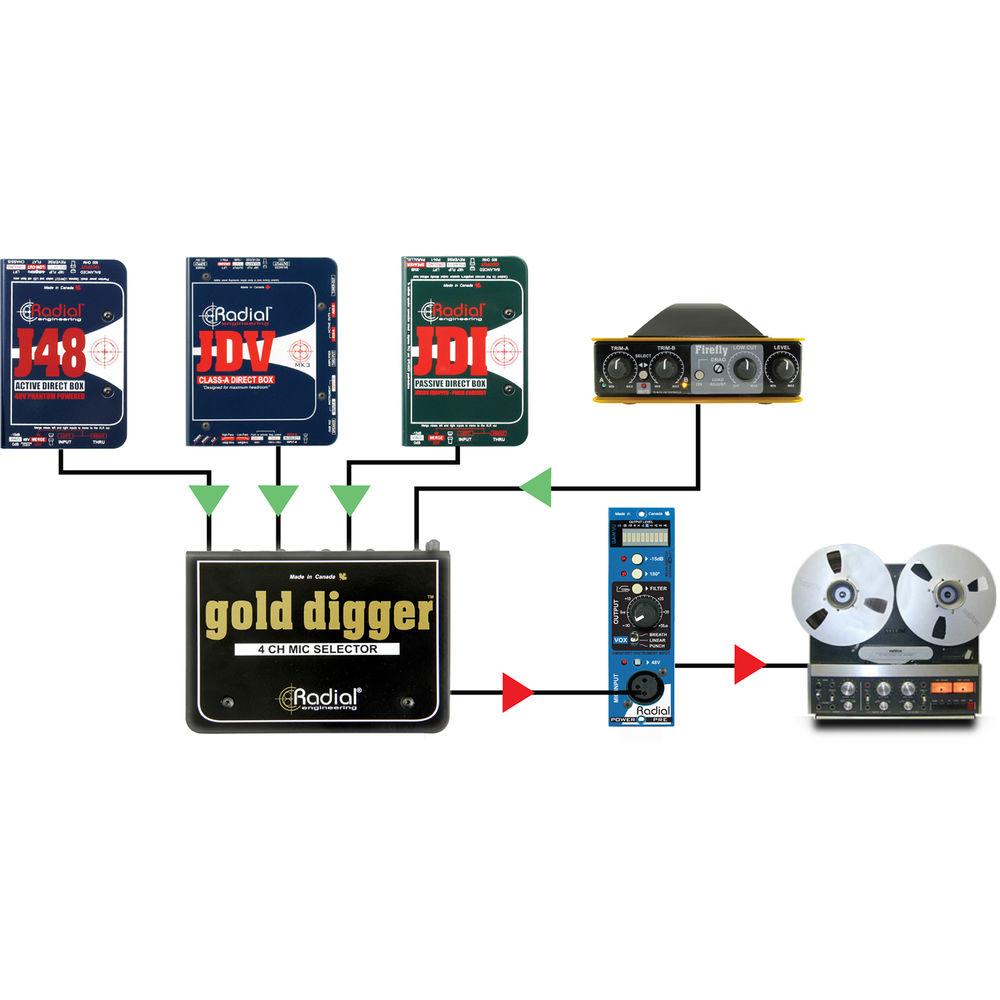

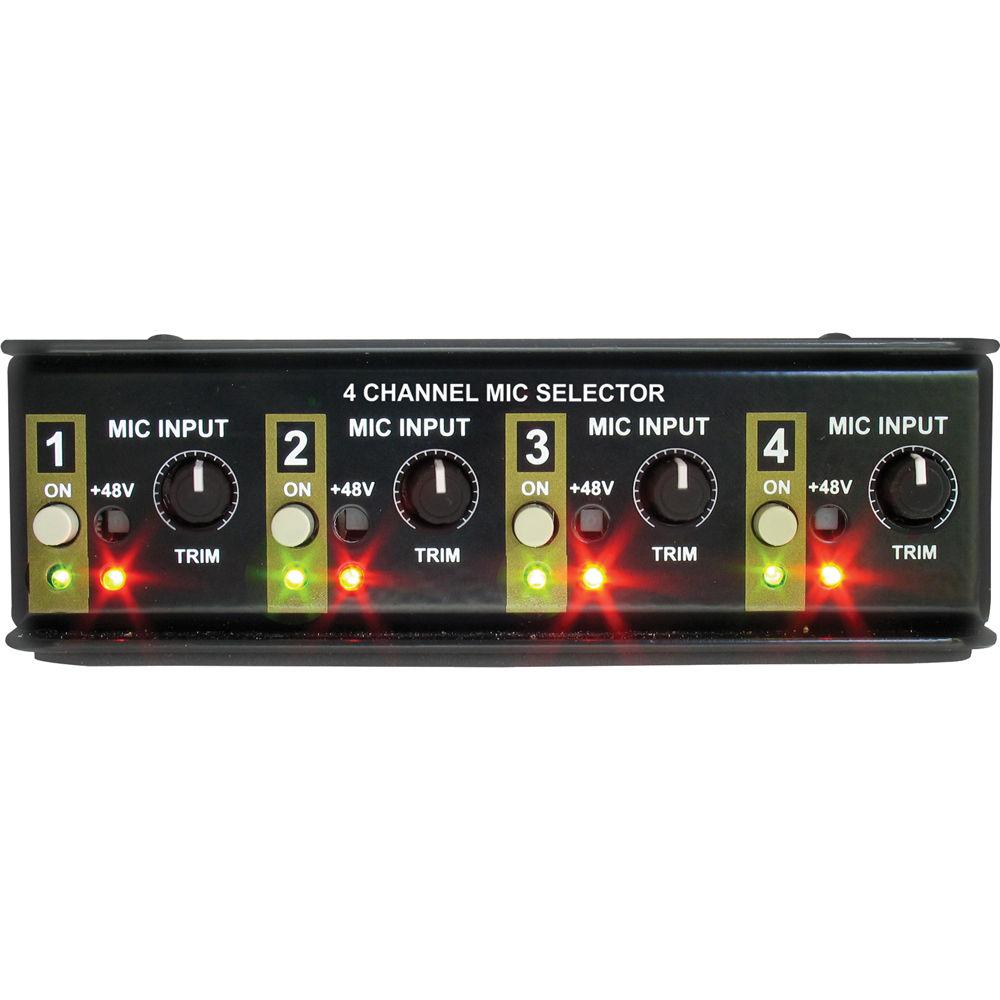

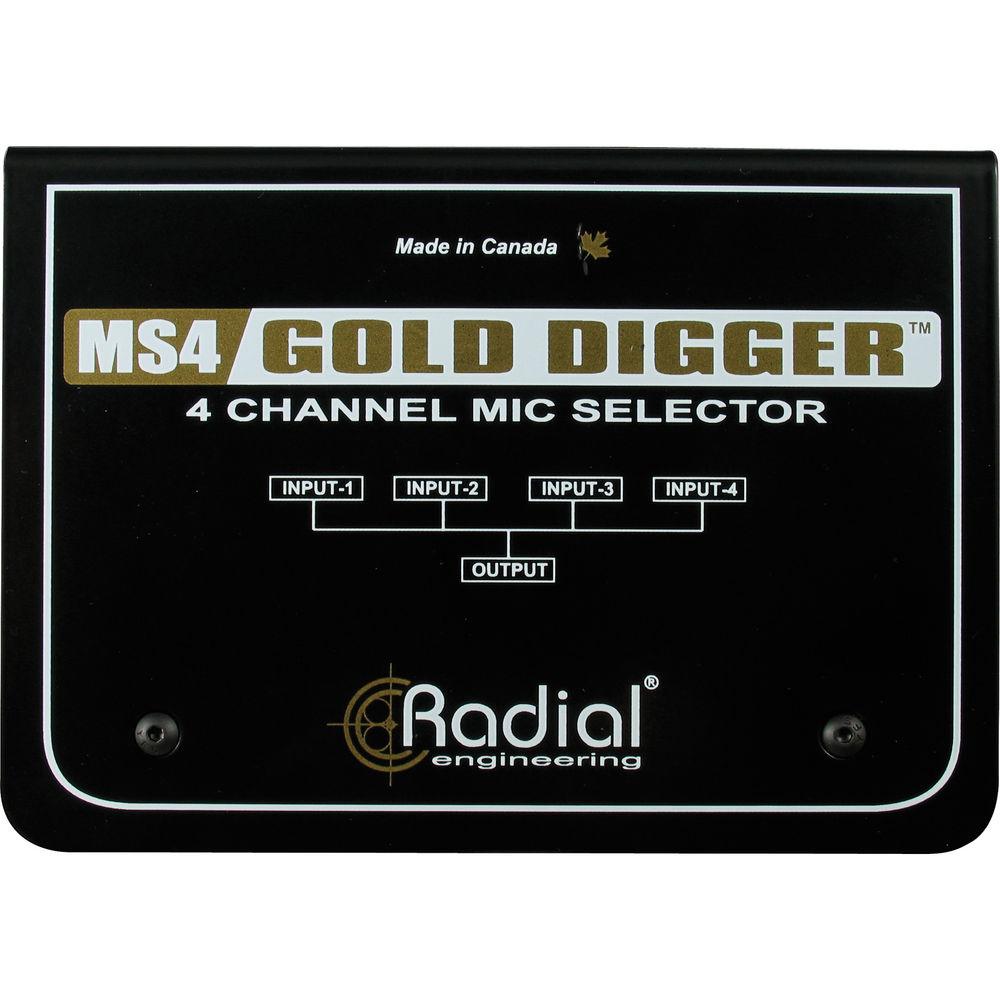

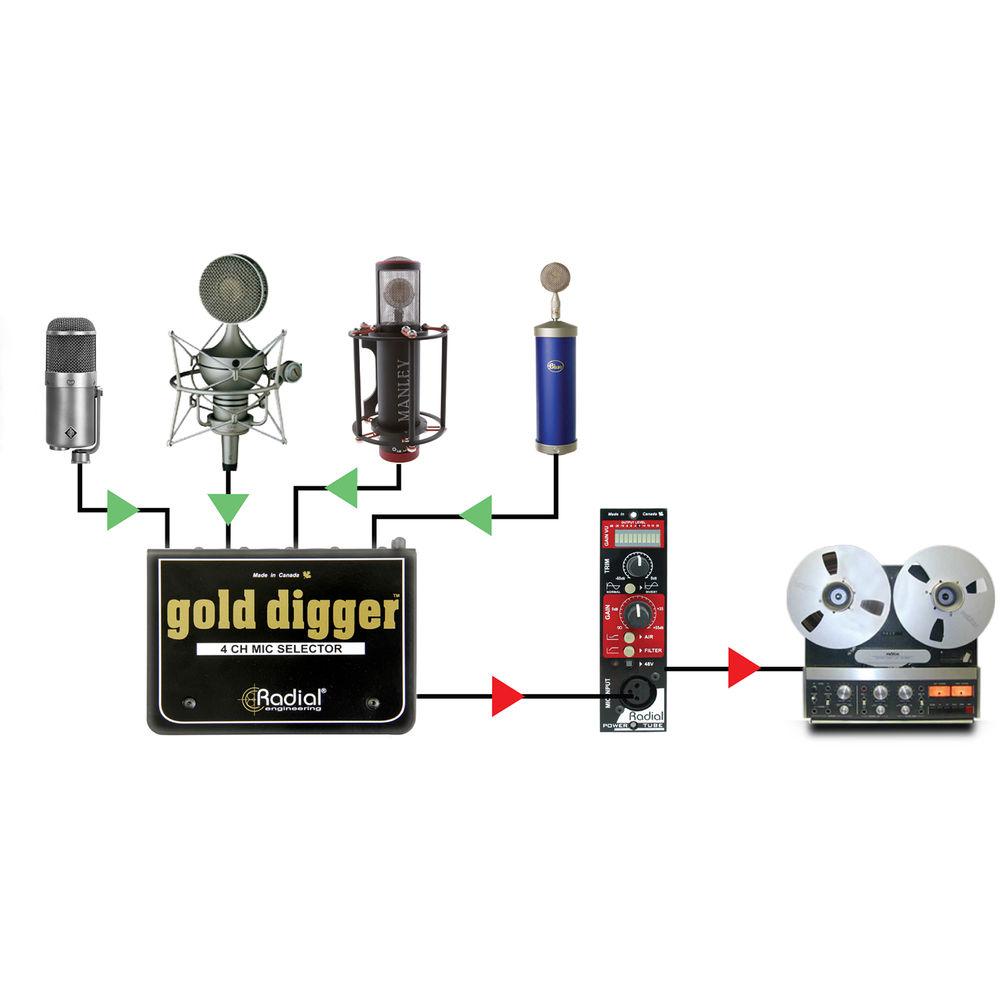

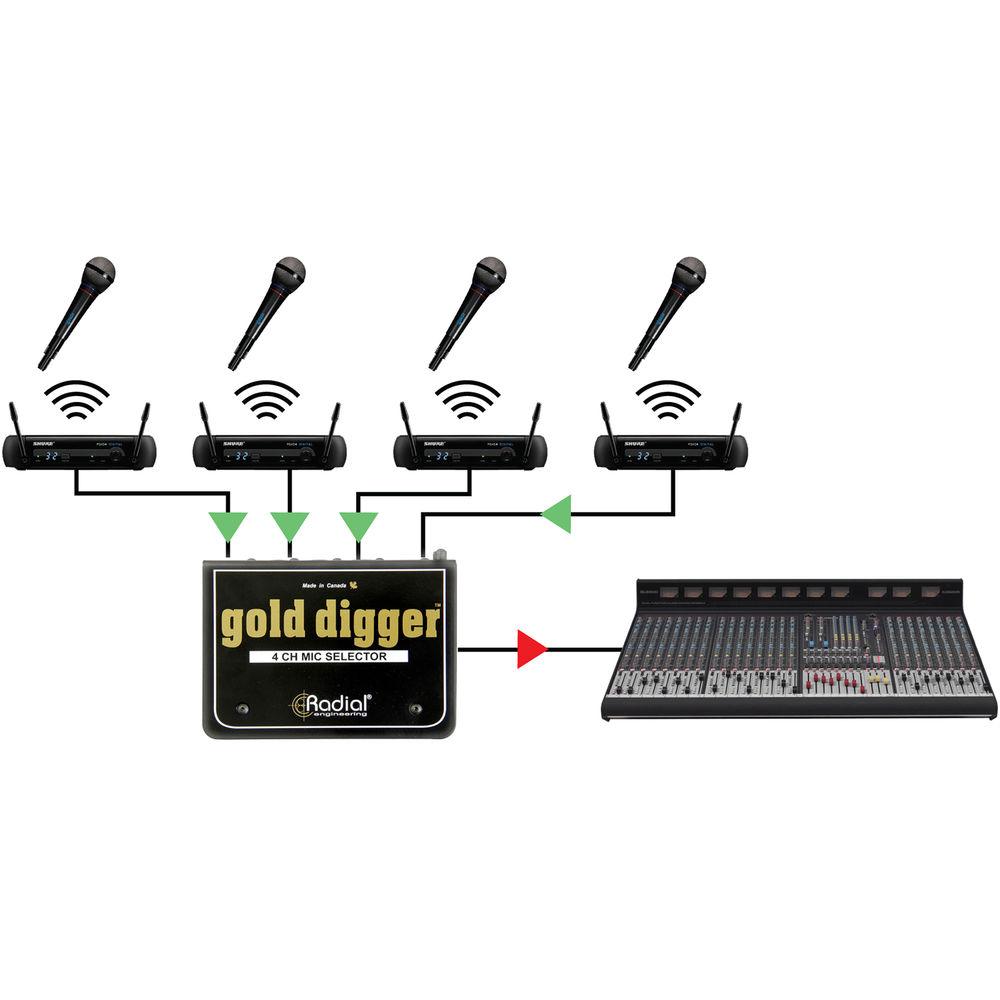

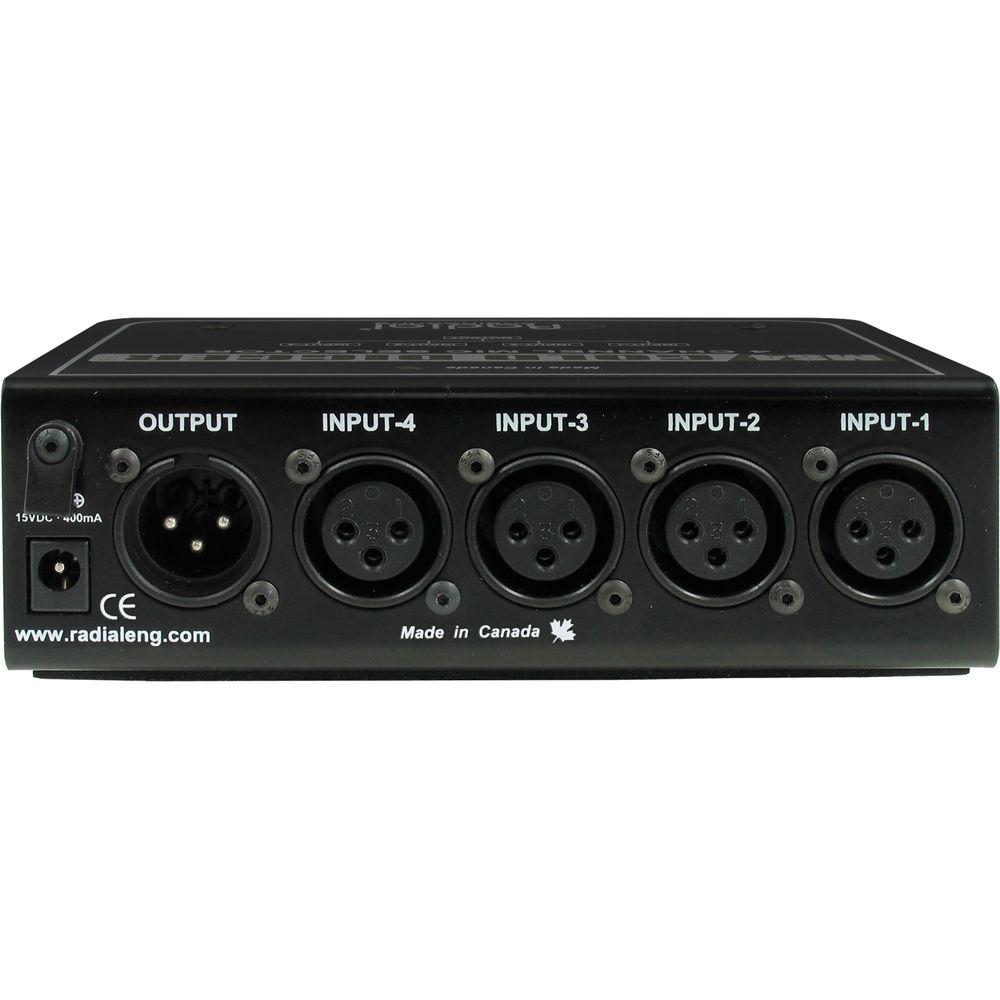

Product description The Gold Digger 4-Channel Mic Selector from Radial Engineering enables you to quickly compare the sound of 4 different microphones while sharing the same preamp. A straight wire passive circuit design is void of any audio buffers or transformers. This unit uses military-grade gold contact relays to manage the switching process, thus ensuring the mic signal is maintained without introducing color, distortion, or artifacts of any kind.The Gold Digger features 4 rear-mounted XLR-F mic inputs plus an XLR-M output to feed the preamp. To eliminate bleed between microphones, each channel is equipped with a radio-style selector switch that ensures only one mic is on at a time. The external supply provides power for the LED indicators, charges the relays, and enables the Gold Digger to generate 48V phantom, which can be turned on or off for each mic as needed.To ensure an honest comparison between microphones, individual ‘set & forget’ trim controls let you adjust each mic level so that they produce the same relative output. Once set up, the Gold Digger not only helps to improve the workflow, but it gives the artist more confidence with the sound of the vocal, resulting in a better overall performance. - Four selectable inputs with trim adjusts
- Straight wire distortion-free signal path
- Will not introduce color or artifact
- Increases artist's confidence when recording
UPC: 676101040513 In the Box Radial Engineering Gold Digger 4-Channel Mic Selector Adapter Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Gold Digger 4-Channel Mic Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1440 Specs | Circuit Type | Passive signal path with active relay switching | | Frequency Response | 20 Hz to 20 kHz | | THD + N | 0.0003% | | Dynamic Range | -140 dBu | | Equivalent Input Noise | -115 dBu | | CMRR | -92 dB @ 55 Hz | | Input Impedance | 600 Ω nominal | | Output Impedance | Same as source impedance | | Configuration | XLR:
Follows AES Spec: pin-1 ground, pin-2 hot (+), pin-3 cold (-) | | Power Requirement | 15 VDC / 150 mA | | Dimensions (W x H x D) | 5.80 x 1.88 x 4.50" (147.30 x 47.75 x 114.30 mm) | | Weight | 2.10 lb (0.95 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 10.9 x 4.9 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
