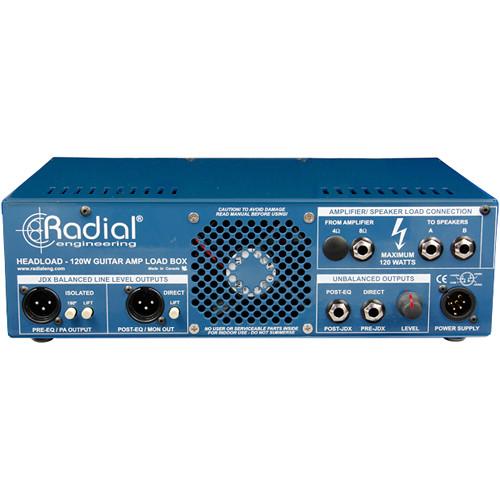

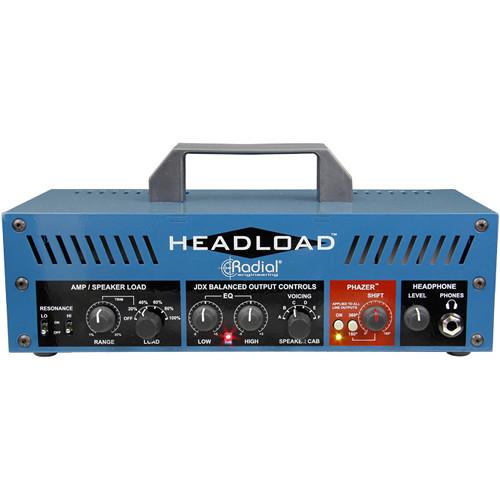

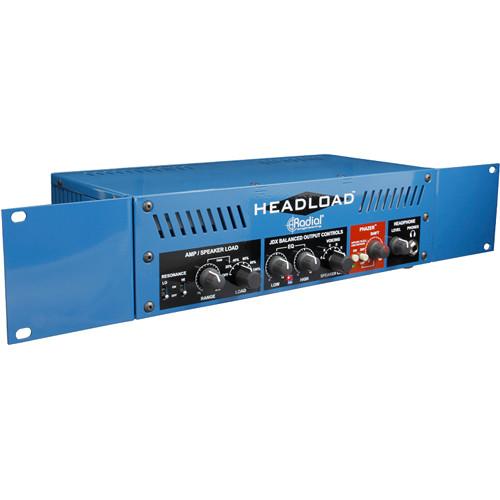

User Manual for Radial Engineering Headload Guitar Amp Load Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering Headload Guitar Amp Load
- Product category: Amplifier Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Amplifier Accessories
 |
User manual for the Radial Engineering Headload Guitar Amp Load contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|
Product description This Radial Engineering Headload Guitar Amp Load Box is a signal processor as well as a combination load box and attenuator that operates at a load impedance of 4 ohms. It allows a guitar amplifier to be driven hard while reducing the output level in order to reduce the sound pressure on stage, and it can provide the means for quiet recording in the studio. This feature enables a musician to optimize the tone from the guitar amplifier without having to perform at ear-blistering levels. - Combination speaker attenuator and simulator
- Safely handles up to 130 watts RMS (180 peak)
- Radial JDX Reactor and Phazer for direct recording
- Designed to deliver better tone from the amplifier at a low volume
In the Box Radial Engineering Headload Guitar Amp Load Box (4 ohms) Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Headload Guitar Amp Load Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 7054 Specs | Frequency Response | 90 Hz at -3 dB to 4 KHz at -6 dB
Low EQ: +/- 9 dB @ 80 Hz
High EQ: +/- 9 dB @ 6 KHz
| | Resonance | 60 Hz & 6.5 KHz, shelving filter 6 dB/octave slope
+12 dB at 20% load setting
+9 dB at 40% load setting
+6 dB at 60% load setting
+3 dB at 80% load setting
None at 100% load setting
| | Load Impedance | 4 ohms | | Headphone Output Power | 400 mW into 32 ohms | | Headphone Impedance | 32 ohms or higher | | Gain | -40 dB typical | | Intermodulation Distortion | <0.05% | | Noise | -104 dbu unweighted | | Input Impedance | 8 ohms | | Total Harmonic Distortion | <0.05% | | Power | Radial +/- 15 V; 400 mA | | Construction | 14 gauge steel chassis & outer shell | | Finish | Durable powder coat | | Operating Conditions | 41 to 104 °F / 5 to 40 °C | | Dimensions | 6.1 x 12.0 x 3.5" / 15.4 x 30.5 x 8.8 cm | | Weight | 8.0 lb / 3.63 kg |
