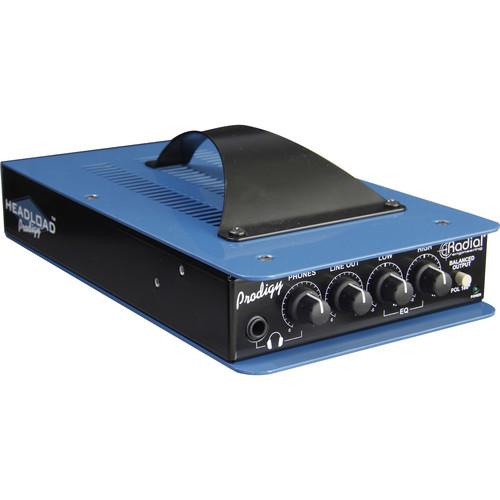

Product description The Headload Prodigy from Radial Engineering is a combination DI / load box designed for electric guitars. Using this device allows you to drive your amplifier's power-amp circuit at higher output levels while producing a lower volume on the stage, resulting in all the fat tonal characteristics you want at significantly lower volumes. You can achieve this by inserting the load box as an attenuator between your amplifier head and your cabinet, utilizing the 50% speaker output to achieve a 50% reduction of volume—with no compromise on preamp/power-amp tone.
But that's not all: The Headload Prodigy also functions as a DI box, complete with a JDX balanced XLR output which simulates the tone of a 4x12" cabinet. Using this option, you can record your amp's tone without a microphone, or send your amp through the house's PA and save yourself from having to schlep your speaker cabinet to the gig. You can also take an uneffected DI sound through the unbalanced pre-EQ 1/4" output. - Auxiliary Unbalanced Outputs
- Two unbalanced 1/4" outputs—one pre-EQ, one post-EQ—provide more connectivity options to amps, effects, and more

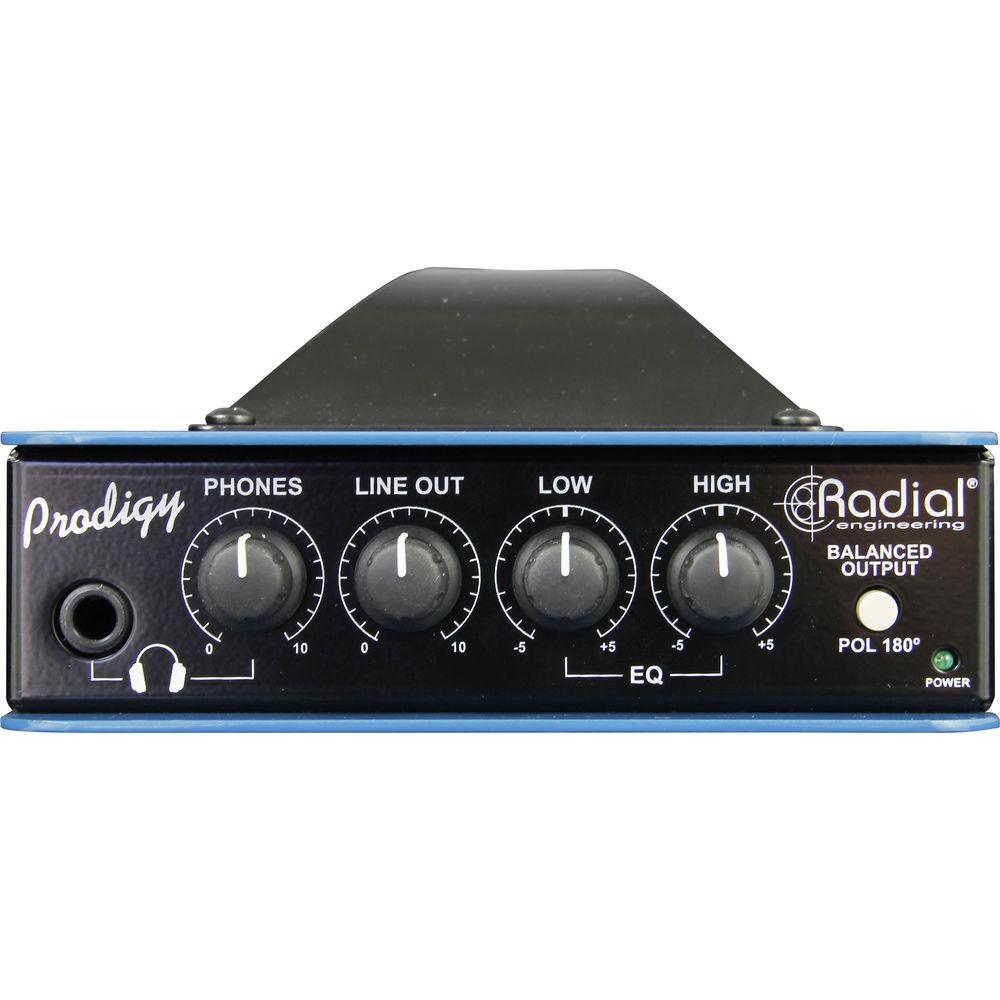

- Onboard EQ
- High and Low EQs allow you to further tweak your sound—especially useful for in-ear applications

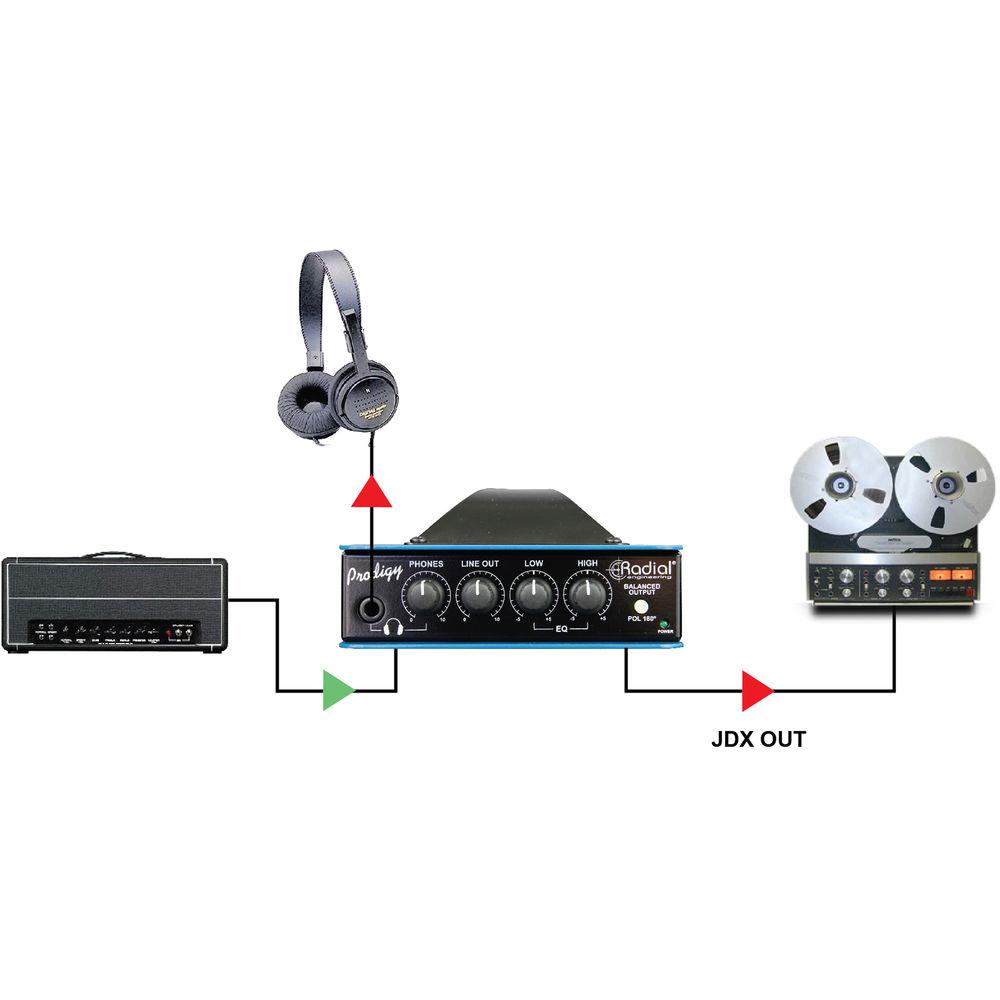

- Headphone Out with Level Control
- Monitor privately with this 1/4" line out
- Three Separate Uses
-

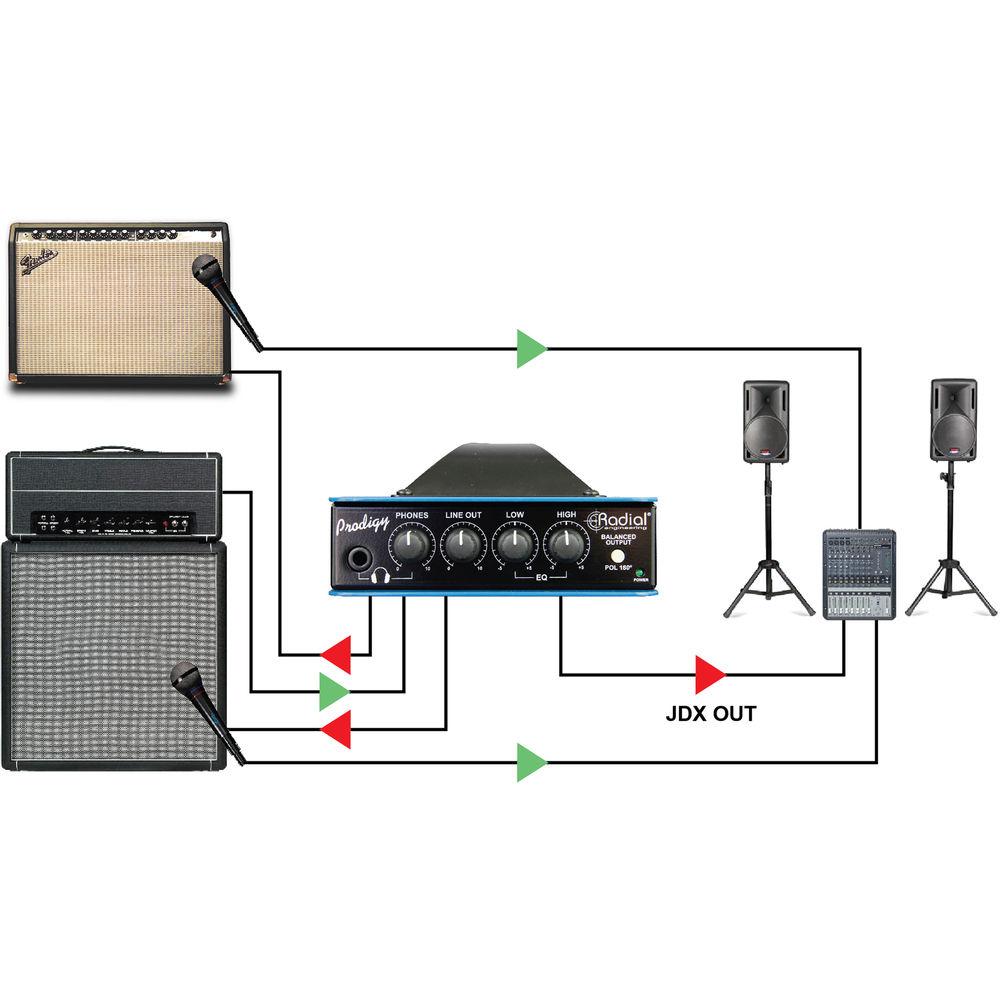

- 100% pass-through allows you to send your amp's sound through a Radial JDX balanced DI output without affecting your stage cabinet's tone
- 50% attenuation allows you to reduce your volume without sacrificing tone (excellent for small venues)

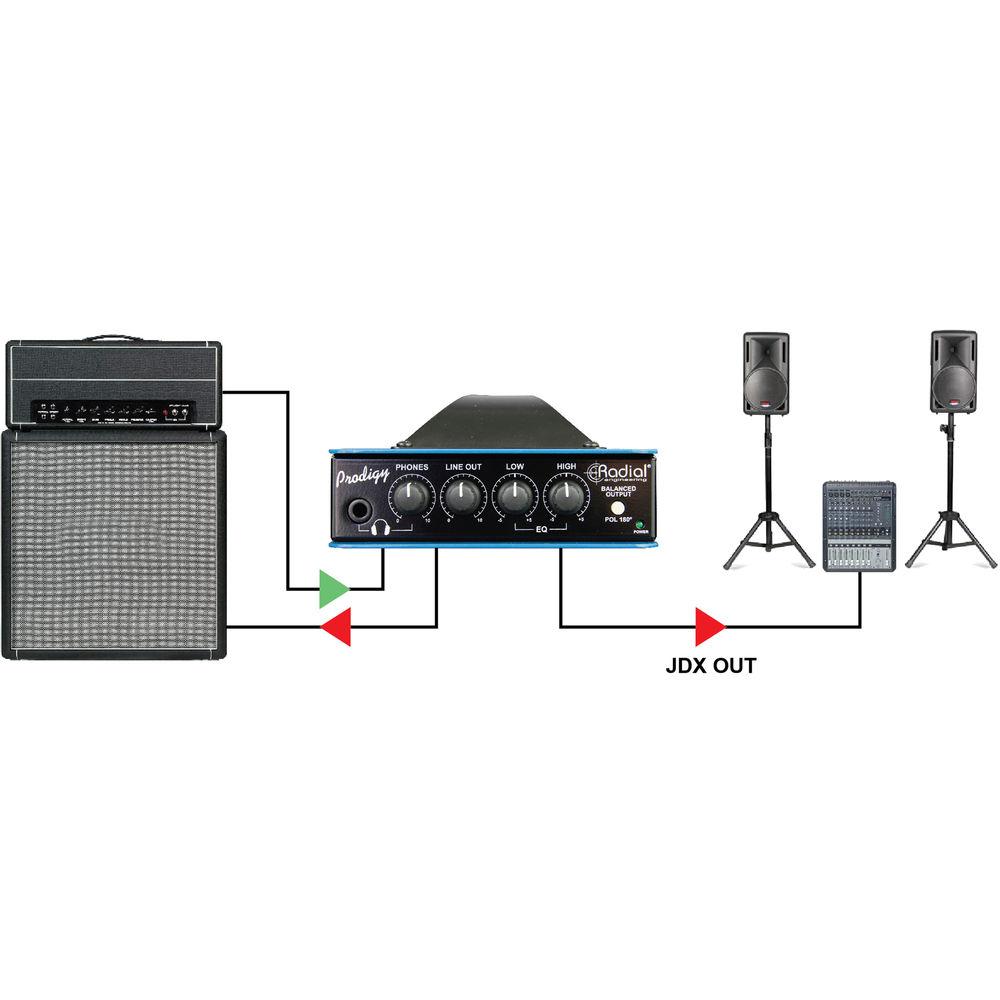

- Simple DI output allows you to route amp/cab tone straight to a mixer, PA, or interface without a microphone
- Polarity Reverse & Ground Lift
-
- Reverse the phase of your amp to compensate for phase anomalies on stage
- Ground lift switch helps eliminate hum and buzz caused by ground loops
In the Box Radial Engineering Headload Prodigy Load Box with Speaker Simulator Radial Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Headload Prodigy Load Box with Speaker Simulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

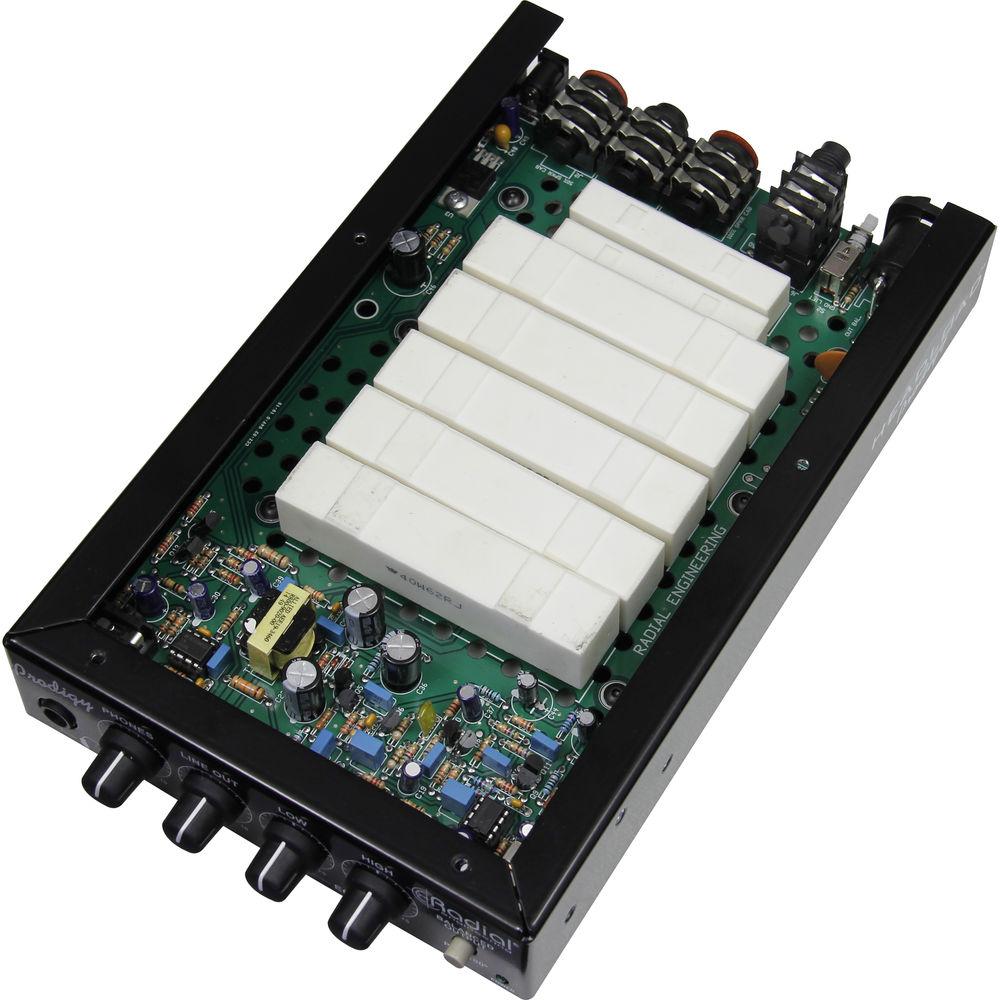

Technical parametersRadial Engineering R800 7068 Specs | Audio Circuit Type | Passive attenuation circuit with active equalization | | Noise Floor | -106 dBu | | Maximum Input | 130 W RMS | | Total Harmonic Distortion | 0.05% | | Inter-Modulation Distortion | 0.05% | | Impedance | 8 Ohms | | Gain | -30 dB / -42 dB | | Maximum Output Level | @ 1 kHz: +17 dBu
@ 20 Hz: +14 dBu | | Gain Reduction | 100%, 50%, 0% | | Equalization | Low: ±9 dB @ 80 Hz

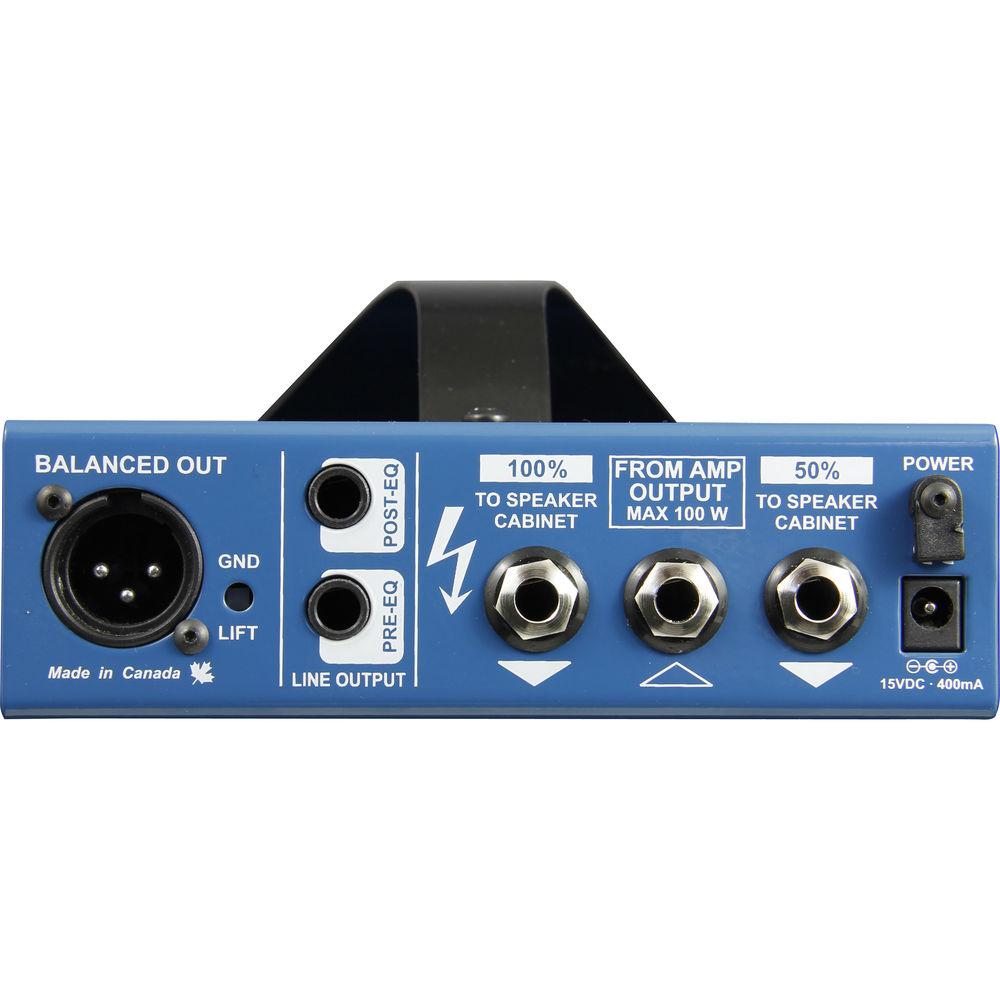

High: ±9 dB @ 6 kHz | | Headphones | 400 mW into 32 Ohms | | Unbalanced Audio | 1x 1/4" Hi-Z line output, pre-EQ
1x 1/4" Hi-Z line output, post-EQ | | Balanced Audio | 1x XLR line output, 250 Ohms, post EQ | | Ground Lift | Disconnects pin 1 at the XLR input | | Power Supply | Radial ±15 V 400 mA | | Construction | 14-gauge steel chassis and outer shell | | Environmental Conditions | For use in dry locations between 41 to 104°F / 5 to 40°C | | Dimensions (L x W x H) | 10.25 x 5.9 x 3.8" / 260.3 x 149.7 x 95.2 mm | | Weight | 5.3 lb / 2.4 kg |
