User Manual for Radial Engineering IceCube IC-1 Balanced Line Isolator and Hum Eliminator Click to enlarge the picture
Contents of the user manual for the Radial Engineering IceCube IC-1 Balanced Line
- Product category: Level Matching Transformers Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Level Matching Transformers
 |
User manual for the Radial Engineering IceCube IC-1 Balanced Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

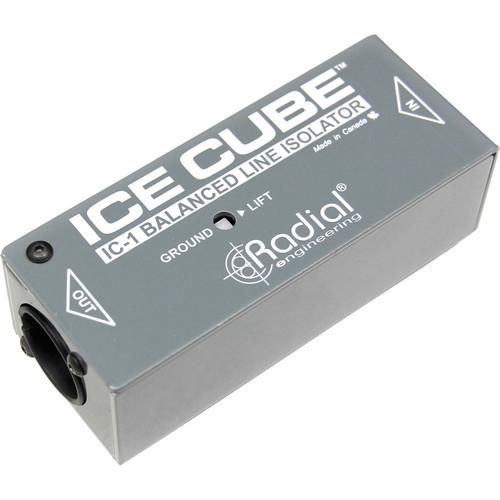

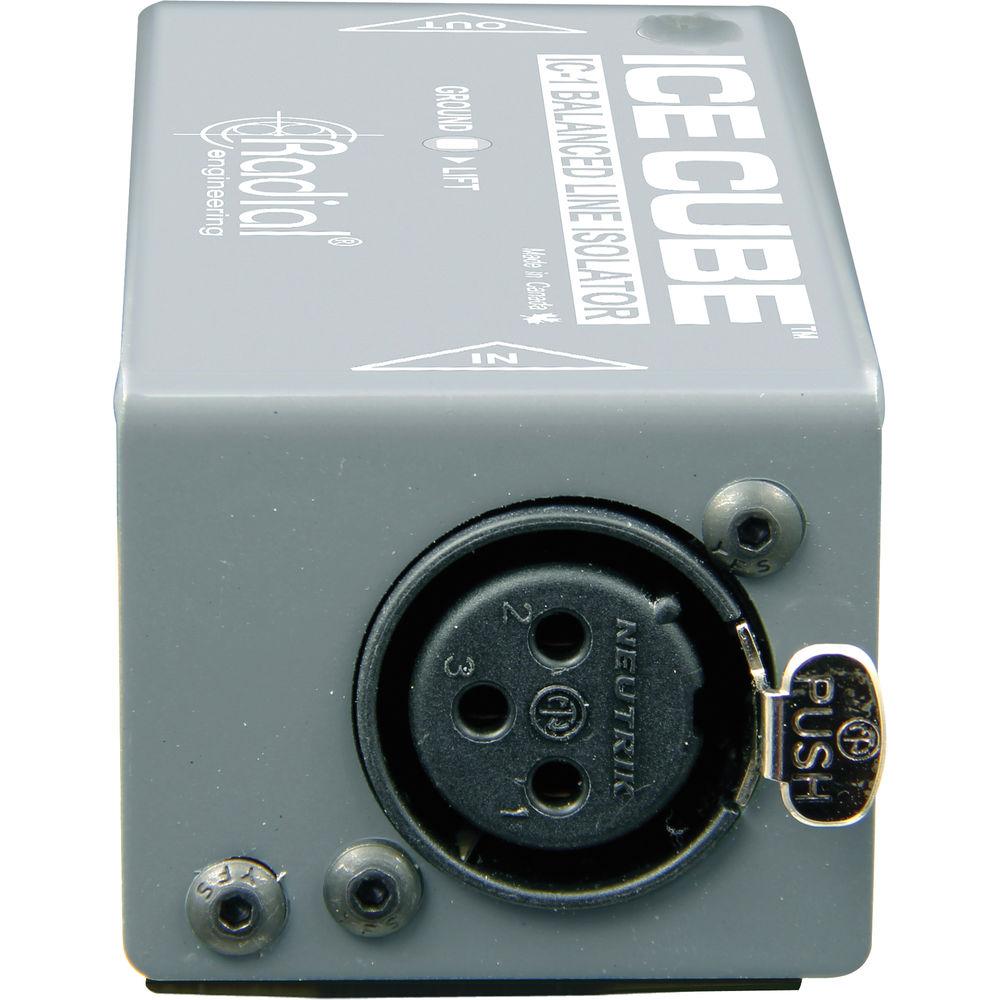

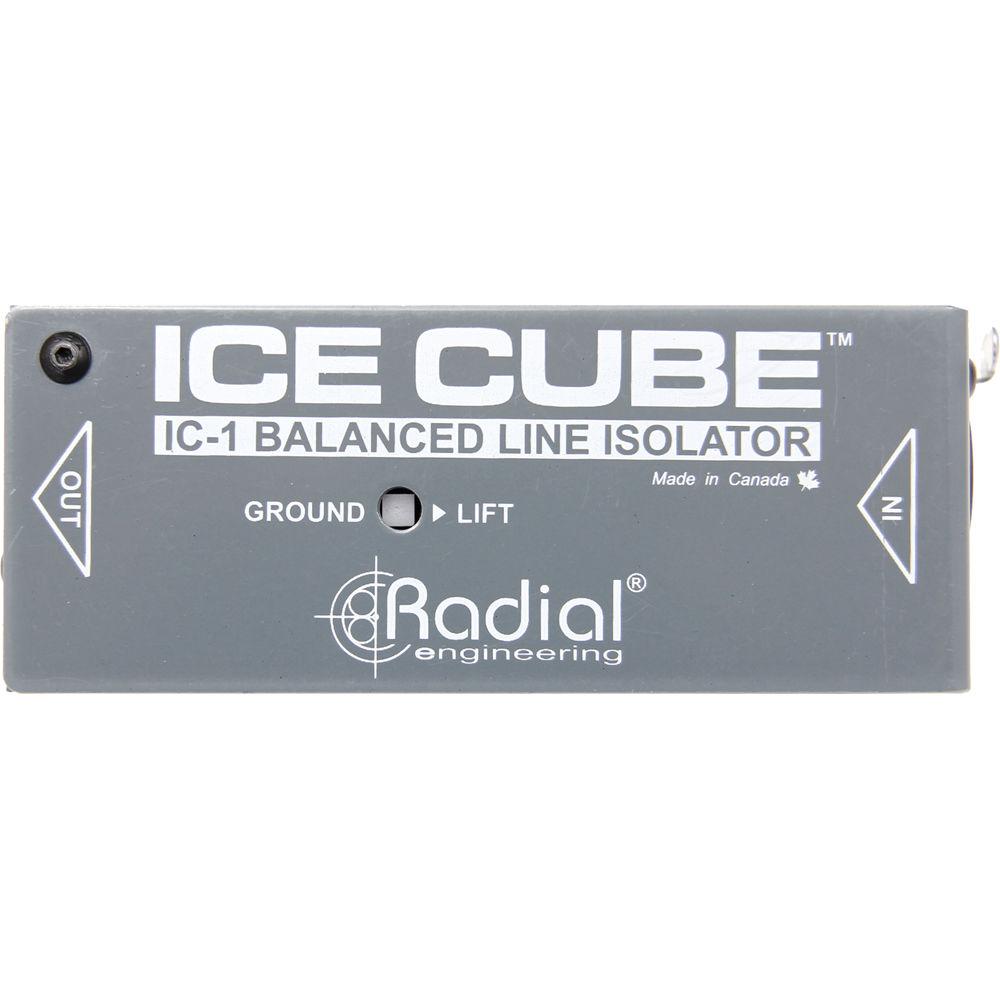

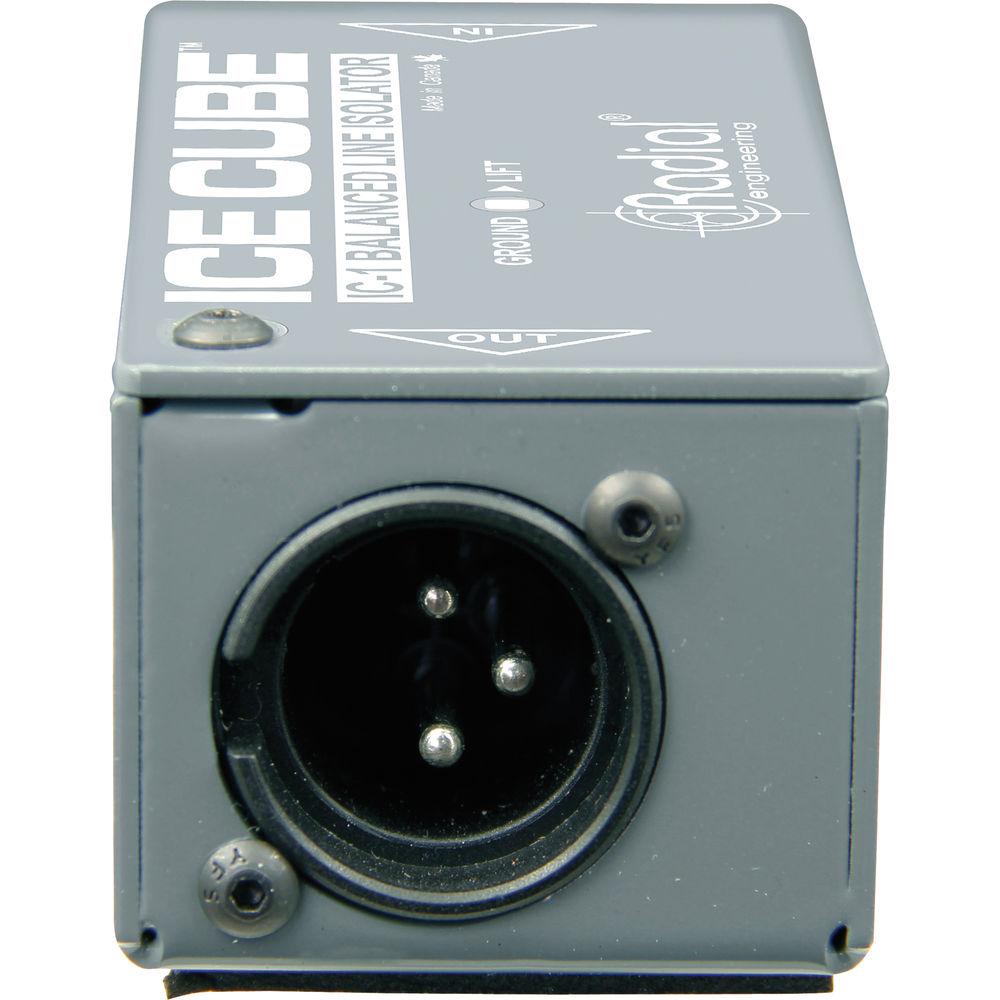

Product description Designed to eliminate hum and buzz cause by ground loops, the IceCube IC-1 Balanced Line Isolator and Hum Eliminator from Radial Engineering can be inserted directly into your signal path via its glass-filled nylon XLR connectors. Its proprietary Eclipse transformer isolates the input from the output and blocks stray DC currents, providing a linear response from 20 Hz to 18 kHz. It can handle up to +10 dB at 20 Hz with less than 0.01% distortion.
The IceCube is made of solid 16-gauge steel and features a powder-coat finish. The steel provides electromagnetic shielding from nearby cables, motors, and power supplies. - Eliminates hum & buzz caused by ground loops
- Linear response from 20 Hz to 18 kHz
- Able to handle pro output levels without choking
- Plug & play easy to use with XLR in & out
UPC: 676101043460 In the Box Radial Engineering IceCube IC-1 Balanced Line Isolator and Hum Eliminator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering IceCube IC-1 Balanced Line Isolator and Hum Eliminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering IC-1 Specs | Audio Circuit Type | Passive, transformer based | | Frequency Response | 20 Hz to 20 kHz (± 1 dB) | | Dynamic Range | >135 dB | | Maximum Input | 15 dBu | | Gain | 0 dB / -5.7 dB 10 k / 600 ohm load | | Clipping Level | 25 dBu | | Equivalent Input Noise | 110 dBu | | Distortion | Intermodulation Distortion: 0.002% @ -10 dBu
Total Harmonic Distortion: <0.0006% 1 kHz @ -10 dBu | | Input Impedance | 8.66 kOhms with 10 kOhm load | | Output Impedance | 600 ohms nominal | | Transformer | Custom-made Eclipse | | Ground Lift | Disconnects pin-1 at XLR output | | XLR Configuration | AES standard: Pin-1 (Ground), Pin-2 (+), Pin-3 (-) | | Environmental Conditions | For use in dry locations only between 41 to 104°F (5 to 40°C) | | Construction | 16-gauge steel chassis & outer shell | | Finish | Powder Coat | | Dimensions (L x W x D) | 4.2 x 1.32 x 1.6" (107 x 34 x 41 mm) | | Weight | 0.4 lb (0.18 kg) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 7.2 x 4.7 x 1.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
