Radial Engineering J33- Turntable Preamp and

Search your instruction manual in PDF to download

User Manual for Radial Engineering J33- Turntable Preamp and Direct Box

Click to enlarge the picture
Radial Engineering J33- Turntable Preamp and Direct Box Contents of the user manual for the Radial Engineering J33- Turntable Preamp and
  • Product category: Phono Preamplifiers Radial Engineering
  • Brand: Radial Engineering
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Radial Engineering Phono Preamplifiers

Radial Engineering J33- Turntable Preamp and Direct Box Radial Engineering J33- Turntable Preamp and Direct Box Radial Engineering J33- Turntable Preamp and Direct Box Radial Engineering J33- Turntable Preamp and Direct Box Radial Engineering J33- Turntable Preamp and Direct Box Radial Engineering J33- Turntable Preamp and Direct Box Radial Engineering J33- Turntable Preamp and Direct Box
User manual for the Radial Engineering J33- Turntable Preamp and contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Radial Engineering product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!



Product description

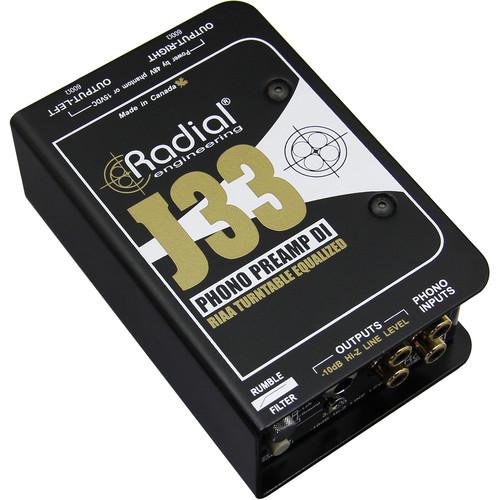

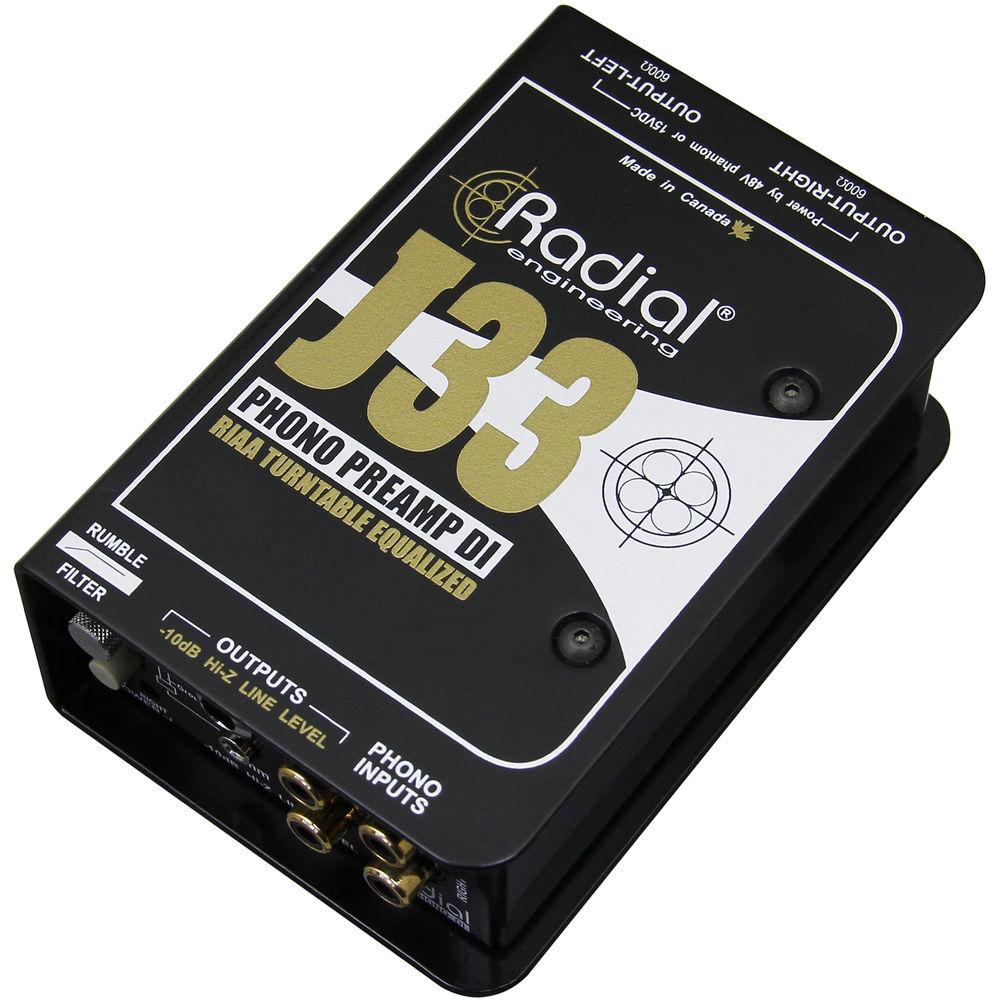

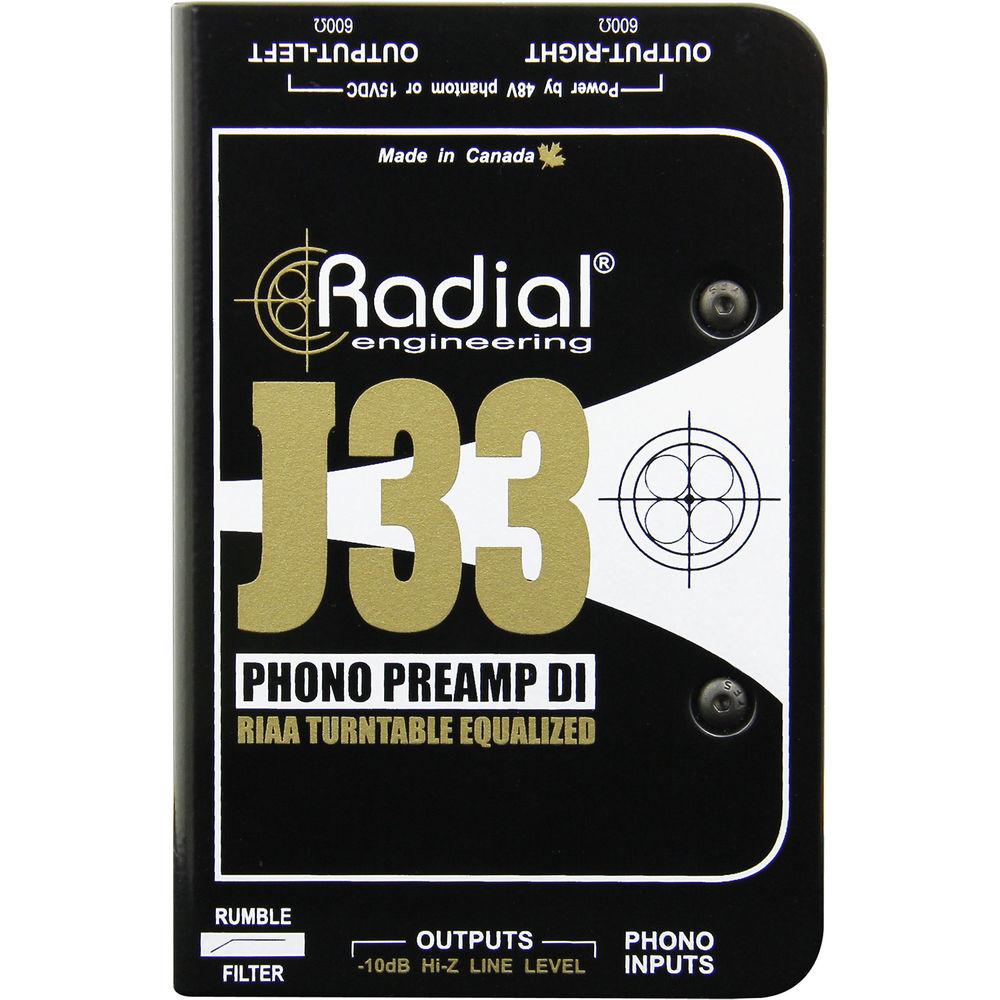

The J33 from Radial is designed specifically for use with turntables and is a combination RIAA turntable preamp and active direct box. This allows vinyl albums (LP's) to be connected directly to a microphone preamp in a mixing console. The unit is ideally suited for archiving, sampling, scratch performances and DJ mixing when the highest possible sound quality is required. The J33 is designed for use with magnetic cartridges only (the box does not support active cartridges) and the choice of outputs makes the unit very flexible. It can feed a hi-Z input such as a DJ system, and a low-Z input such as a pro-mixing console at the same time. It can be used solely as an RIAA preamp with hi-fi equipment or as an RIAA preamp and direct box combination. The J33 may be powered with 48V phantom when used with a mixing console, or with the included power supply when phantom is not available. Housed in a heavy-duty enclosure that makes it impossible to torque the PC board, the outer shell of the J33 features a book-end design that protects the connectors and switches.
  • Turntable preamp and direct box combination with RIAA EQ curve for proper playback response
  • Designed specifically for magnetic turntable cartridges
  • Multiple outputs for usage flexibility
  • Rumble filter stops low-frequency feedback
  • Applications include pro DJ touring and night clubs, archiving vinyl records, recording digital samples from vinyl and recording scratch performances
  • Full bottom pad improves electrical isolation and keeps the unit from moving around on busy stages

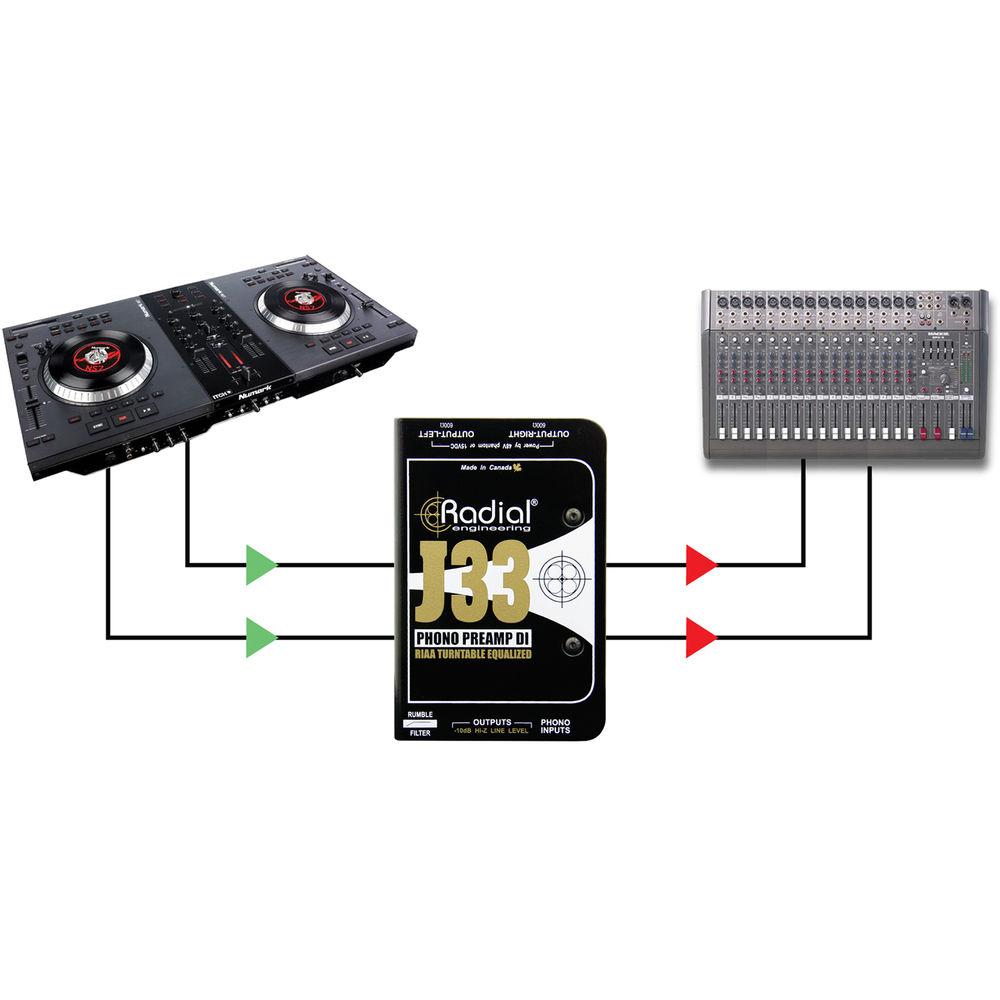

  • Eliminates need for DJ mixer

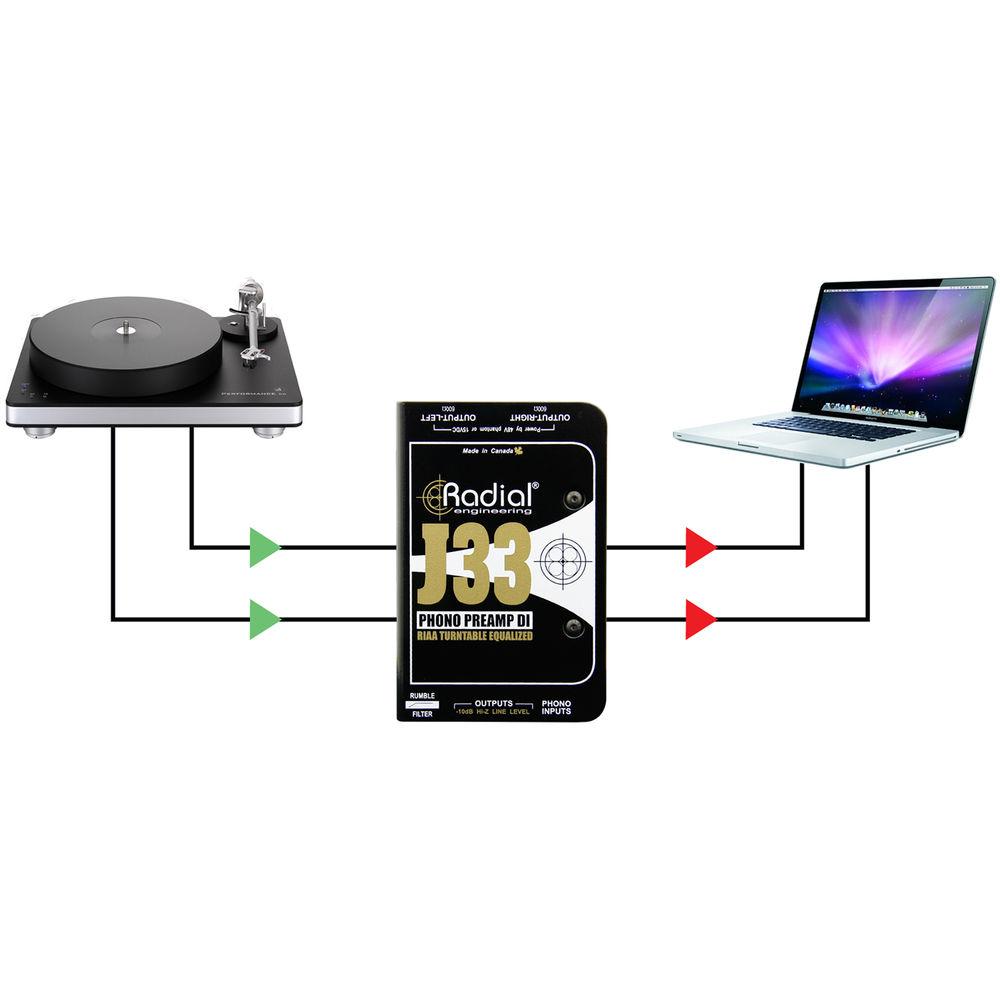

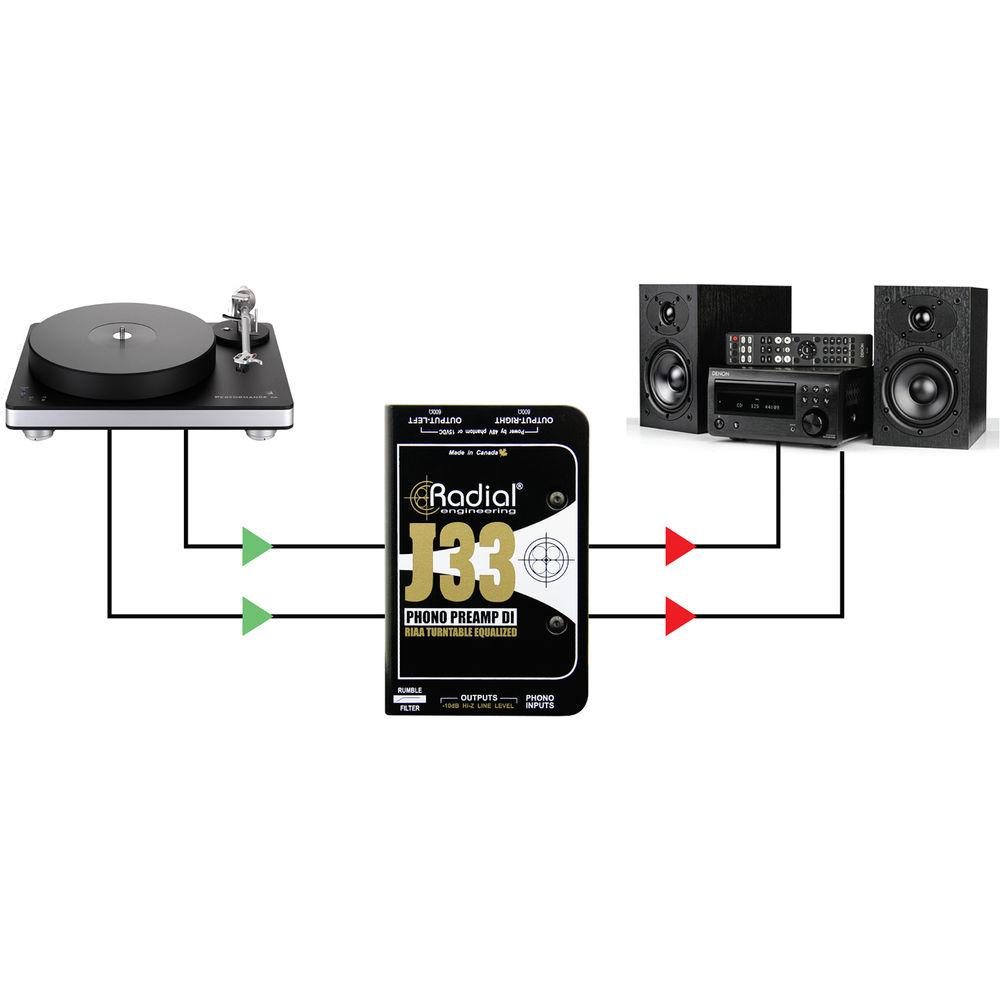

  • Can be used as hi-fi turntable preamp
  • Powered by 48V phantom or external supply
UPC: 676101035762 In the Box Radial Engineering J33- Turntable Preamp and Direct Box
  • External Power Supply
  • Three (3) Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Radial Engineering J33- Turntable Preamp and Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Radial Engineering R800 1300 Specs

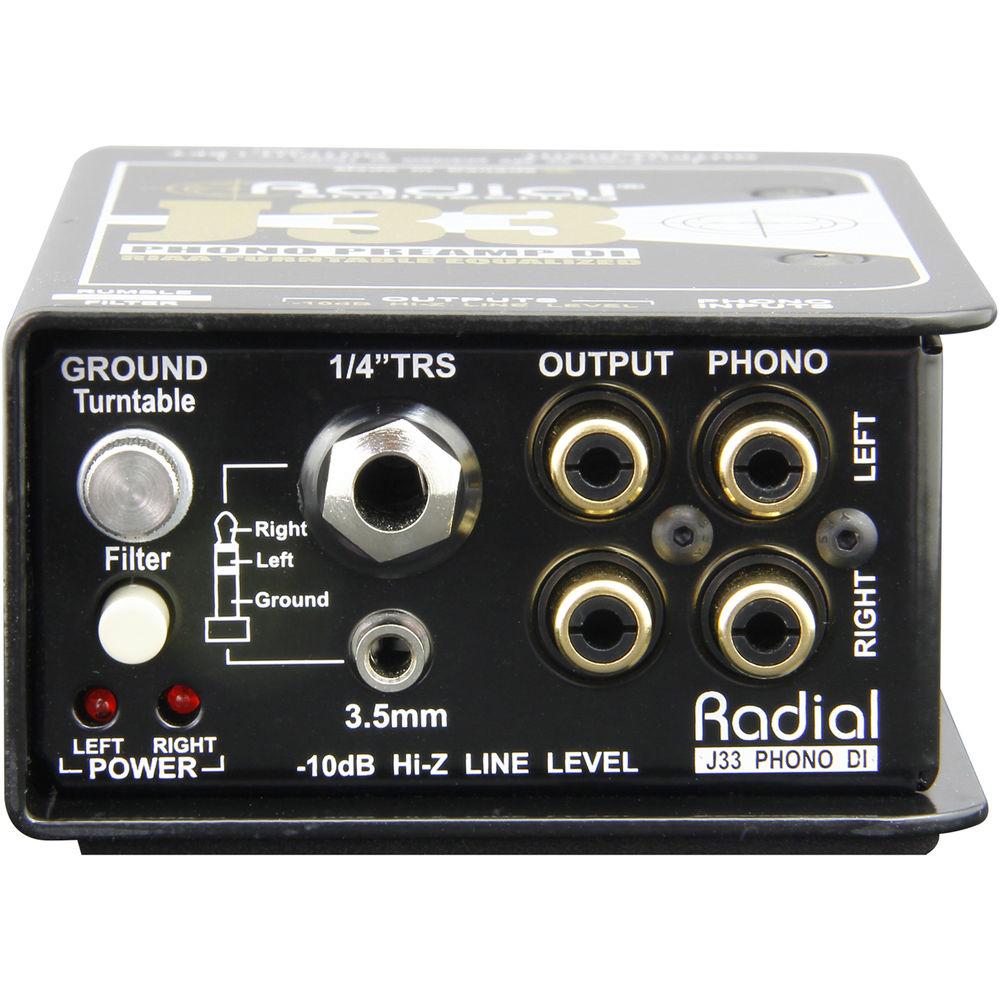

    Input Connections 2 x RCA phono

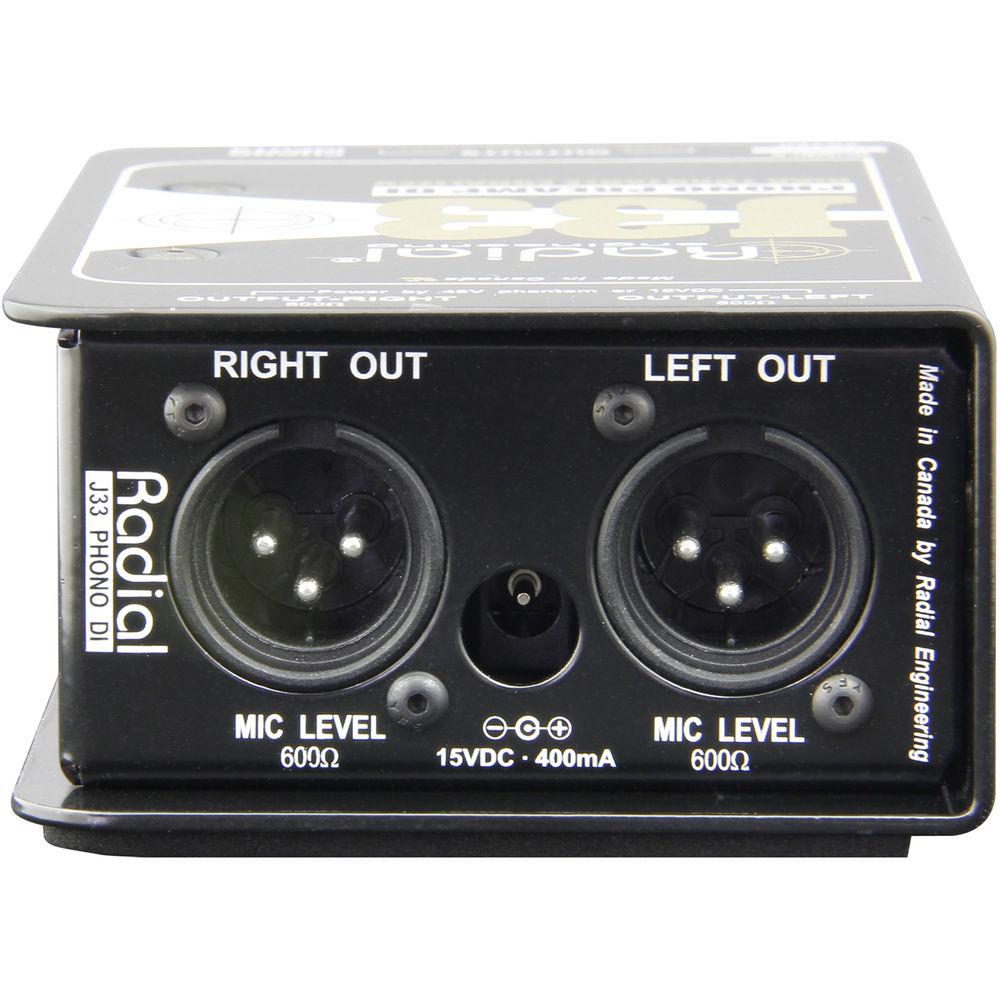

    Output Connectors 2 x XLR
    1 x 1/4" TRS phone
    1 x 1/8" TRS stereo mini phone
    2 x RCA phono
    Input Level 50mV @ 1kHz
    Output Level -10dB consumer line level
    -60dB 600 Ω microphone level
    Controls 1 x Rotary control - Rumble Filter
    Frequency Response 20Hz to 20kHz
    Noise Not specified by manufacturer
    Power 15VDC or 48V phantom power (auto switching)
    Dimensions (WxDxH) 3 1/4" x 5" x 2"
    Weight 1.95 lbs
    Specialties High pass filter, 200Hz cut off, -3dB at 100Hz
    Package Weight 2.48 lb
    Box Dimensions (LxWxH) 11.0 x 4.0 x 2.5"
