Product description - Radial j48 advanced active direct box - explained

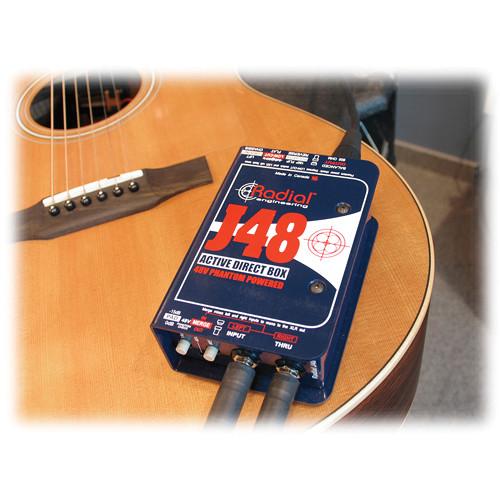

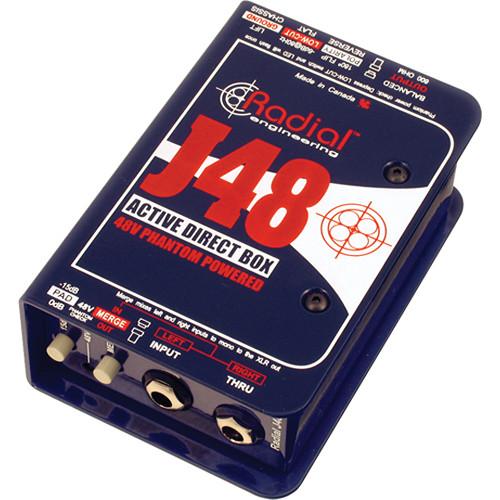

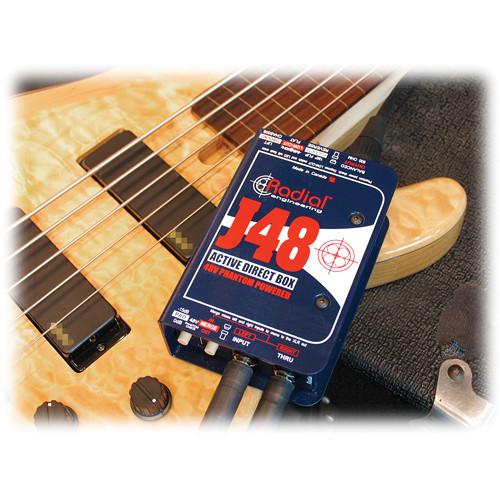

The J48 from Radial Engineering is an active direct box, elite in design and performance and intended for professional stage and recording studio use. The unit can be powered from 48V phantom power or batteries, has rugged 14-gauge steel construction and extended, distortion-free headroom via a 10V internal rail voltage capacity. Ground lift, phase reverse and 80Hz recessed filter switches are also standard. - Low power consumption, high 10V internal rail voltage for extended headroom; advanced design accommodates high output levels from active instruments

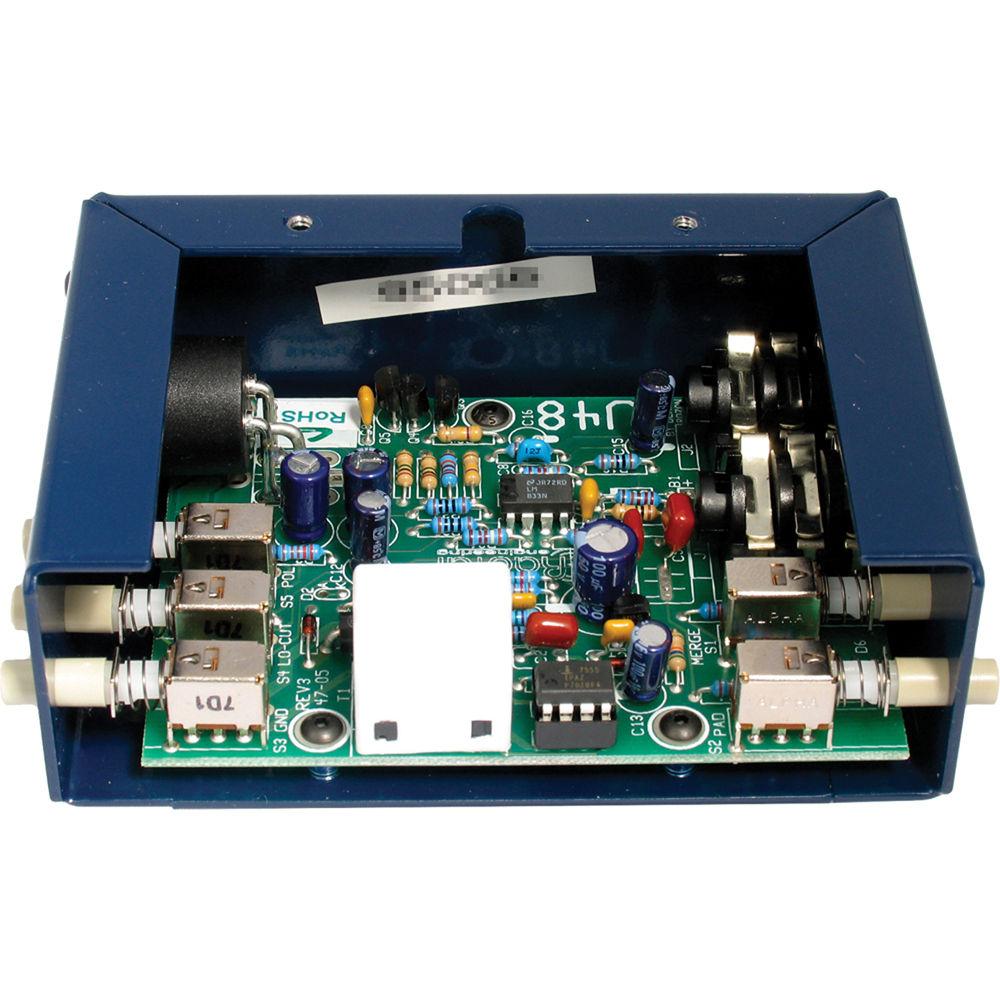

- Internal timing chip and switching transformer maintain smooth rail voltage transition and headroom on input

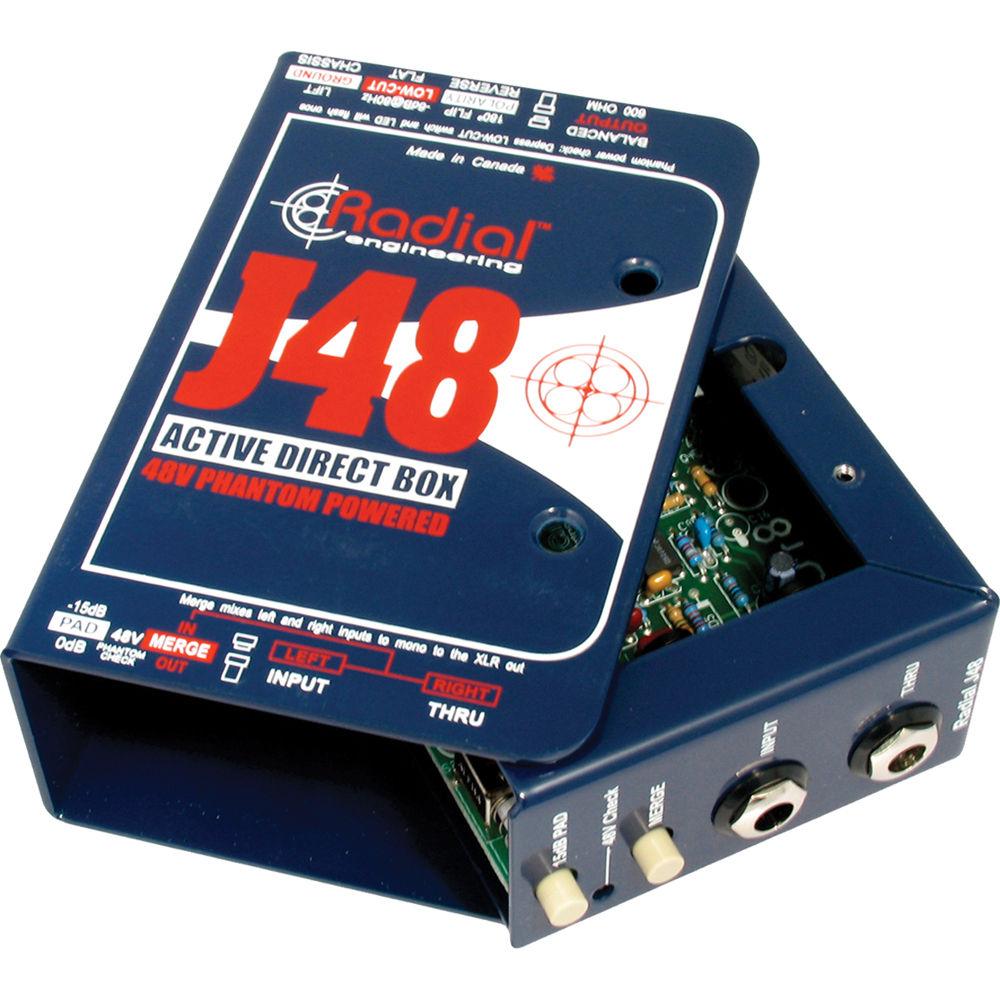

- Highly durable 14-gauge welded steel chassis
- Dual function inputs with 2-channel merge feature

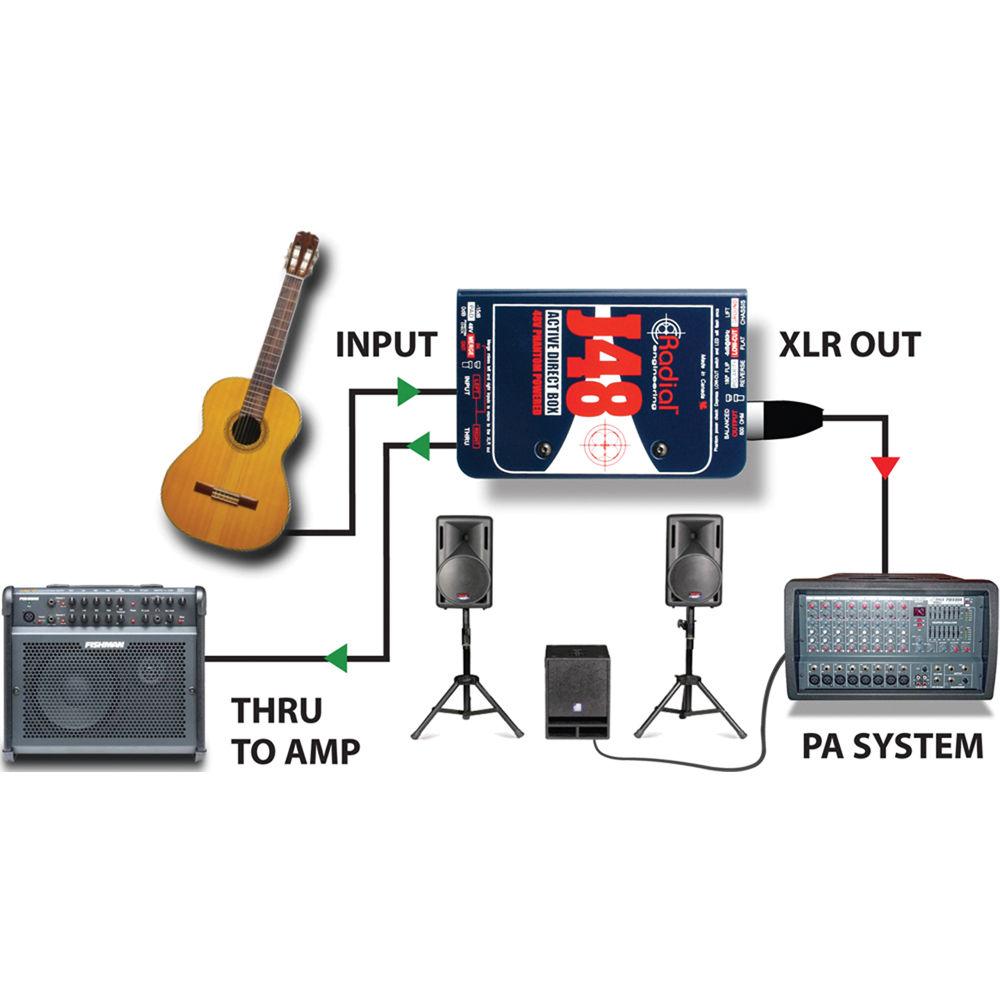

- 1/4" Thru connector and XLR output connector for simultaneous sends to console, amplifier

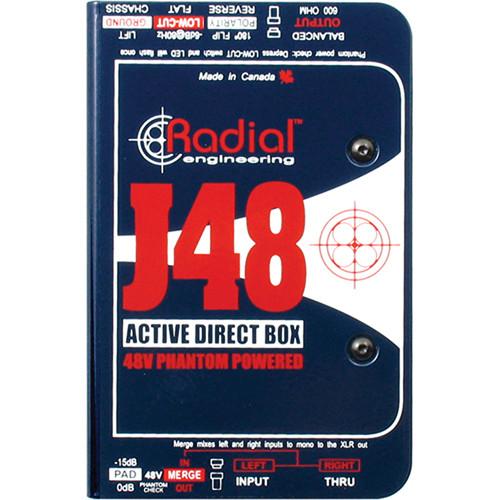

- Ground Lift and Pad switches
- 80 Hz filter eliminates low end rumble, creates 3 dB of additional headroom
- No-slip bottom padding maintains positioning, protects unit from ground contamination
UPC: 676101034079 In the Box Radial Engineering J48 - Single Channel Active Direct Box Three (3) Year Warranty User Manual PDF 457.1kbuceryvvbcbtbaccxrbzeyz Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering J48 - Single Channel Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering J48 Specs | Input Connections | 2 x 1/4" TS Phone In, Thru | | Output Connectors | 1 x 3-pin XLR Male | | Impedance | Input: 220 kOhms
Output: 600 Ohms | | Distortion | <0.5% (at 20 Hz) | | Frequency Response | 10Hz to 40kHz | | Signal-to-Noise Ratio | 119dB @ 100Hz | | Power | 48V Phantom
2 x 9V Battery | | Dimensions (WxDxH) | 6.5 x 4 x 3" (165.1 x 101.6 x 76.2mm) | | Weight | 1.87 lb (848.2 g) | | Specialties | Thru Connector
Welded Steel Construction | | | | Package Weight | 1.715 lb | | Box Dimensions (LxWxH) | 6.45 x 4.25 x 2.9" |
