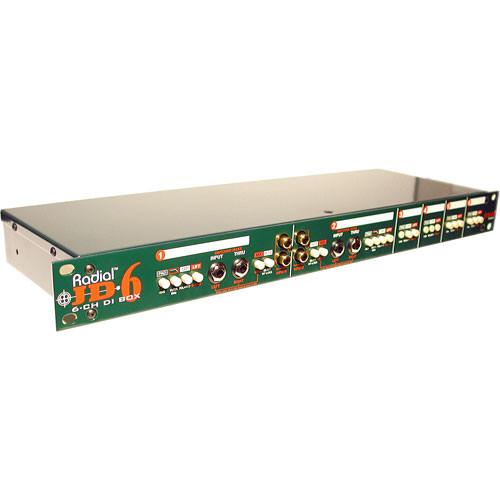

User Manual for Radial Engineering JD 6 - Six-Channel Passive Direct Box with Jensen Transformers in Rackmount Chassis Click to enlarge the picture
Contents of the user manual for the Radial Engineering JD 6 - Six-Channel
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering JD 6 - Six-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

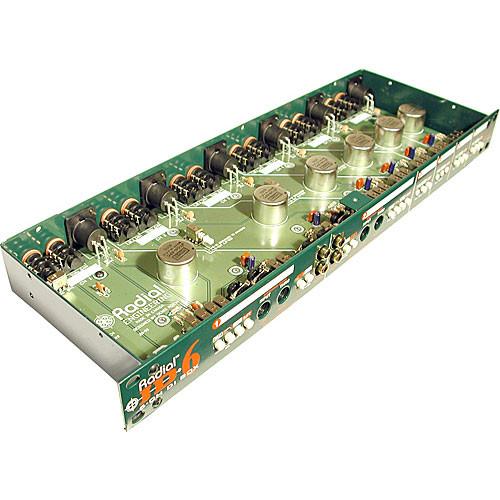

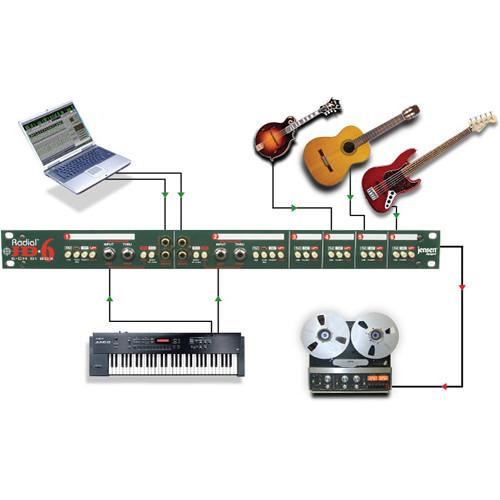

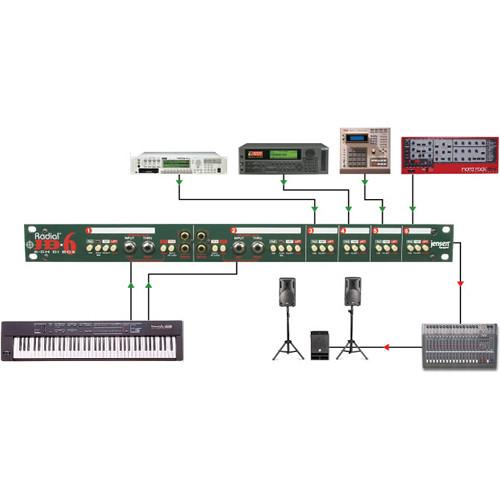

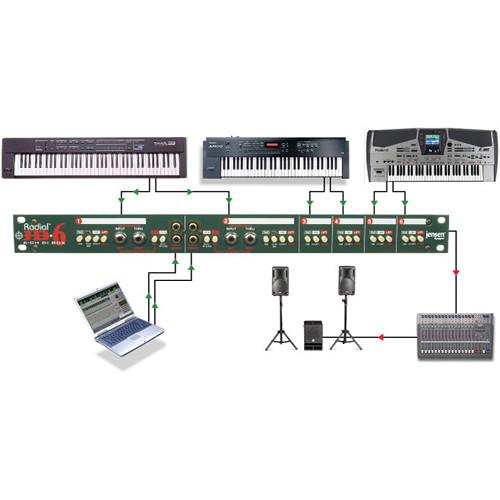

Product description The JD6 from Radial Engineering is a six-channel passive direct box that has been specifically designed to address the needs of concert touring, while being equally at home in the studio. The unit houses six completely independent Jensen transformer isolated channels that provide minimal cross-talk and maximum protection against noise, 60 cycle hum and buzz. Each channel exhibits virtually zero phase distortion and a true linear performance from 20Hz up. For use in the studio, channels 1 and 2 have been outfitted with extra features and connections to simplify interfacing with computers, CD players, video machines and the usual musical instruments. A merge function converts the input and thru output jacks to left and right inputs and mixes them to mono at the XLR. A high-frequency roll-off filter is expressly designed to reduce noise from CRT and LCD screens and older, noise prone vintage gear. Channels 1 and 2 feature 1/4" switching jacks with front channel priority. This is useful when wishing to connect a guest bass player or alternate keyboard through the JD6 without having to reconfigure the cabling system. All six channels feature a -15dB pad, a 180° polarity reverse that flips pin-2 and pin-3 on the XLR to interface with older pre-AES standard equipment or for creative combinations. A ground lift switch is also available on every channel. - Six independent Jensen transformer isolated, passive direct boxes in a single rack space enclosure
- Ultra linear performance from 10Hz to 40kHz
- Equally suited for on-the-road applications and the studio environment
- Eliminates hum and buzz caused by ground loops
- Flexible connectivity extends the usefulness of the unit
- ID Labels for use with wax pencils makes setups and troubleshooting easy
- No battery or phantom-power required
UPC: 676101034864 In the Box Radial Engineering JD 6 - Six-Channel Passive Direct Box with Jensen Transformers in Rackmount Chassis Three (3) Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JD 6 - Six-Channel Passive Direct Box with Jensen Transformers in Rackmount Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

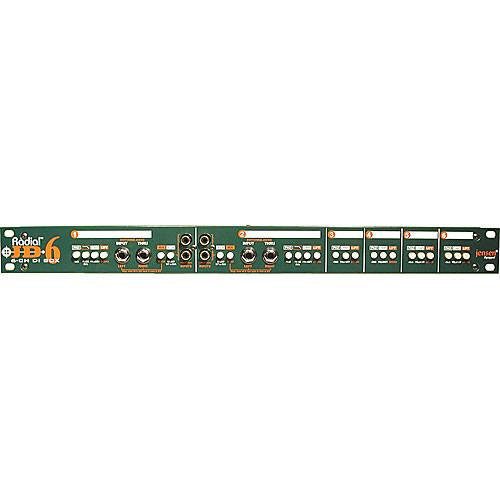

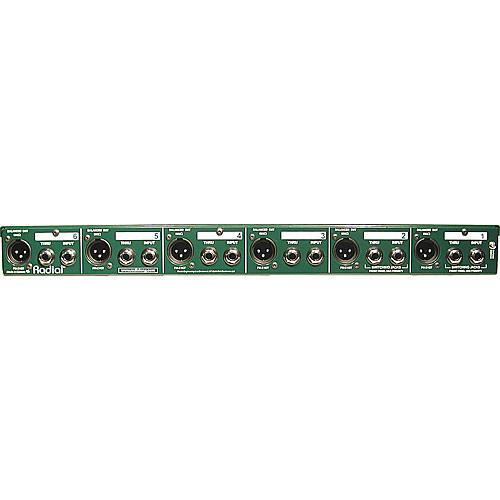

Technical parametersRadial Engineering JD6 Specs | Input Connections | 2 x 1/4" TS phone (front panel
6 x 1/4" TS phone (rear Panel)
4 x RCA phono (front panel) | | Output Connectors | 6 x XLR (rear panel))
2 x 1/4" TS phone Thru (front panel)
6 x 1/4" TS phone Thru (rear panel) | | Input Level | +19dB | | Output Level | Not specified by manufacturer | | Controls | -15dB pad, polarity reverse and ground lift on all six channels
Low pass filter on channels 1 and 2
Merge of Input and Thru on channels 1 and 2
1/4" or RCA input switch on channels 1 and 2 | | Frequency Response | 10Hz to 40kHz | | Noise | SNR: 119dB | | Power | Passive | | Dimensions (WxDxH) | 19" 1U rackmount chassis | | Weight | Not specified by manufacturer | | Specialties | Jensen transformer isolated output for best sound and lowest noiseFront panel Input and Thru connectors have priority over rear panel equivalents | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 23.0 x 10.5 x 4.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
