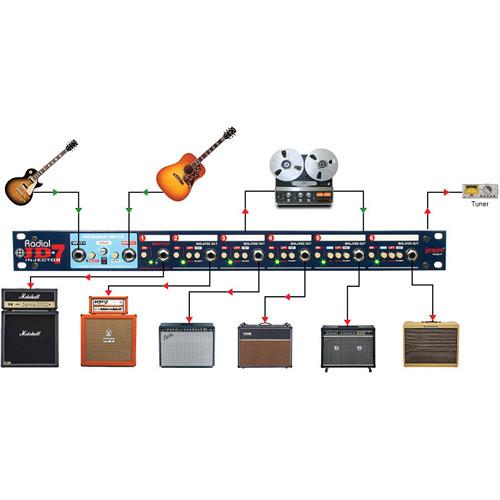

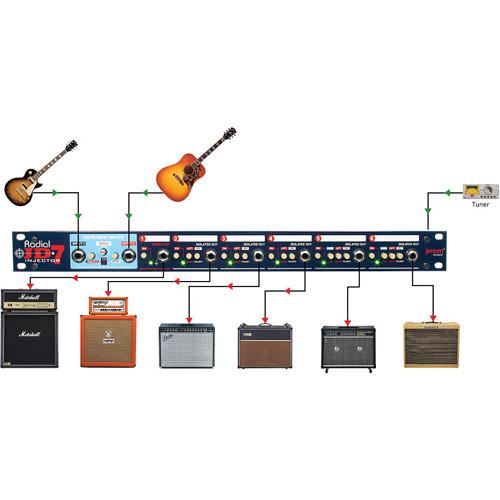

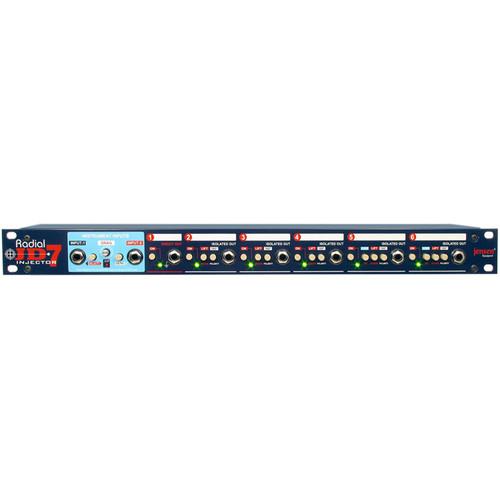

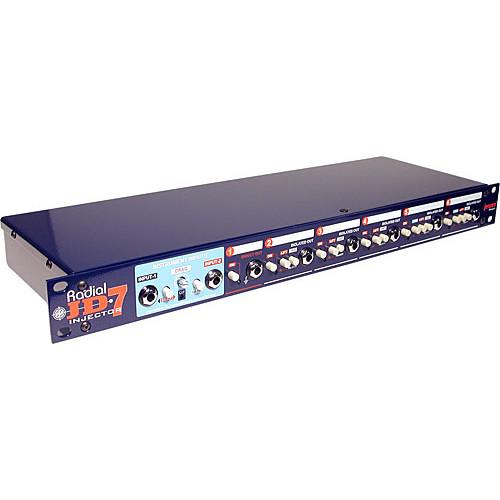

Product description The JD-7 Injector from Radial Engineering is not just a guitar distribution amplifier. It is a creative recording tool designed for driving up to seven amplifiers simultaneously from a single guitar signal. Front-panel connectors and controls make it easy to select amplifiers, ground paths, and polarity. The JD-7 produces extremely accurate sound thanks to a Class-A audio path that is 100% discreet and optimized for electric guitar signals.

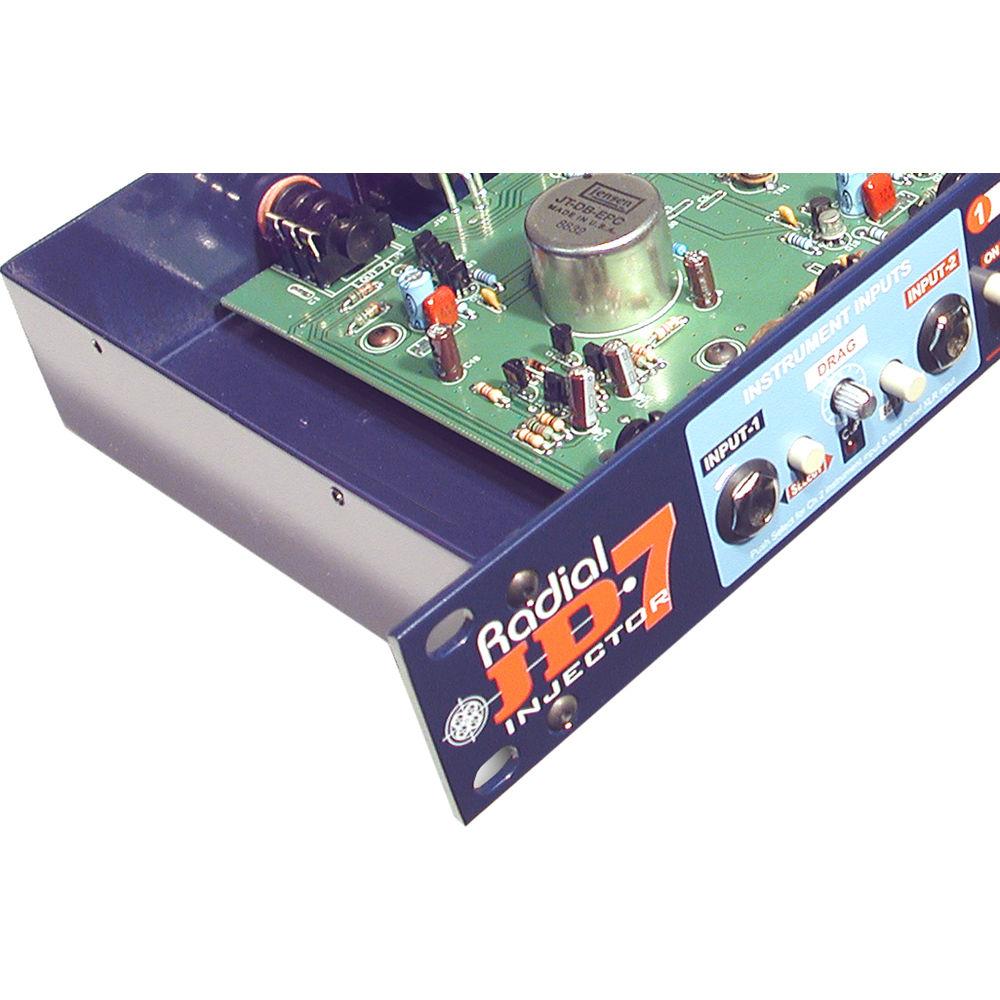

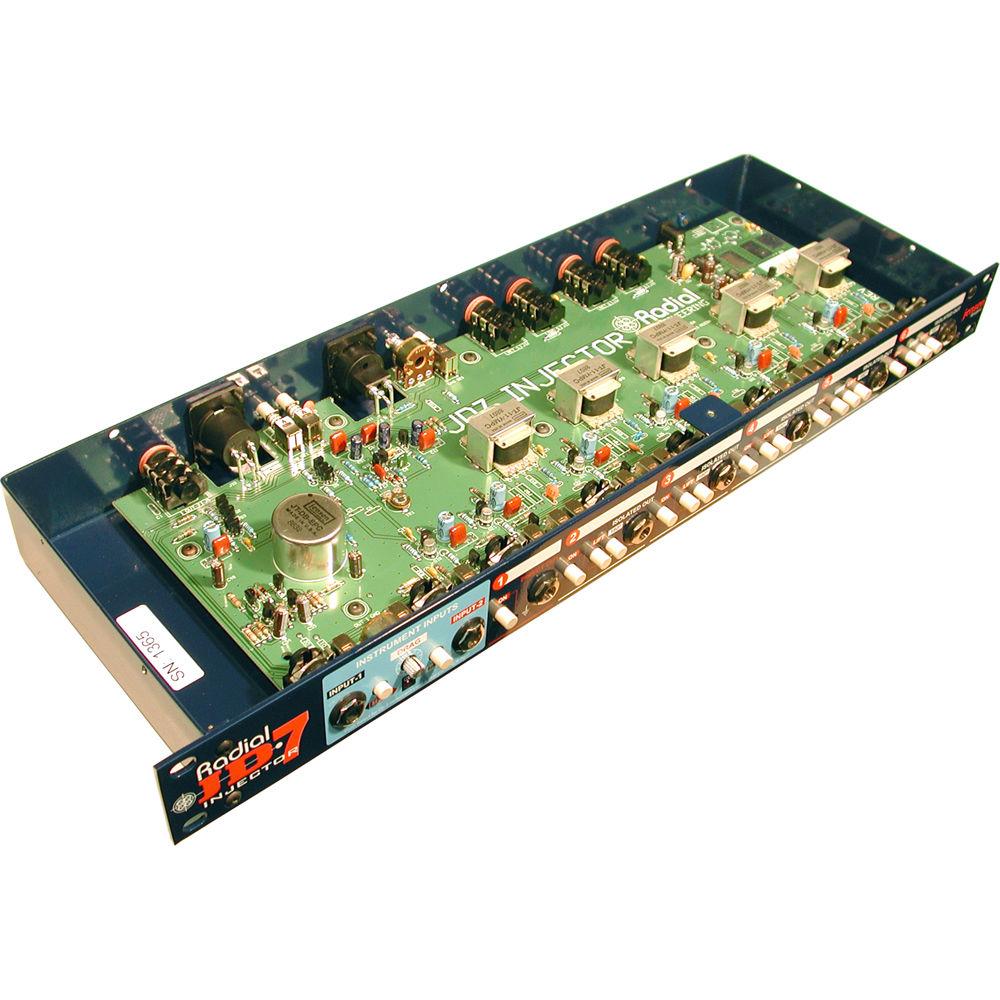

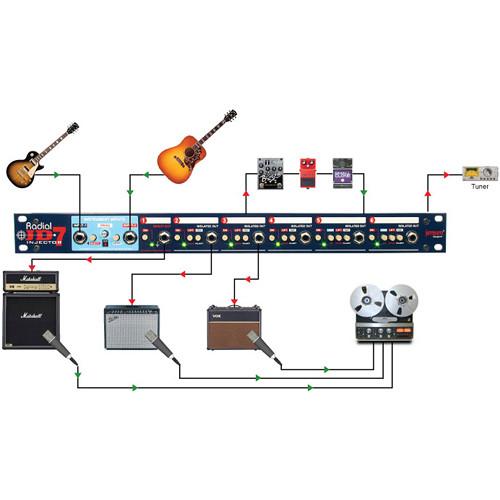

Jensen transformers are used in the JD-7 to reduce hum and minimize signal degradation. A 600 ohm direct output allows recording of a dry guitar track or lets you use the JD-7 as a direct box. A pre-recorded track can be delivered to the balanced input for driving amplifiers, effect pedals, and other devices. - One-in, seven-out guitar signal router
- Intuitive front-panel operation
- Accurate, natural sound with minimized hum
- Drag(TM) control recreates the guitar-to-amp relationship
UPC: 676101034109 In the Box Radial Engineering JD-7 - 1x7 Guitar Signal Distribution Amplifier 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JD-7 - 1x7 Guitar Signal Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering JD-7 Specs | Inputs | 2 x Selectable 1/4" (6.3mm) Inputs (8dB Pad on Input 2)
1 x Balanced XLR Input | | Outputs | 5 x Transformer-Isolated 1/4" (6.3mm) Output Jacks
2 x Direct 1/4" (6.3mm) Jacks
1 x Mic-Level Balanced XLR | | Frequency Response | 20Hz - 20kHz | | Total Harmonic Distortion (THD) | Less than 0.1% | | Controls Front Panel | 2 x Input Selector Switches
1 x Drag Control
6 x Output On/Off Switches
5 x Ground-Lift Switches
5 x Polarity Switches

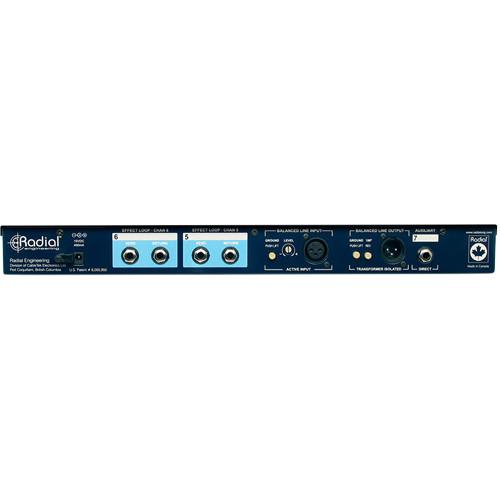

2 x Effects Loop Switches | | Controls Rear Panel | 1 x Input Level Control
2 x Ground-Lift Switches
1 x Output Polarity Switch | | Power | 15VDC | | Dimensions (WxDxH) | 17.5 x 6 x 1.75" (445 x 152 x 44 mm) | | Weight | 8 lbs (3.6 kg) | | | | Package Weight | 8.68 lb | | Box Dimensions (LxWxH) | 22.5 x 10.5 x 5.0" |
