User Manual for Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers

Click to enlarge the picture
Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers Contents of the user manual for the Radial Engineering JDI Duplex - Two
  • Product category: Direct Boxes Radial Engineering
  • Brand: Radial Engineering
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Radial Engineering Direct Boxes

Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers
User manual for the Radial Engineering JDI Duplex - Two contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Radial Engineering product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!



Product description

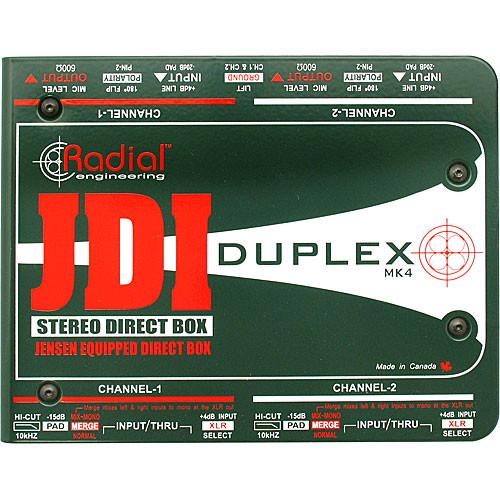

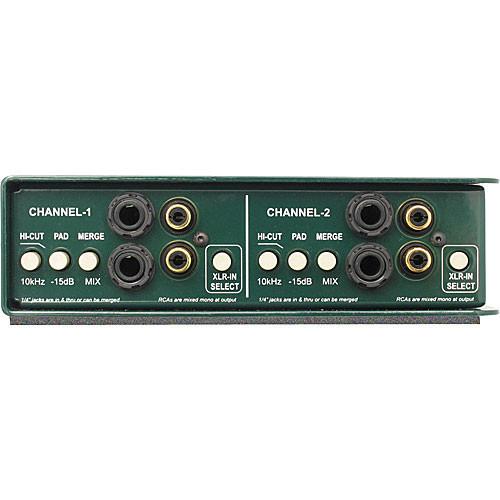

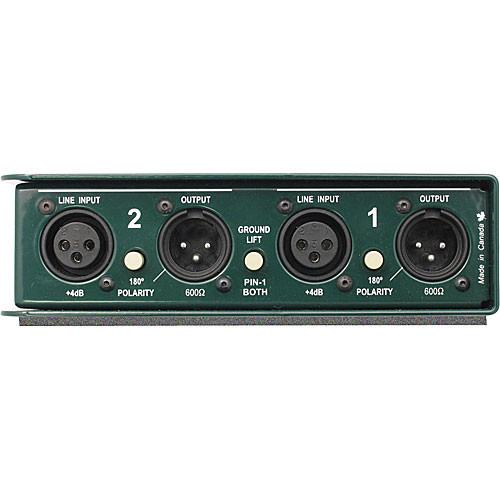

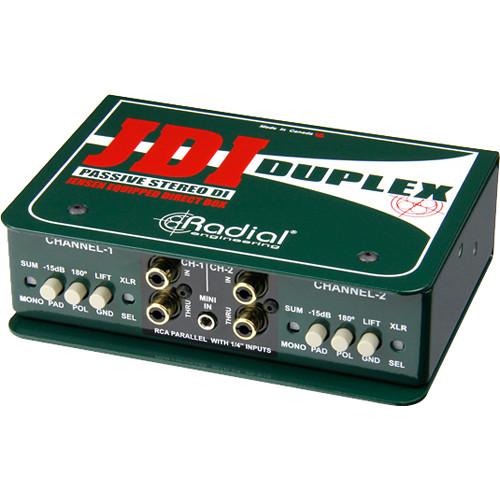

The JDI Duplex from Radial Engineering is a two channel version of the JDI passive direct box that converts hi-impedance instrument signals to two balanced low-impedance outputs, allowing long cable runs without noise. The unit is ideally suited for all instruments including keyboards, bass guitar and acoustic guitars for use in studio, broadcast and live sound reinforcement. Because of the transformers, the JDI provides 100% isolation between the instrument input side and the balanced output, eliminating hum and buzz caused by ground loops. Passive DIs that use inexpensive iron or steel core transformers can degrade sound through phase shift at various frequencies, a phenomenon known as group delay. This has the effect of making bass sound indistinct, causing the mid-range to smear and lack punch. The JDI employs Jensen transformers with a nickel-laminated core which do not retain a memory or polarity. This reduces phase distortion, improves linearity and lowers harmonic distortion. Each channel provides a 15dB pad for high level instruments to avoid input distortion. Merge switches convert the thru outputs to a second input, allowing two signals, such as those from a stereo keyboard, to be summed to mono when input channel availability is limited. The unit is built to withstand the abuse of the road. The book-cover design features an internal 14-gauge steel skeleton that is corner welded to ensure the internal electronics will never be subjected to outside stress. The military grade PC board is mounted on steel pem nuts and the whole is then enclosed in a second steel casing. The passive design requires no power source.
  • Dual channel, phase coherent professional direct box with 100% passive design and Jensen Transformer equipped
  • Ultra linear performance from 10Hz to 40kHz
  • Dual function inputs with two-channel merge
  • Polarity reverse, ground lift and pad switches per channel
  • Ultra-durable welded steel chassis with double sided printed circuit board
  • No-slip bottom pad and protective channel for switches
  • Ideal for acoustic guitars and basses, keyboards, modules and electronic drums
UPC: 676101034093 In the Box Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers
  • Three (3) Year Transferable Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Radial Engineering JDI Duplex - Two Channel Professional Passive Direct Box with Jensen Transformers in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Radial Engineering JDI Specs

    Input Connections 2 x 1/4" TS phone
    Output Connectors 2 x XLR
    2 x 1/4" TS phone Thru
    Input Level +19dB
    Output Level Not specified by manufacturer
    Controls -15dB pad
    Polarity reverse
    Ground lift switch
    Merge of Input and Thru
    Parallel 12" speaker emulation switch
    Frequency Response 10Hz to 40kHz
    Noise SNR: 119dB
    Power Passive
    Dimensions (WxDxH) 8 1/2" x 5 7/8" x 3 1/4" (shipping)
    Weight 3.15 lbs (shipping)
    Specialties Merge function converts the input and thru output jacks on each channel to left and right inputs and mixes them to mono at the XLR outputs
    Package Weight 2.78 lb
    Box Dimensions (LxWxH) 11.75 x 5.05 x 2.65"
