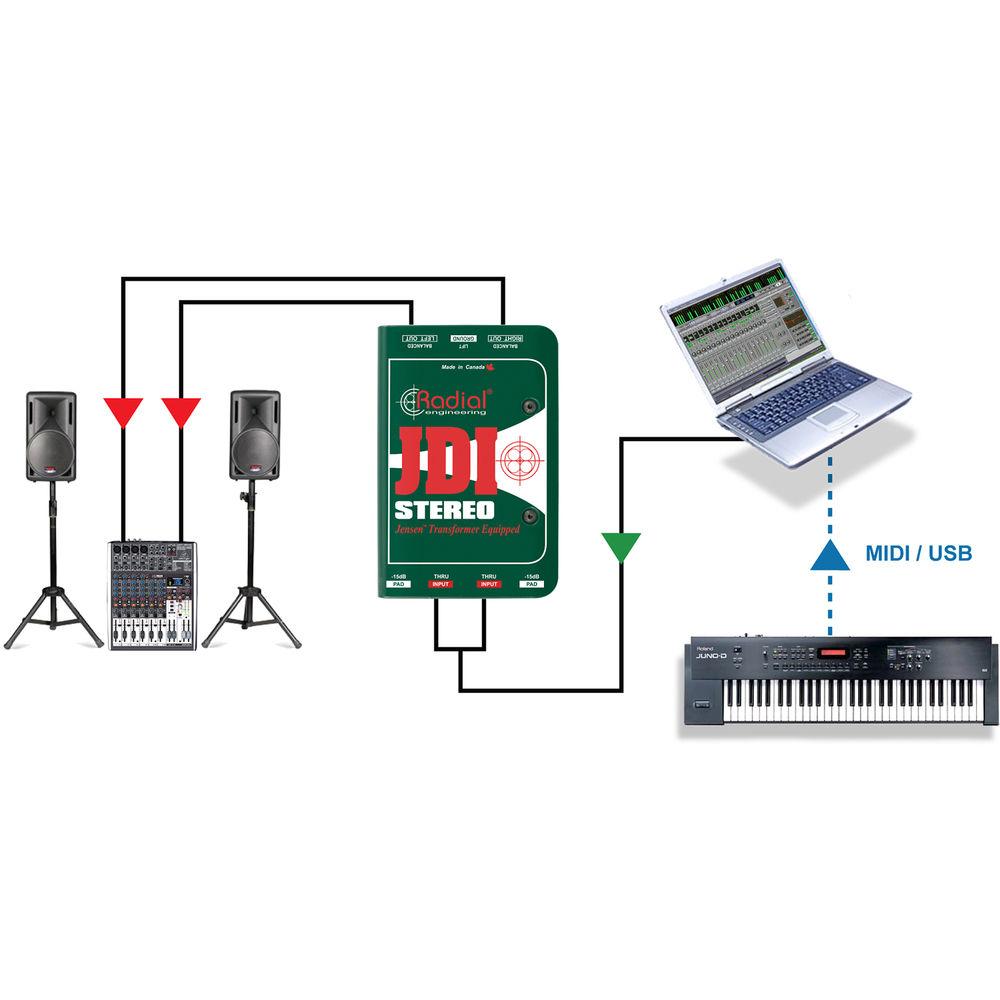

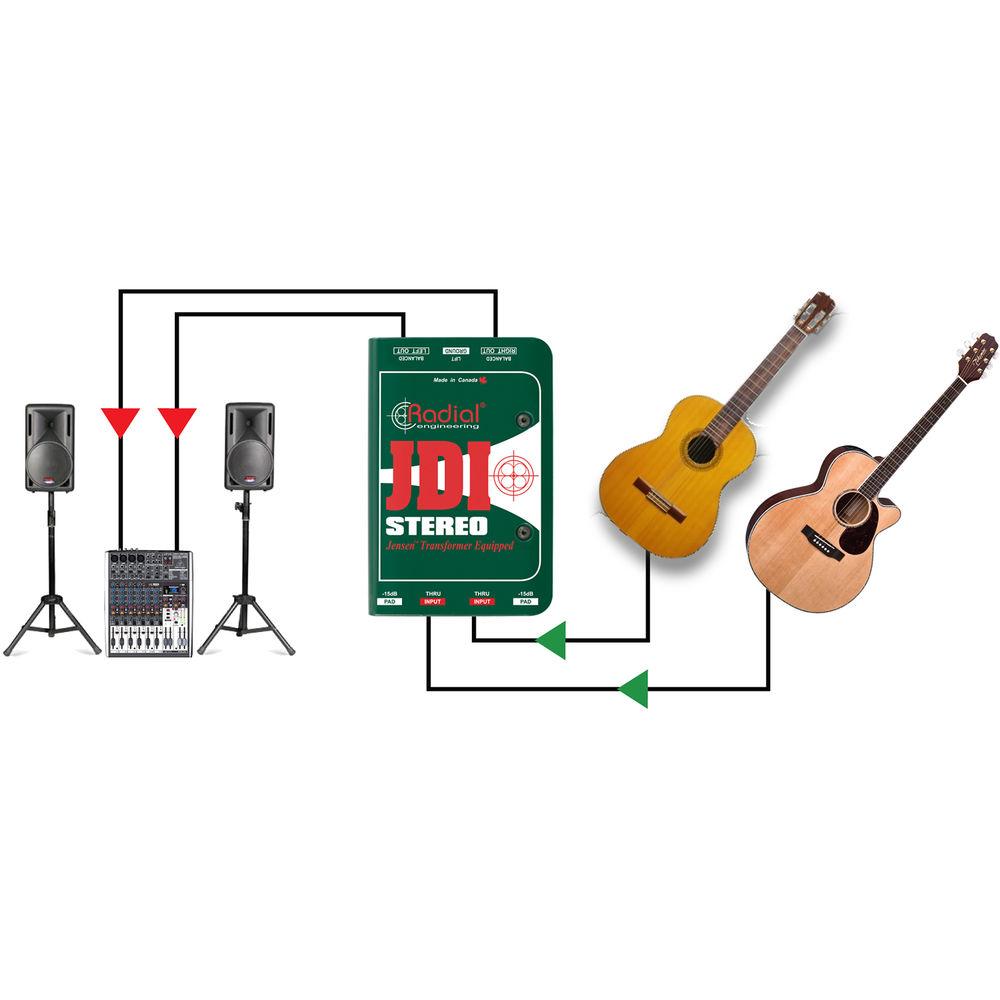

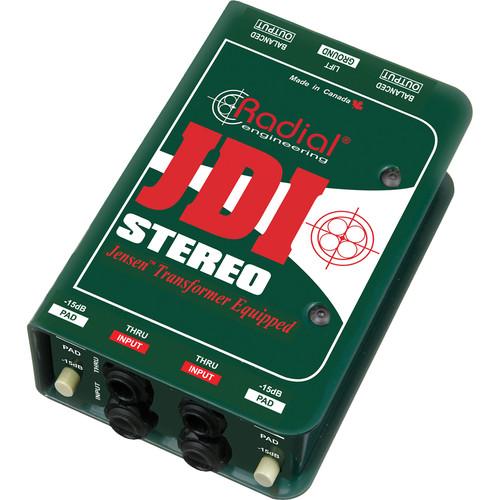

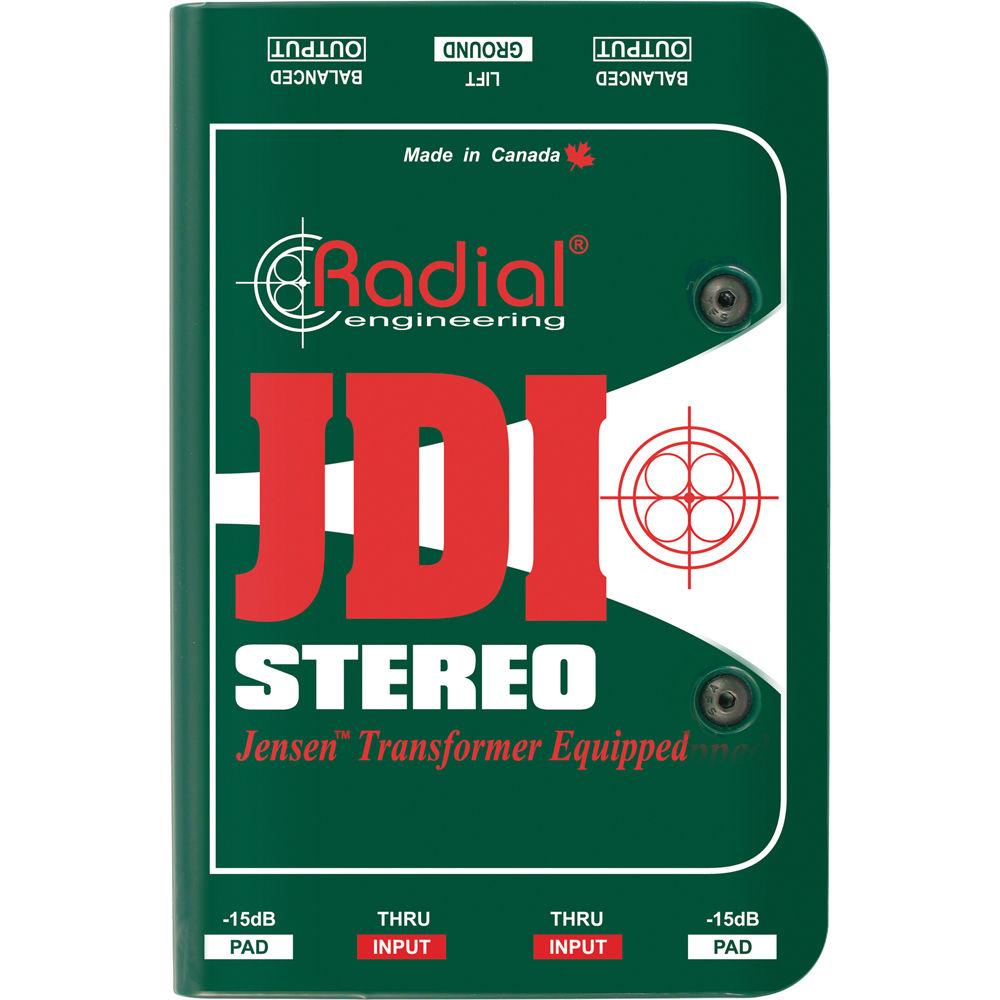

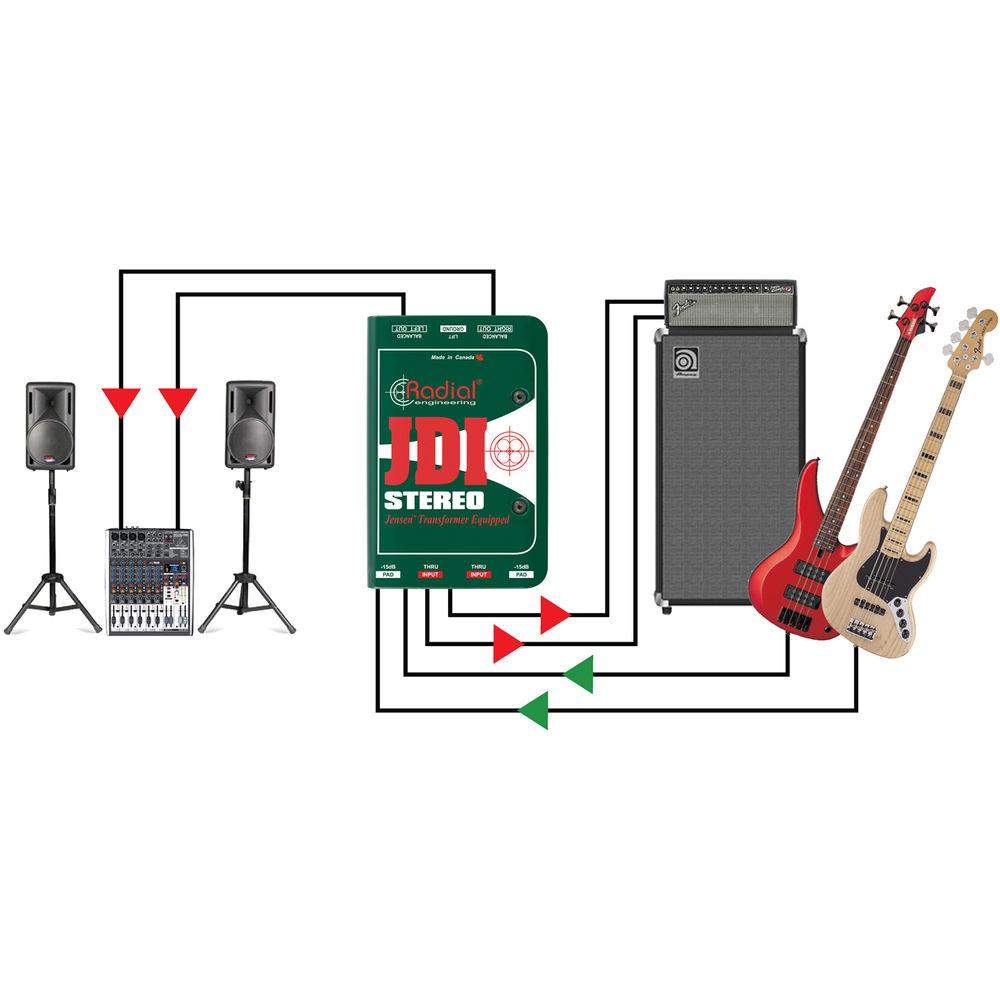

Product description Giving you 2 passive channels for stereo or dual mono DI applications, the JDI Stereo Passive Direct Box from Radial Engineering features Jensen transformers that balance your signal and lower its impedance for driving long cables. The unit boasts a flat frequency response from 10 Hz to 40 kHz, allowing the natural sound of your instrument to be unchanged. Each channel has a -15 dB selectable pad, along with transformer-isolated inputs and outputs, to help reduce noise. Interference is further reduced thanks to its internal Faraday shield. The JDI Stereo's 14-gauge steel construction allows the box to be just as suited for the stage as the studio. - Jensen transformer-equipped passive DI
- Eliminates hum and buzz from ground loops
- Virtually zero phase & harmonic distortion
UPC: 676101043422 In the Box Radial Engineering JDI Stereo Passive Direct Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JDI Stereo Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1012 Specs | | | Audio Circuit Type | Passive, transformer based | | Channels | 2 (dual mono) | | Frequency Response | 20 Hz to 20 kHz (± 0.2 dB) | | Dynamic Range | 135 dB | | Maximum Input | +21 dB @ 20 Hz to 20 kHz | | Total Harmonic Distortion | 0.05% from 20 Hz to 20 kHz @ -10 dB | | Phase Deviation | 0.3° @ 100 Hz; 3° @ 20 Hz | | Input Impedance | 140 kOhms, unbalanced | | Output Impedance | 150 ohms, balanced | | | | Connectors | 2x 1/4" (6.3 mm) inputs

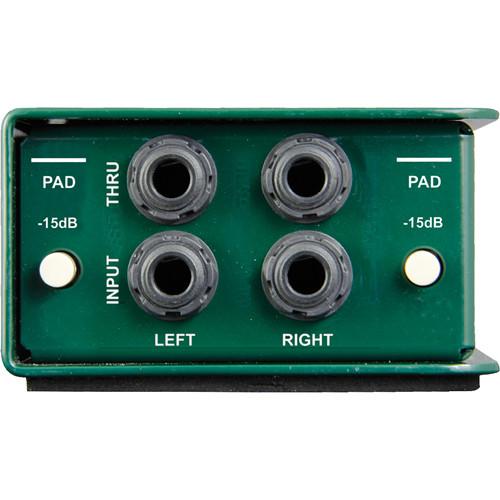

2x 1/4" (6.3 mm) thru

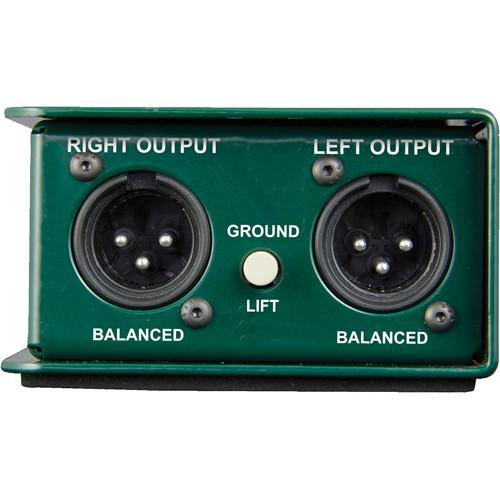

2x XLR-M outputs | | Transformer | Jensen JT-DBE | | Shield | Dual Faraday, mu-metal can | | Input Pad Switch | -15 dB | | Polarity Reverse | 180° Polarity Reverse: Inverts absolute phase | | Ground Lift | Disconnects pin-1 at XLR output | | XLR Configuration | AES standard (pin-2 hot) | | | | Construction | 14-gauge steel chassis & outer shell | | Finish | Powder coat | | Power | Passive, no power required | | Operating Conditions | For use in dry locations only between 41 and 104°F (5 and 40°C) | | Dimensions (L x W x D) | 5 x 3.3 x 1.8" (127 x 84.1 x 45.5 mm) | | Weight | 1.55 lb (703 g) | | | | Package Weight | 1.885 lb | | Box Dimensions (LxWxH) | 6.35 x 4.2 x 2.9" |
