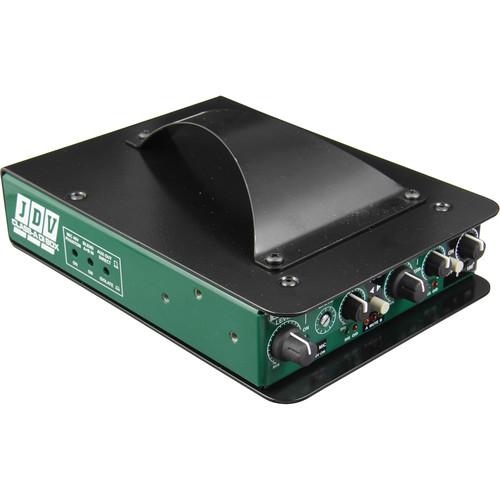

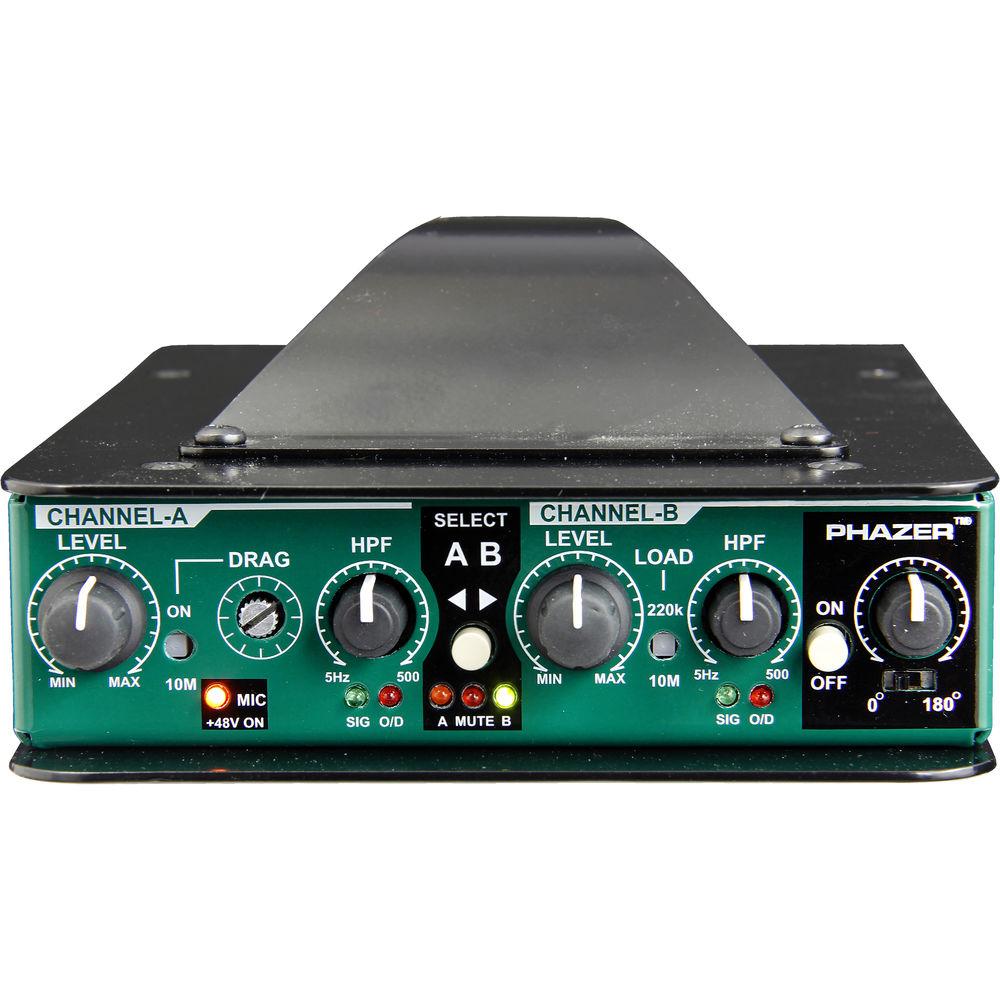

Product description The JDV Mk 5 Direct Box from Radial Engineering is a two-channel discrete class‐A active direct box which is primarily intended for use with bass and acoustic instruments but is also capable of handling other types of signals. The JDV retains the original zero‐negative feedback topology, yet adds an array of features. Its design includes two switchable inputs, each with a volume control and signal presence & overload LEDs, plus a fully variable high-pass filter to tame excessive bottom end resonance. The channel-one balanced input with 48V phantom power allows a microphone to be combined with the second channel (and adjustable phase control) to produce a natural sound. Selecting between the two inputs can be done using the front panel AB select or by adding an optional JR2 remote control. This also enables you to mute the output to change instruments or quiet down the system between sets. The unit is also equipped with a line level drive option for direct recording, a Drag control load correction for magnetic pickups, and a 10 Mohm option to maximize the tone with piezos. It is conveniently rack-mountable for touring. - Blend control to mix two channels
- 1/4" microphone input with 48V phantom
- Two inputs with adjustable gain
- Rack-mountable for touring
UPC: 676101043484 In the Box Radial Engineering JDV Mk 5 Direct Box with Microphone Input Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JDV Mk 5 Direct Box with Microphone Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 2015 Specs | Frequency Response | 30 Hz - 20 KHz | | Gain | Instrument Input: +25 dB
Line Level Boost: +20 dB
Microphone Input: +25 dB | | Dynamic Range | 107 dB | | Equivalent Input Noise | -90 dBu | | Input Impedance | 1/4" input:
22 kOhms to 500 kOhms (Drag on)
10 MOhms (Drag off) | | Output Impedance | 400 Ohms (at XLR) | | Low Cut Filters | Variable from 25 Hz - 500 Hz (-3 dB point) | | Phantom Power | 48 V | | Connector | 1/4" microphone input | | Power Supply | +/-16 V (1600 mA) 5-pin XLR power supply | | Dimensions | With Handle: 5.75 x 8.25 x 2.75" (146 x 210 x 70 mm)
Without Handle: 5.75 x 8.25 x 1.75" (146 x 210 x 45 mm) | | Weight | 3.95 lb (1.80 kg) | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 13.7 x 8.7 x 4.7" |
