User Manual for Radial Engineering JS-2 - Two-Way Microphone Signal Splitter Click to enlarge the picture
Contents of the user manual for the Radial Engineering JS-2 - Two-Way Microphone
- Product category: Splitters & Combiners Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Splitters & Combiners
 |
User manual for the Radial Engineering JS-2 - Two-Way Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

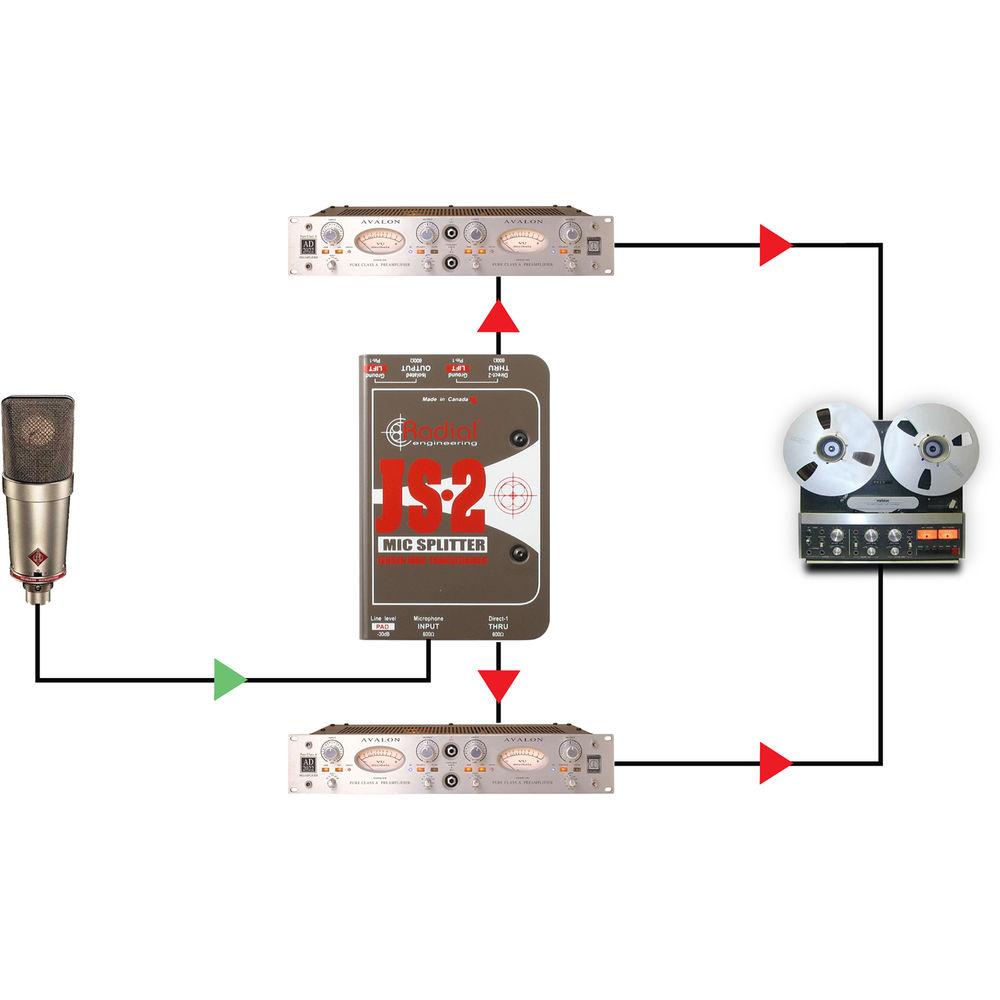

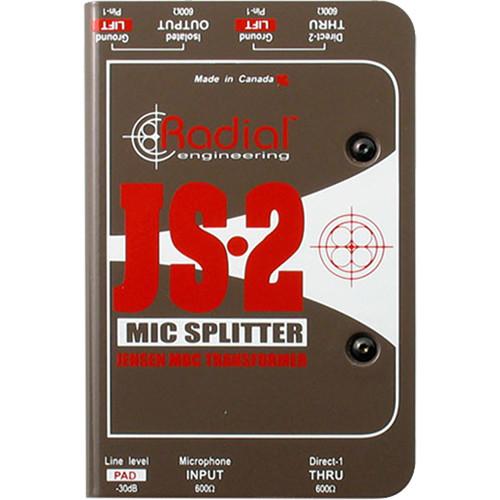

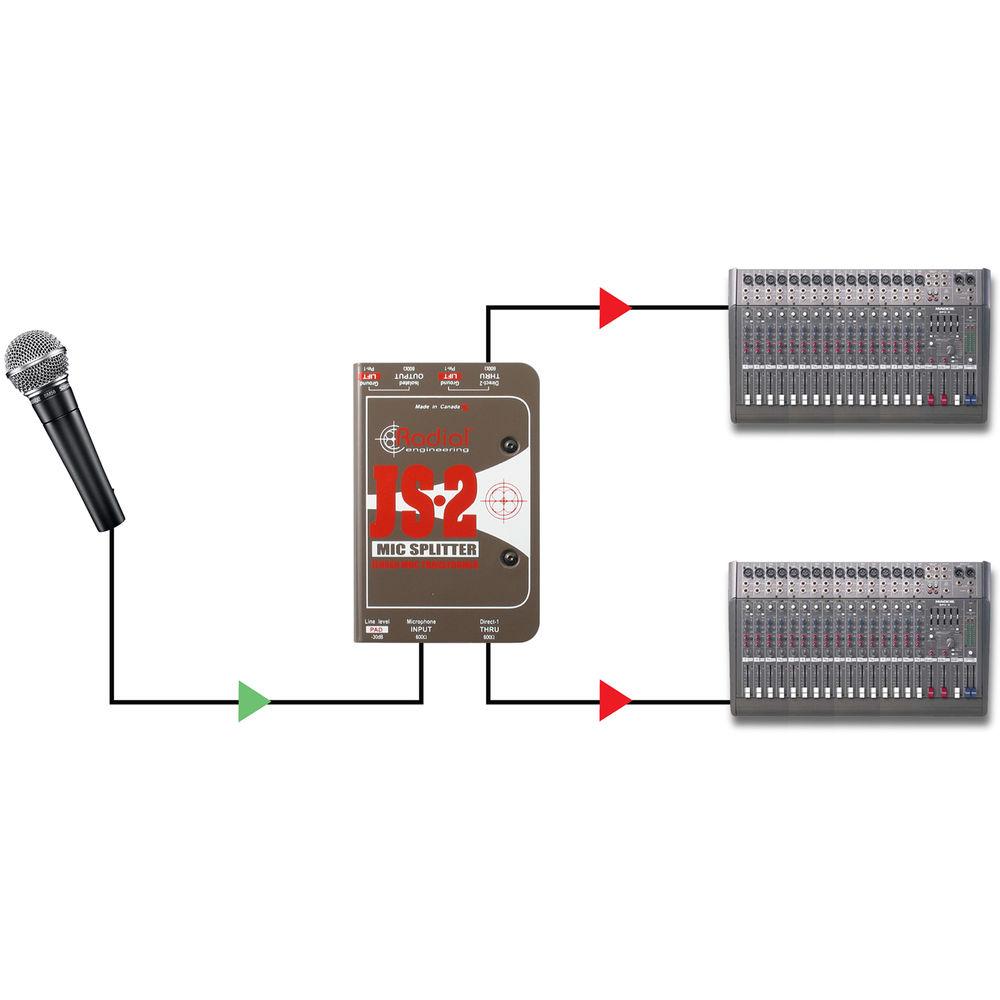

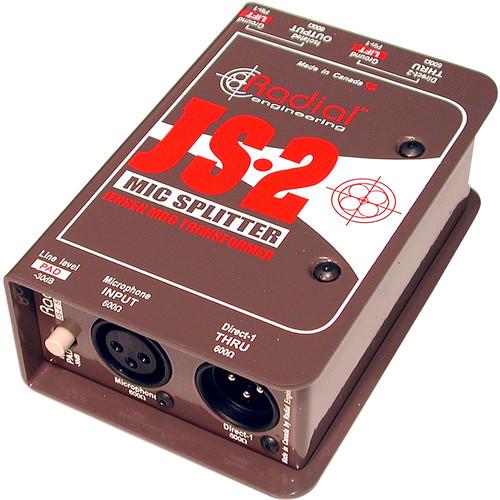

Product description The JS-2 from Radial Engineering is a ruggedly built, compact unit that splits a single microphone input signal into two outputs for driving two mic preamps or mixers from one source. The JS-2 also features a -30dB pad for accepting line-level signals, making it extremely versatile. The unit has 100% isolation with high-quality Jensen transformers, providing clean audio and minimizing the buzz caused by ground loops.
The JS-2 features a bookend design that protects the connectors and switches. Crafted from 14 gauge steel, the unit is virtually indestructible. You can also rack-mount up to eight units with an optional J-Rak from Radial Engineering. - Splits a single mic or line-level signal into two outputs
- High-quality Jensen transformers offer great-quality sound and provide 100% isolation to protect against hum from ground loops
- Uses standard XLR connectors
UPC: 676101034918 In the Box Radial Engineering JS-2 - Two-Way Microphone Signal Splitter 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JS-2 - Two-Way Microphone Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering JS-2 Specs | Input Impedance | 1.06 k ohms | | Insertion Loss | 0.8dB | | Voltage Gain | -0.82dB | | Frequency Response | 10Hz - 80kHz | | Total Harmonic Distortion (THD) | 0.05% or Less | | Max Input Sound Level (SPL) | +2dBu | | Common Mode Rejection Ratio | 130dB (60Hz)

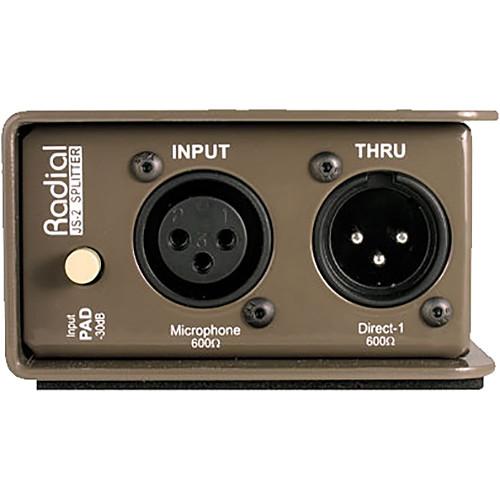

95dB (3kHz) | | Output Impedance | 245 ohms | | Connectors | 1 x 3-Pin XLR Female Input

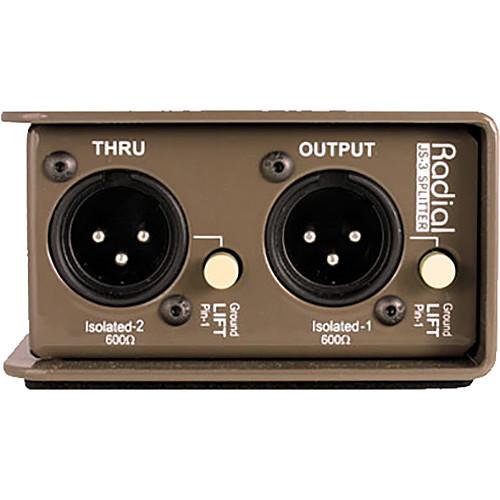

1 x 3-Pin XLR Male Thru Output
1 x 3-Pin XLR Male Direct Output with Lift Switch
1 x 3-Pin XLR Male Isolated Output with Lift Switch | | Controls | 1 x -30dB Pad Switch
2 x Lift Switches | | Dimensions (HxWxD) | 2 x 3.25 x 5" (51 x 83 x 127 mm) | | Weight | 1.95 lbs (0.9 kg) | | | | Package Weight | 1.755 lb | | Box Dimensions (LxWxH) | 6.35 x 4.2 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
