Product description

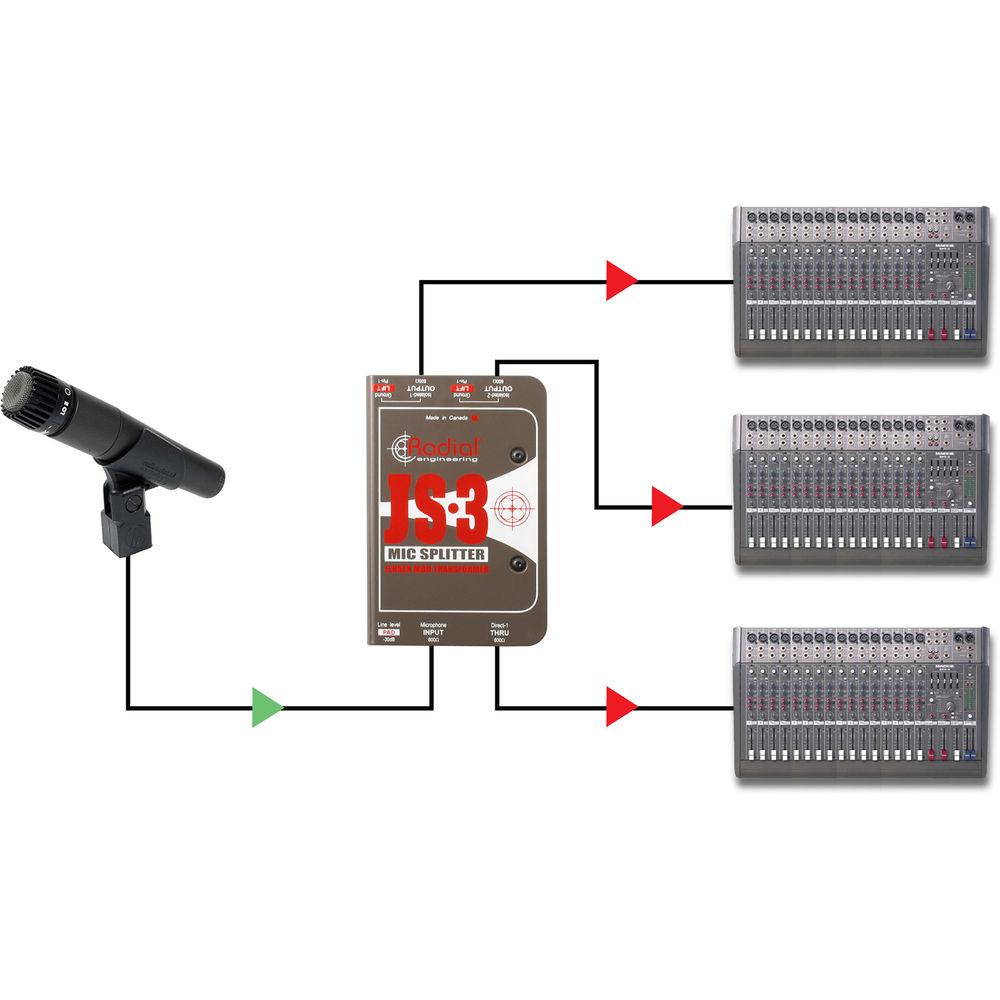

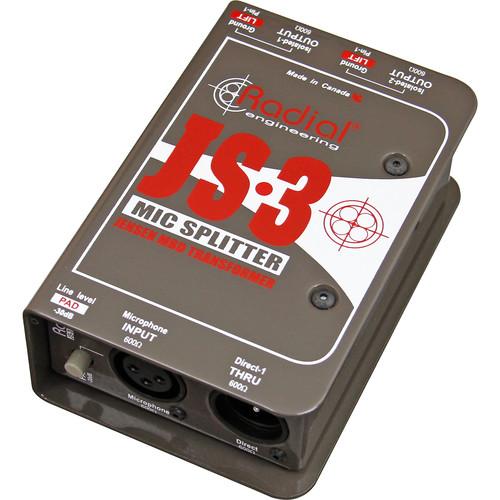

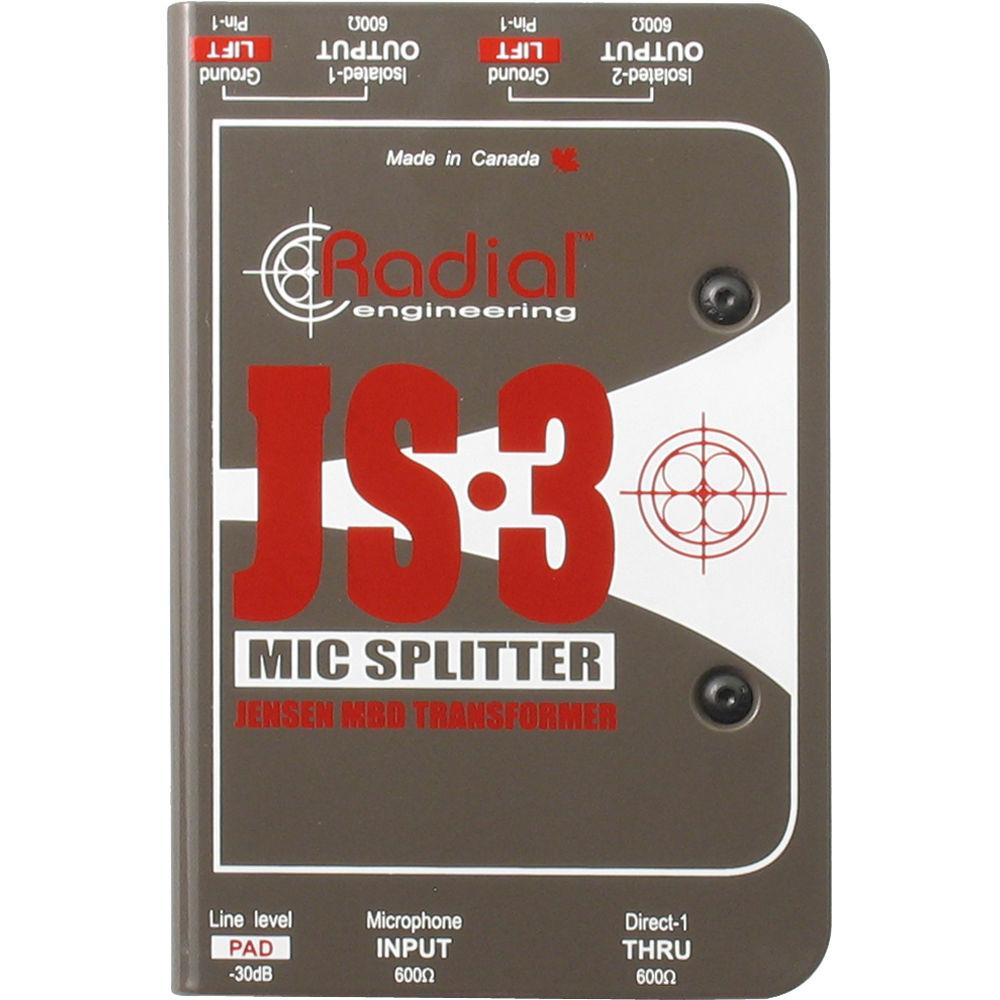

The JS-3 from Radial Engineering is a ruggedly built, compact unit that splits a single microphone input signal into three outputs for driving three mic preamps or mixers from one source. The JS-3 also features a -30dB pad for accepting line-level signals, making it extremely versatile. The unit has 100% isolation with high-quality Jensen transformers, providing clean audio and minimizing the buzz caused by ground loops.

The JS-3 features a bookend design that protects the connectors and switches. Crafted from 14 gauge steel, the unit is virtually indestructible. You can also rack-mount up to eight units with an optional J-Rak from Radial Engineering.
  • Compact, Rugged Design
  • Splits a single mic or line-level signal into three outputs
  • High-quality Jensen transformers offer great-quality sound and provide 100% isolation to protect against hum from ground loops
  • Uses standard XLR connectors
  • -30dB pad
UPC: 676101034925 In the Box Radial Engineering JS-3 - Three-Way Microphone Signal Splitter
  • 3 Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Radial Engineering JS-3 - Three-Way Microphone Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Radial Engineering JS-3 Specs

    Input Impedance 578 ohms
    Insertion Loss 1.2dB
    Voltage Gain -1.2dB
    Frequency Response 10Hz - 80kHz
    Total Harmonic Distortion (THD) 0.05% or Less
    Max Input Sound Level (SPL) +2dBu
    Common Mode Rejection Ratio 130dB (60Hz)
    96dB (3kHz)
    Output Impedance 254 ohms

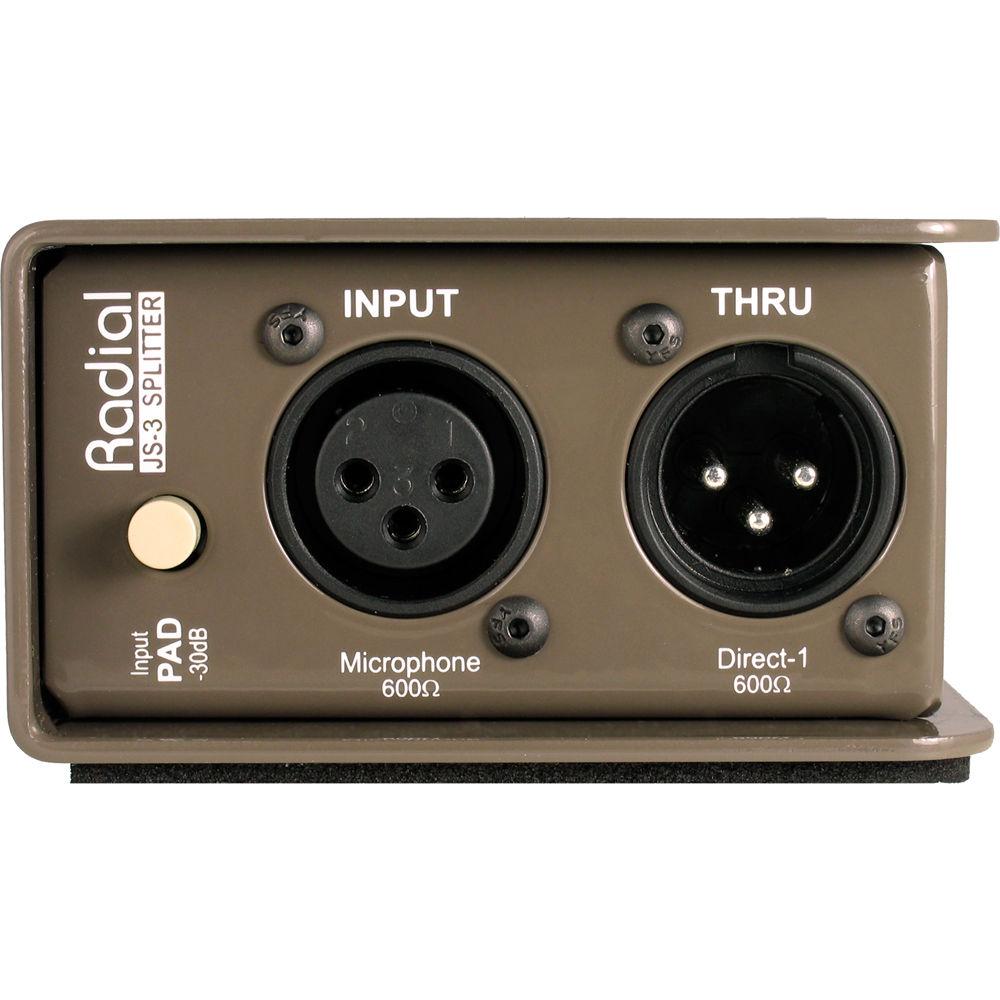

    Connectors 1 x 3-Pin XLR Female Input
    1 x 3-Pin XLR Male "Thru" Direct Output

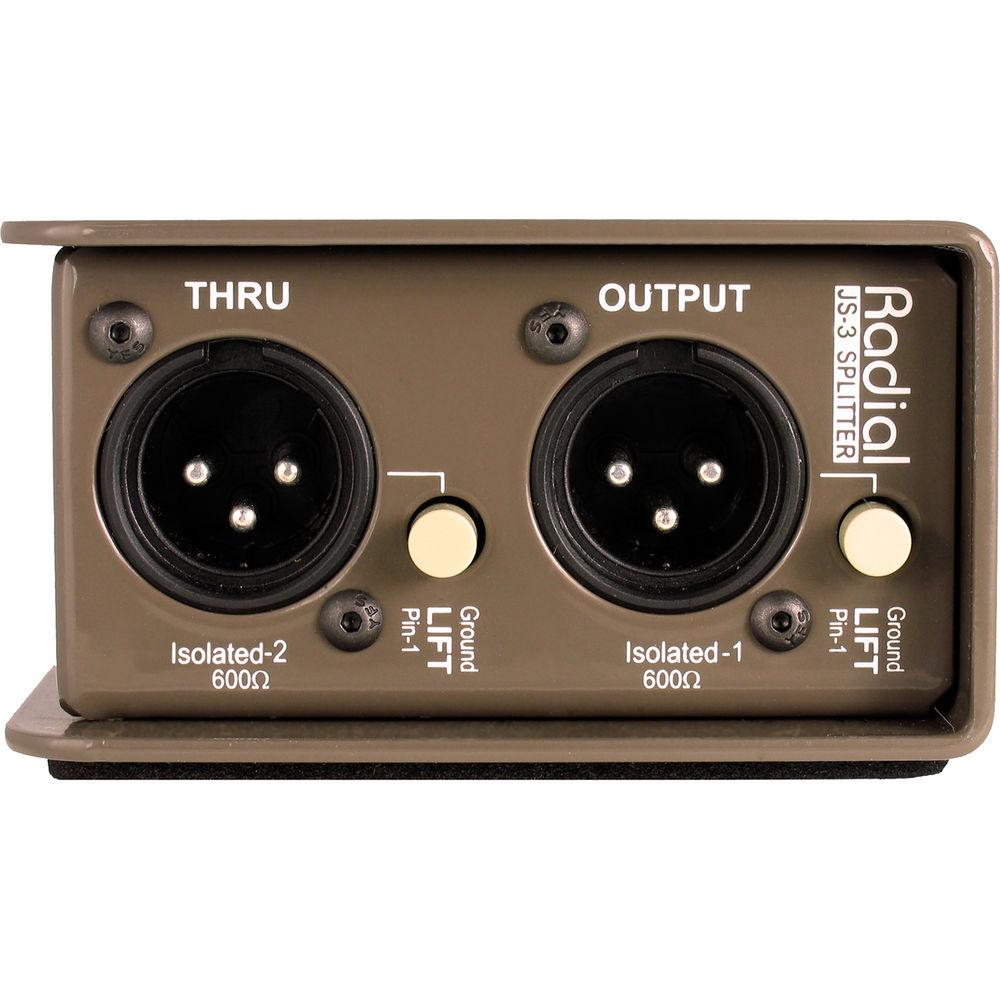

    2 x 3-Pin XLR Male Isolated Direct Outputs with Lift Switches
    Controls 1 x -30dB Pad Switch
    2 x Lift Switches
    Dimensions (HxWxD) 2 x 3.25 x 5" (51 x 83 x 127 mm)
    Weight 1.95 lbs (0.9 kg)
    Package Weight 1.84 lb
    Box Dimensions (LxWxH) 6.6 x 4.2 x 4.0"
