User Manual for Radial Engineering JX44 Air Control Guitar Signal Manager Click to enlarge the picture
Contents of the user manual for the Radial Engineering JX44 Air Control Guitar
- Product category: Effects Pedal Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Effects Pedal Accessories
 |
User manual for the Radial Engineering JX44 Air Control Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

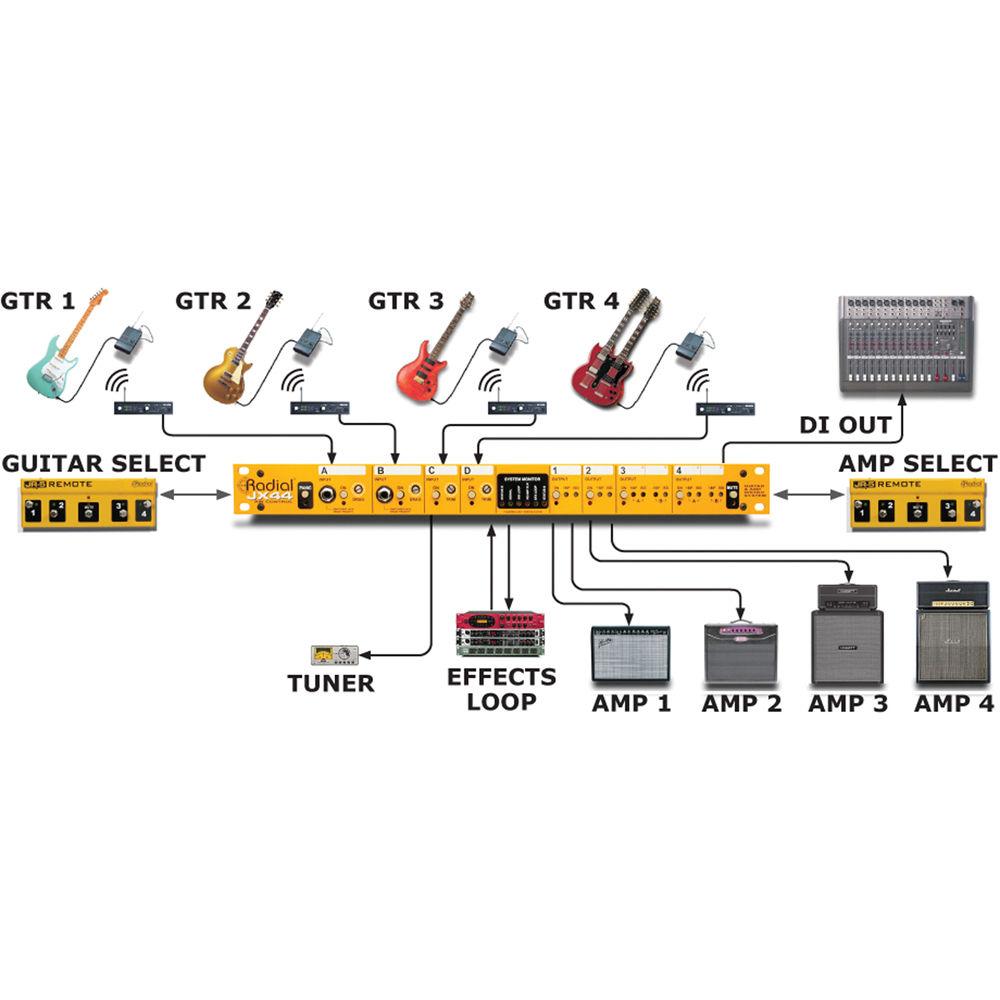

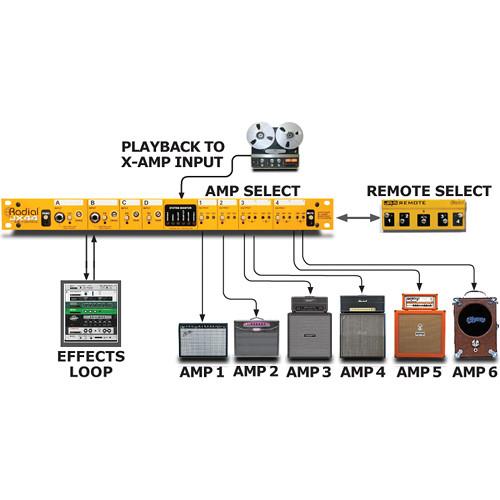

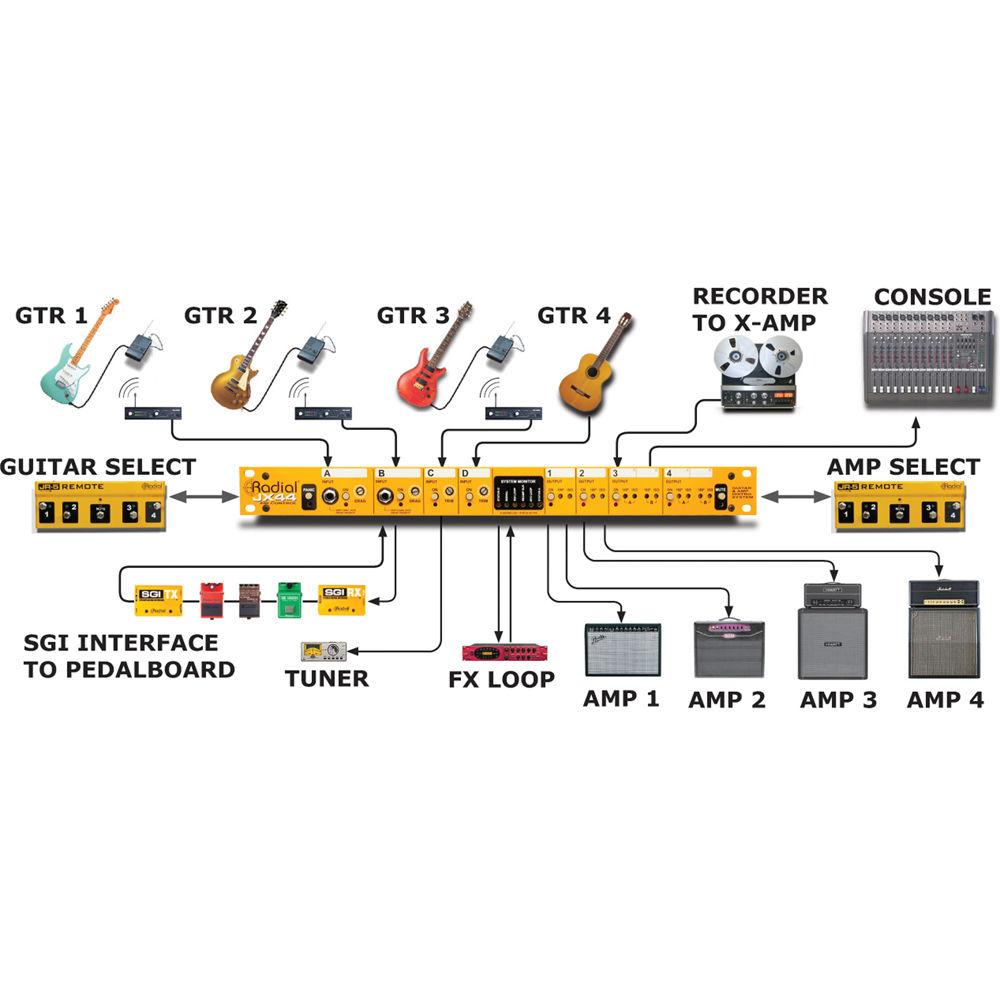

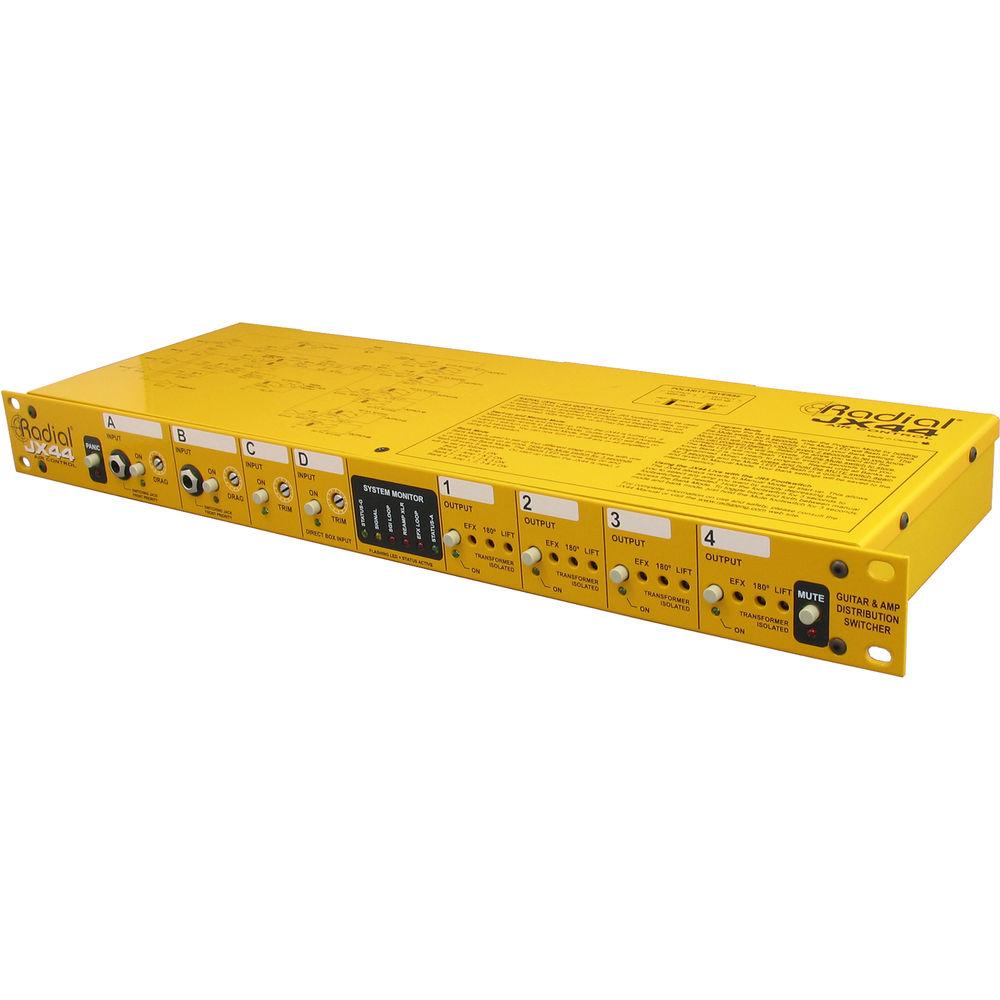

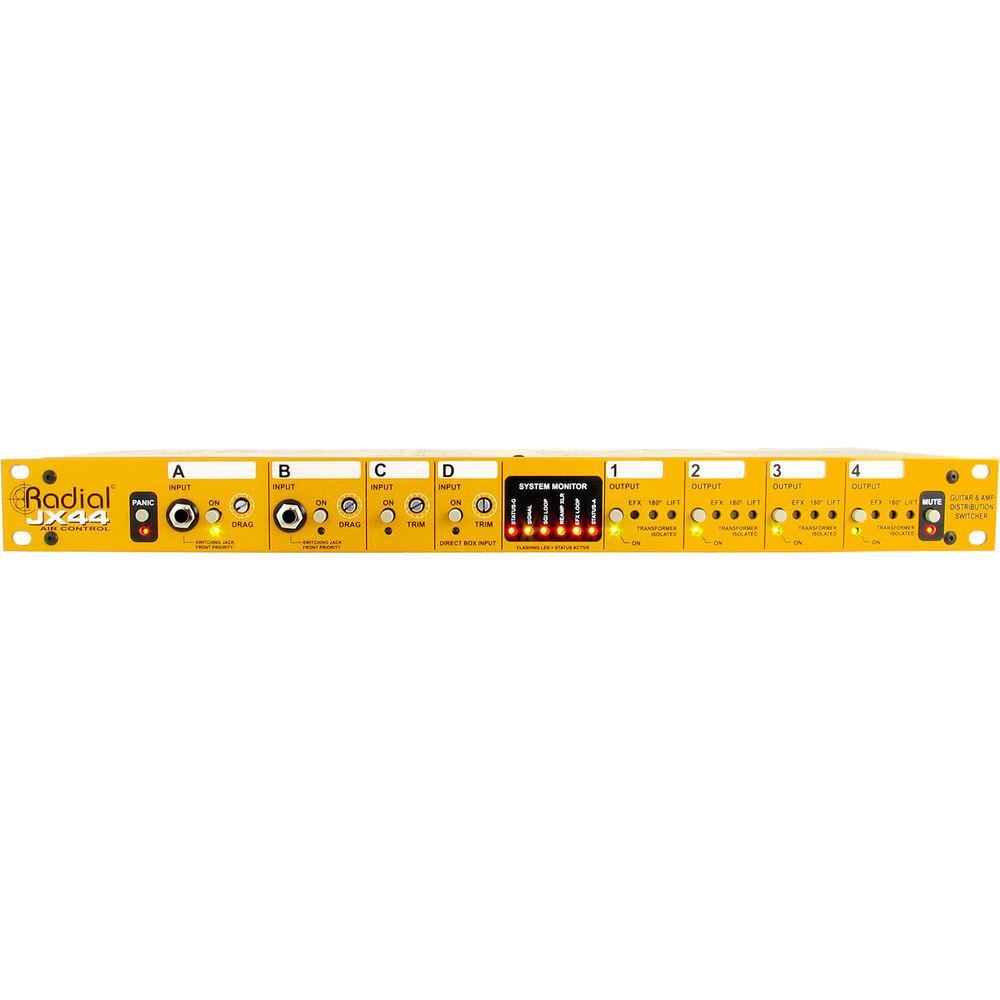

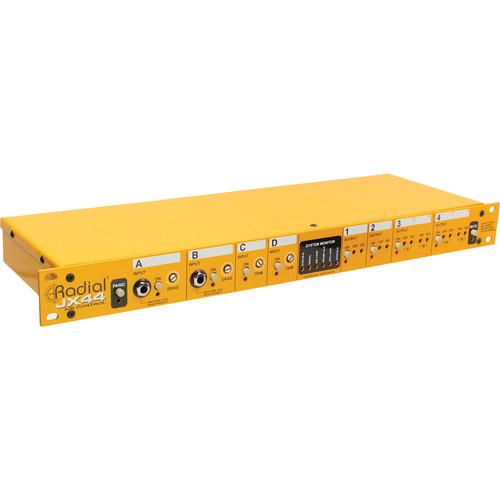

Product description The JX44 Air Control Guitar Signal Manager from Radial Engineering is designed for professional concert stages where wireless guitar systems, acoustics, effects, and multiple amplifiers are used simultaneously.To ensure the highest quality signal transfer, the 4 instrument inputs employ Radial's unique class-A buffering with 100% discrete components throughout. Inputs A & B are equipped with Drag Control load correction that lets you dial in the optimal load on the pickup for the most natural tone. Inputs B & C are equipped with a trim level that let you quickly balance signal levels when using wireless systems or active guitars.There are 2 effects loops; the first is a local effects loop to interface drawer-filled pedals or multi-effects processors. The second is a long-haul balanced interface that provides a noise-free connection to-and-from distant pedalboards to distances of 100m when combined with a stand-alone Radial SGI-44 (sold separately). A built-in Radial direct box works double duty as an acoustic guitar output for the PA or as a dry feed for recording. With the JX44, you can record a clean guitar track and use the built-in Radial X-Amp in post production to Reamp the signal to multiple amplifiers and pedals at the same time.Up to 6 guitar amplifiers can be used at once with this unit. Outputs 1 and 2 are single while outputs 3 and 4 are doubled-up to drive multiple stacks. All outputs are transformer isolated to eliminate hum and buzz from ground loops. These also feature a 180° polarity reverse switch to set the amps in phase. Selecting the amps can be done via the front panel or by using the JR5 remote control (sold separately). The JX5's 5-function footswitch is equipped with internal memory that lets you store 4 amp scenes and recall them with a single foot action. A second JR5 can also be used to activate or mute guitars. To enhance stage functionality, the JX44 is equipped with a separate tuner out. Signals can be muted using the front-panel switch, a latching footswitch, or with the JR5 remote, giving you complete control right where you want it. Should ever a problem occur, a front-panel panic button hardwires input-A to output-1 for direct-to-amp connection. This configuration will even work if the JX44's power goes down. - Control as many as 4 guitars and 6 amps at once
- Programmable with remote control for pedalboard
- Built-in Radial DI box, SGI line driver and X-Amp
- Transformer isolated to eliminate ground loops
In the Box Radial Engineering JX44 Air Control Guitar Signal Manager 2 x Power Supply Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JX44 Air Control Guitar Signal Manager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

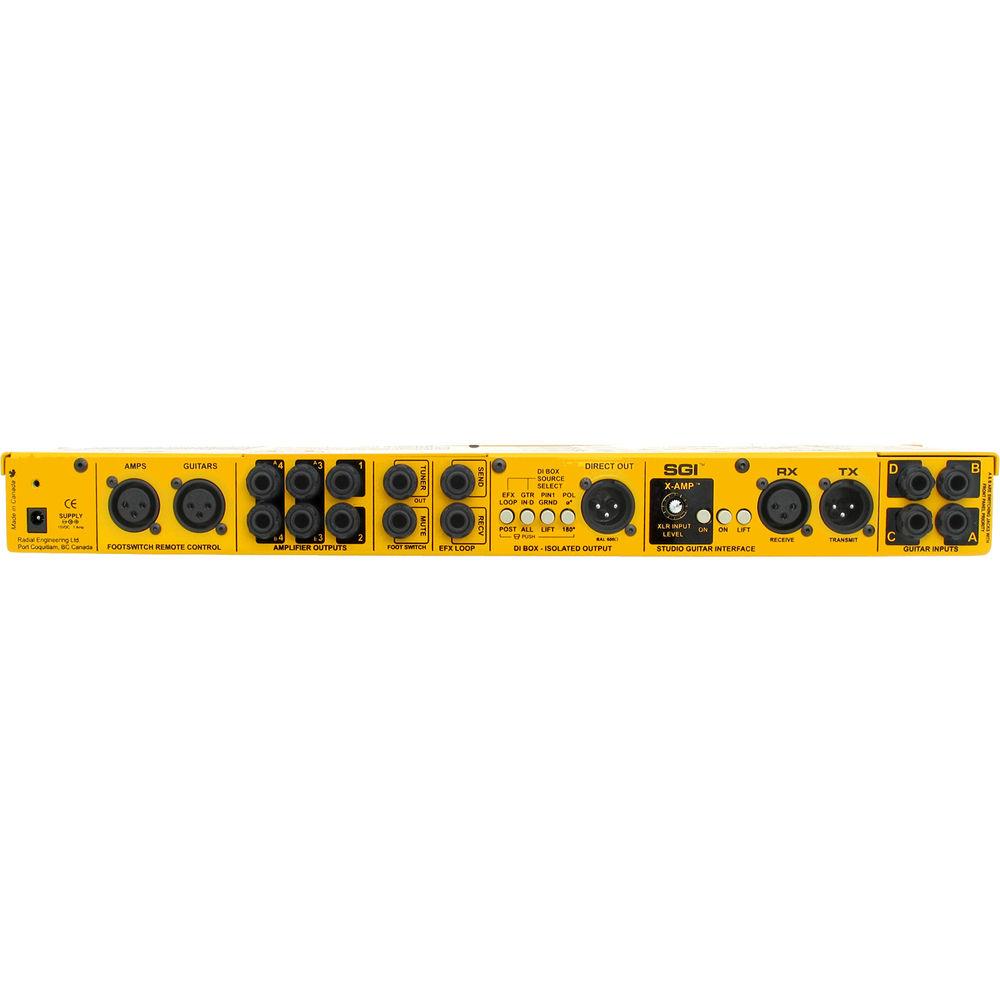

Technical parametersRadial Engineering JX44 Specs | Circuit Type | Radial proprietary Class-A signal path | | Instrument Inputs | 4 x 1/4" Hi-Z at rear panel
2 x 1/4" Hi-Z front panel (paralleled with rear INPUT-A and INPUT-B, front jacks have priority over rear)
Inputs A & B have Drag Control load correction
Inputs C & D have trim control | | Input Impedance | Inputs A & B : Variable with Drag from 10k to 1 MΩ
Inputs C & D : 1 MΩ | | Amplifier Output | 6 x 1/4" Hi-Z (unity gain) with 6 x Radial custom-wound transformers for amp isolation | | Tuner | Output: 1/4" Hi-Z buffered instrument level (unity gain) | | Effects Loop | Local: Send 1/4" Hi-Z output / Receive 1/4" Hi-Z return (unity gain)
Remote: 2 x Jensen transformers for SGI & X-Amp input | | Output | Direct Output:
Class-A drive circuit with Radial custom-wound transformer for isolation
1 x XLR balanced 600 Ω mic-level output
AES-3 pin (pin-2 hot)
Frequency Response: 20 Hz to 20 kHz (±2.5dB)
Harmonic Distortion: 001% (20 Hz to 20 kHz)
Phase Distortion: 1° at 1 kHz, 8° at 20 Hz | | Ports | JR5 Remote Ports:
3-pin XLR remote control ports uses standard mic cables to connect the JR5 footswitch (sold separately) | | Other | Remote Control for the MUTE Function: Contact closure input for momentary non-latching footswitch (sold separately) | | Power Supply | 15 VDC, 1 A center positive (2 supplied) | | Construction | 14-gauge steel with baked enamel finish | | Dimensions | 19.0 x 66.0" (48.3 x 167.6 cm), 1RU | | Weight | 7.6 lb (3.4 kg) |
