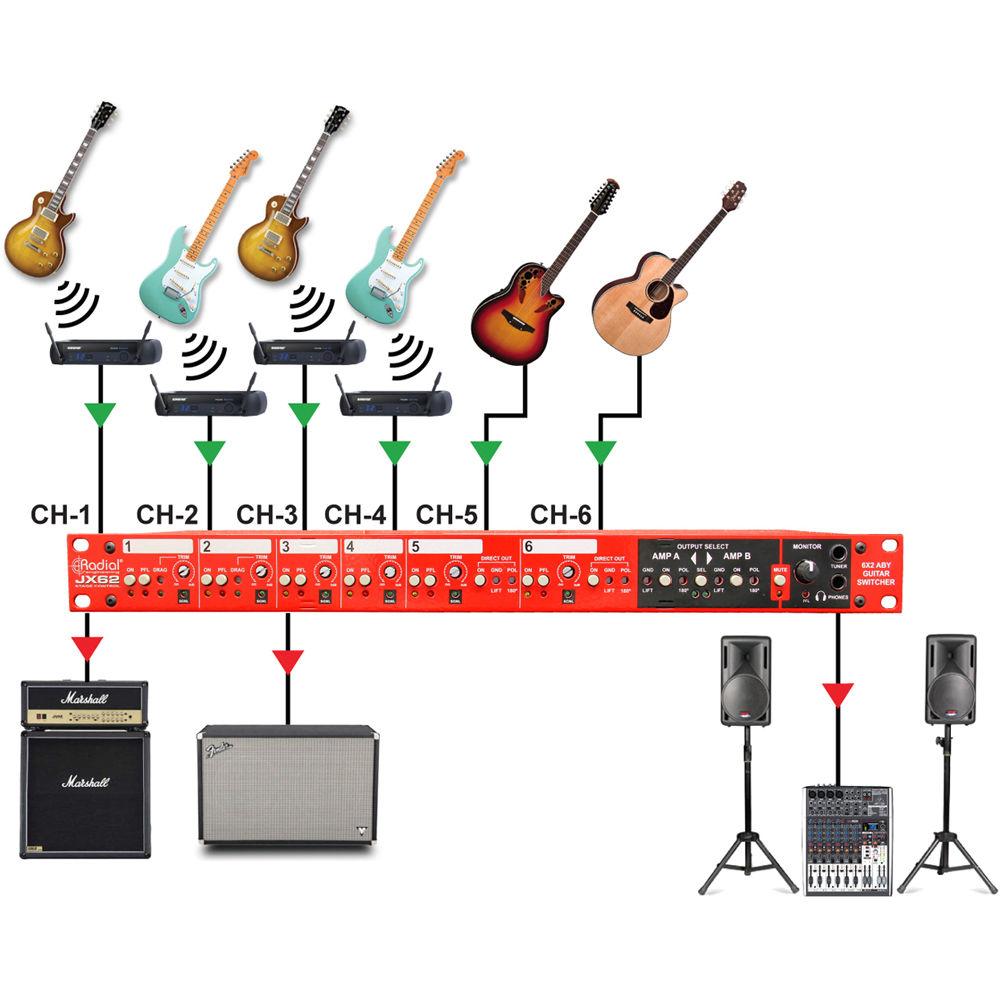

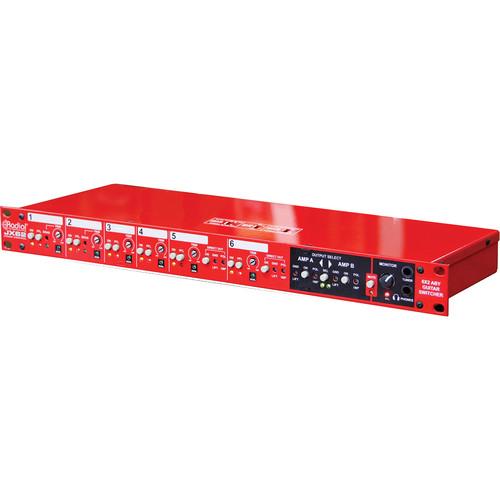

Product description The JX62 from Radial is a guitar and amp switcher designed for both wired and wireless guitars in a live concert touring environment. It features 100% discrete, class-A buffers for optimal signal transfer without distortion or artifacts along with isolated outputs to eliminate hum and buzz caused by ground loops.

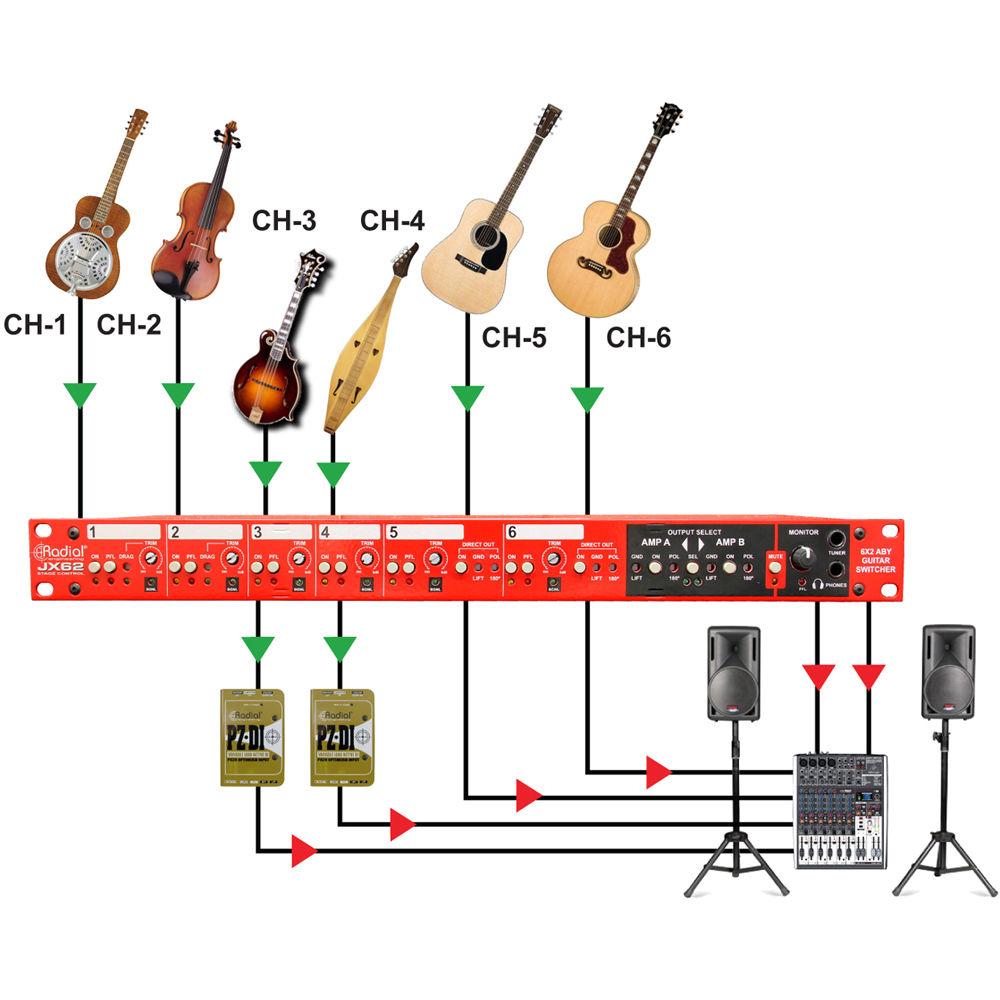

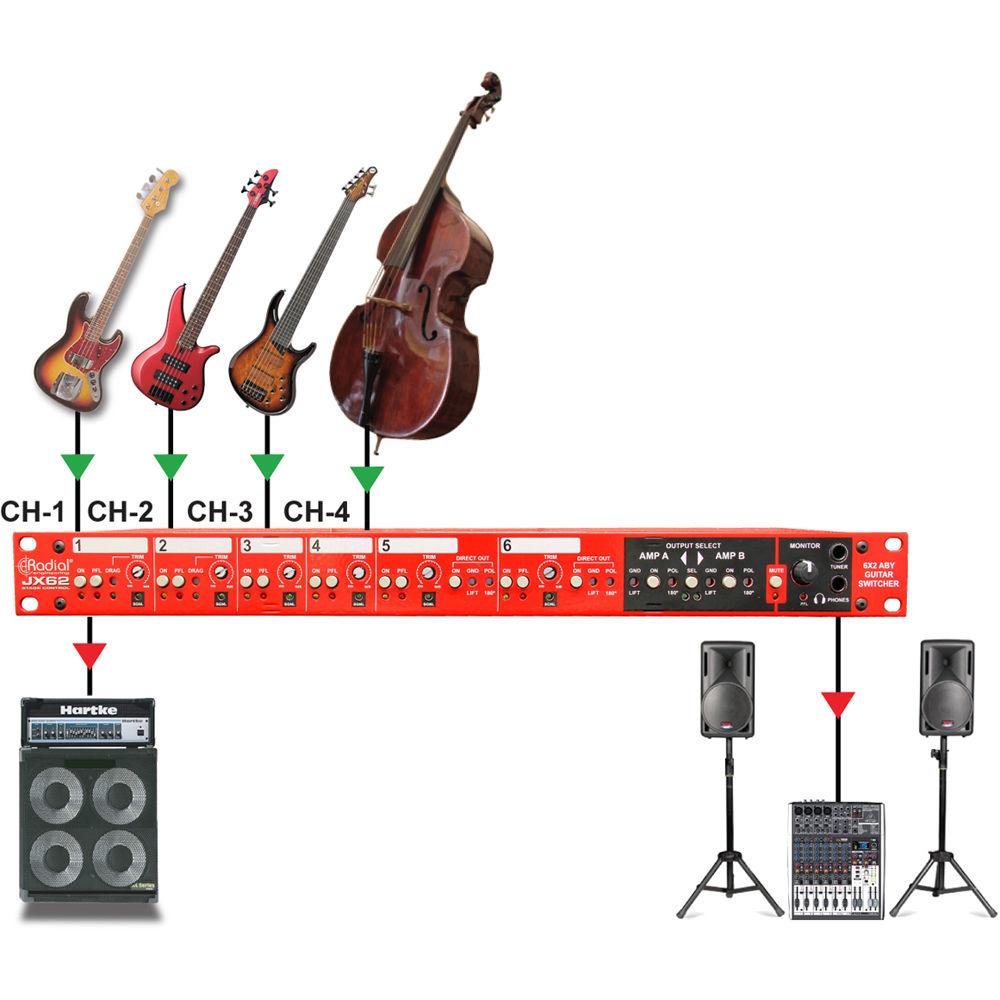

All six input channels are equipped with a 1/4" input and separate thru for a dedicated amplifier, plus a trim control to balance the signal levels. Channels 1 and 2 are supplemented with Drag Control load correction to optimize tone when using wired connections. Channels 5 and 6 are equipped with dedicated Radial DI box outputs to send a "clean" acoustic or bass signal direct to the PA system.
Any or all channels may be active at one time and routed to a master bus which offers a choice of AB outputs and features an effects loop for pedal trays. Both AB outputs are transformer isolated to eliminate ground loops and equipped with ground lift switch and polarity reverse to phase align amps if reversed.

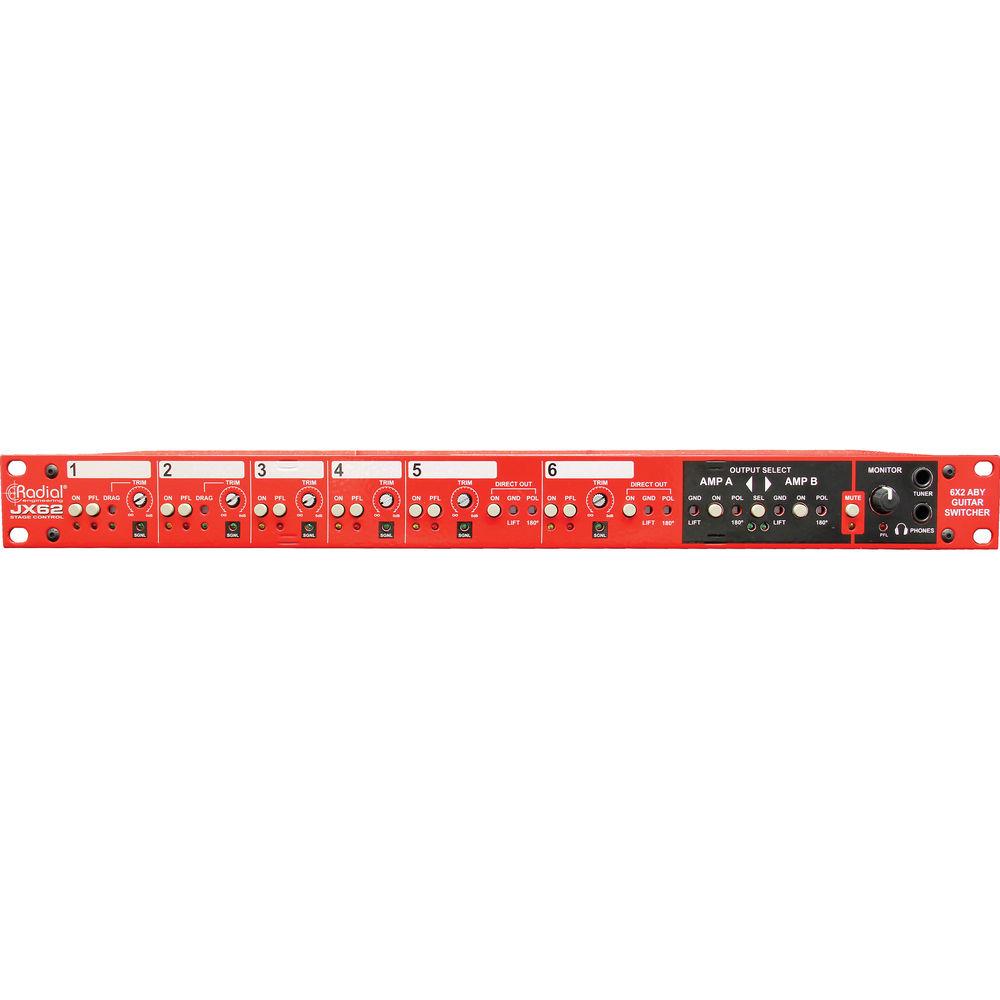

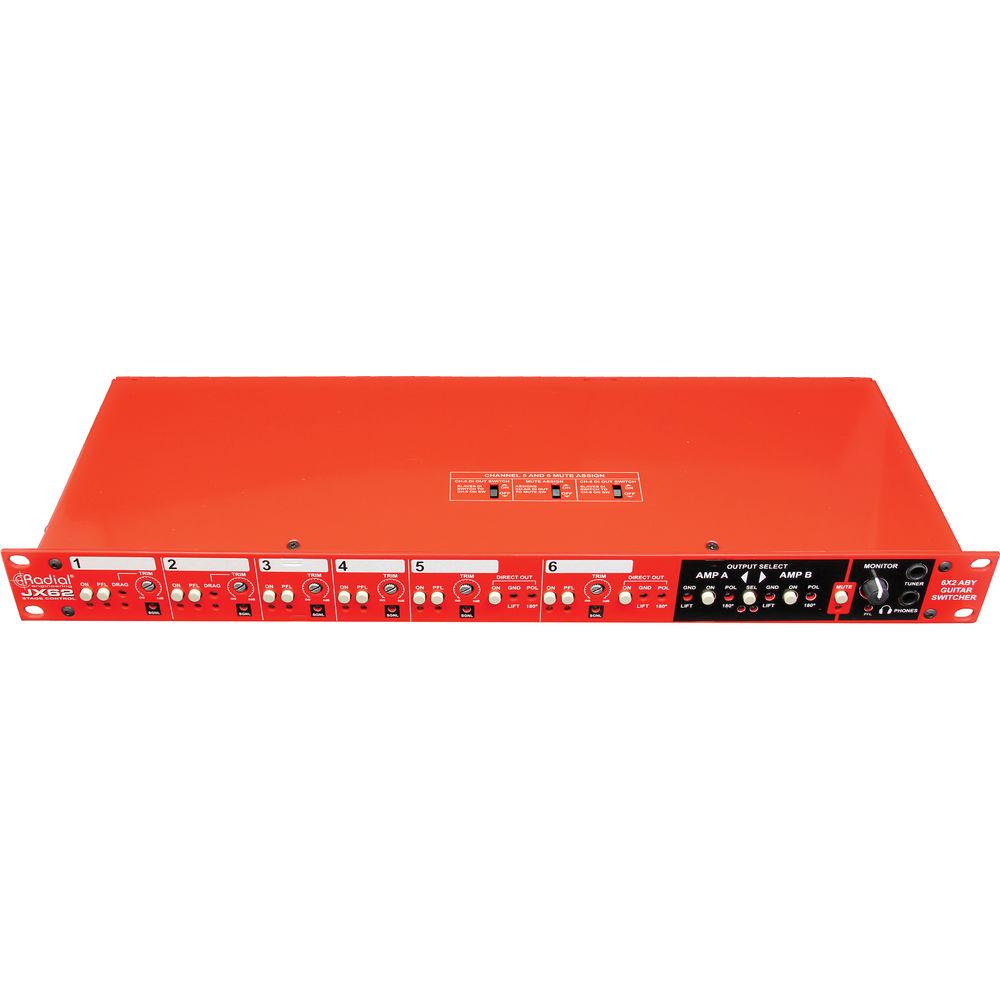

Both XLR and 1/4" outputs are available and switching between outputs can be done from the front panel via an optional Radial JR2 remote footswitch. For the stage tech, the unit sports a PFL (pre-fade-listen) and headphone amp that enables any or all inputs to be monitored without affecting the output. A separately buffered tuner/monitor output on the front panel follows the PFL select and may be used for quiet tuning. - Select between six guitars and two amps
- 100% discrete, class-A buffers for best sound
- PFL and headphone amp for system checks
- Two built-in Radial DI boxes for acoustic guitars
In the Box Radial Engineering JX62 Guitar and Amp Stage Switcher External Power Supply Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering JX62 Guitar and Amp Stage Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 6510 Specs | Circuit Type | Class-A buffers with optical switching | | Frequency Response | 20 Hz to 20 kHz, +/-1 dB | | Dynamic Range | 120 dB | | Maximum Input | +18 dBu | | THD | 0.007% | | Phase Deviation | <10° @ 50 Hz | | Intermodulation Distortion | 0.027% | | EIN | -94.7 dBu | | Noise Floor | -89.7 dBu | | Input Impedance | Variable from 22 kOhm to 1 MOhm | | Output Impedance | XLR: 680 Ohm
1/4": 3.5 kOhm | | Gain | +5 dB, channel input to XLR output | | Output Clip Level | Headphone: 5V RMS
Front Panel Tuner: +22 dBu

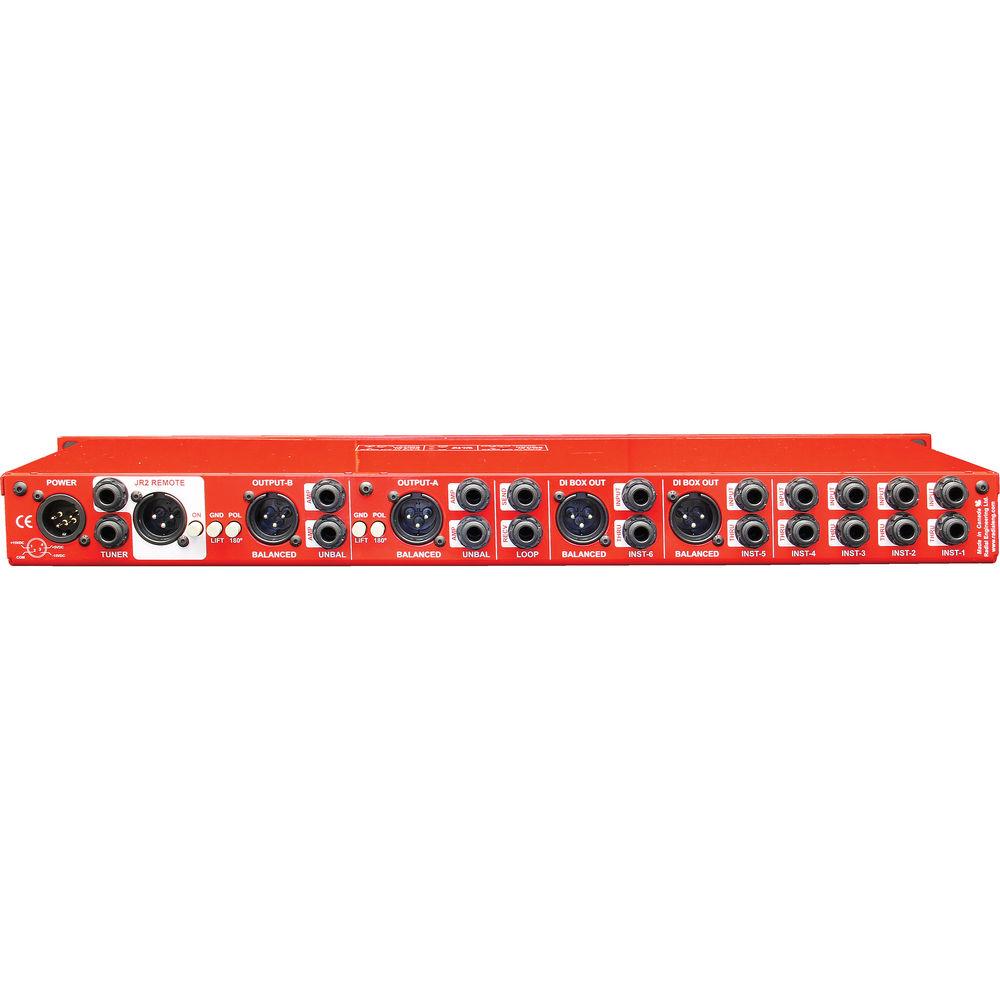

Channel: +22 dBu | | Connections | 6 x 1/4" TS Hi-Z Guitar Inputs
6 x 1/4" TS Hi-Z Guitar Thru-Puts
4 x 1/4" TS Hi-Z Amplifier Outputs
2 x 1/4" TS Tuner Out
4 x XLR Balanced Outputs
1 x 1/4" TRS Send and Receive Effects Loop
1 x 1/4" TRS and 1 x XLR for Optional JR2 Remote | | Construction | 14 gauge steel chassis and outer shell
Durable powder coat | | Power Requirements | External supply 500 mA with XLR-4 connector | | Dimensions (WxDxH) | 19 x 6 x 1.75" (483 x 153 x 45 mm) | | Weight | 7 lb (3.2 kg) |
