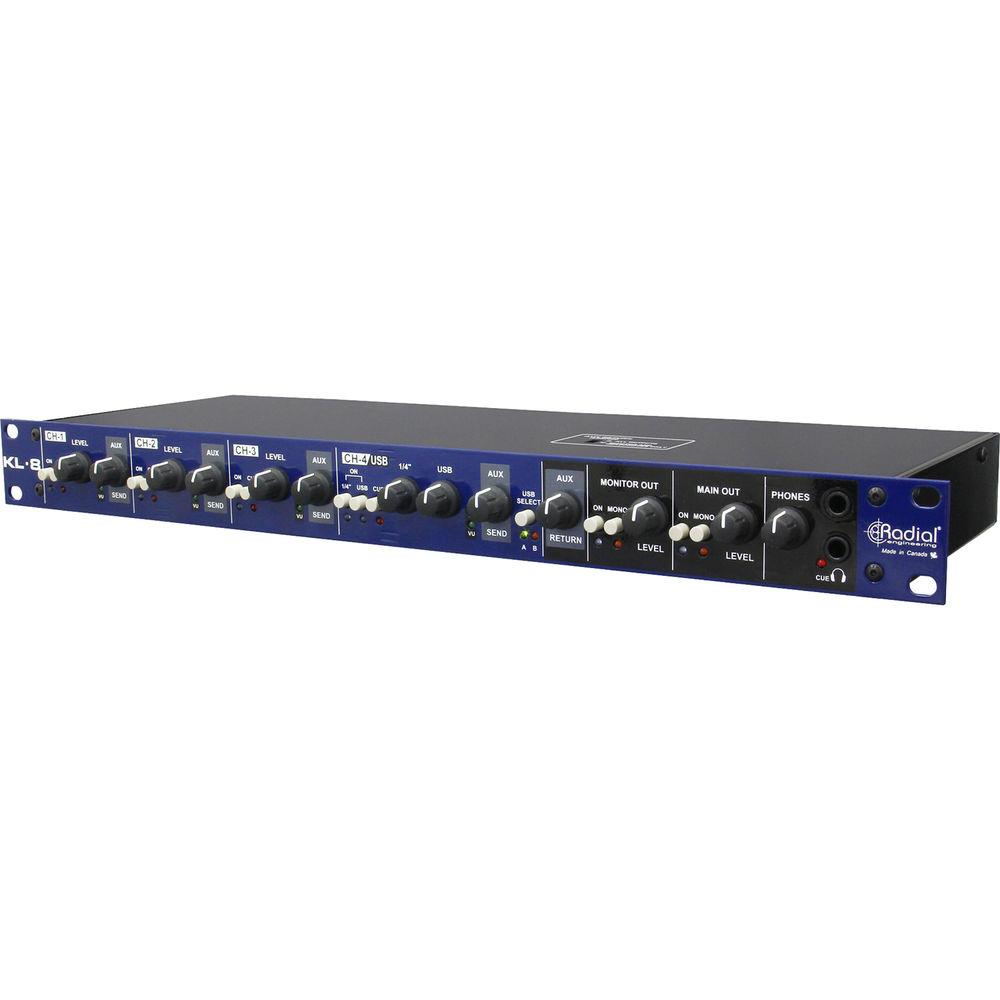

User Manual for Radial Engineering KL-8 Rackmount Keyboard Mixing Station Click to enlarge the picture
Contents of the user manual for the Radial Engineering KL-8 Rackmount Keyboard Mixing
- Product category: Install Sound Mixers Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Install Sound Mixers
 |
User manual for the Radial Engineering KL-8 Rackmount Keyboard Mixing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

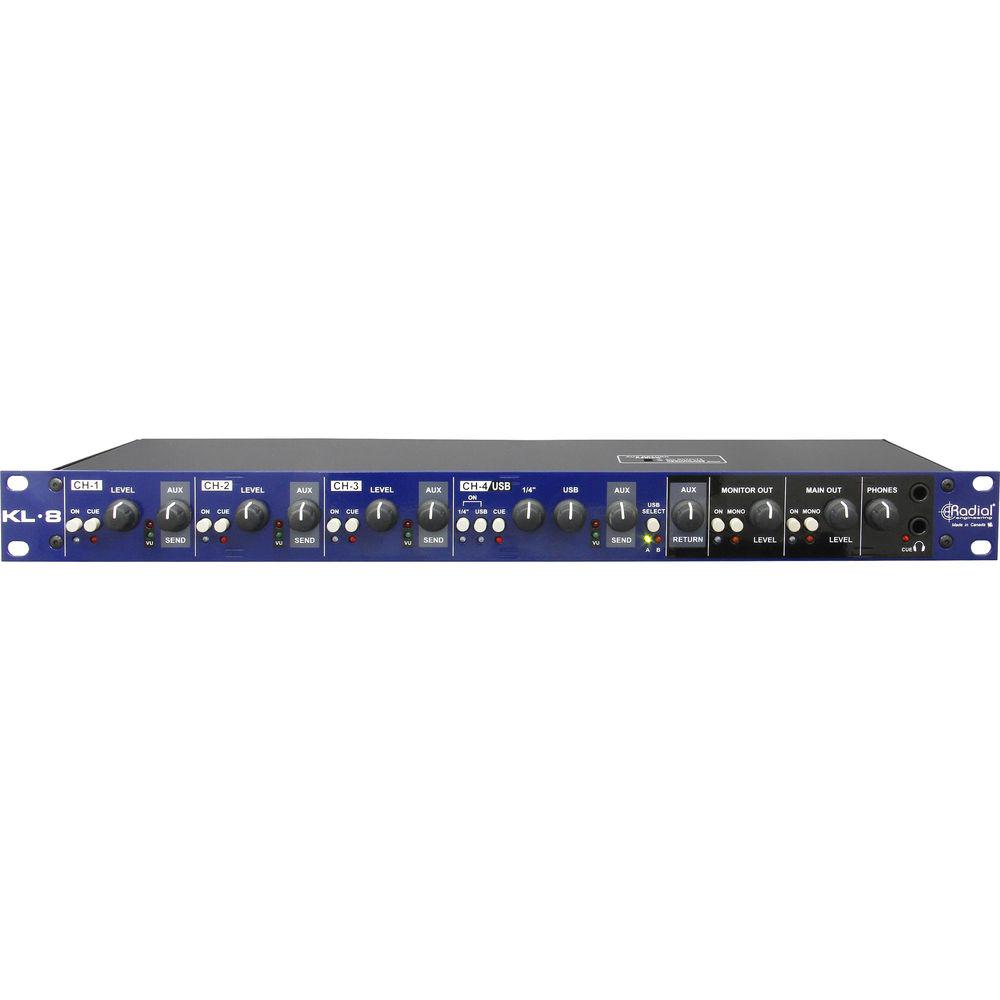

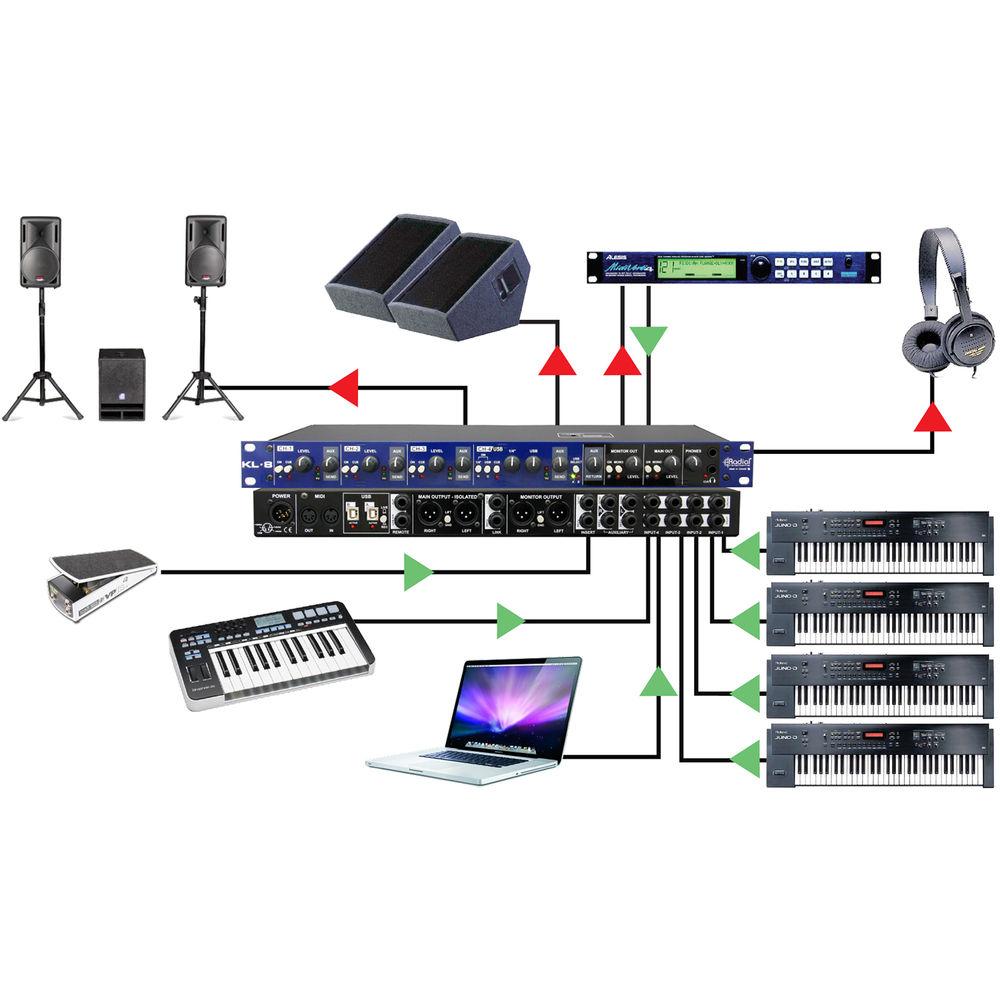

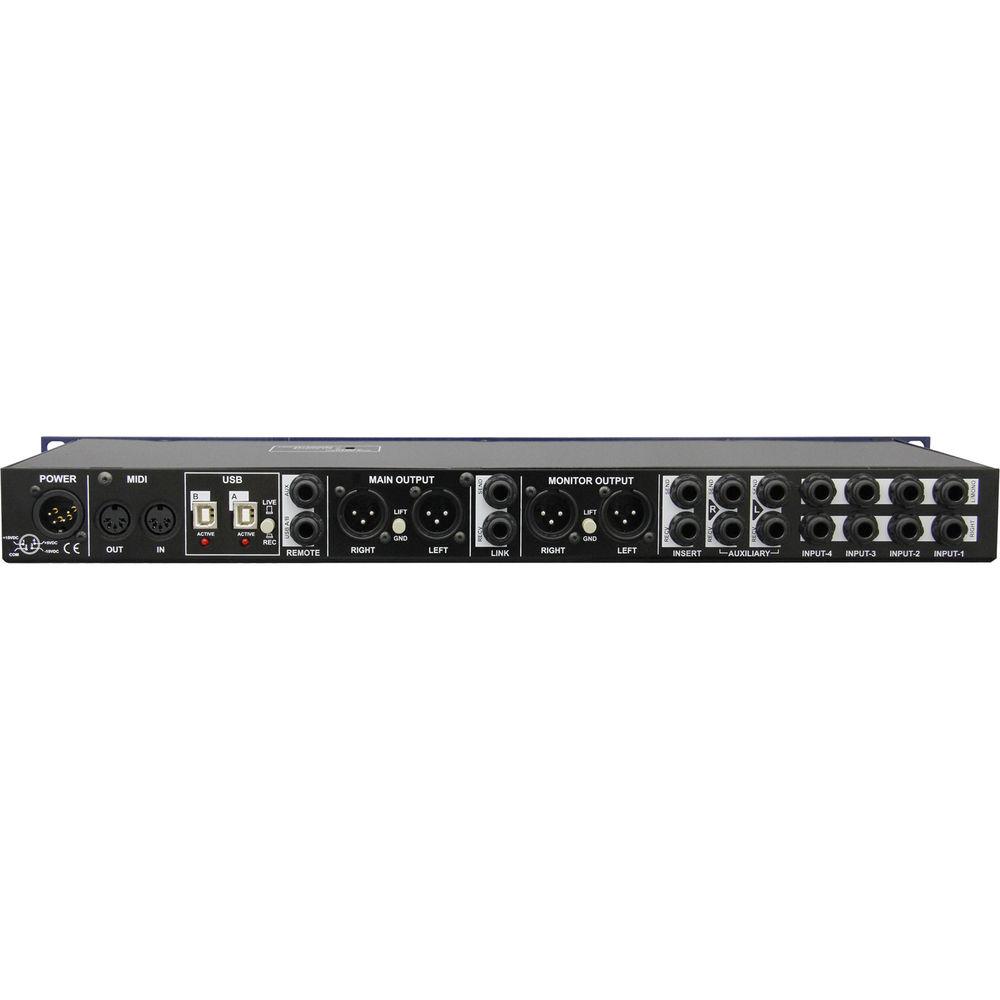

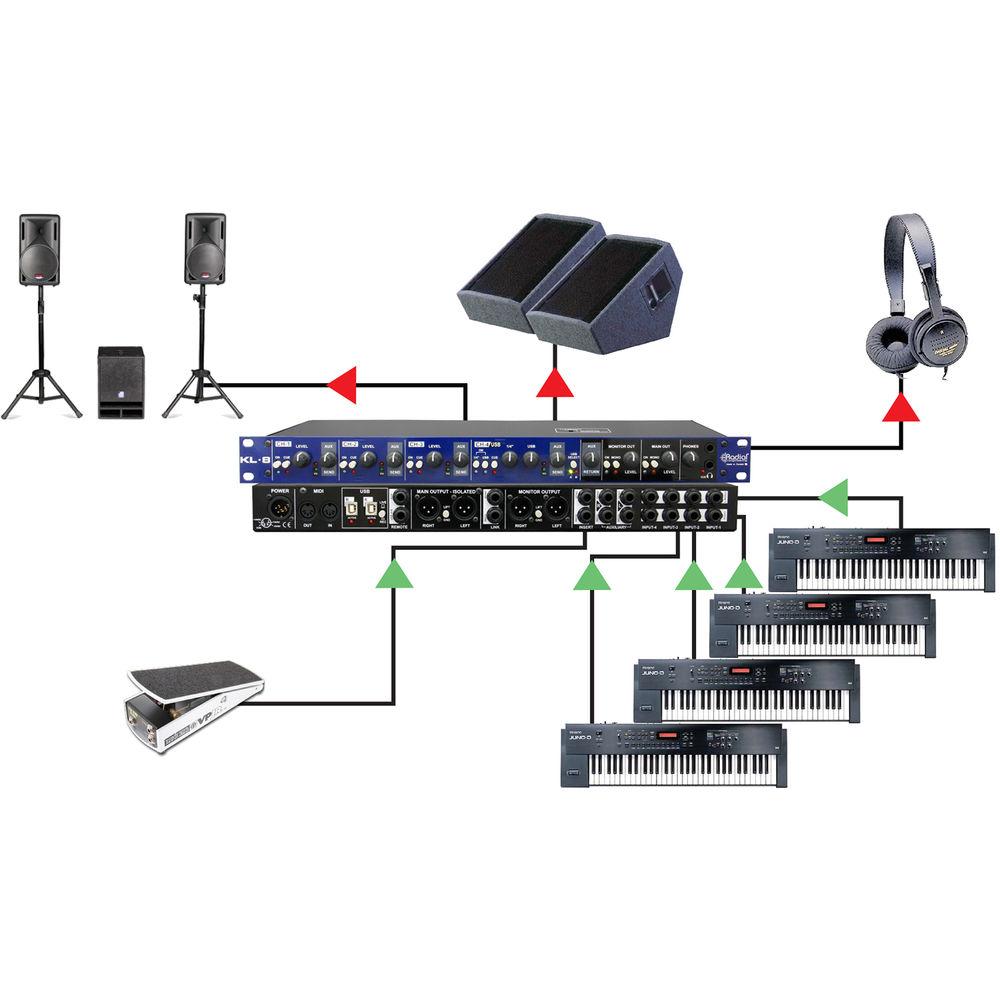

Product description The KL-8 Rackmount Keyboard Mixing Station from Radial can connect to four keyboards in mono or stereo, each with their own volume control and LED indicators. It can be used to bring them in and out of the signal path to keep noisy keyboards muted until they are needed for live stage and theater applications. The KL-8 is a single rack unit designed to route analog 1/4" inputs and outputs, effects, 3-pin XLR main, 3-pin XLR monitor outputs, and 1/4" TRS headphone outputs to provide easy access in one location. It is also a powerful digital interface with MIDI and USB connections that make it easy to control a laptop soft-synth utilizing high-quality 24-bit/192 kHz digital audio converters. Other features include: stereo insert points for a single volume pedal to control all your keyboard outputs and redundant USB connections to have a backup laptop plugged in and ready to go. This is useful for keyboard players who control playback for backing tracks during performances. Additionally, a link feature can be used to connect multiple units together and expand the KL-8 inputs to suit larger keyboard rigs. UPC: 676101044771 In the Box Radial Engineering KL-8 Rackmount Keyboard Mixing Station Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering KL-8 Rackmount Keyboard Mixing Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering KL-8 Specs | Analog Inputs | 4 x 1/4" / 6.3 mm Inputs: Maximum: +18 dBu (+16 dBV)
Input Impedance: 14.3 to 20 kOhms (Input Level Max / Input Level Min)
Input Gain Range: -80 to +18 dB | | Auxiliary Input | 2 x 1/4" / 6.3 mm
Maximum Input: +11 dBu
Input Impedance: 33 kOhms
Input Gain Range: -80 to +25 dB | | Auxiliary Output | Maximum Output: +18 dBu
Output Impedance: 2.2 kOhms
Input Gain Range: -80 to +2 dB | | Outputs Connectivity | Main Outputs: 2 x 3-Pin XLR
Monitor Outputs: 2 x 3-Pin XLR
Maximum Output: +28 dBu
Output Impedance: 1.1 kOhms
Input Gain Range: -80 to +18 dB
Dynamic Range: 90 dB Referred to +28 dBu, 102 dB A-Weighted
THD+N: 0.01% (100 Hz to 20 kHz @ 0 dBu) (-80 dB) | | Headphone Outputs | 2 x 1/4" / 6.3 mm TRS Jacks
Maximum Output: 0.4 W into 15 Ohms (8.3 VRMS Max)
Output Impedance: 51 Ohms
Input Gain Range: -80 dB to +10 dB | | USB | Bit Depth / Sample Rate: 24-Bit / 44.1, 88.2, 176.4, or 192 kHz | | Frequency Response | All Outputs: 20 Hz to 20 kHz ±0.5 dB | | Power | 100 to 240 VAC Locking 4-Pin XLR | | Dimensions (L x W x D) | 19.0 x 7.0 x 1.6" / 48.3 x 17.8 x 4.1 cm | | Weight | 6.25 lb / 2.83 kg | | | | Package Weight | 9.04 lb | | Box Dimensions (LxWxH) | 22.6 x 10.5 x 4.7" |
