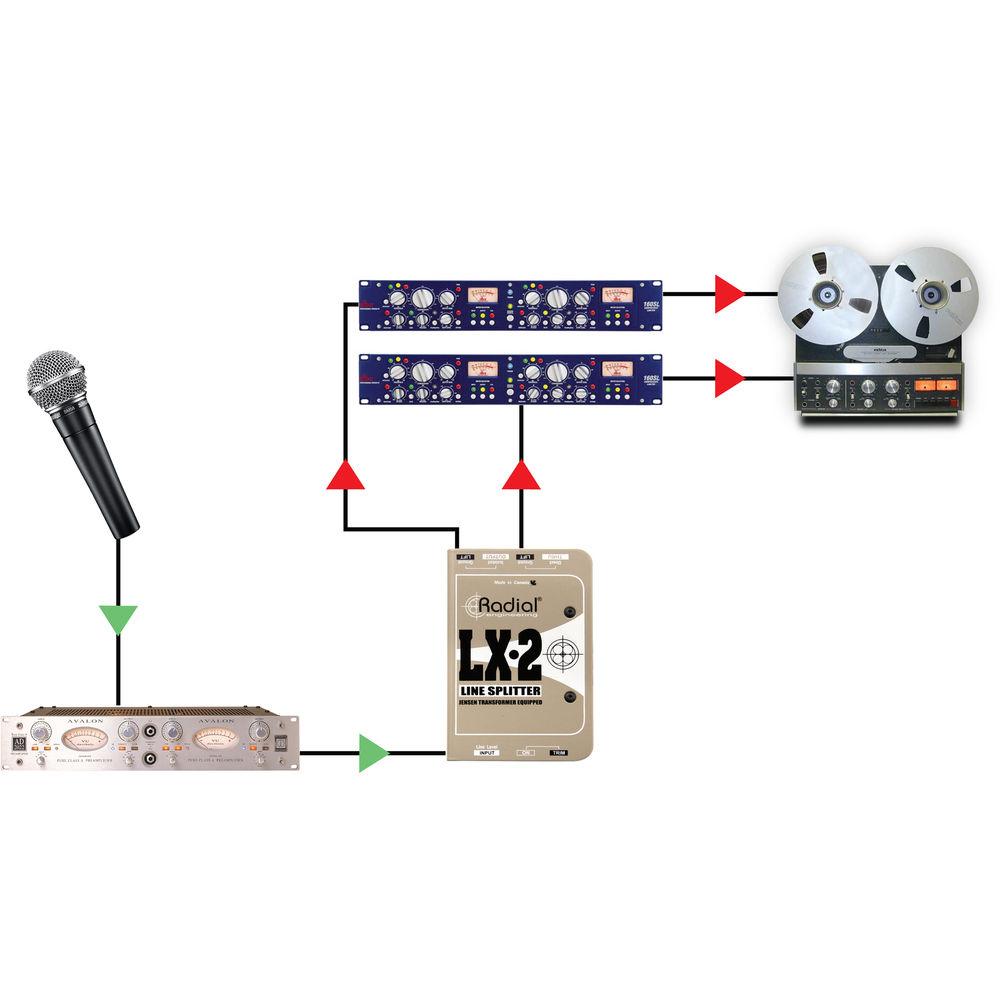

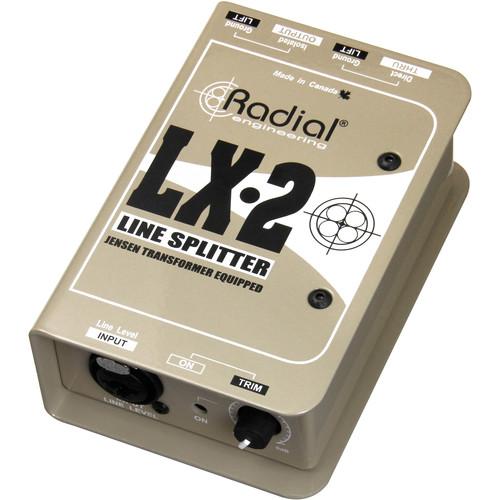

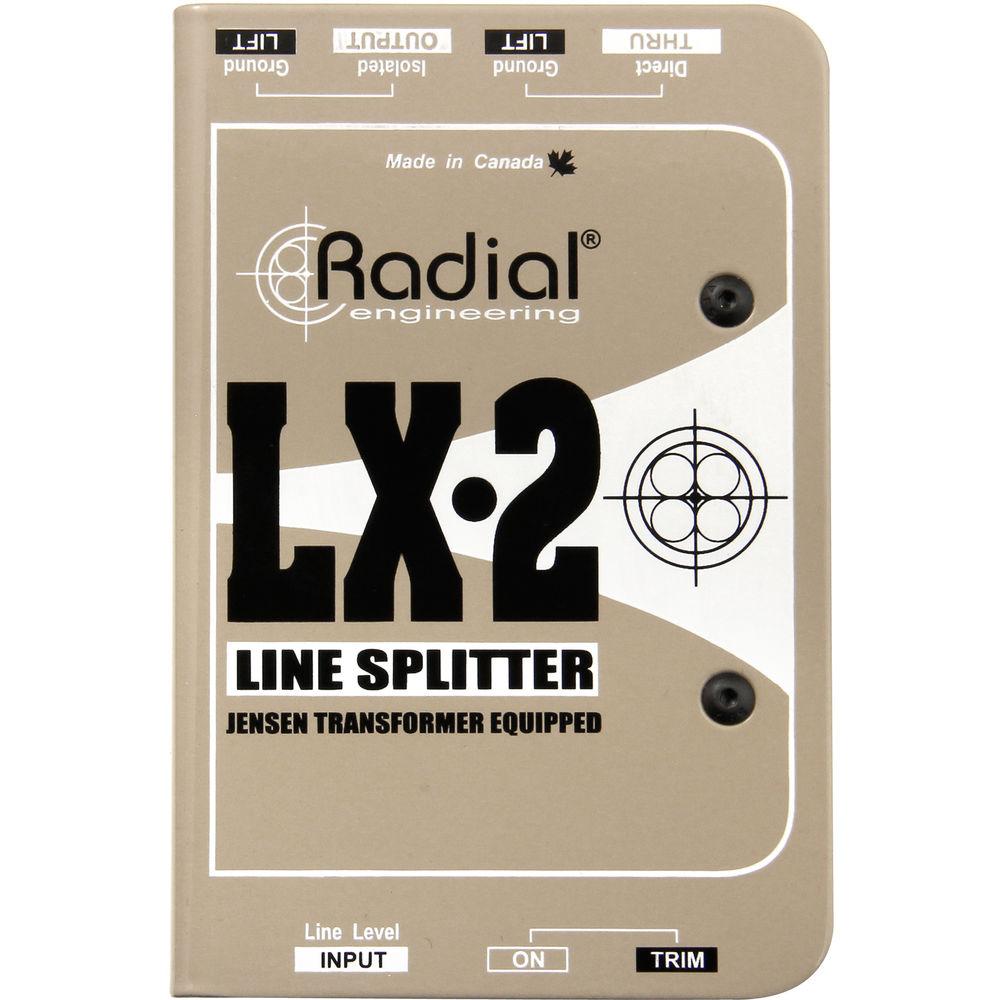

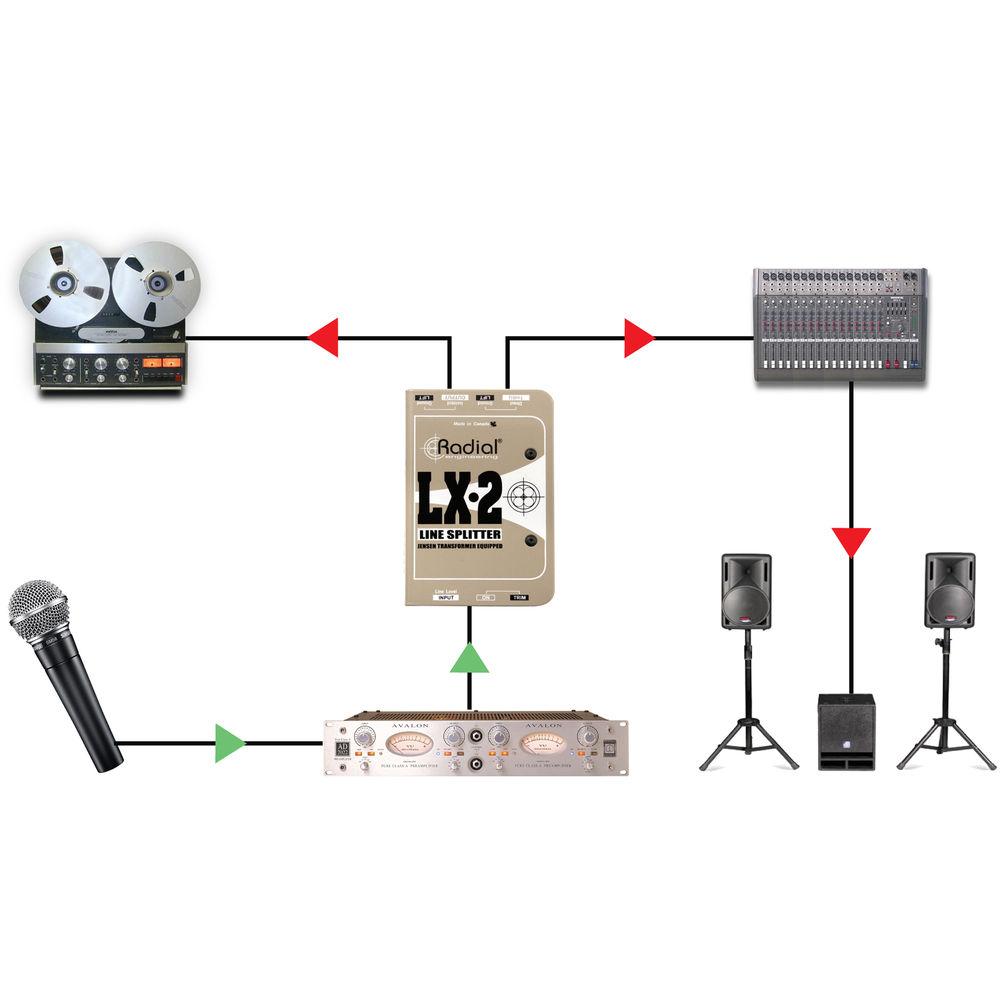

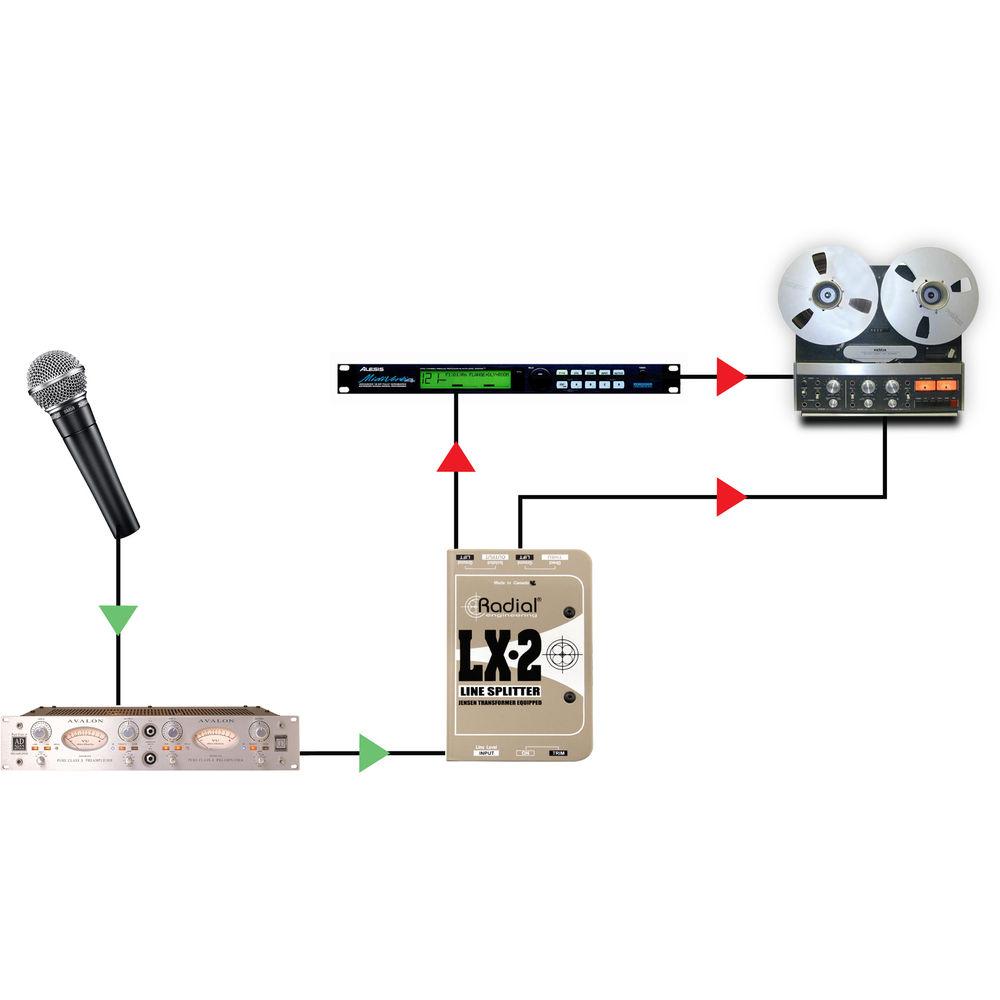

Product description The LX-2 from Radial Engineering is a passive line splitter and attenuator designed to lower hot signal levels and split one line-level input source to two line-level output paths, allowing flexible routing or parallel processing. Featuring low noise, high dynamic range, and flat frequency response, the LX-2 will not compromise signal quality.For live sound, the LX-2 can split a mixer output to a PA and multitrack recorder. In the studio, use it to split the output of a microphone preamp. Then, record one signal with compression and one without. Manage extreme levels with the Trim pot, offering up to 10 dB of attenuation. A recessed on/off button for the Trim control prevents accidental switching.It is equally well-suited for live and in-the-studio productions, with its 14-gauge steel enclosure and no-slip pad. For installation in 500 Series racks, J-Rak 4 and J-Rak 8 rackmount adapters are available separately. The LX-2 requires no power supply, due to its passive circuitry.Balanced or unbalanced signals can be used. Input connectivity is available using a combo jack, compatible with XLR or 1/4” input sources. XLR connectors are used for both outputs, the direct “Thru” jack and the transformer-isolated output. Each output features a ground-lift switch, to minimize hum and buzz caused by ground loops. -
- Split one line-level XLR or 1/4” input to two XLR outputs
- Ideal for complex signal routing and parallel processing
- Transformer-based, passive circuitry requires no power supply
- Low noise and low distortion
- High dynamic range and flat frequency response

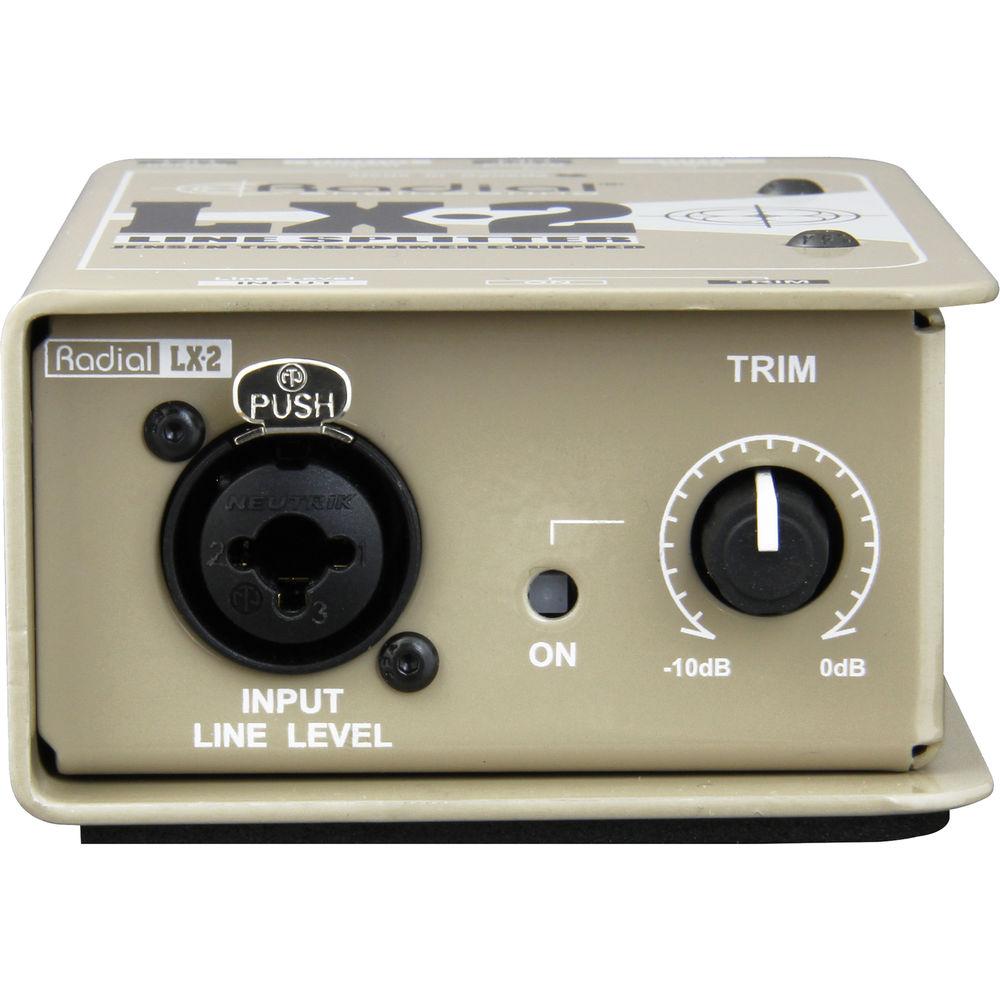

- Trim control with recessed on/off switch offers up to 10 dB of attenuation

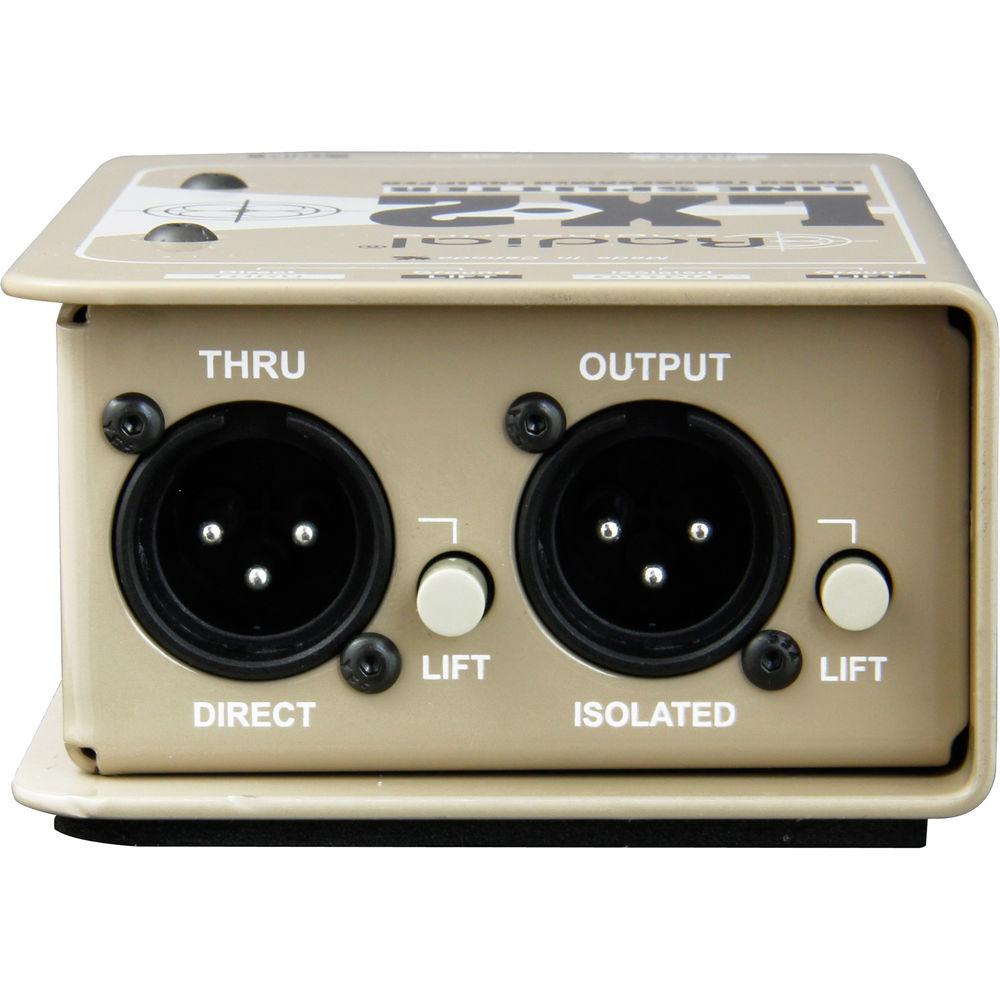

- Minimize hum and buzz from ground loops via ground-lift switches for each output
- Sturdy and durable 14-gauge steel enclosure with no-slip pad
- Compatible with 500 Series racks using J-Rak adapters (available separately)
UPC: 676101044528 In the Box Radial Engineering LX-2 Passive Line Splitter and Attenuator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering LX-2 Passive Line Splitter and Attenuator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1033 Specs | Circuit | Passive (transformer-based) | | Frequency Response | 20 Hz - 20 kHz (±0.5 dB) | | Gain | -1.5 dBu | | Noise Floor | -119 dBu | | Maximum Input Level | +21 dBu | | Dynamic Range | 140 dBu | | THD | <0.001% @ 1 kHz | | Phase Deviation | +0.3 degrees @ 20 kHz | | Common Mode Rejection | 94 dB @ 60 Hz, 83 dB @ 3 kHz | | Inputs | 1 x XLR and 1/4" combo jack | | Outputs | 2 x XLR | | Impedance | 716 Ohms (input)
116 Ohms (output) | | Transformer | Jensen JT-11-FLPCH | | Enclosure Material | 14-gauge steel | | Dimensions (W x D x H) | 3.3 x 5.0 x 1.9" / 84.0 x 127.0 x 48.0 mm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.4 x 4.2 x 3.0" |
