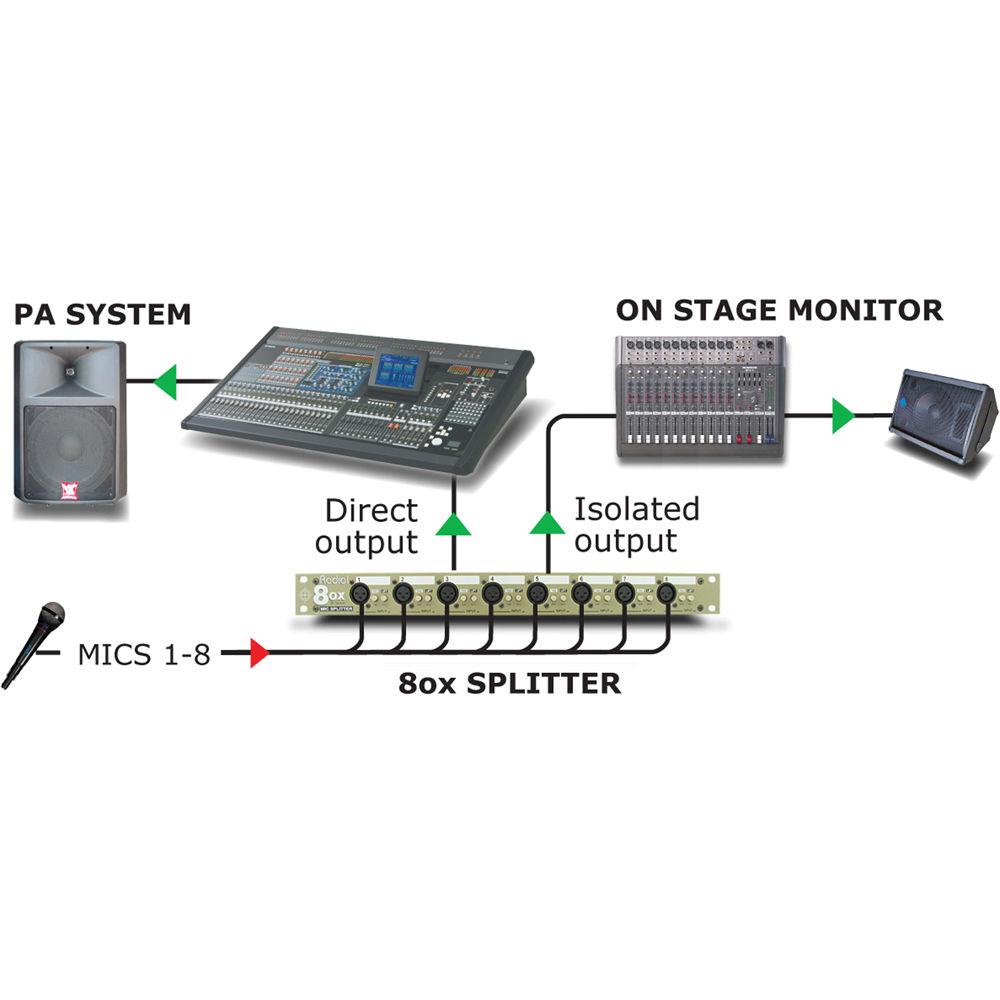

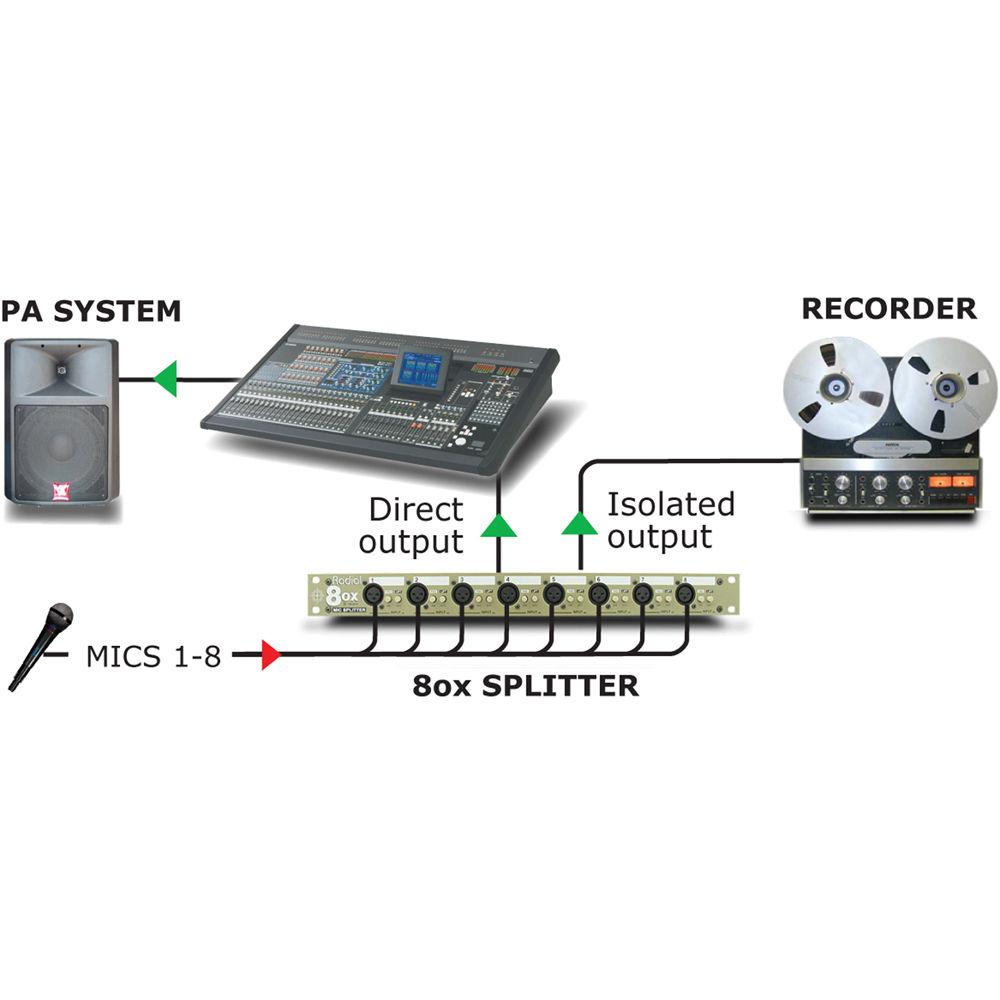

Product description The LX8 Line Level Signal Splitter & Isolator from Radial Engineering is an 8-channel passive line-level isolator, designed specifically to manage balanced signals in professional audio systems. Applications include splitting a source between 2 destinations or simply isolating devices to eliminate the hum and buzz caused by ground loops.The single rack space design begins with 100% passive circuit which means it does not require any powering whatsoever to make it work. In this unit, each of the 8 channels is equipped with a premium Eclipse ET-LD4 transformer that is able to handle transients in excess of +26dB at all frequencies right down to 20Hz without audible distortion. This results in an accurate signal transfer with minimal phase shift or artifact. In the studio, the Eclipse transformer delivers added warmth and a natural vintage-sounding compression. When used in larger systems, you benefit from significantly lower noise.Input connections include a series of front-panel XLRs for easy integration into live racks or a rear-mounted 25-pin D-sub. Output connections include a hardwire throughput, a transformer isolated output, and an auxiliary output, the latter 2 being equipped with ground lift switches to help eliminate hum and buzz caused by ground loops. All rear panel connections are presented with a choice of standard 25-pin D-Sub wired to the Tascam-ProTools standard or with screw-down Phoenix connectors for easy field termination for permanent installations.All of the 8 incoming signals are routed to the direct output, the transformer isolated output, and an auxiliary out, enabling multiple signal paths to be put into practice without the usual noise that is associated. With all these features, it is suitable for use with most demanding multi-channel audio system. Note: The Phoenix cable terminal connectors are sold separately General - 8-channel balanced line level-signal splitter & isolator
- Handles +26 dB signals without distortion or artifact
- Over 100 dB of common mode noise rejection
- Eliminates hum and buzz caused by ground loops
- Welded 14-guage steel heavy-duty construction for durability
- Based enamel finish for longevity

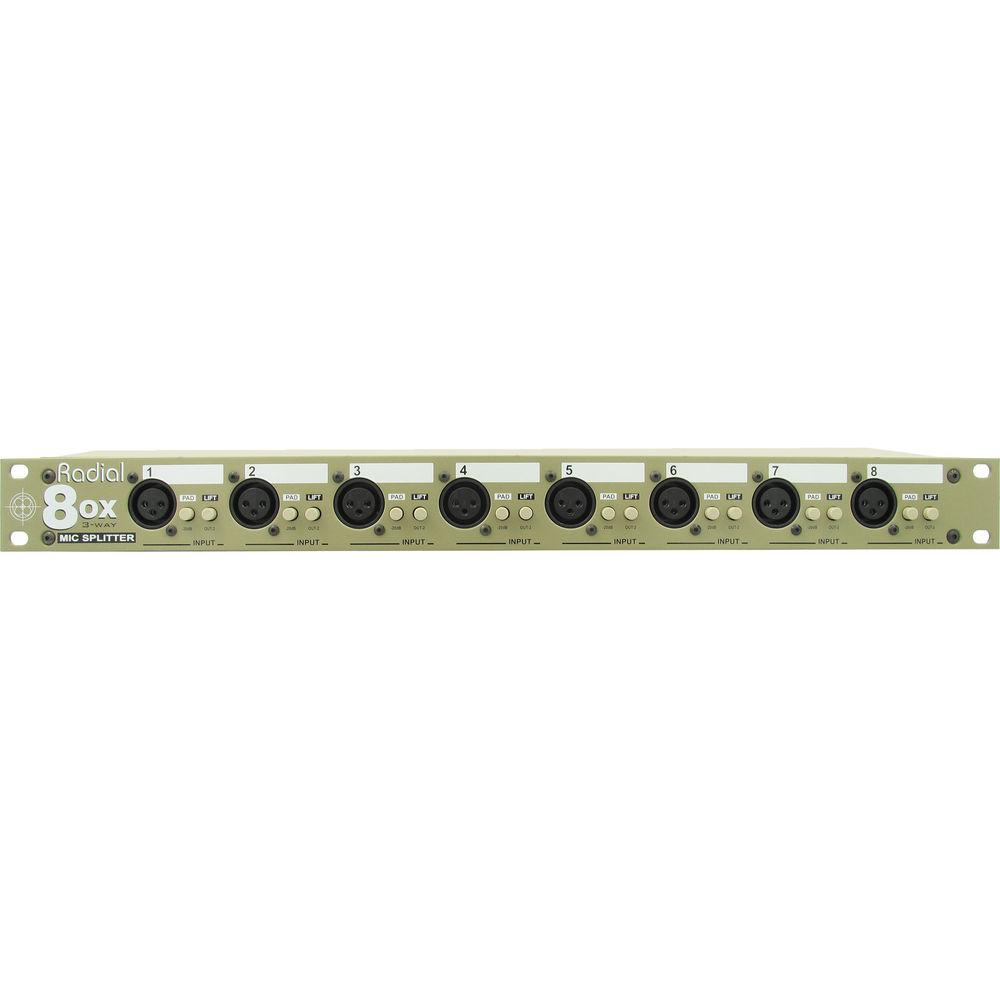

Front Panel - XLR line input (600Ω, balanced) wired in parallel with the rear panel D-Sub
- ID labels for wax pencil make setup easy
- ISO ground lift disconnects the ground on the isolated D-Sub output to help eliminate ground loops
- Aux ground lift disconnects the ground on the auxiliary D-Sub output to help eliminate ground loops

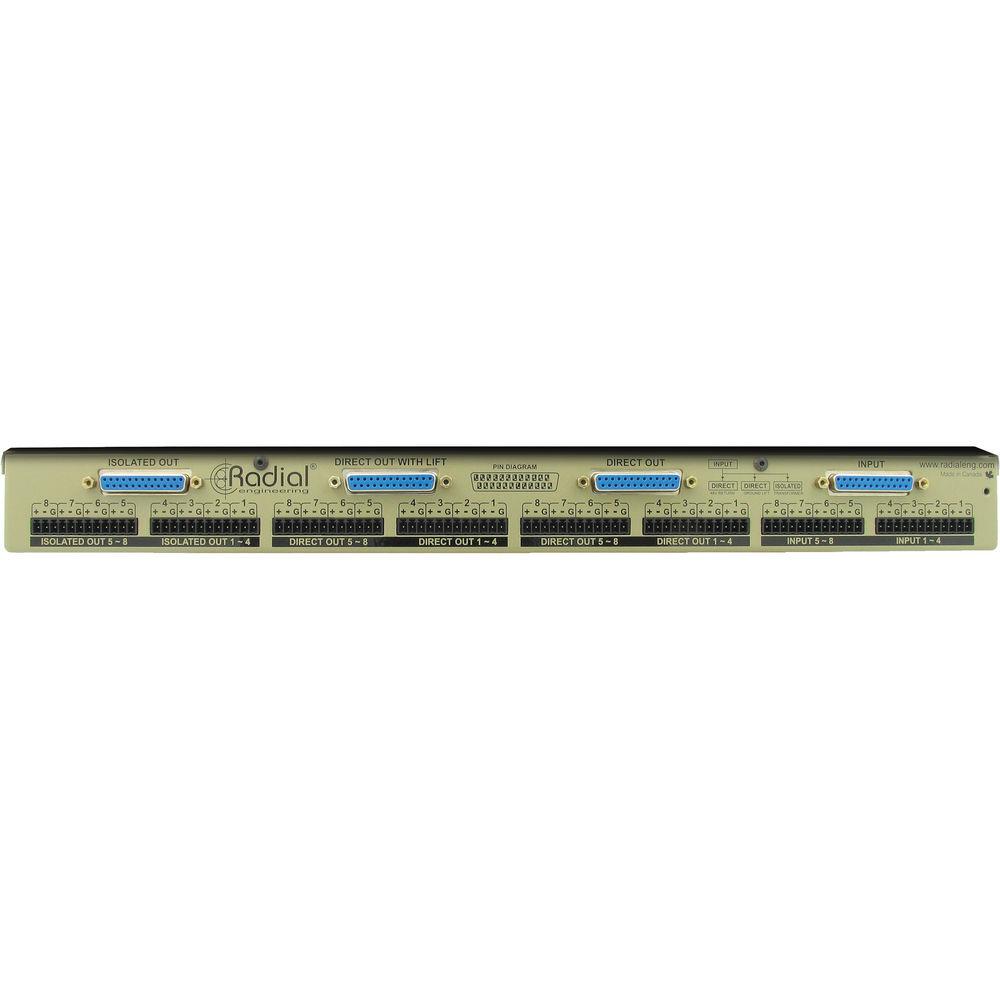

Rear Panel - Isolated output set offers choice of 25-pin D-Sub connector for 8-channel cable harness or Phoenix Euroblock connection for permanent installation

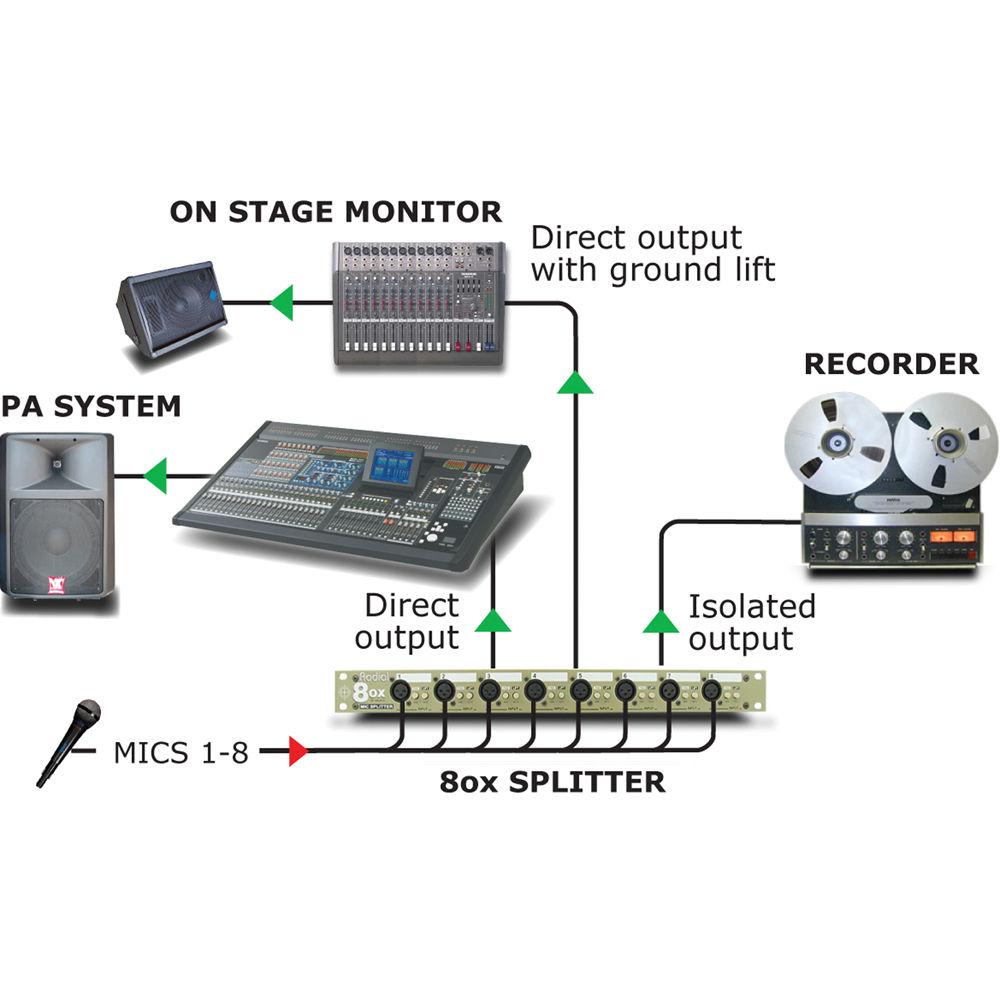

- Auxiliary direct output with front panel ground lift switch allows hard-wire passive split for monitors, broadcasts, or PA
- Direct output is coupled with the input for direct feed through
- Rear panel includes pin-out diagram for the Tascam standard 25-pin D-Sub connector
- Balanced input with choice of 25-pin D-Sub, Phoenix Euroblock, or front panel XLR connections
UPC: 676101038466 In the Box Radial Engineering LX8 Line Level Signal Splitter & Isolator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering LX8 Line Level Signal Splitter & Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 8200 Specs | Circuit Type | Audio: Passive transformer-based line-level splitter | | Number of Channels | 8-channel 3-way splitter (1-in / 3-out) | | Frequency Response | 20 Hz to 20 kHz (+0 dB / -0.1 dB) | | Dynamic Range | 140 dB | | Maximum Input | +26 dBu @ 1 kHz
+24 dBu @ 20 Hz | | THD + Noise | 0.003% @ 1 kHz | | Deviation | Phase Deviation:
0.2° @ 100 Hz
0.4° @ 20 Hz | | Common Mode Rejection | -85 dB @ 60 Hz | | Impedance | Input & Output: 600 Ω, balanced | | Transformer | Eclipse ET-LD4 | | Ground | Ground Lift:
Isolated Out: Disconnects ground path at isolated output
Auxiliary Out: Disconnects ground path at auxiliary output | | Configuration | XLR Configuration: AES standard (pin-1 ground, pin-2 hot, pin-3 cold)
DB-25 Configuration: Tascam / ProTools 8-channel interface standard | | Construction | 14-gauge steel | | Finish | Baked enamel | | Power | Passive, no power required | | Operating Conditions | 41 to 104°F (5 to 40°C), for use in dry locations only | | Dimensions (W x H x D) | 19.00 x 6.00 x 1.75" (48.25 x 15.25 x 4.45 cm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 21.9 x 10.4 x 3.3" |
