User Manual for Radial Engineering McBoost Microphone Signal Intensifier Click to enlarge the picture
Contents of the user manual for the Radial Engineering McBoost Microphone Signal Intensifier
- Product category: In-Line Mic Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering In-Line Mic Accessories
 |
User manual for the Radial Engineering McBoost Microphone Signal Intensifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

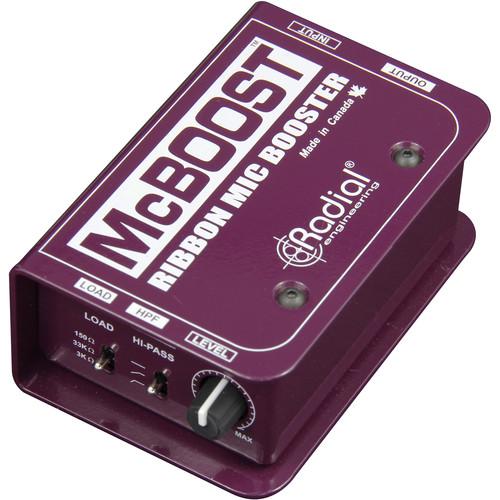

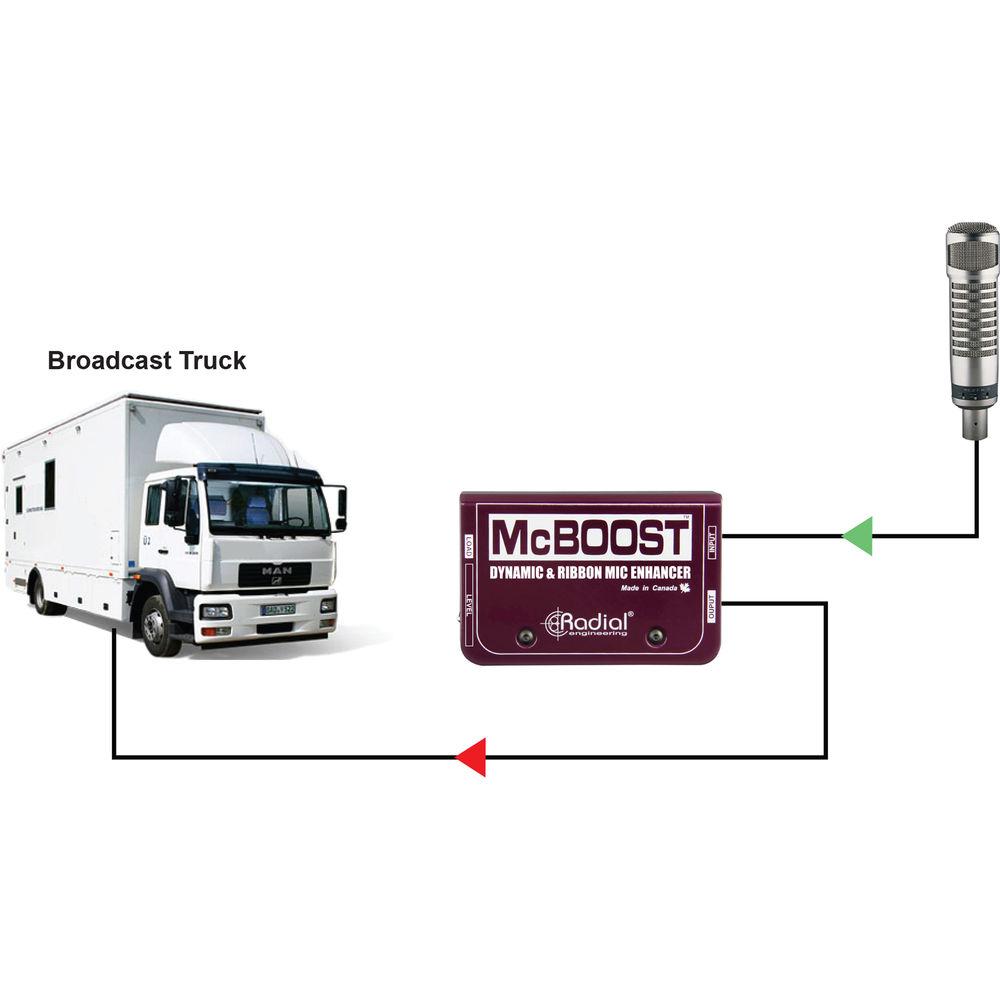

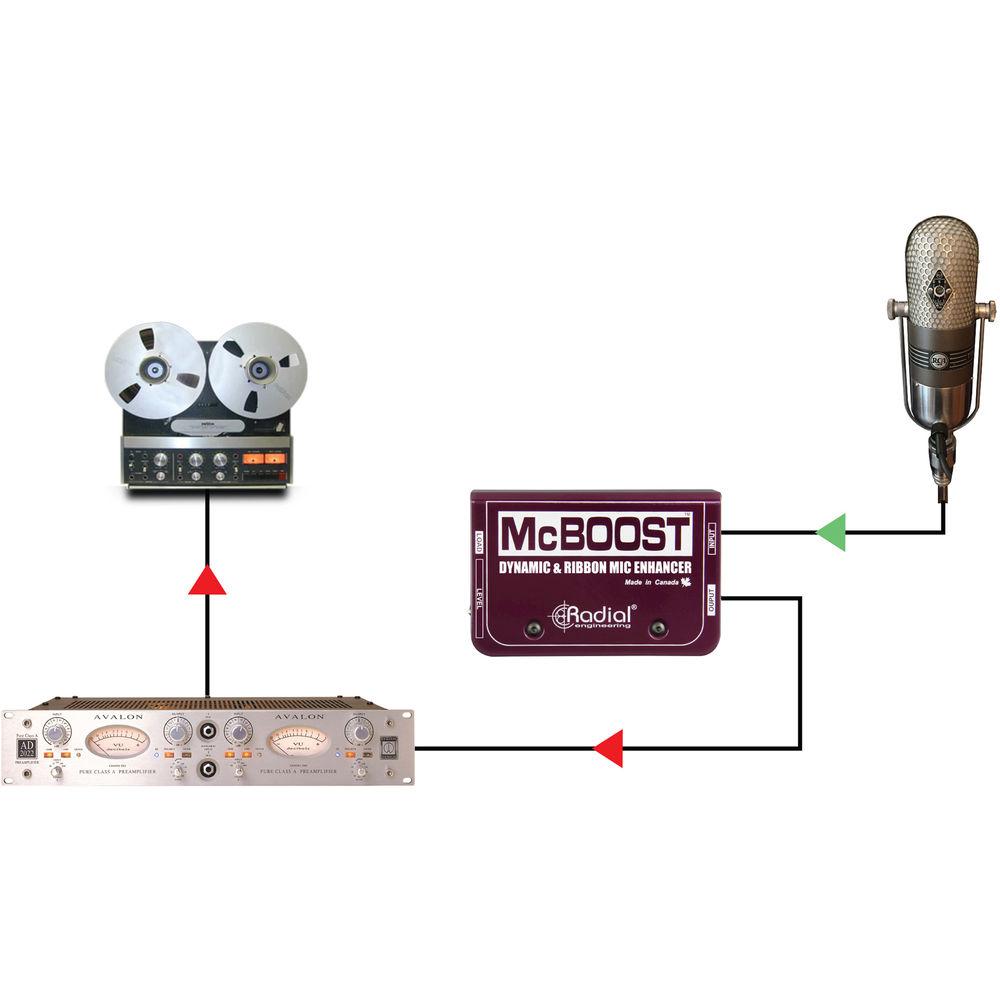

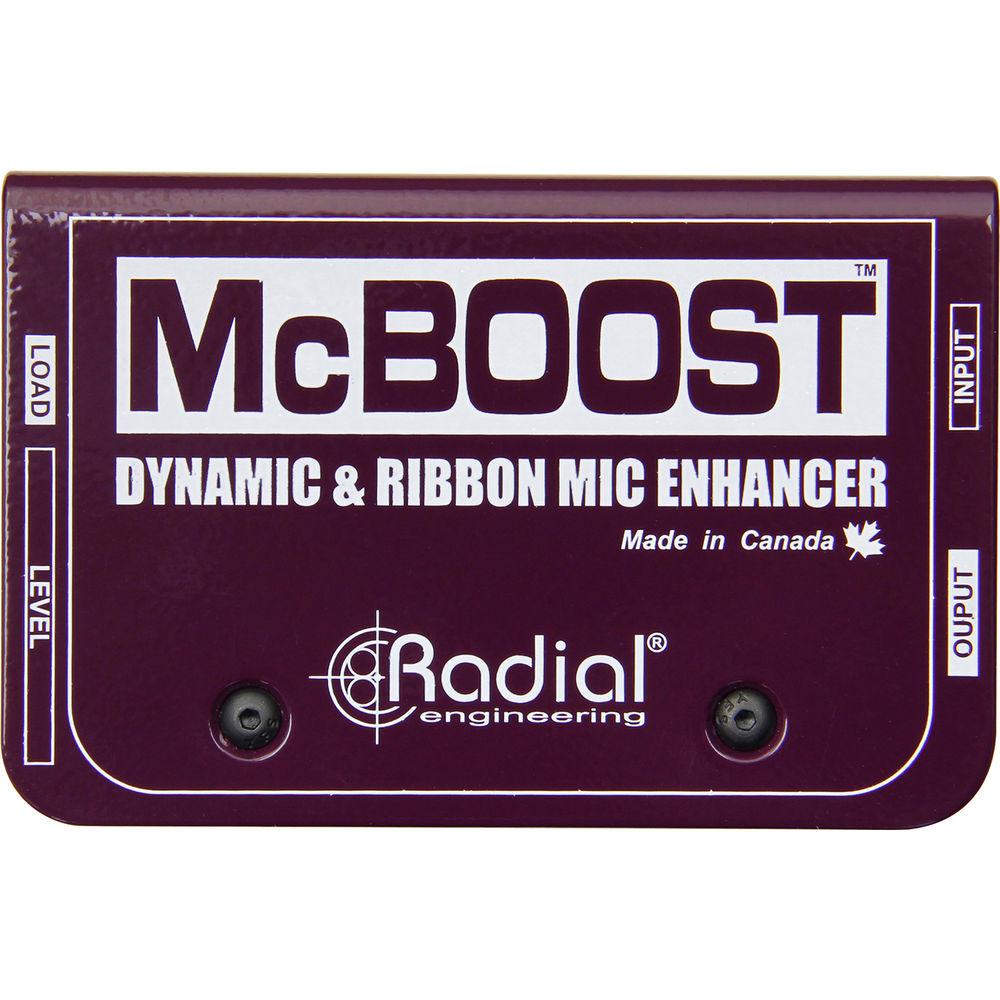

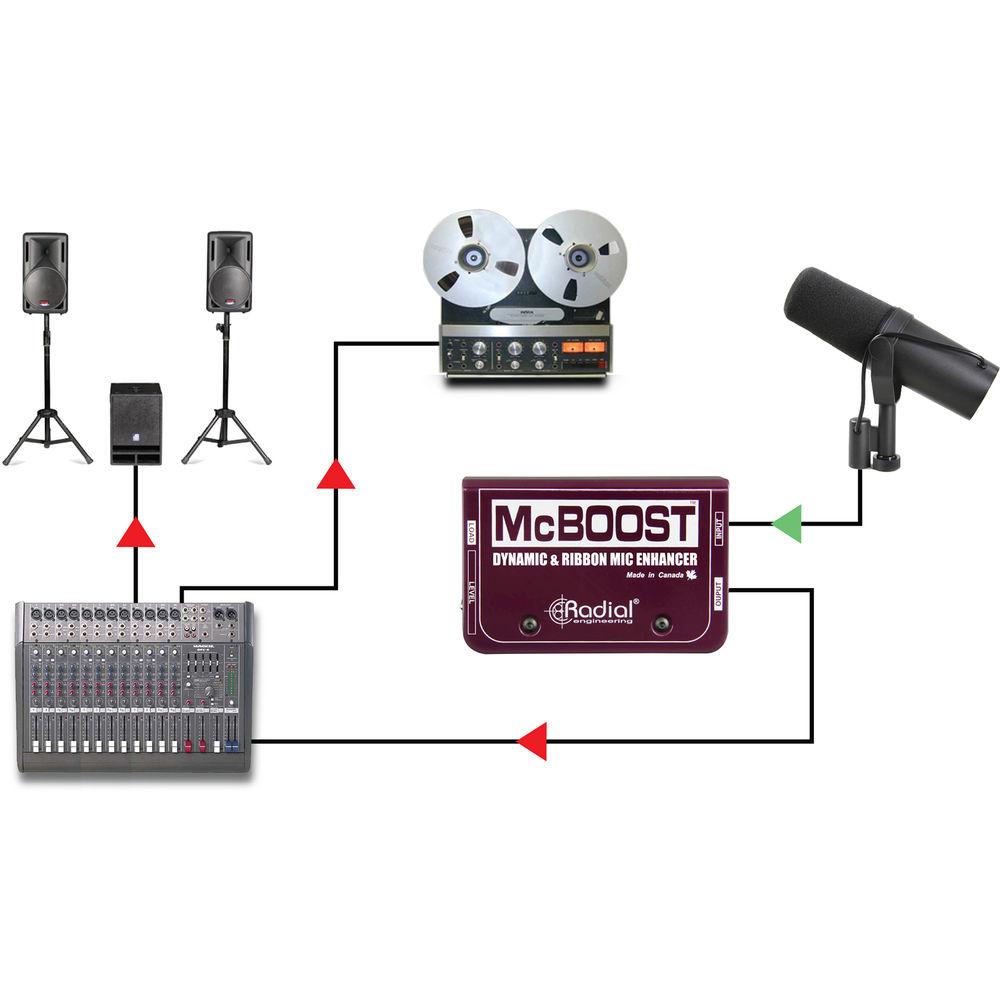

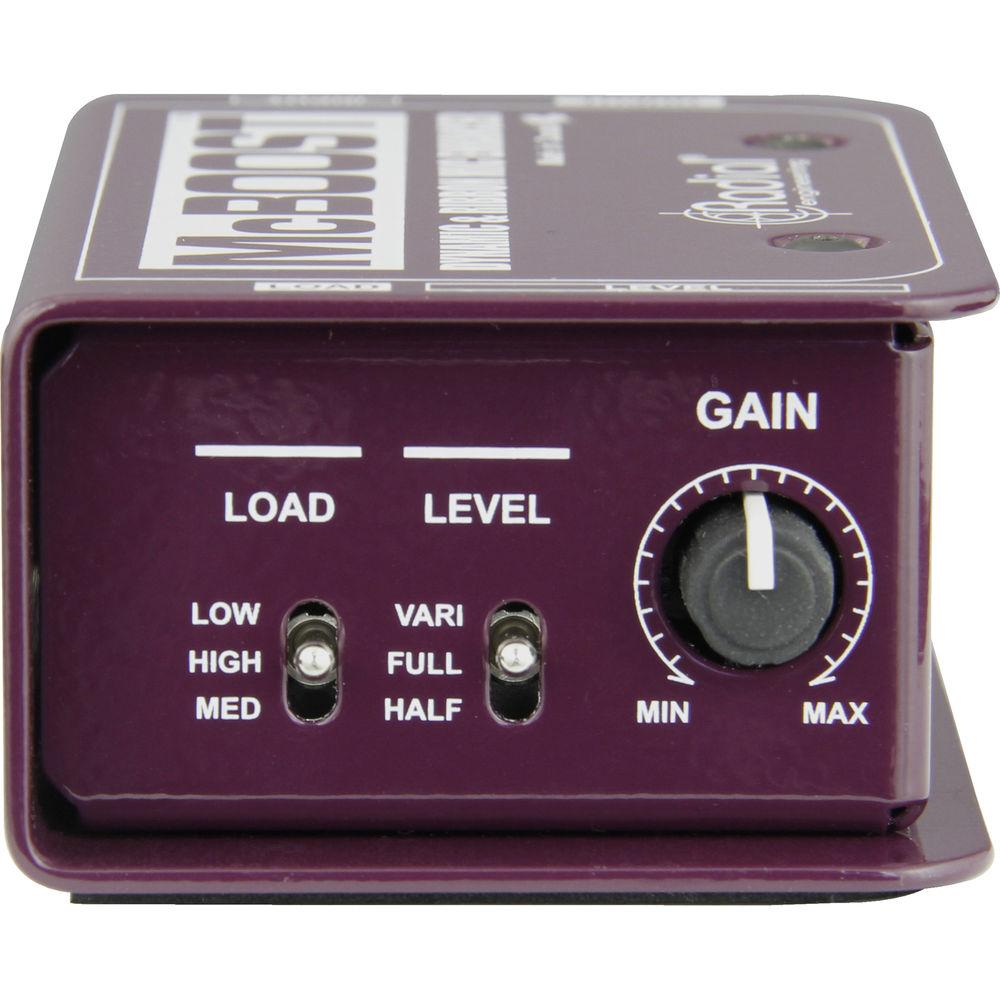

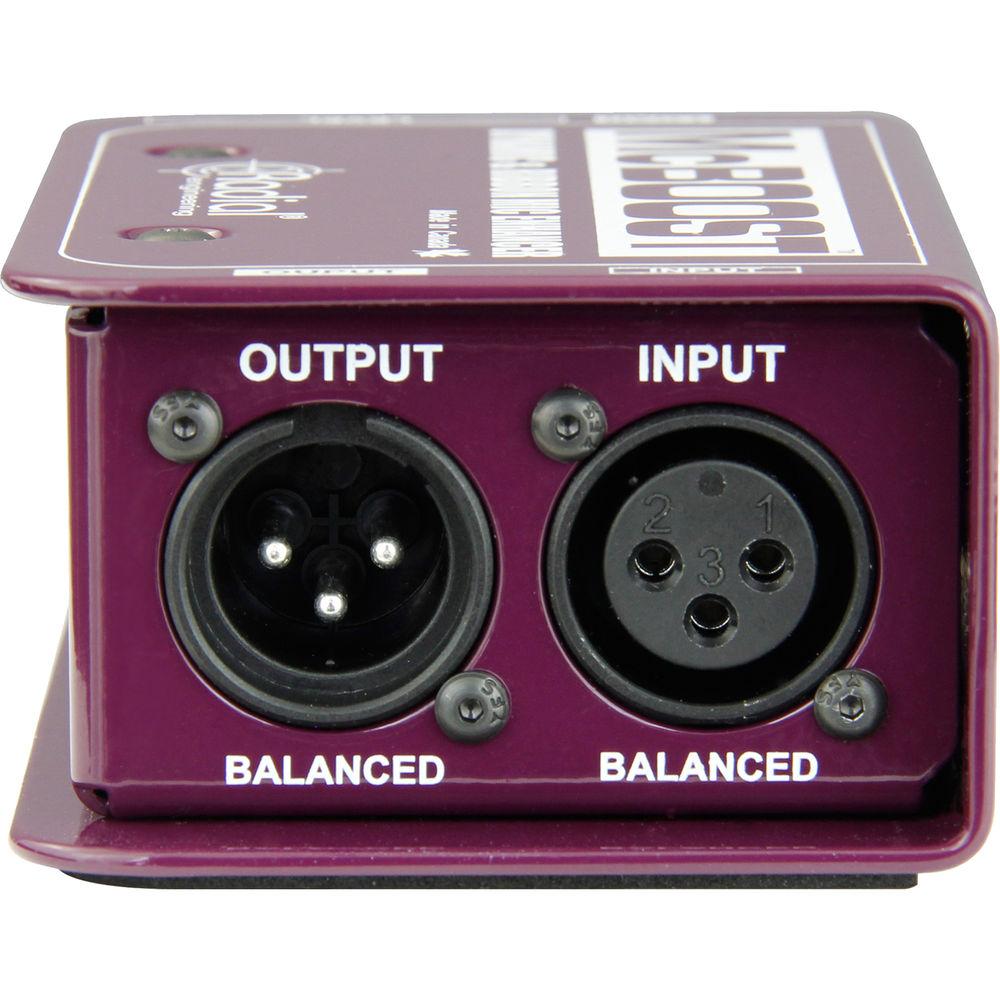

Product description The McBoost from Radial is a high-quality microphone signal booster designed to elevate an output signal of a dynamic microphone or low-output ribbon mic and bring it up to a usable level for mixing consoles and preamps. It can be used for applications such as recording, broadcast TV, rehearsals, live stage, and more. The 100% discrete class-A design features a dual-transistor J-FET circuit that produces up to 25 dB of gain via a 48V phantom power source without introducing noise, color, or artifacts. Measuring each individual transistor carefully, which is batch-sorted to certify performance, the circuit board is then placed into a 14-gauge reinforced steel enclosure to protect it from outside stresses. Using standard 3-pin XLRs, the McBoost features three impedance settings to optimize the response, and has a three position high-pass filter switch to reduce low-frequency clutter. Finally, the McBoost will elevate the output to produce added clarity, excitement, and drive for long cables, whether you're in a recording studio, on a live stage, or in a broadcast center. UPC: 676101044078 In the Box Radial Engineering McBoost Microphone Signal Intensifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering McBoost Microphone Signal Intensifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 8016 Specs | | | Circuit Type | Class-A Differential FET/Bipolar Hybrid | | Frequency Response | 7 Hz to 30 kHz | | Total Harmonic Distortion | 0.005% @-30 dB | | Dynamic Range | 105 dB | | Maximum Input | -6 dBu | | Maximum Gain | +25 dB | | Equivalent Input Noise | -120 dBu | | Input Impedance | 600 ohms, 2.7 kOhms, 30 kOhms | | Input Clip Level | -17 dBu, -14 dBu, -9 dBu | | Output Clip Level | +10 dBu | | Noise Floor | -95 dBu, -98 dBu, -113 dBu | | Output Impedance | 2.2 kOhms | | Phase Deviation | 0° @ 20 Hz, <10° @ 20 kHz | | | | Gain Control | Variable from +4 dB to +25 dB | | High-Pass Filter | 100 Hz and 55 Hz @-3 dB | | Filter | Slope: 6 dB/Octave | | XLR Configuration | Pin 2 +, pin 3 -, pin 1 ground | | | | Construction | 14-gauge steel chassis & outer shell | | Power Requirement | Passive, no power required | | Operating Conditions | For use in dry locations only between 5°C and 40°C | | Dimensions (L x W x H) | 4.2 x 2.76 x 1.68" (106.7 x 70.1 x 42.7 mm) | | Weight | 0.5 lb (0.23 kg) | | | | Package Weight | 1.335 lb | | Box Dimensions (LxWxH) | 6.4 x 4.55 x 2.9" |
