User Manual for Radial Engineering Mix-Blender Dual Input Guitar Mixer with Insert Loop Click to enlarge the picture
Contents of the user manual for the Radial Engineering Mix-Blender Dual Input Guitar
- Product category: Effects Pedal Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Effects Pedal Accessories
 |
User manual for the Radial Engineering Mix-Blender Dual Input Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

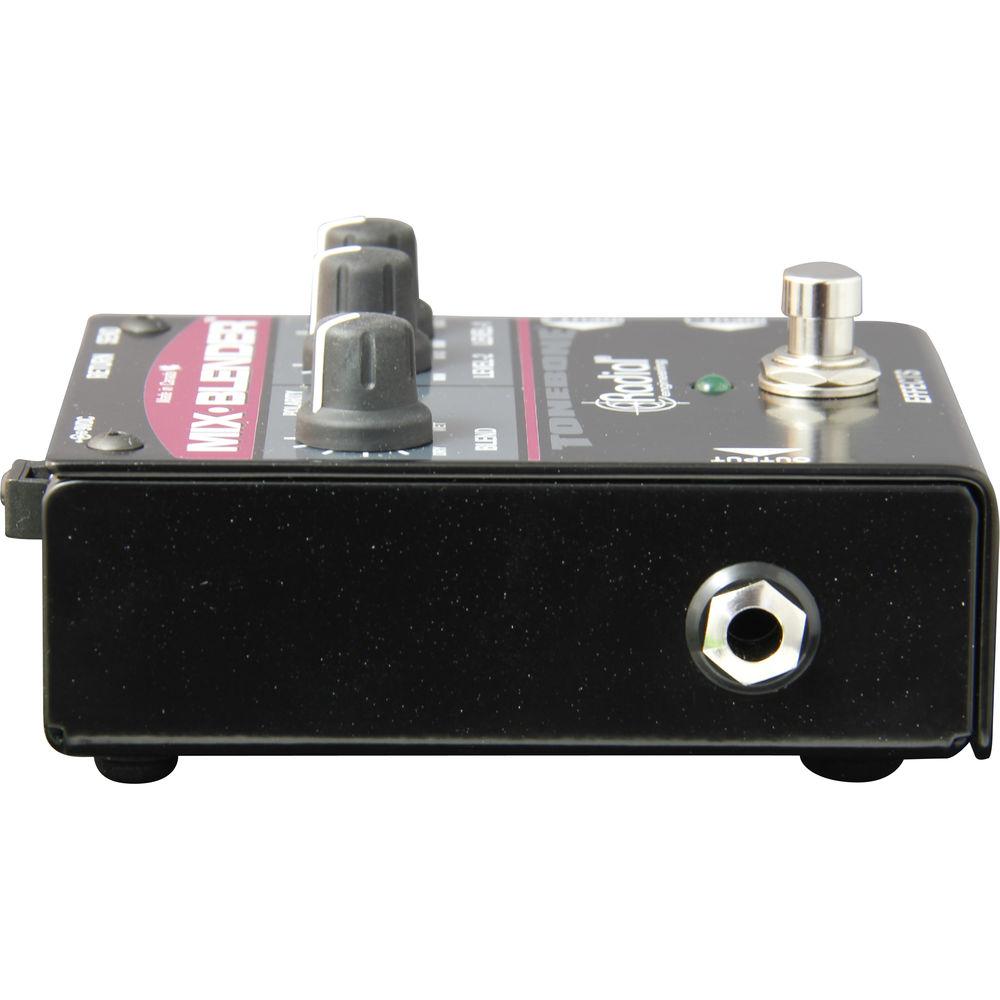

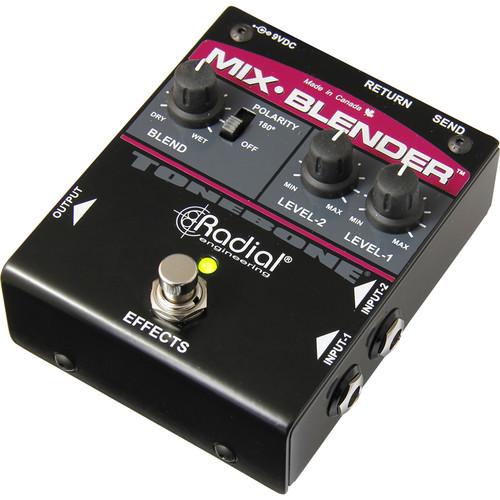

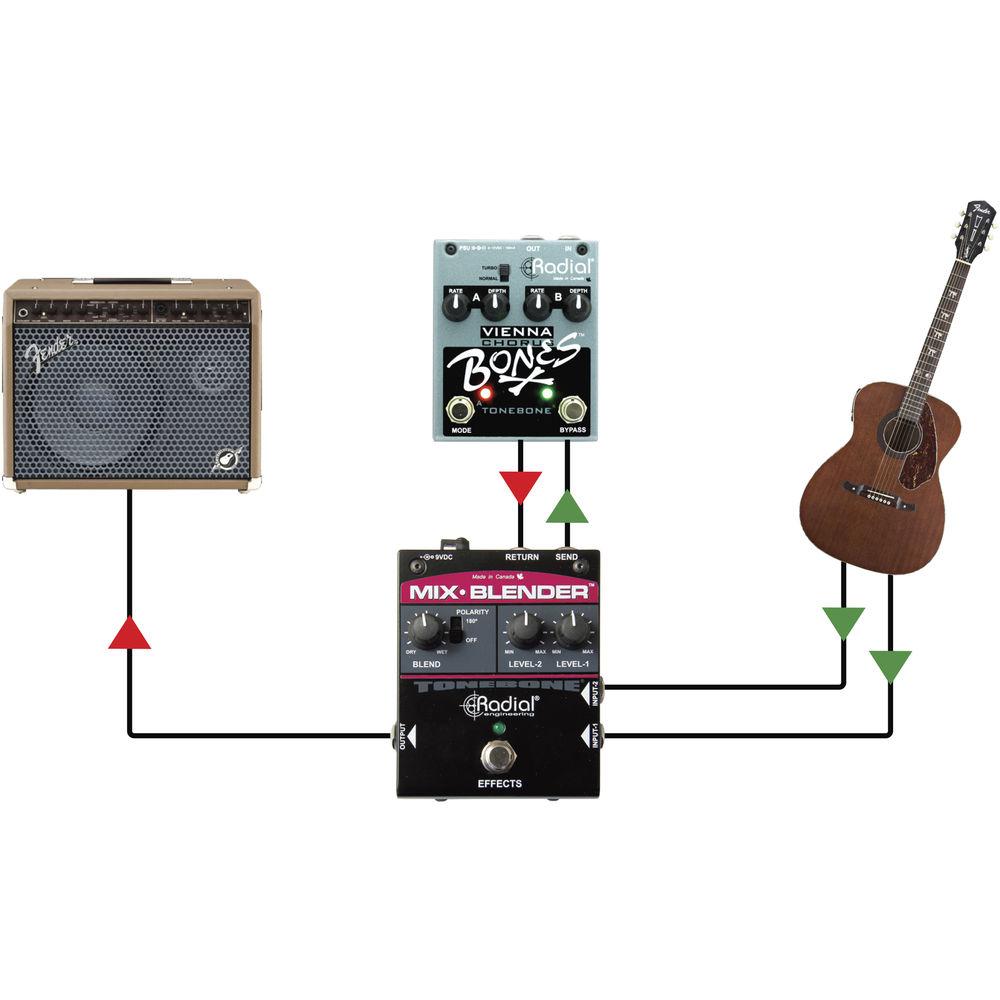

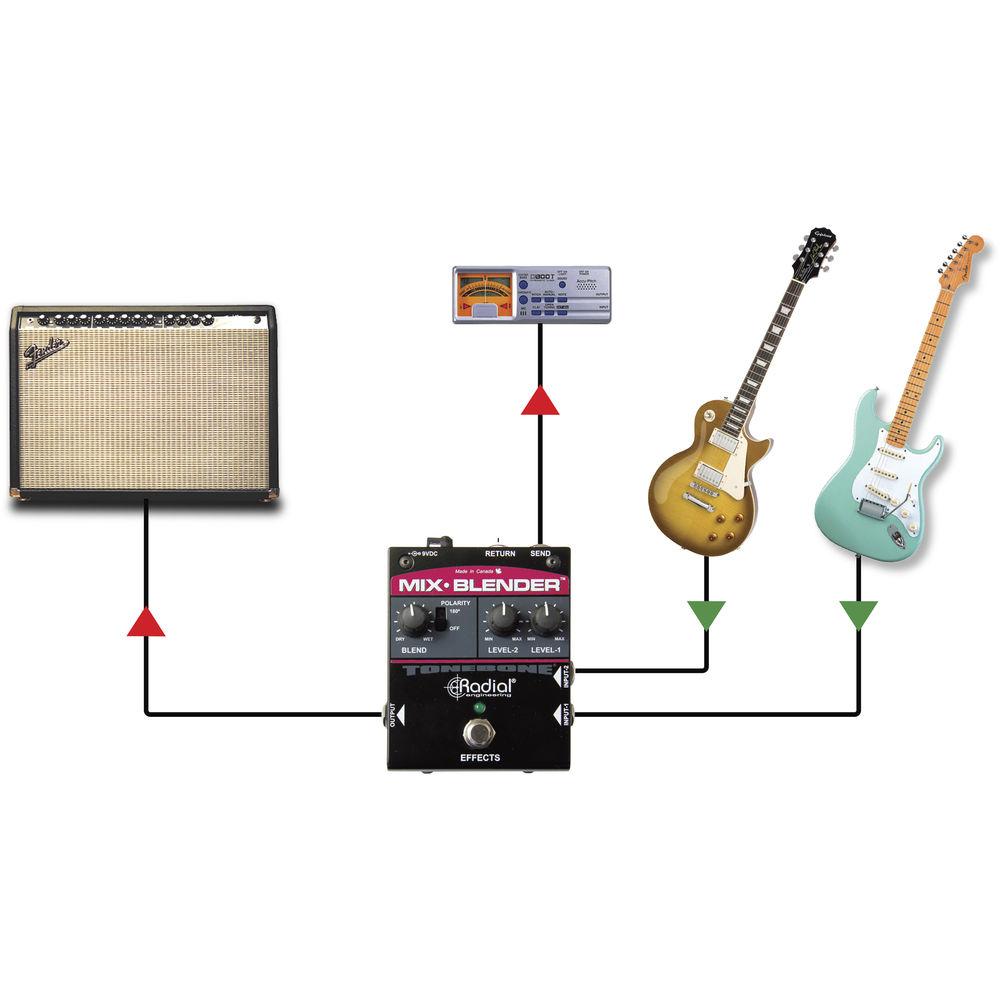

Product description Intended to work with guitars, basses, and keyboards, the Tonebone Mix-Blender from Radial Engineering is a stompbox that lets you mix two effected or unaffected instruments together and their combined signal through a dedicated, mixer-style output. It offers two Class-A buffers to ensure signal fidelity and is useful in many applications, such as blending two acoustic guitar pickups, combining two separate effects in parallel, or facilitating quick onstage change-overs between two different instruments set to the same output level.

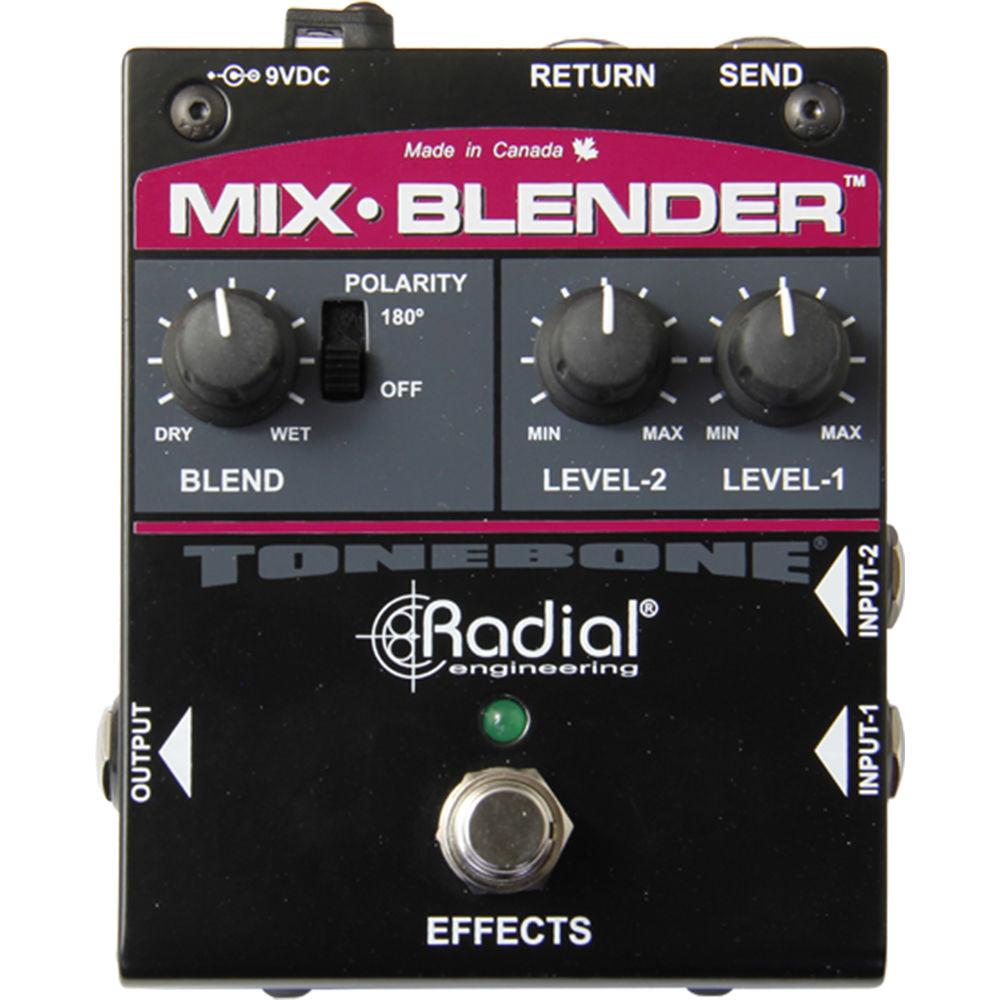

Furthermore, the unit boasts its own effects loop, which can blend additional insert-effects to taste. You can instantiate this loop via the on-board foot-switch, and use this feature to add a touch of distortion in parallel to your dry signal, a smattering of chorus to your otherwise unaffected tone, or indeed, in a great variety of different ways. - Blend Knob
- Wet/Dry Blend control allows you to dial-in the specific amount of effects-loop signal you want
- Polarity Switch
- For pedals that may render your signal out of phase with the input source, simply flip this switch to compensate
- Durable Construction

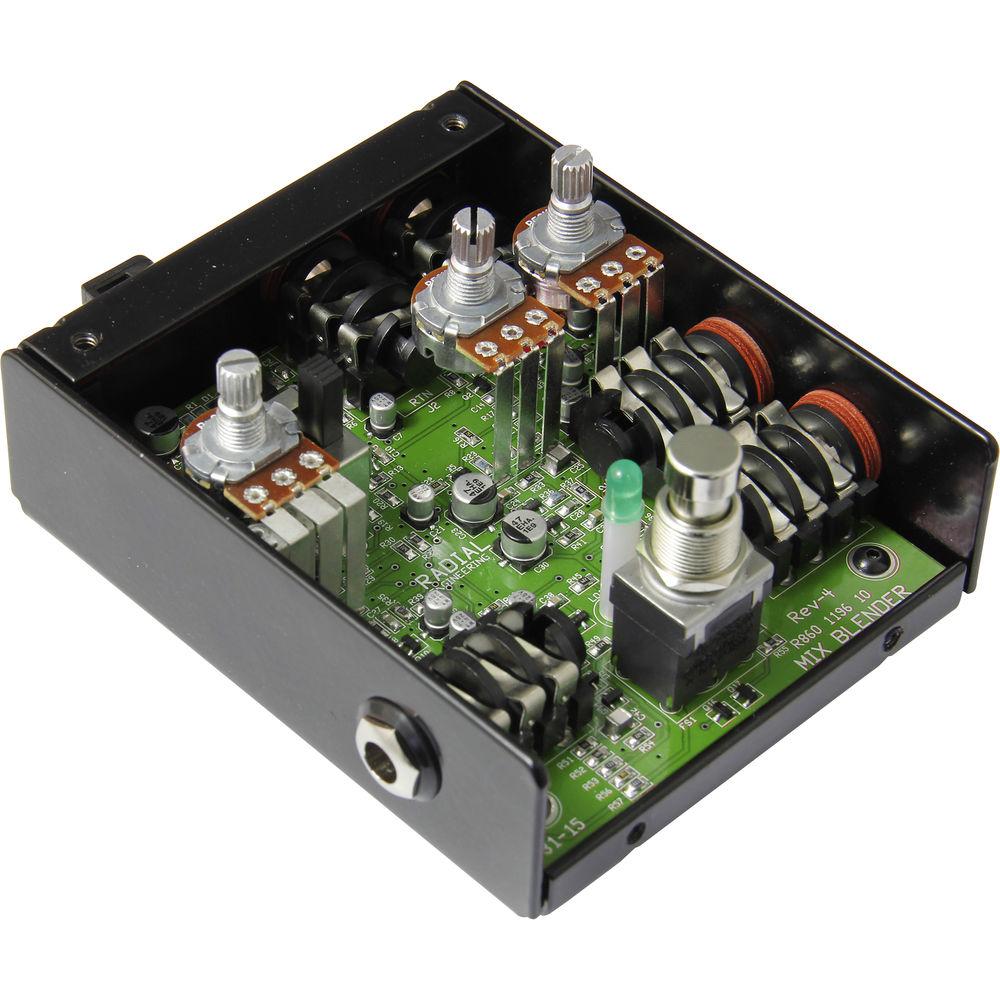

- A 14-gauge steel construction protects the circuit board

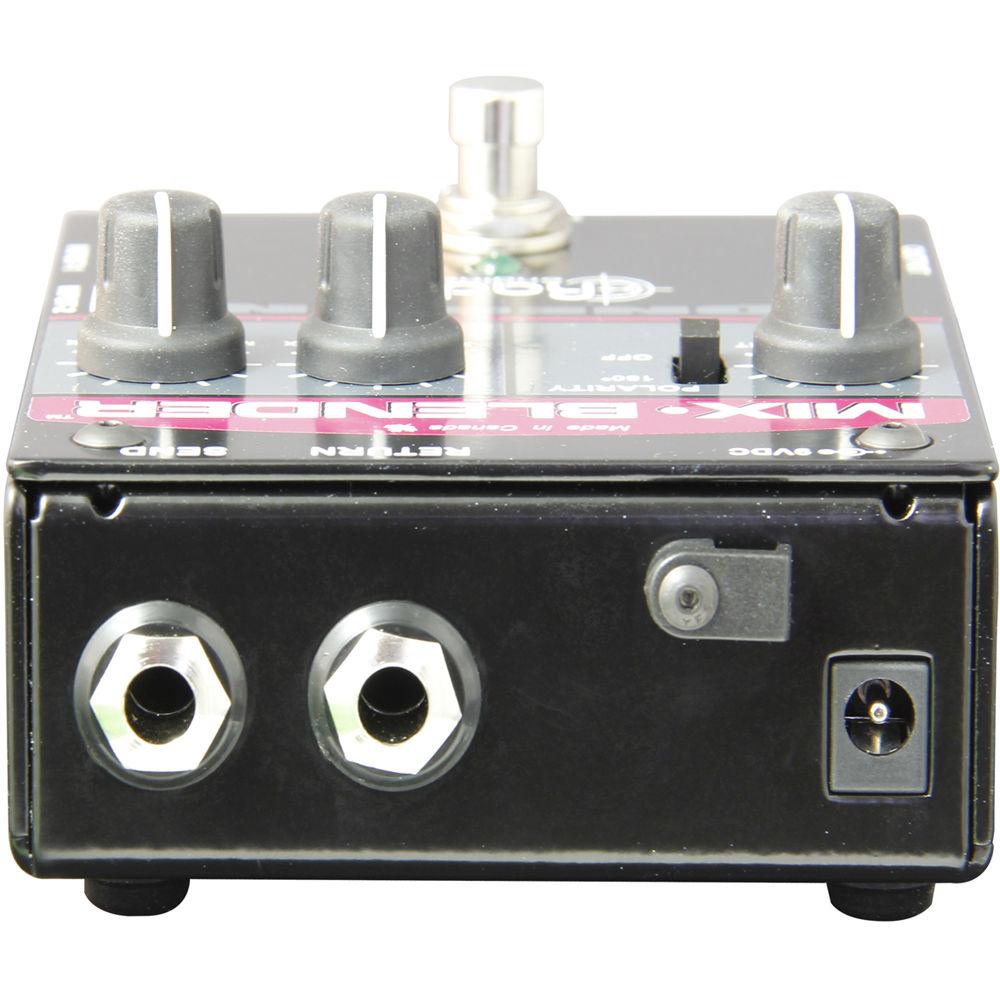

- Built-In Cable Clamp
- This feature protects the power supply cable and minimizes the danger of accidental disconnection
In the Box Radial Engineering Mix-Blender Dual Input Guitar Mixer with Insert Loop Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Mix-Blender Dual Input Guitar Mixer with Insert Loop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 7207 Specs | Audio Circuit Type | Discrete Class-A main audio path Audio Grade IC send-return loop | | Frequency Response | 20 Hz to 20 kHz, +0/-2 dB | | Total Harmonic Distortion | 0.01% | | Dynamic Range | 104 dB | | Input Impedance | -220 kOhms | | Maximum Input | Main: +10 dBu
Effects Return: +7 dBu | | Maximum Gain | Effects Off: -30 dB
Effects On: +2 dB | | Output Clip Level | Main: +8 dBu
Effects: +6 dBu | | Equivalent Input Noise | -97 dBu | | Intermodulation Distortion | 0.02% | | Phase Deviation | < 10° at 100 Hz | | Controls | Input Level 1
Input Level 2
Blend | | Switches | FX ON / Bypass
FX Phase Invert | | Polarity | FX Send | | Construction | 14-gauge steel chassis and outer shell | | Power | 9 VDC / 100 mA (or more) adapter | | Dimensions (L x W x H) | 4.6 x 3.5 x 2.0" / 117.3 x 89 x 51 mm | | Weight | 1.35 lb / 610 g |
