User Manual for Radial Engineering OX8 - Eight-Channel Three Way Mic Level Signal Splitter Click to enlarge the picture
Contents of the user manual for the Radial Engineering OX8 - Eight-Channel Three
- Product category: Splitters & Combiners Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Splitters & Combiners
 |
User manual for the Radial Engineering OX8 - Eight-Channel Three contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

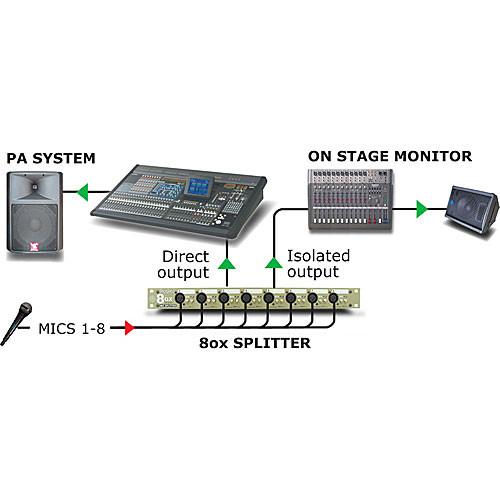

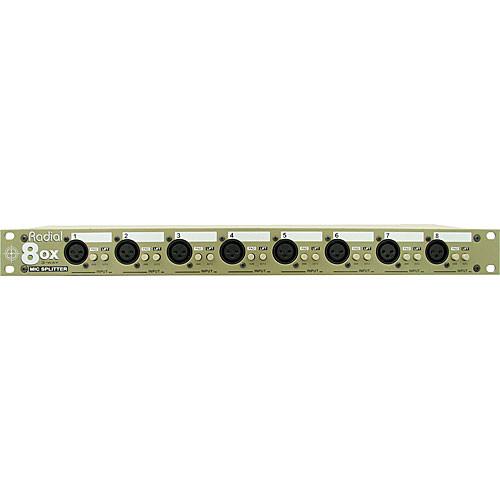

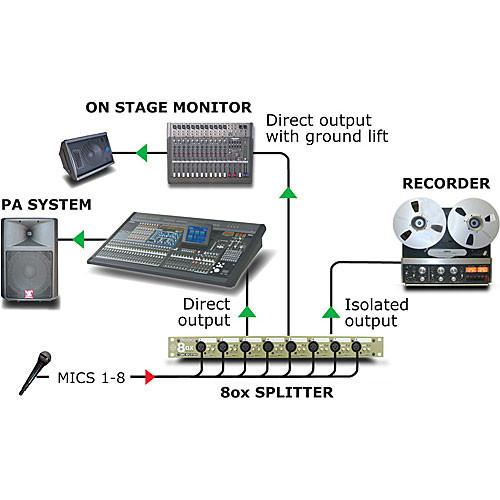

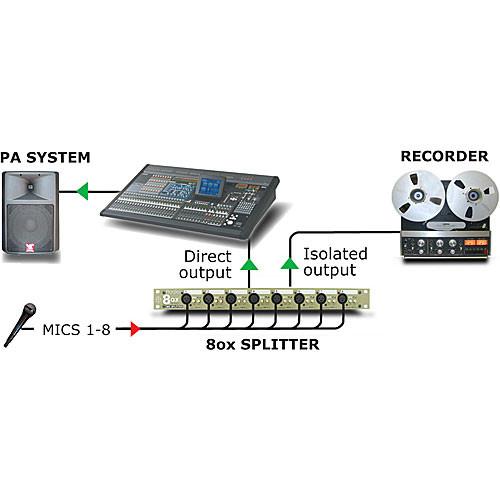

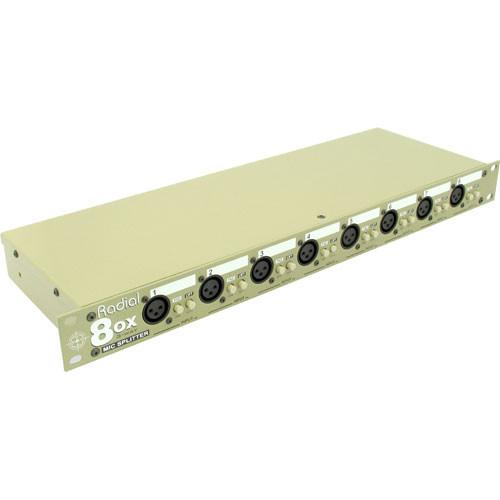

Product description The Radial Engineering OX8 Eight Channel Mic Splitter provides professional level, three-way microphone level signal for professional touring rigs, sound reinforcement installation and more. Eight microphone input channels feature a direct output, isolated output and isolated output with ground lift via Tascam D-Sub and Euroblock connections. Incoming microphone signal may be split to the FOH console, monitor mixer, in-ear monitor rig, recording devices, etc. The OX8 features pristine signal reproduction and preserves the integrity of the incoming audio signal. Each input also features a 36dB Pad switch that accommodates incoming line level signal sources as well as microphone signal.This model features Jensen transformers for even richer fidelity and low noise floor. The OX8 installs into a standard 19-inch rack and does not require external power. - Eight Microphone Channels with Three-Way Splitting
- Incoming microphone signal may be split to the FOH console, monitor mixer, in-ear monitor rig, recording devices, etc.

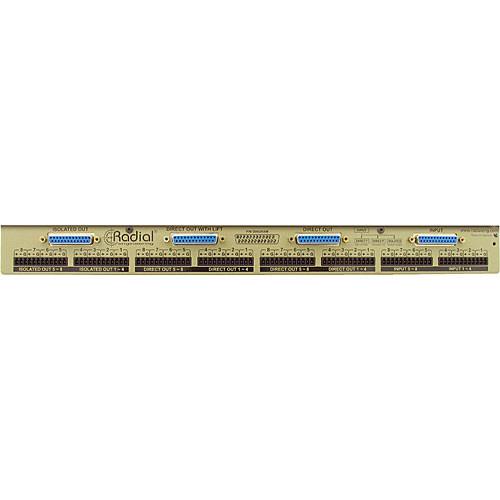

- Tascam D-Sub and Euroblock Outputs
- Eight microphone input channels feature a direct output, isolated output and isolated output with ground lift via Tascam D-Sub and Euroblock connections.
- 36dB Pad Switch
- Each input also features a 36dB Pad switch that accommodates incoming line level signal sources as well as microphone signal.
- Jensen Transformers
- This model features Jensen transformers for even richer fidelity and low noise floor.
UPC: 676101037810 In the Box Radial Engineering OX8 - Eight-Channel Three Way Mic Level Signal Splitter (Jensen Transformers) 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering OX8 - Eight-Channel Three Way Mic Level Signal Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering 0X8 Specs | Inputs | Balanced XLR-F x 8
D-sub 25-pin (Tascam STD) Euroblock Screw-Down | | Outputs | D-sub 25-pin (Tascam STD)
Euroblock screw-down | | Circuit Type | Passive - transformer isolated | | Impedance | Input: 100k ohms
Output: 600 ohms | | Pad | Per Channel -36dB Pad | | Common Mode Rejection Ratio | -90dB @ 60Hz | | Frequency Response | 20Hz to 20kHz (+/-2.5dB) | | THD & Noise | 0.01% (20Hz to 20kHz) | | Construction | 14-AWG Steel, Baked Enamel Finish | | Dimensions (WxHxD) | 19 x 1.75 x 6.25" (483 x 44.5 x 159mm) | | Weight | 7.25 lb (3.3 kg) | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 21.8 x 10.4 x 4.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
