User Manual for Radial Engineering Presenter Mixer with XLR, 3.5mm, and USB Inputs Click to enlarge the picture
Contents of the user manual for the Radial Engineering Presenter Mixer with XLR,
- Product category: Analog Utility Mixers Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Analog Utility Mixers
 |
User manual for the Radial Engineering Presenter Mixer with XLR, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

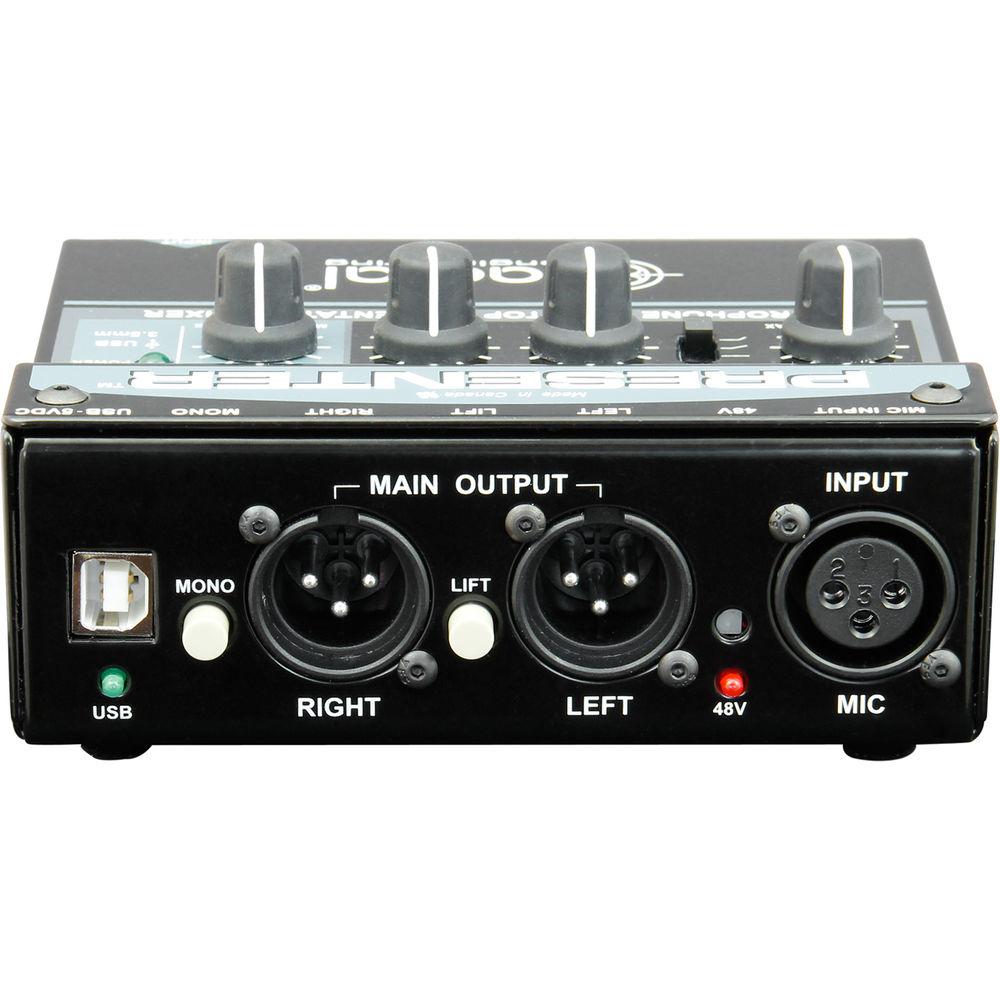

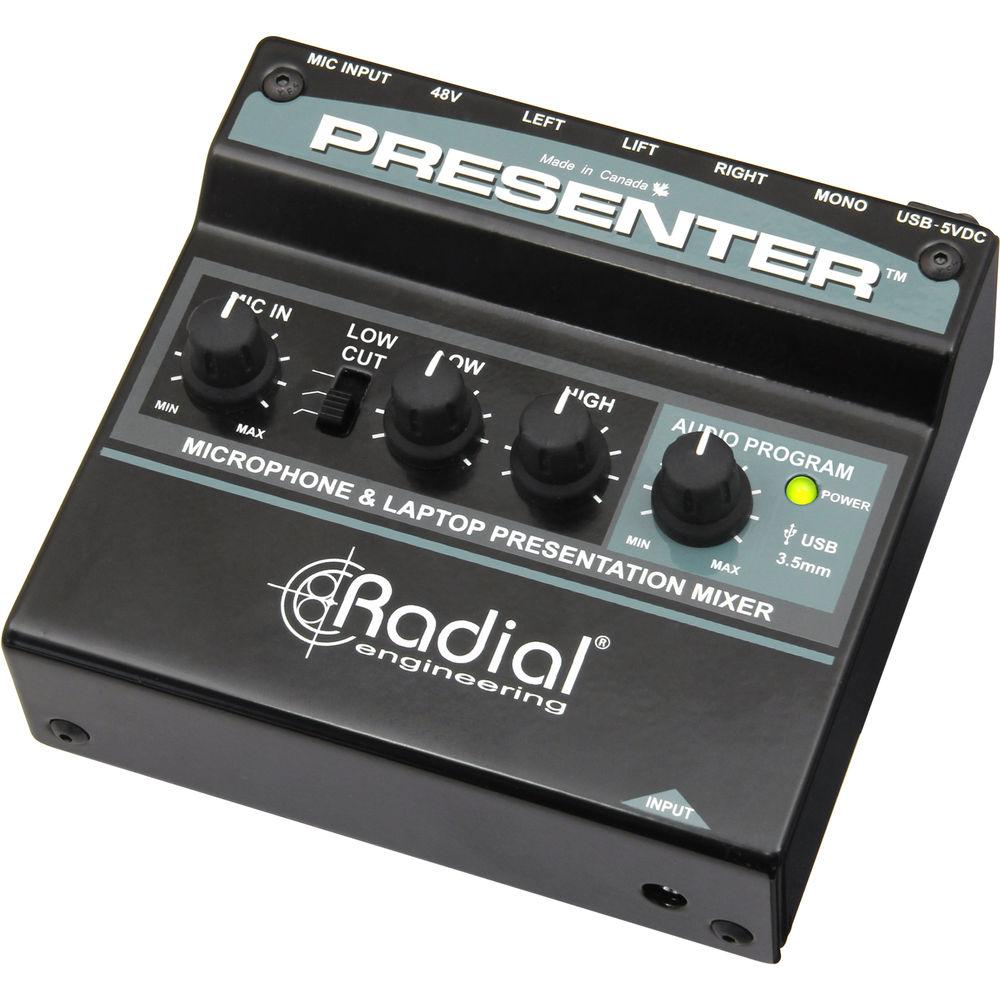

Product description Think of the Radial Engineer Presenter as a DI box for your microphone, laptop, and media player, all in one 14-gauge steel chassis. With an XLR input, a 3.5mm TRS input, and digital conversion over USB, all of this is possible. Once you’re hooked up to the Presenter, signal can be equalized and balanced so that your voice always cuts over your program material.Dual XLR outputs take your audio to mixers and PA systems either in stereo or summed to mono, depending on how you set the device. The Presenter can be powered with a separately-available power supply, or by your laptop over USB. Please note that you can only run a laptop or a 3.5mm input at any one time. - Key Features at a Glance
-
- Balanced XLR mic input
- USB type-B input for playing back audio from a laptop
- 3.5mm TRS input for audio playback from external devices such as smartphones, tablets, and media players
- Ground-lift switch on XLR input
- 3-position low-cut filter
- Balanced stereo XLR outputs
- 2-knob EQ to tailor low and high frequencies to your liking
- Mono button sums the left and right outputs to mono
- 48V phantom power switch for powering condenser microphones
- Audio program-level control for volume of the USB and 3.5mm input
- Military-grade PCB for noise-free performance
- Glass-filled nylon housing provides isolation and durability
- Nickel contacts
- Class-A circuitry for minimal negative feedback and neutral tone
- 14-gauge I-beam steel construction
UPC: 676101044610 In the Box Radial Engineering Presenter Mixer with XLR, 3.5mm, and USB Inputs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Presenter Mixer with XLR, 3.5mm, and USB Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 8011 Specs | Audio Circuit Type | Active preamplifier circuit with digital to analog input conversion | | Channels | 2 x | | Frequency Response | 20 Hz to 20 kHz (-0.4 dB / 0 dB) | | Noise Floor | -84 dBu | | Dynamic Range | +91 dBu | | Maximum Input | +7 dBu | | Gain | +52 dBu | | Intermodulation Distortion | 0.003% at 0 dBu
0.01% at -10 dBu
0.03% at -20 dBu | | Total Harmonic Distortion | 0.004% at 20 Hz
0.004% at 1 kHz
0.004% at 10 kHz | | Phase Deviation | -28° at 20 Hz
-1° at 1 kHz
+2° at 10 kHz | | Input Impedance | 10 kOhms | | Output Impedance | XLR Output: 2.74 kOhms | | Insertion Loss | 0 dB | | I/O | 1 x XLR input
1 x 3.5 mm TRS input
1 x USB 2.0 type-B input
2 x XLR outputs | | Ground Lift | Main output | | LED Indicators | Power, 48 V, and USB | | Power | 5 V, USB | | Power Supply | Radial Engineering R15DC-US Power Supply (available separately) | | Construction | 14-gauge steel chassis | | Finish | Durable powder coat | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.17 lb | | Box Dimensions (LxWxH) | 11.85 x 5.0 x 2.6" |
