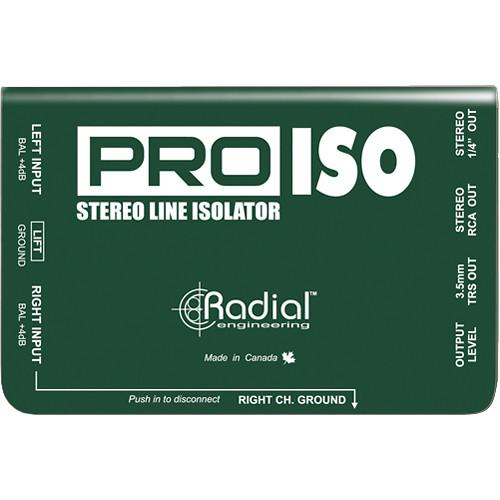

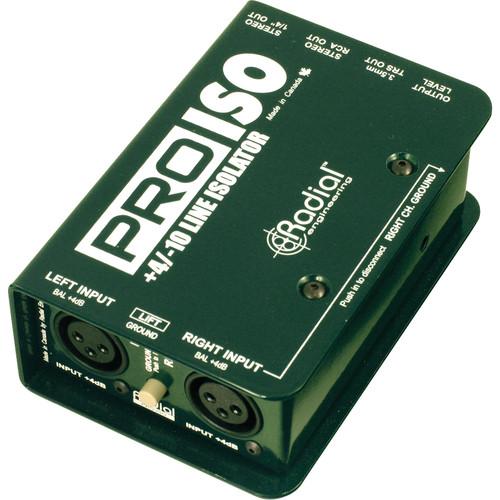

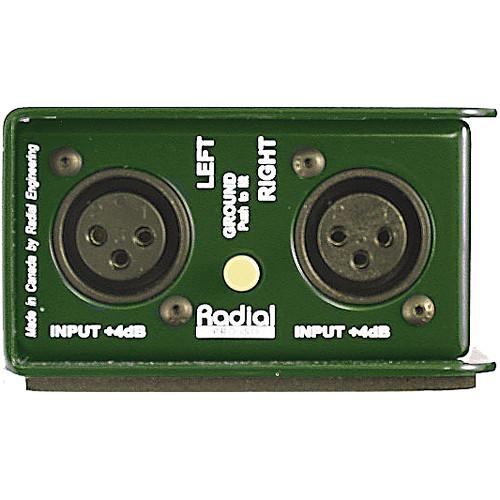

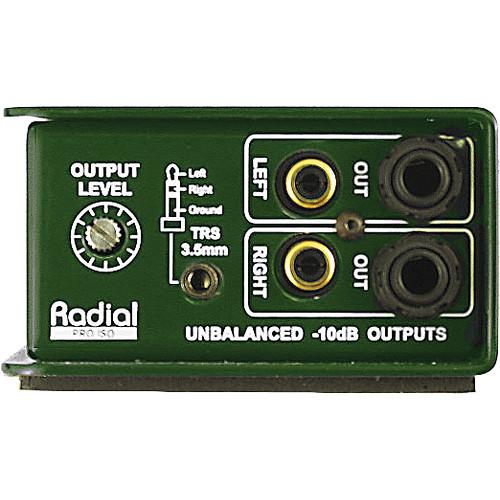

Product description The Pro-ISO +4/-10 dB Stereo Line Isolator from Radial Engineering is a stereo line isolator designed to convert a professional +4 dB line-level balanced signal to an unbalanced -10 dB consumer-level device. This enables you to take the balanced output of a mixer and feed a consumer-level recorder or audio input on a computer.The Pro-ISO employs a transformer that focuses the energy in the voice range making it a suitable choice for sermons, news gatherings, and spoken voice.The passive design begins with 100% discrete components throughout. A set-and-forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of 1/4" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or laptop computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.Utilizing Radial's bookend construction, the Pro-ISO has 14-gauge steel construction throughout. This creates a protective zone around the connectors and controls for added durability. The steel construction also assists by shielding the transformers from outside magnetic fields. - Converts balanced line level signals to unbalanced
- Stereo signal path with set & forget level control
- Transformer isolated to eliminate hum & buzz
UPC: 676101038480 In the Box Radial Engineering Pro-ISO +4/-10 dB Stereo Line Isolator Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Pro-ISO 4 -10 dB Stereo Line Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering ProISO Specs | Circuit Type | Passive, transformer based | | Number of Channels | Stereo (dual mono) | | Frequency Response | 20 Hz to 18 kHz (+0 dB/ -3 dB) | | Dynamic Range | 130 dB | | Maximum Input | +20 dBu @ 1 kHz / 1% THD+N | | THD + Noise | 0.005% @ 1 kHz | | Deviation | Phase: 1.5° @ 100 Hz; 3° @ 20 Hz | | CMRR | -76 dB | | Input Impedance | 1.3 kΩ, unbalanced | | Output Impedance | 1.9 kΩ, balanced | | Transformer | Radial transformer | | Ground Lift | Disconnects XLR pin-1 at XLR input | | XLR Configuration | AES standard (pin-2 hot) | | Connectors | Balanced XLR-F in; 1/4", RCA and 3.5 mm TRS unbalanced outputs | | Construction | 14-gauge steel chassis | | Finish | Baked enamel | | Power | Passive, no power required | | Dimensions (L x W x D) | 3.3 x 5.0 x 2.0" (83.8 x 127.0 x 50.8 mm) | | Weight | 24.8 oz (703.1 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.4 x 4.2 x 2.8" |
