User Manual for Radial Engineering Pro48 - Active Direct Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering Pro48 - Active Direct
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering Pro48 - Active Direct contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

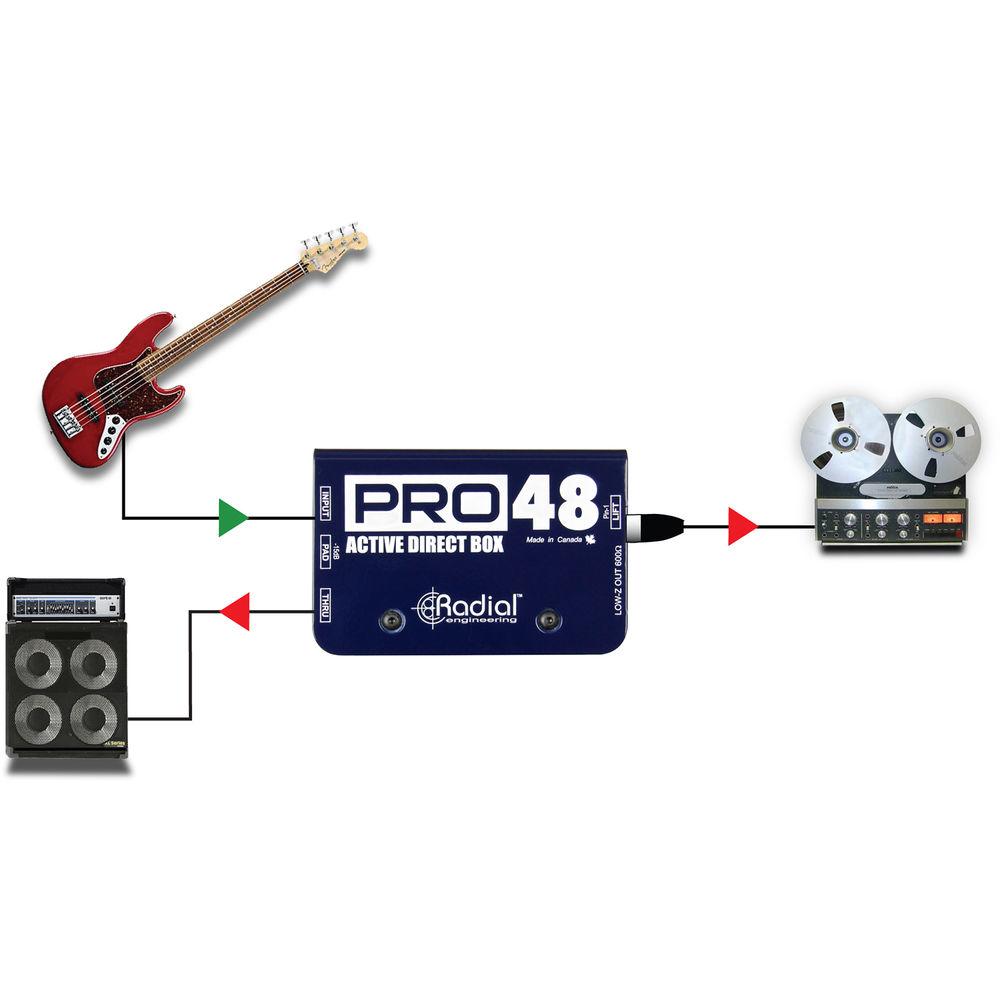

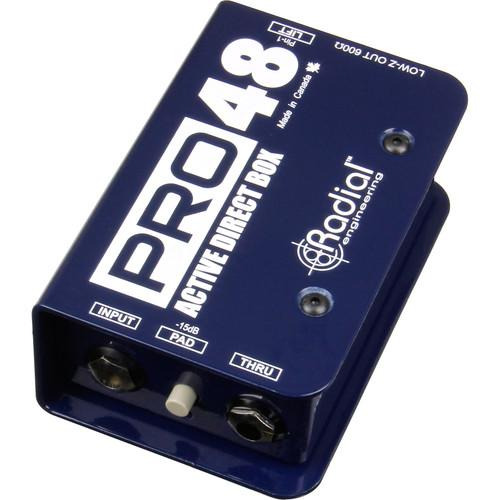

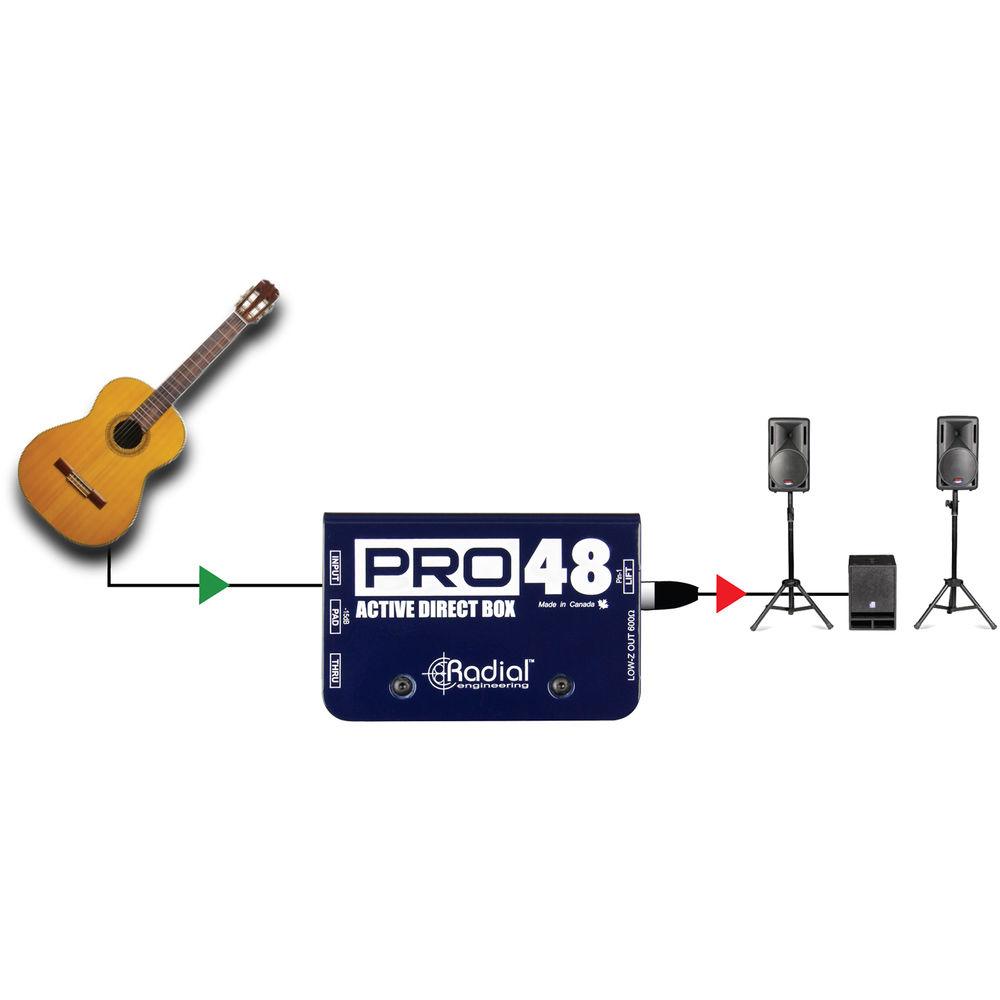

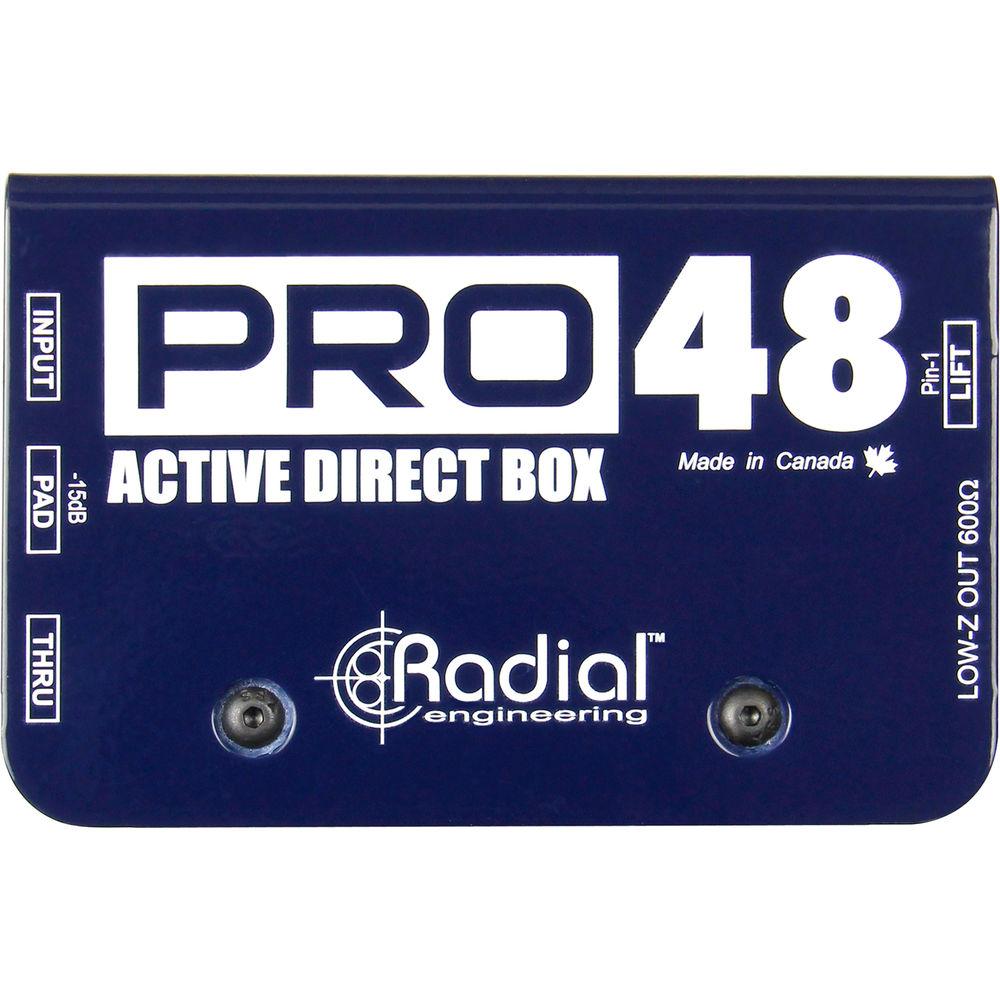

Product description The Pro48 from Radial Engineering is a high-performance active direct box designed specifically for guitars and bass with active pickups that produce considerably higher output. It exhibits excellent headroom and dynamics. Utilizing 48V phantom power from a mixing console, the unit employs an innovative digital switching power supply that significantly increases headroom and allows for less distortion while yielding a smooth, linear response. This makes the Pro48 an ideal candidate for use with battery powered active basses and acoustic guitars that can tend to overload direct boxes. An input pad helps prevent overload from hot signals and a ground lift switch is provided to reduce noise caused by ground loops. The Pro48 is constructed using 14 gauge steel with Radial's unique book-end design that provides protective zones around the switches and connectors. The internal welded I-beam construction assures outside stress will not torque the PC board. - High resolution active direct box
- 48V phantom powered with digital switching
- Excellent headroom and dynamic range with low noise floor
- Ground lift switch, when activated helps to reduce hum and buzz caused by ground loops
- Pad switch engages a -15dB pad to reduce the input level and prevent overload from high output devices like CD players and active pickups
- Connectors are 100% electrically isolated from the chassis
- Inner steel enclosure is made extremely rigid with an I-beam profile, eliminating any stress that could torque the PC board and cause solder joint failure
- Military-grade double-sided PCB is bolted to steel standoffs for road-tough construction
- For live situations the neoprene foam foot provides electrical isolation and plenty of friction to stay put
UPC: 676101036776 In the Box Radial Engineering Pro48 - Active Direct Box Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Pro48 - Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

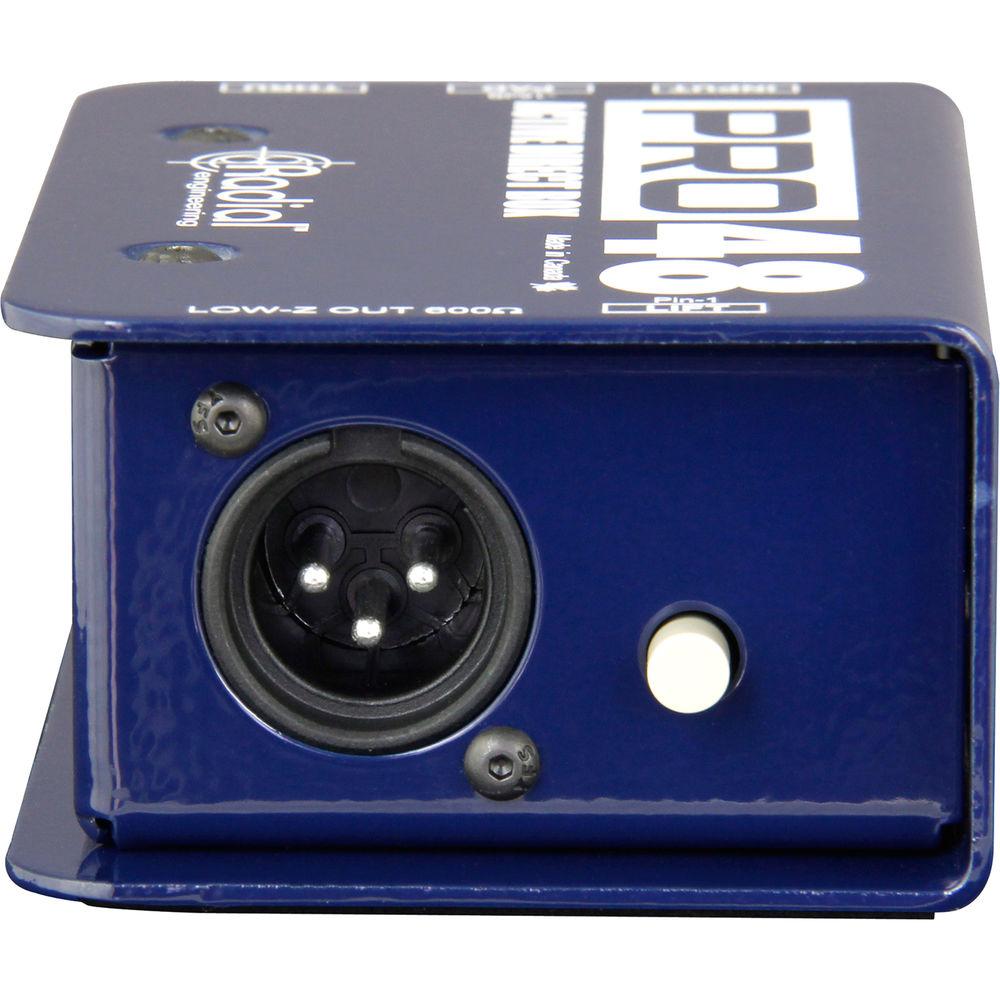

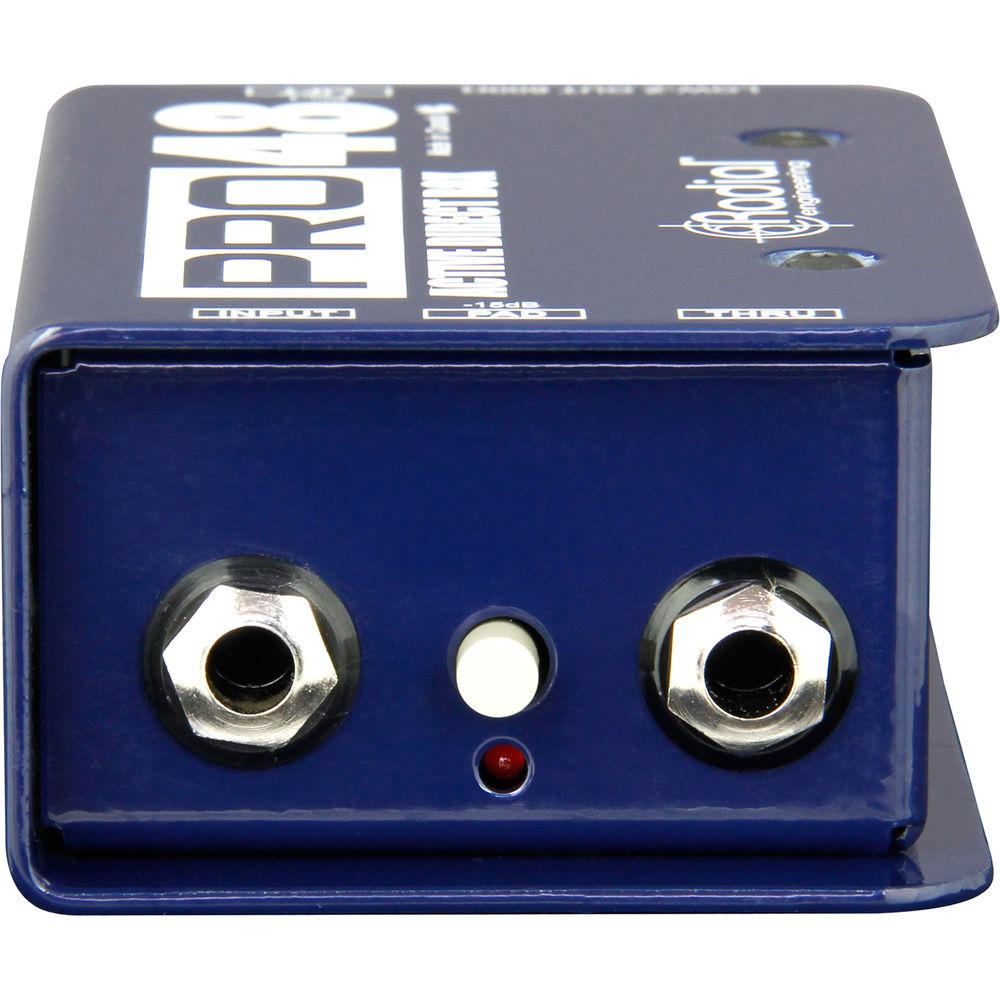

Technical parametersRadial Engineering Pro48 Specs | Input Connections | 1 x 1/4" TS phone | | Output Connectors | 1 x XLR
1 x 1/4" TS phone (input THRU) | | Input Level | Not specified by manufacturer | | Output Level | Not specified by manufacturer | | Controls | -15dB pad switch
Ground lift switch | | Frequency Response | 20Hz to 20kHz, +/-0.12dB | | Noise | Not specified by manufacturer | | Power | 48V phantom power | | Dimensions (WxDxH) | 2 3/4" x 4 1/4" x 2 3/4" | | Weight | 1.1 lbs | | Specialties | Ideal for active guitars and basses | | | | Package Weight | 1.37 lb | | Box Dimensions (LxWxH) | 6.2 x 4.6 x 3.0" |
