User Manual for Radial Engineering ProAV1 - Audio Video Passive Direct Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering ProAV1 - Audio Video
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering ProAV1 - Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

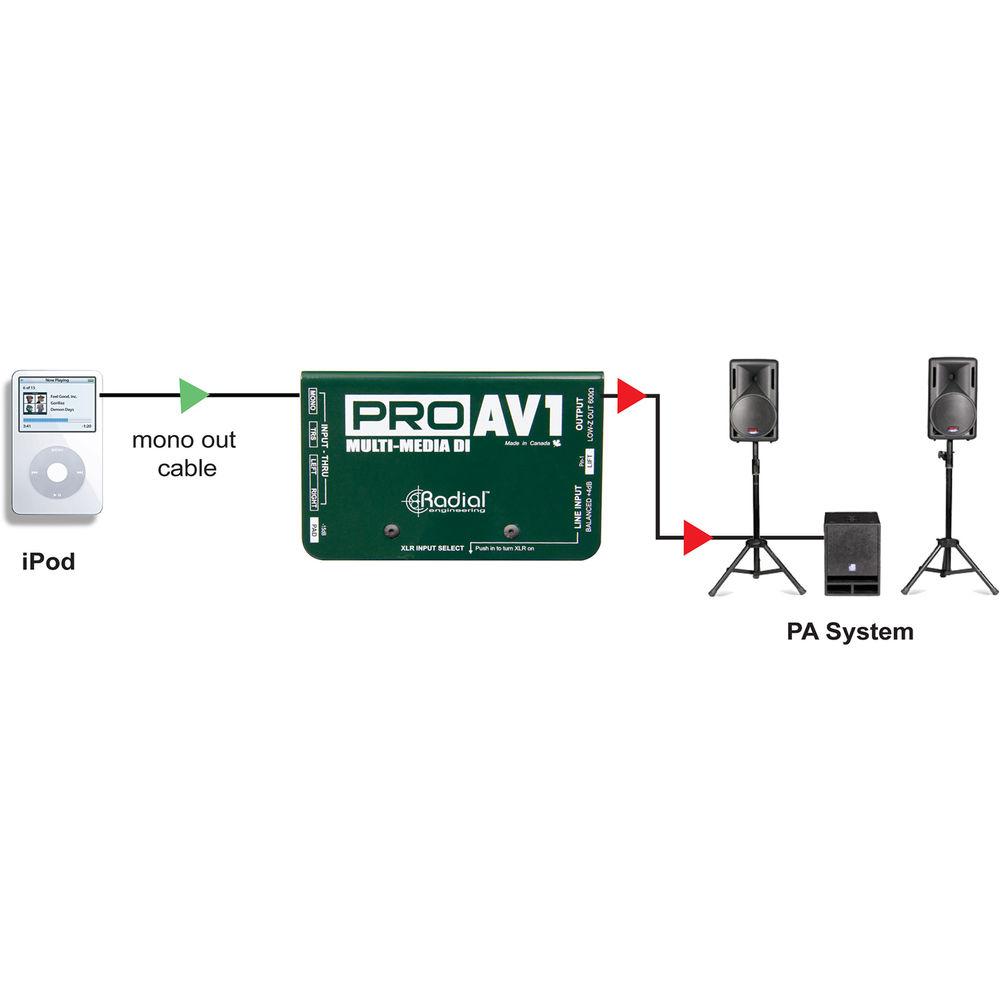

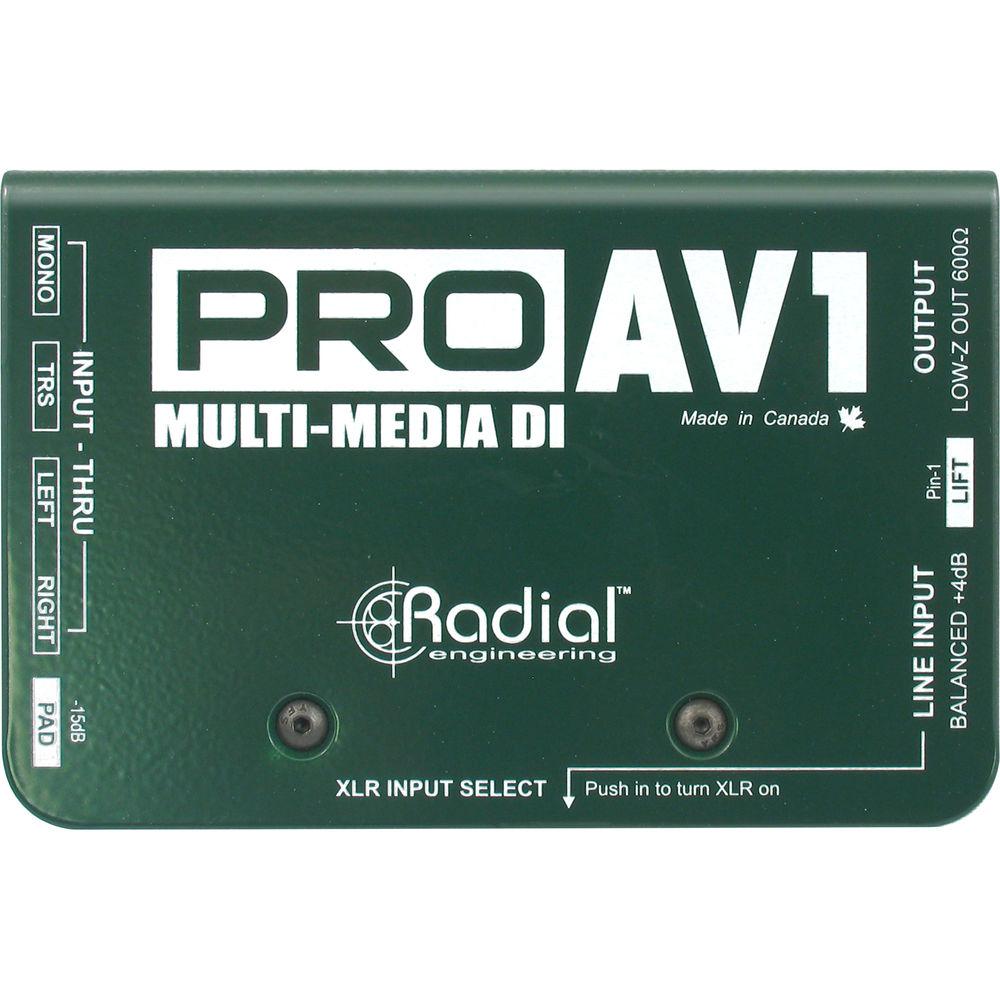

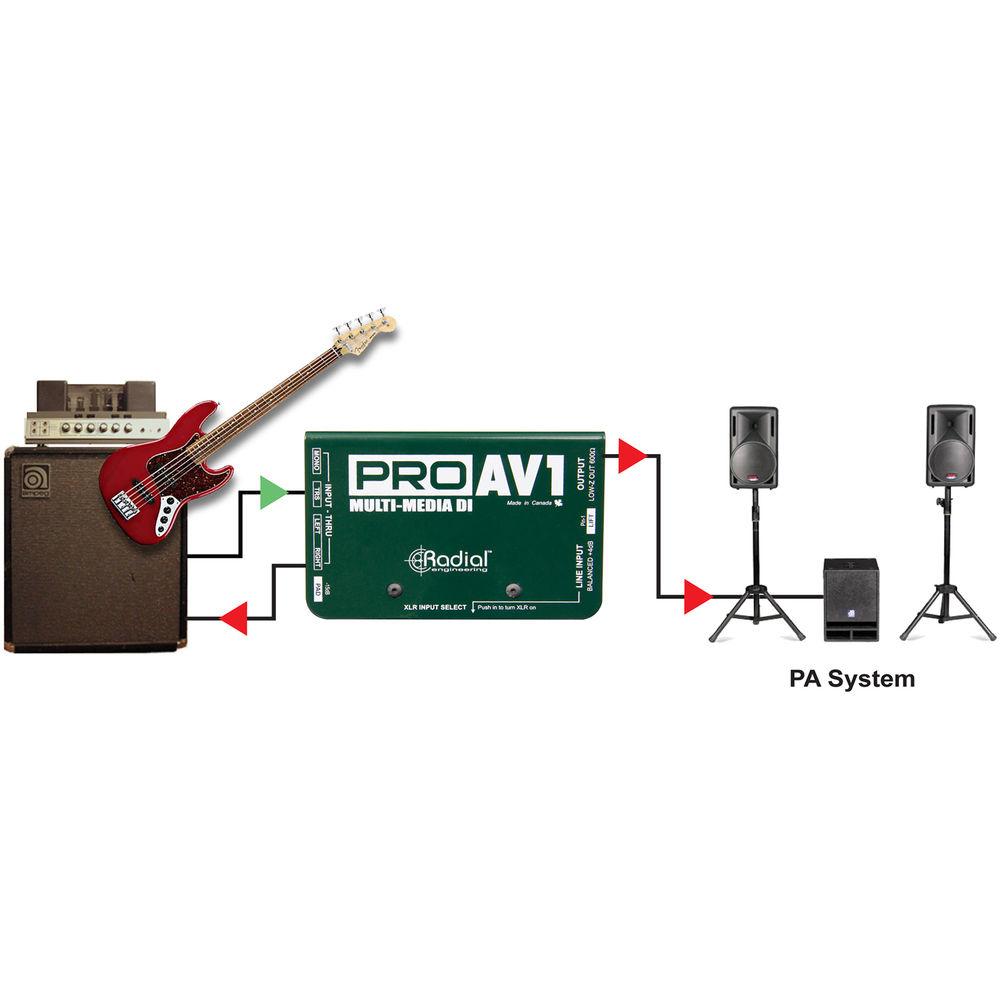

Product description The ProAV1 from Radial Engineering is a passive direct box designed for multi-media applications with the audio-video integrator in mind. The unit features a variety of stereo inputs that are merged via a resistive mixer to mono, greatly simplifying signal management. To eliminate the need for various adaptor, a "Swiss Army" array of connections are provided, including 1/4" for instruments, RCA and 1/8" connectors for consumer electronics and computers and a +4dB XLR input for professional systems. The front panel connectors can also be used as thru-puts to allow multiple patch points. Custom wound transformers are employed that are able to withstand exceptionally hot levels while maintaining linearity from 20Hz to 18.5kHz. The resulting smooth Bessel curve is warm and natural, making the AV1 particularly adept at handling digital sources that can sound harsh. Transformer isolation adds the benefit of eliminating ground loops that cause audio hum and buzz and video hum bars or snow. The ProAV1 is ideal for events that interlace audio with video where music sources can include iPods, CD players and video decks. - Professional "Swiss Army Knife" direct box for multi-media applications
- Ultra-quiet passive design requires no external power source
- Eliminates ground loops that can cause hum and buzz
- Handles huge transients without distortion
UPC: 676101036530 In the Box Radial Engineering ProAV1 - Audio/Video Passive Direct Box Three (3) Year Warranty User Manual PDF 725.5kbaybefttcfyyxxttetzwqctwysbtzryc Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering ProAV1 - Audio Video Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

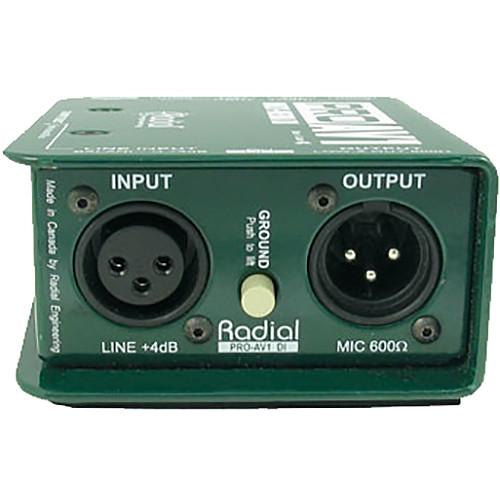

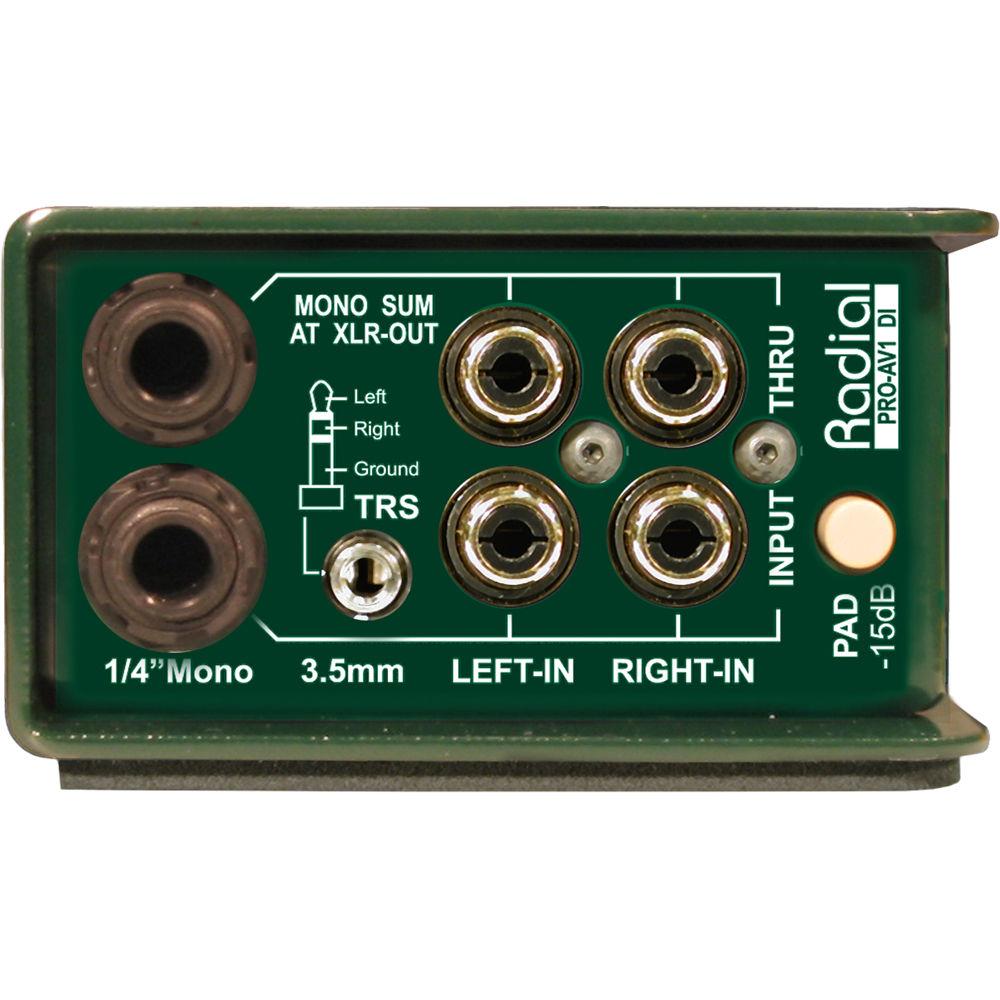

Technical parametersRadial Engineering ProAV1 Specs | Input Connections | 2 x 1/4" TS phone
2 x RCA phono
1 x 1/8" TRS mini phone
1 x XLR | | Output Connectors | 1 x XLR | | Input Level | Not specified by manufacturer | | Output Level | Not specified by manufacturer | | Controls | -15dB Pad
Ground lift switch | | Frequency Response | Not specified by manufacturer | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 6 1/2" x 4" x 3" (shipping) | | Weight | 1.92 lbs (shipping) | | Specialties | Front panel connectors can also be used as thru-puts to allow multiple patch points | | | | Package Weight | 1.825 lb | | Box Dimensions (LxWxH) | 6.5 x 4.35 x 2.95" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
