User Manual for Radial Engineering ProAV2 - Audio Video Passive Stereo Direct Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering ProAV2 - Audio Video
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering ProAV2 - Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

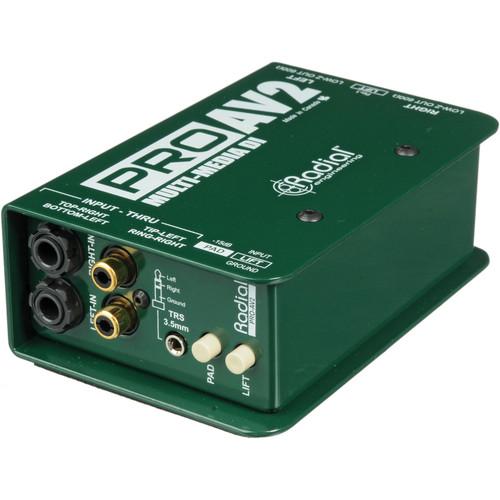

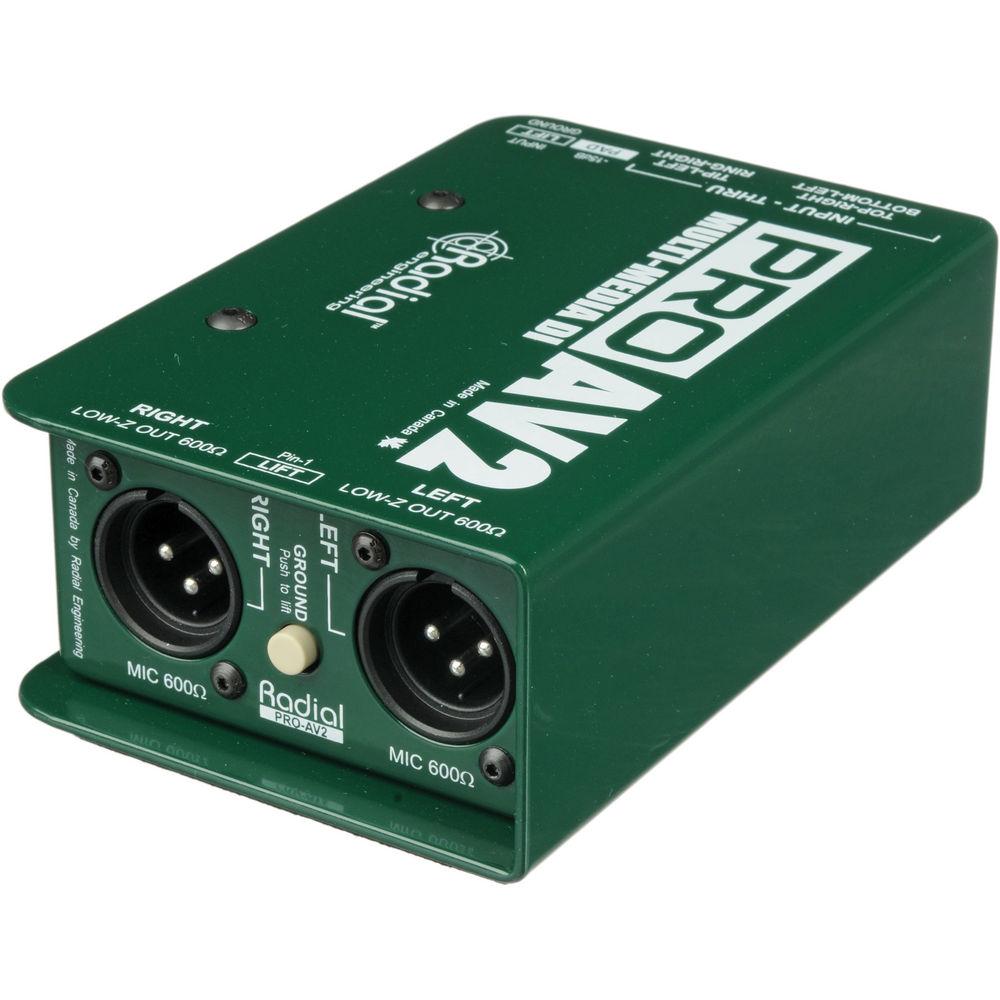

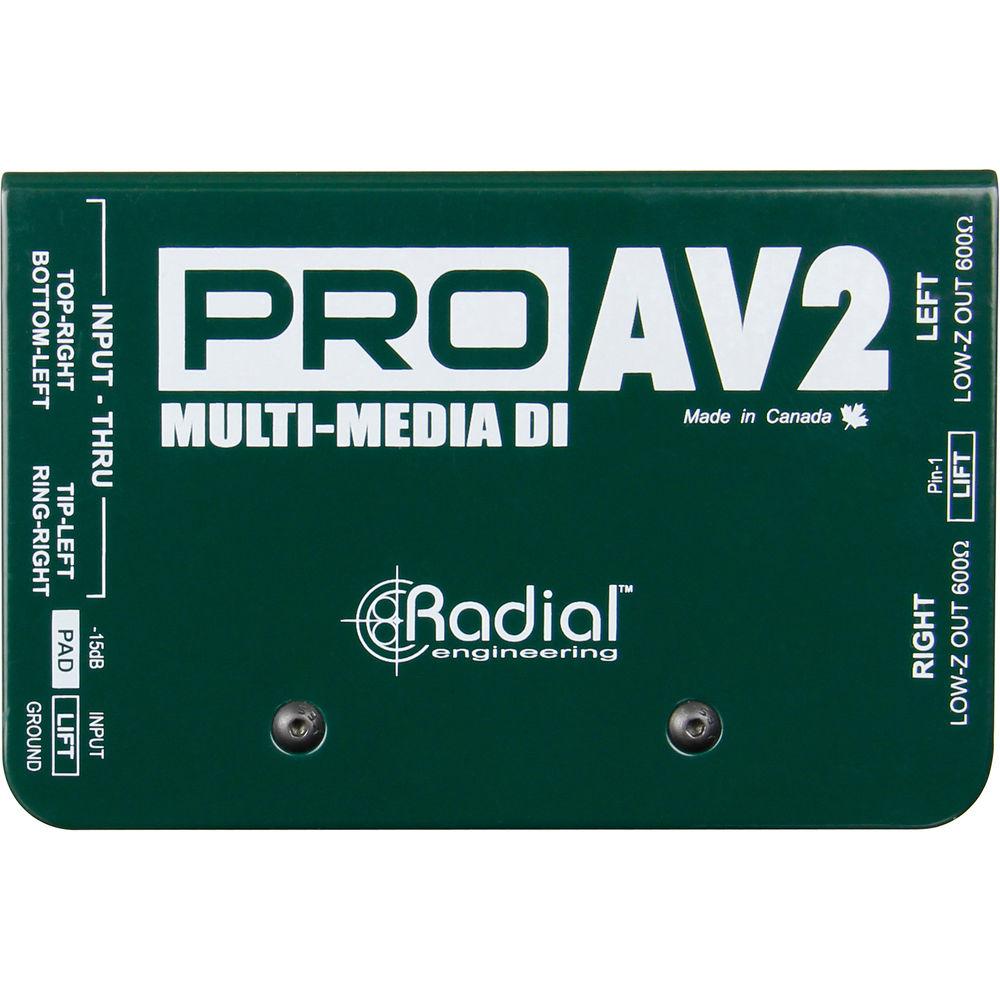

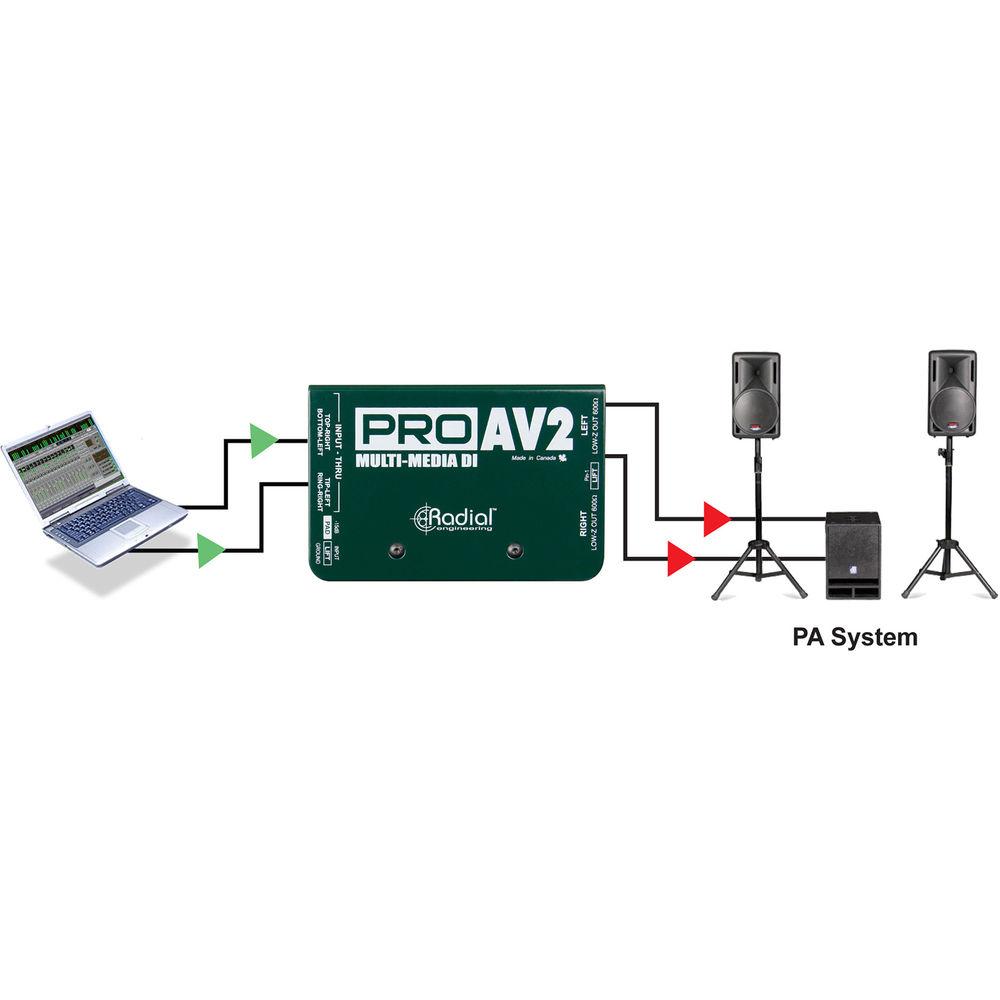

Product description The ProAV2 from Radial Engineering is a passive direct box designed for multi-media applications with the audio-video integrator in mind. The unit provides full two-channel stereo functionality and includes 1/4" for instruments and RCA connectors for consumer electronics and computers. Custom wound transformers are employed that are able to withstand exceptionally hot levels while maintaining linearity from 20Hz to 18.5kHz. The resulting smooth Bessel curve is warm and natural, making the AV2 particularly adept at handling digital sources that can sound harsh. Transformer isolation adds the benefit of eliminating ground loops that cause audio hum and buzz and video hum bars or snow. The ProAV2 is ideal for events where full stereo operation is required. - Professional stereo direct box for multimedia applications
- Ultra-quiet passive design requires no external power source
- Eliminates ground loops that can cause hum and buzz
- Handles huge transients without distortion
- The 14 gauge steel "bookend design" outer shell creates a protected zone around the connectors and switches
- Inner steel enclosure is made extremely rigid with an I-beam profile, eliminating any stress that could torque the PC board and cause solder joint failure
- Military-grade double-sided PCB is bolted to steel standoffs for road-tough construction
- The neoprene foam foot provides electrical isolation and plenty of friction to stay put
UPC: 676101036820 In the Box Radial Engineering ProAV2 - Audio/Video Passive Stereo Direct Box Three (3) Year Warranty User Manual PDF 378.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering ProAV2 - Audio Video Passive Stereo Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

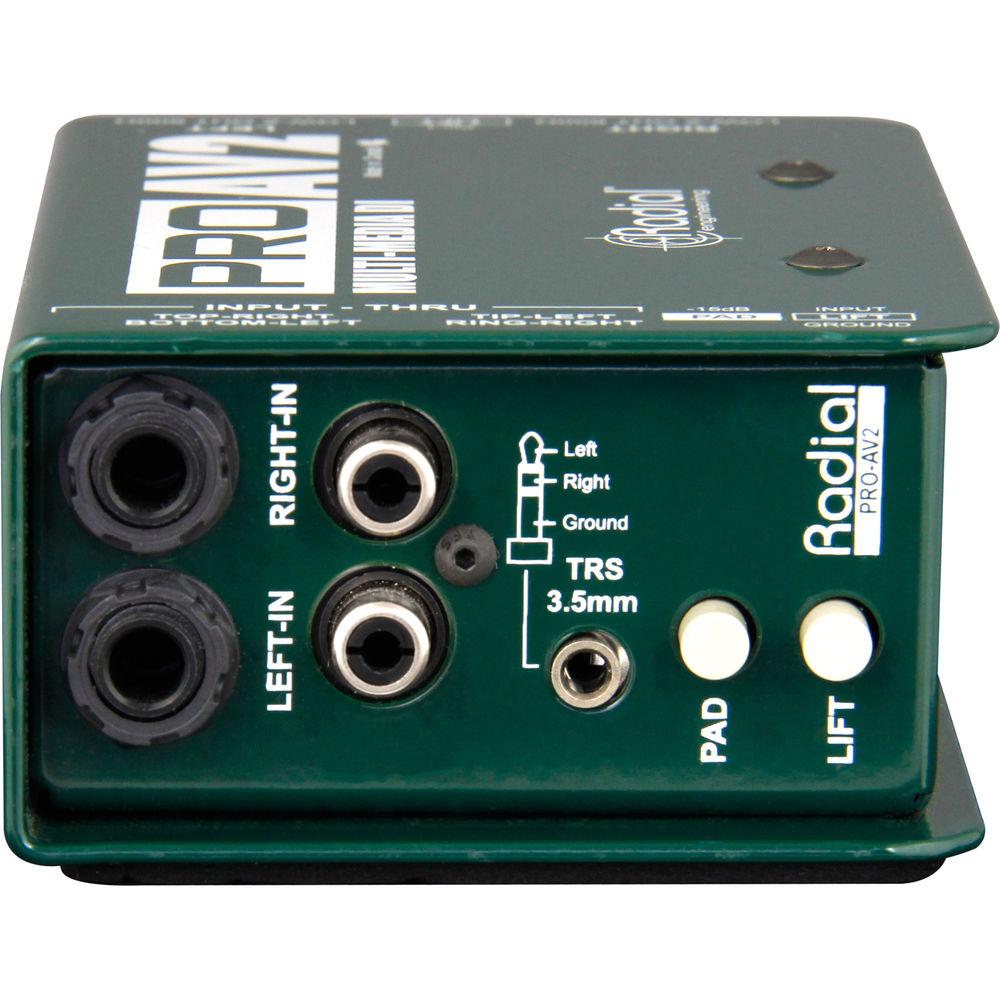

Technical parametersRadial Engineering ProAV2 Specs | Input Connections | 2 x 1/4" TS phone

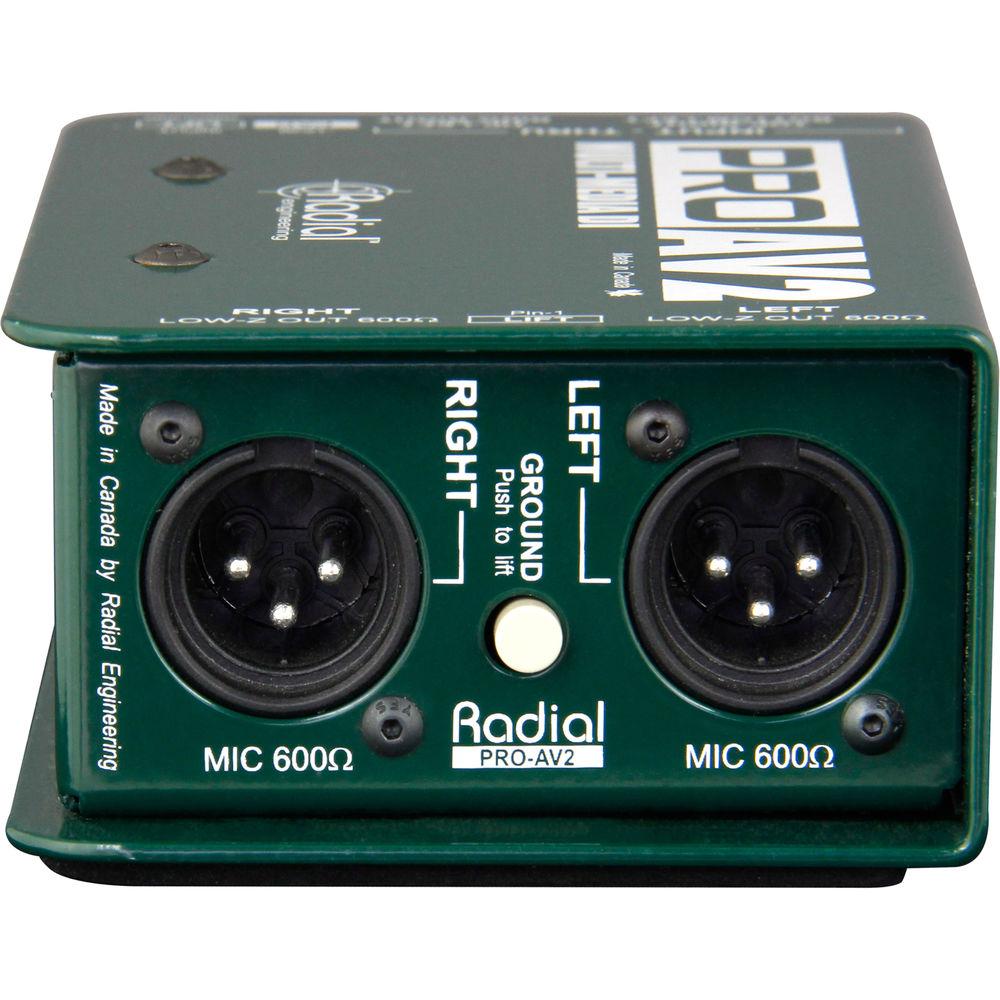

2 x RCA phono | | Output Connectors | 2 x XLR | | Controls | -15dB Pad
Ground switch
Lift switch | | Frequency Response | 20Hz to 20kHz, +/-2.5dB | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 5" x 3 1/4" x 1 7/8" (127 x 83 x 48 mm) | | Weight | 1.8 lbs (0.82 kg) | | Specialties | Lift switch interrupts the ground path for the right channel only. This helps to troubleshoot ground loops when using the ProAV2 with an AC power device like a keyboard | | | | Package Weight | 1.94 lb | | Box Dimensions (LxWxH) | 6.35 x 4.2 x 2.85" |
