User Manual for Radial Engineering ProDI - Single Channel Passive Direct Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering ProDI - Single Channel
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering ProDI - Single Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

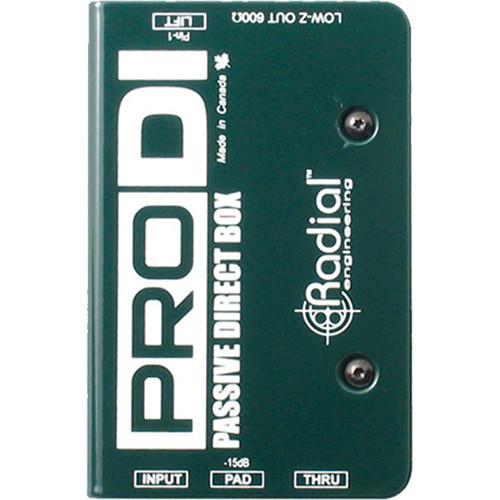

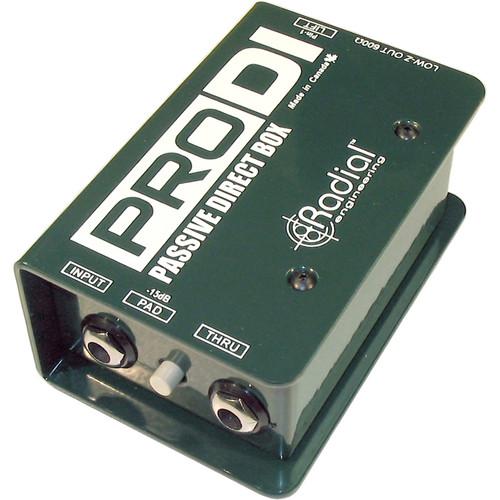

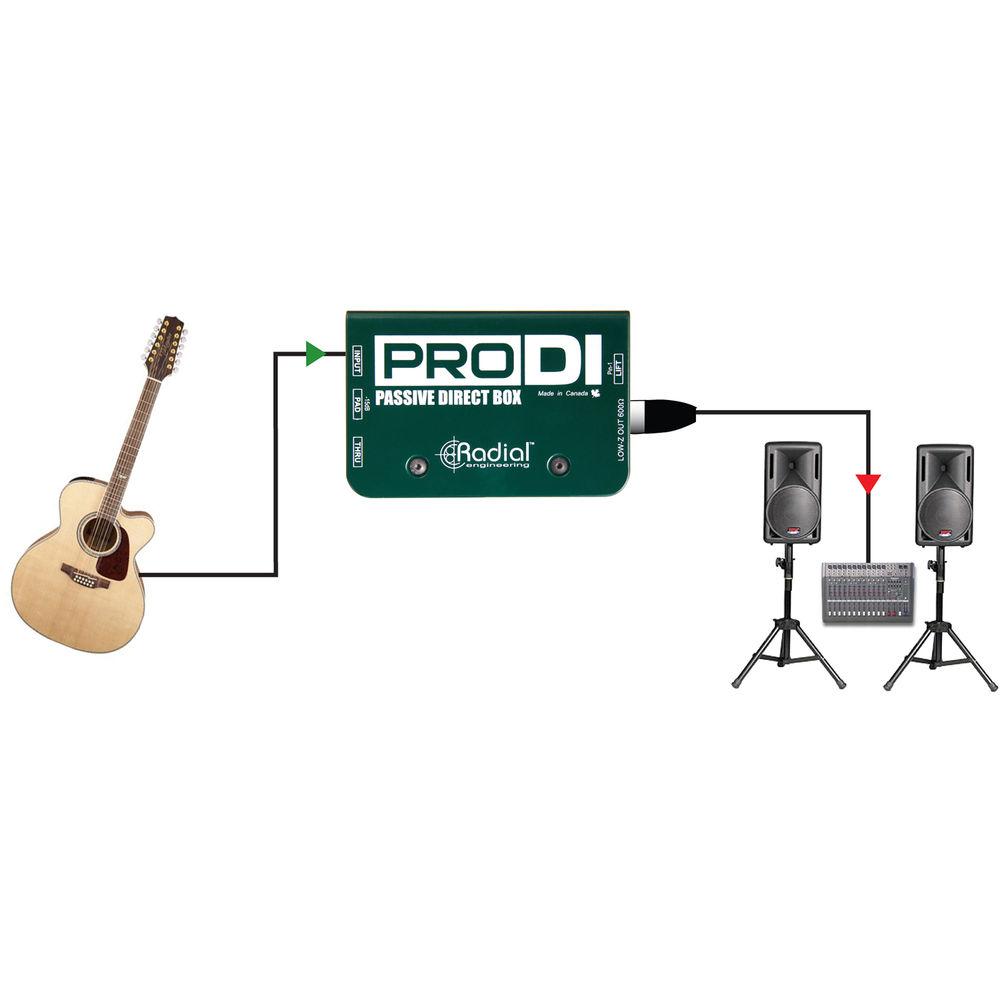

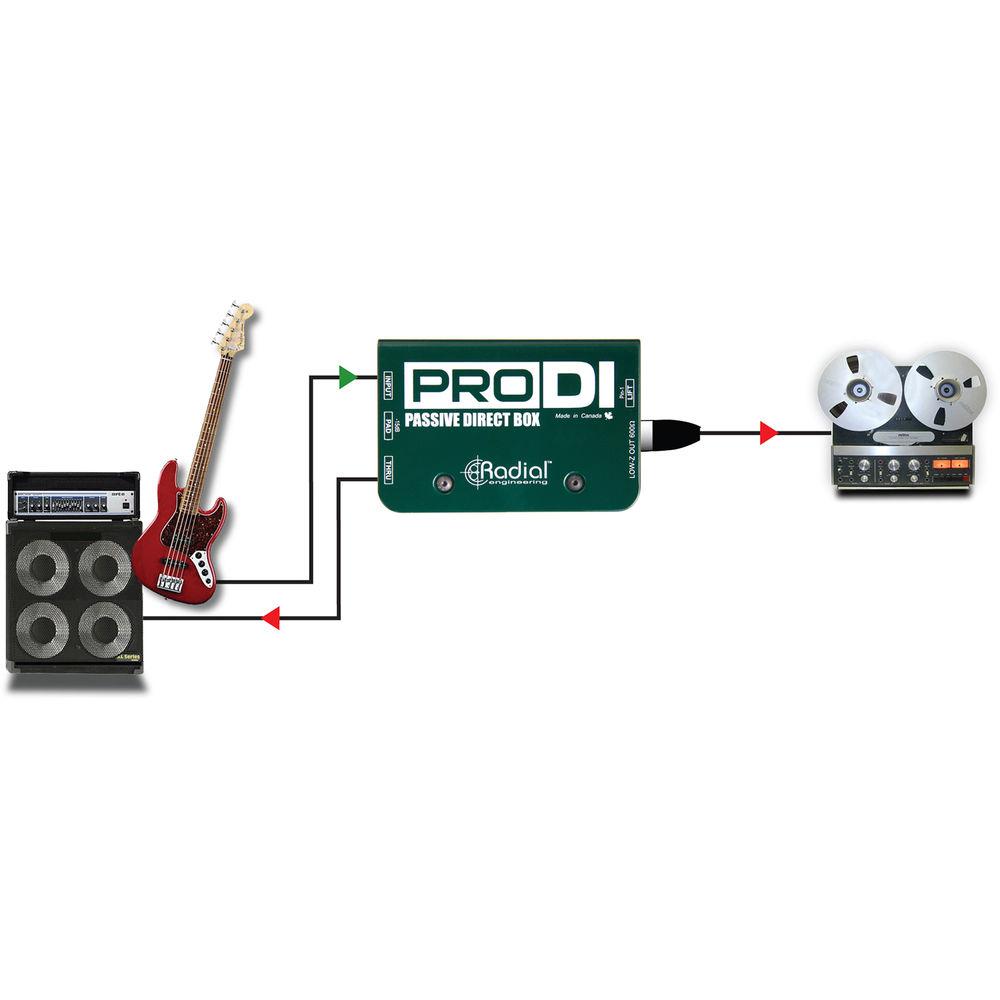

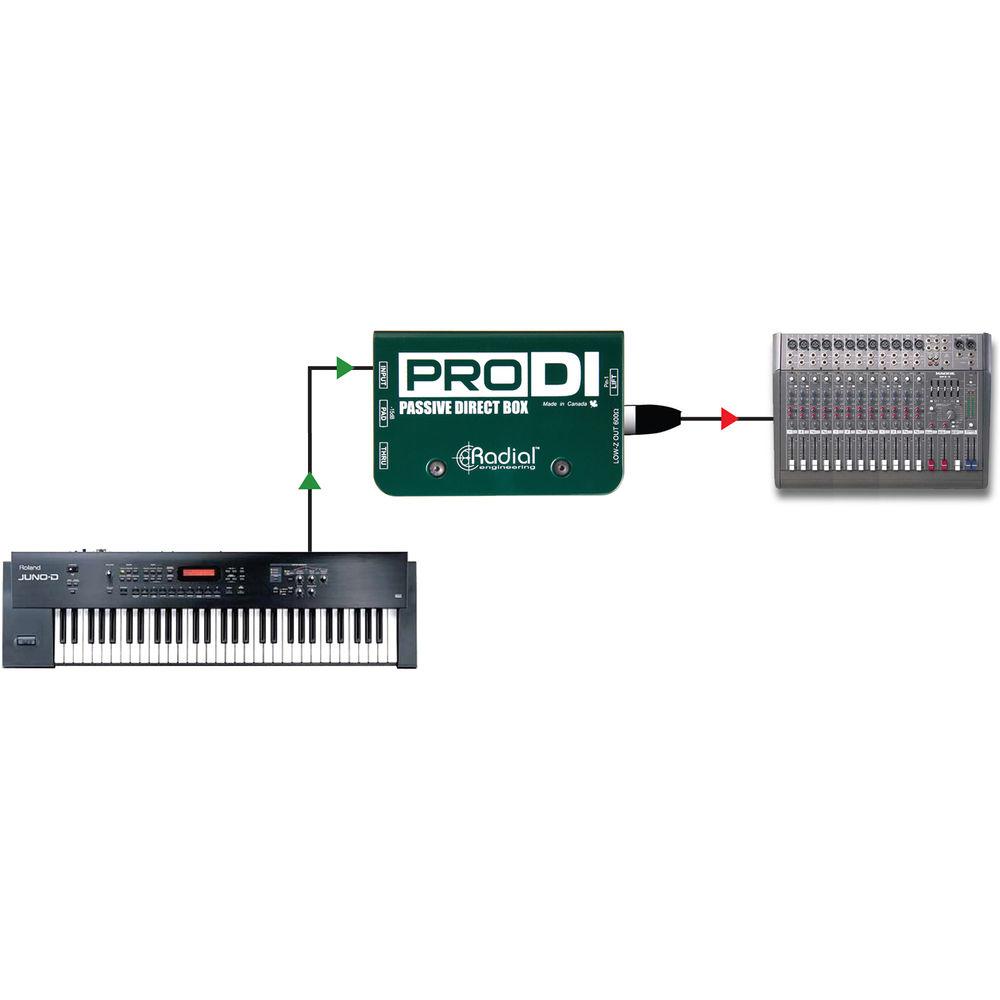

Product description The ProDI from Radial Engineering is a high-quality, single channel, ultra-compact passive direct box, specifically developed to allow regional sound companies and project studios access to the quality of a Radial direct box at a more affordable price point. The ProDI is a great choice for bass and acoustic guitar. The unit features a custom-made transformer that is able to handle high levels without saturation and has an exceptionally linear frequency response from 20Hz to 18kHz, making it ideal for electronic musical instruments and audio equipment. Also featured is a -15dB pad for high output sources and ground lift switch to troubleshoot noise from ground loops. A 14-gauge welded I-beam inner chassis and outer shell greatly reduce the possibility of torque stresses being applied to the PC board. A full-bottom no-slip rubber pad works double-duty by providing protection from electrical shock and making sure the ProDI stays put. - Great sounding, single channel, rugged passive DI for acoustic guitars and bass guitars
- High performance custom-wound transformer eliminates noise
- Very low harmonic and phase distortion
- -15dB pad for wide range of input levels and a ground lift switch eliminates ground loop hum
- Ideal for live sound and studio
- Passive design requires no external power
UPC: 676101035847 In the Box Radial Engineering ProDI - Single Channel Passive Direct Box Three (3) Year Transferable Warranty User Manual PDF 305.5kbsqfdqbxaetctvare Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering ProDI - Single Channel Passive Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

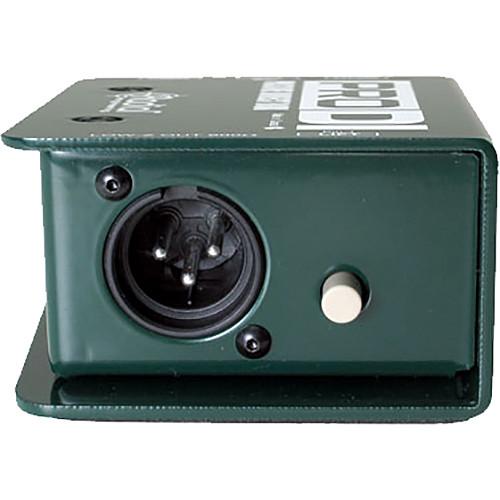

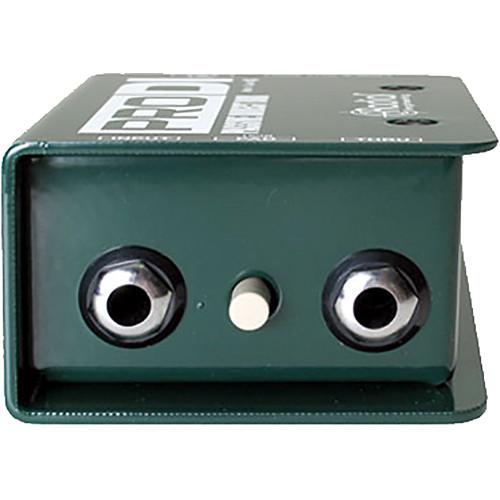

Technical parametersRadial Engineering ProDI Specs | Input Connections | 1 x 1/4" TS phone | | Output Connectors | 1 x XLR
1 x 1/4" TS phone Thru | | Input Level | Not specified by manufacturer | | Output Level | Not specified by manufacturer | | Controls | -15dB pad
Ground lift switch | | Frequency Response | 20Hz to 20kHz, +/-2.5dB | | Noise | Not specified by manufacturer | | Power | Passive | | Dimensions (WxDxH) | 2 3/4" x 4 1/4" x 1 3/4" | | Weight | 1.2 lbs | | Specialties | Custom audio transformer on input provides 100% isolation to eliminate hum and noise causing ground loops while maintaining signal integrity | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.35 x 4.25 x 2.9" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
