User Manual for Radial Engineering ProMS2 Passive Microphone Splitter Click to enlarge the picture
Contents of the user manual for the Radial Engineering ProMS2 Passive Microphone Splitter
- Product category: Splitters & Combiners Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Splitters & Combiners
 |
User manual for the Radial Engineering ProMS2 Passive Microphone Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

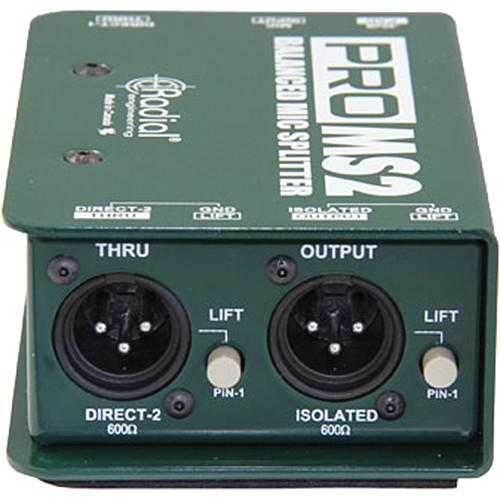

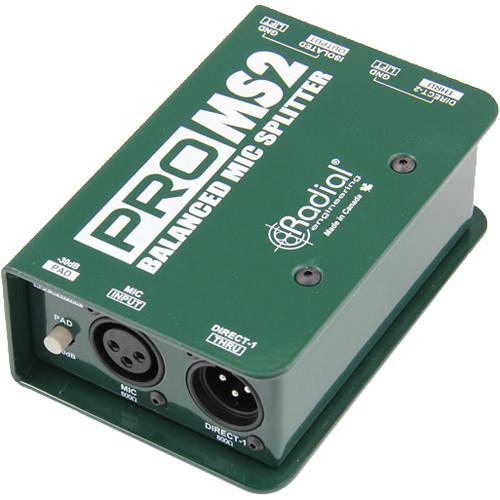

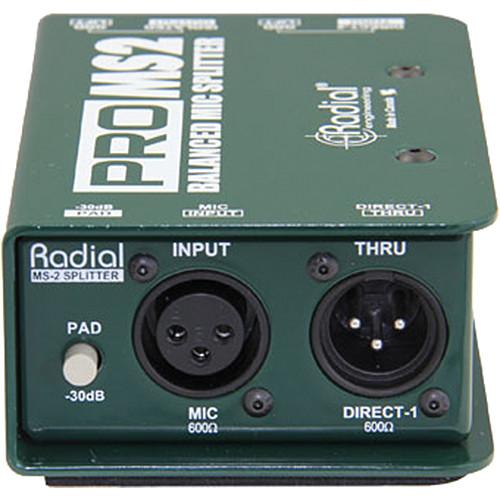

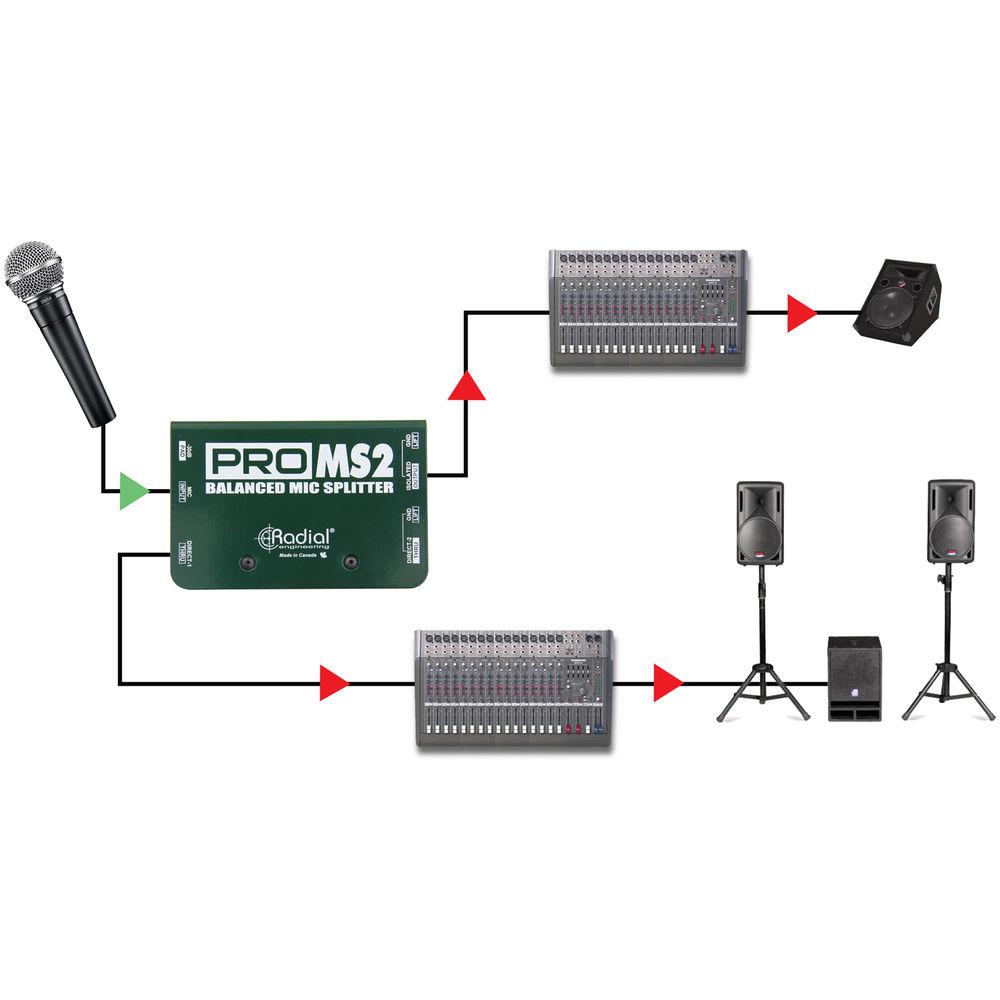

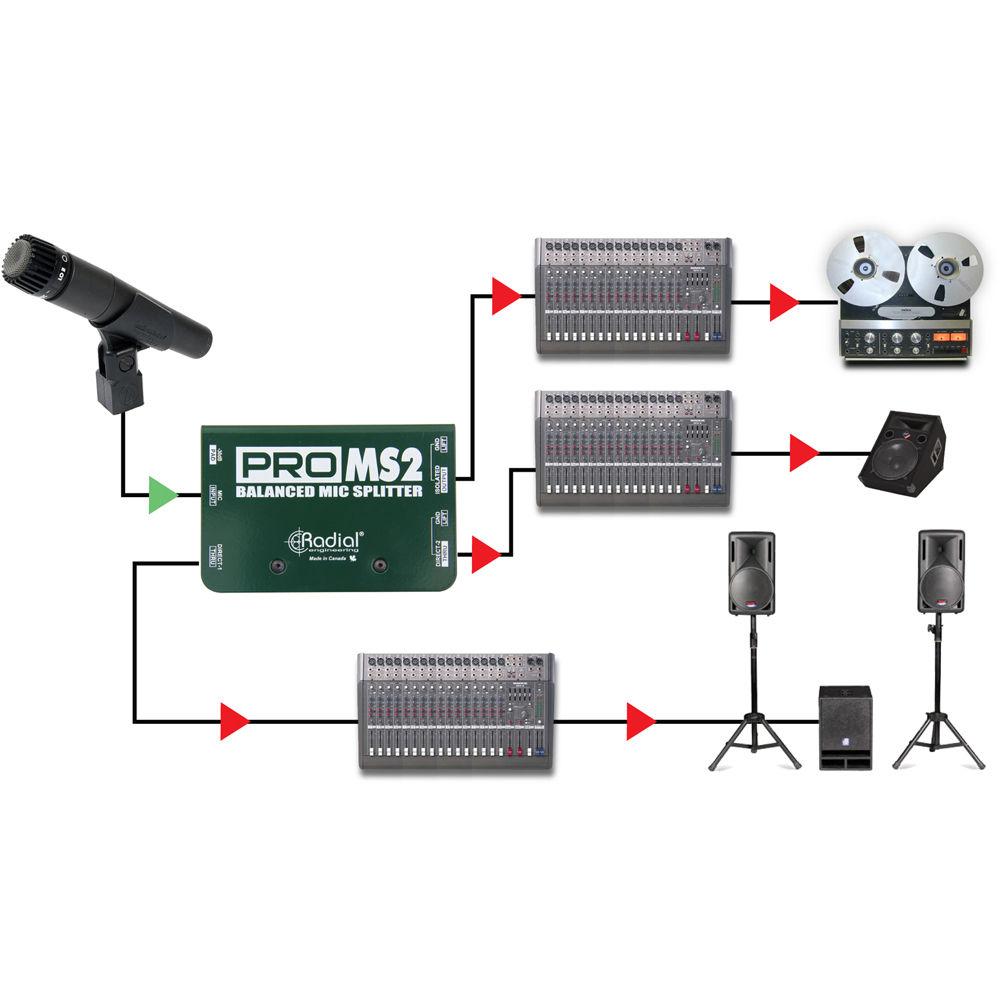

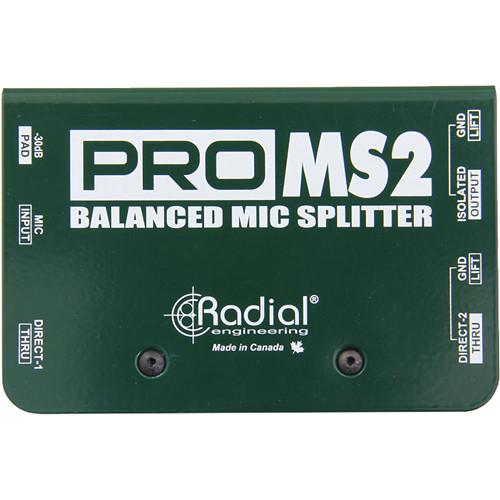

Product description Allowing you to send a single microphone or DI signal to up to 3 separate destinations, the ProMS2 Passive Microphone Splitter from Radial Engineering can be used in the studio to send a mic to multiple preamps for auditioning and live to send one source to multiple mixers or to supply a broadcast feed. It is a passive device, therefore requiring no power for operation. The Eclipse ET-MS10 transformer is designed to provide a flat frequency response while its RF filtering helps keep your signal interference free. The device features 14-gauge steel construction to stand up to live use. - High performance Eclipse transformer for optimal signal transfer
- Equipped with direct, isolated and auxiliary outputs for 3-way split
- May be rack-mounted in the J-Rak for multi-channel use
- Rugged 14-gauge steel construction for added durability and shielding
UPC: 676101040827 In the Box Radial Engineering ProMS2 Passive Microphone Splitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering ProMS2 Passive Microphone Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1122 Specs | Audio Circuit Type | Passive | | Input Impedance | 2.5 KΩ, unbalanced | | Output Impedance | 140 KΩ, balanced | | Frequency Response | 20 Hz to 20 kHz (+0 dB -1 dB) | | Gain | -0.5 dB | | Dynamic Range | >140 dB | | Total Harmonic Distortion | 0.001% | | Noise Floor | -140 dB | | Maximum Input | +26 dBu | | Phase Deviation | 1° @ 20 Hz | | Intermodulation Distortion | 0.003% | | CMRR | -115 dB at 60 Hz | | Transformer | Eclipse ET-MS10 | | Pad | -30 dB | | Ground Lift | Disconnects pin-1 at both XLR outputs | | XLR Configuration | AES standard pin-1 ground, pin-2 (+), pin-3 (-) | | Connectors | XLR-F in, XLR-M direct; direct-2; isolated outputs | | Construction | 14 gauge steel chassis & outer shell | | Power | Passive, no power required | | Operating Conditions | For use in dry locations only between 41 to 104°F (5 to 40°) | | Dimensions (W x H x D) | 3.3 x 5.0 x 2" (84 x 127 x 48 mm) | | Weight | 1.55 lb (0.7 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.3 x 4.2 x 2.9" |
