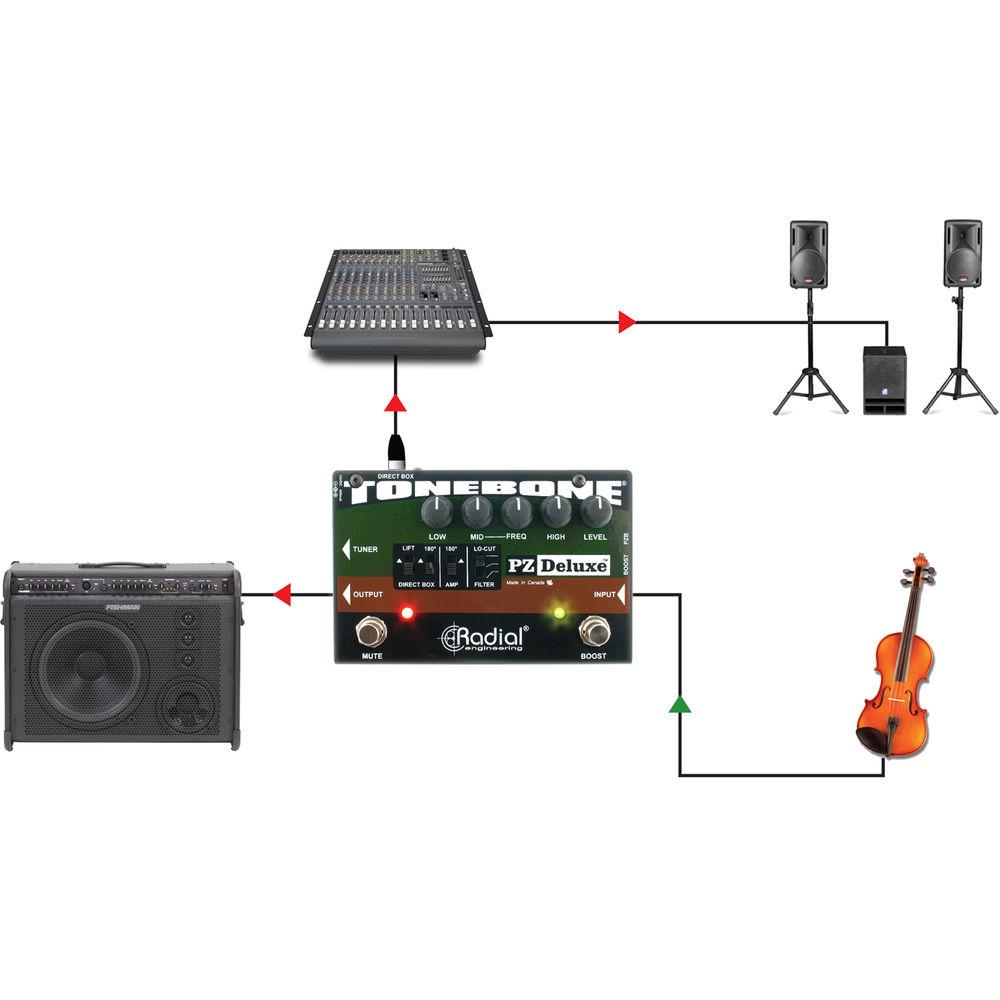

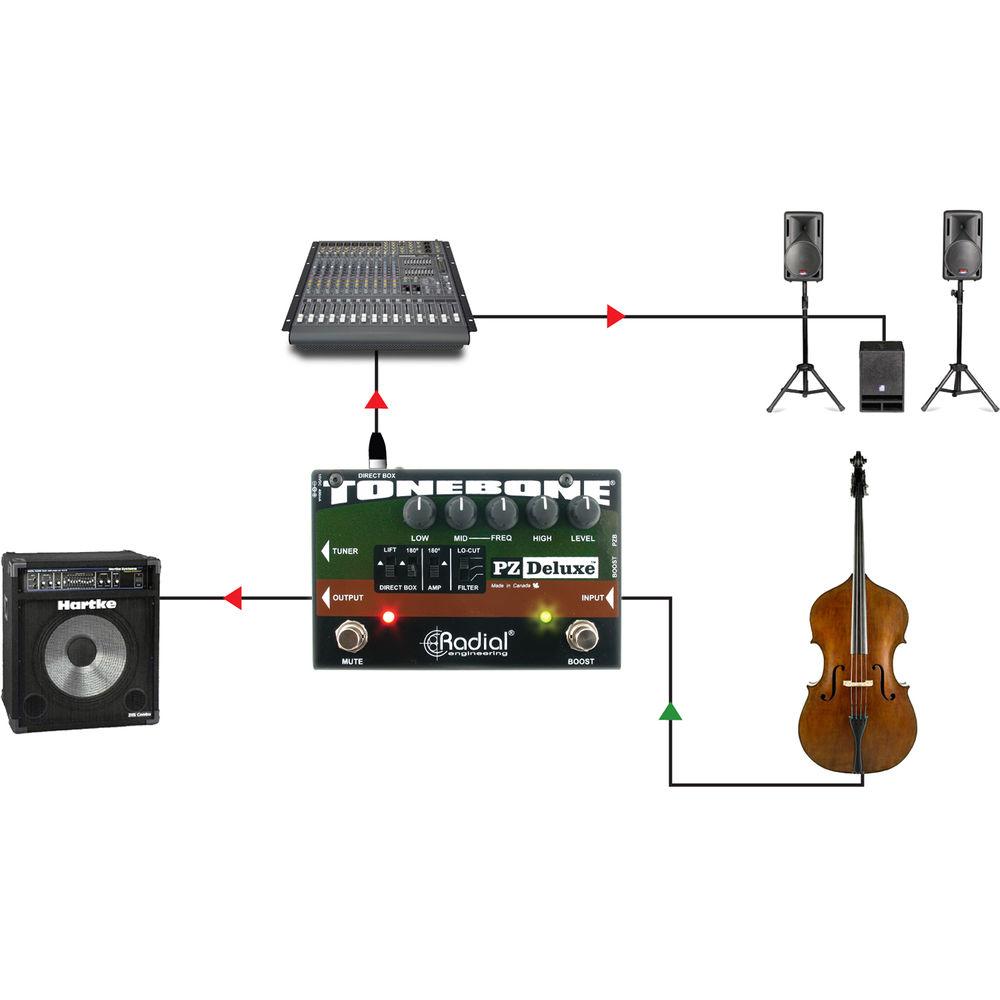

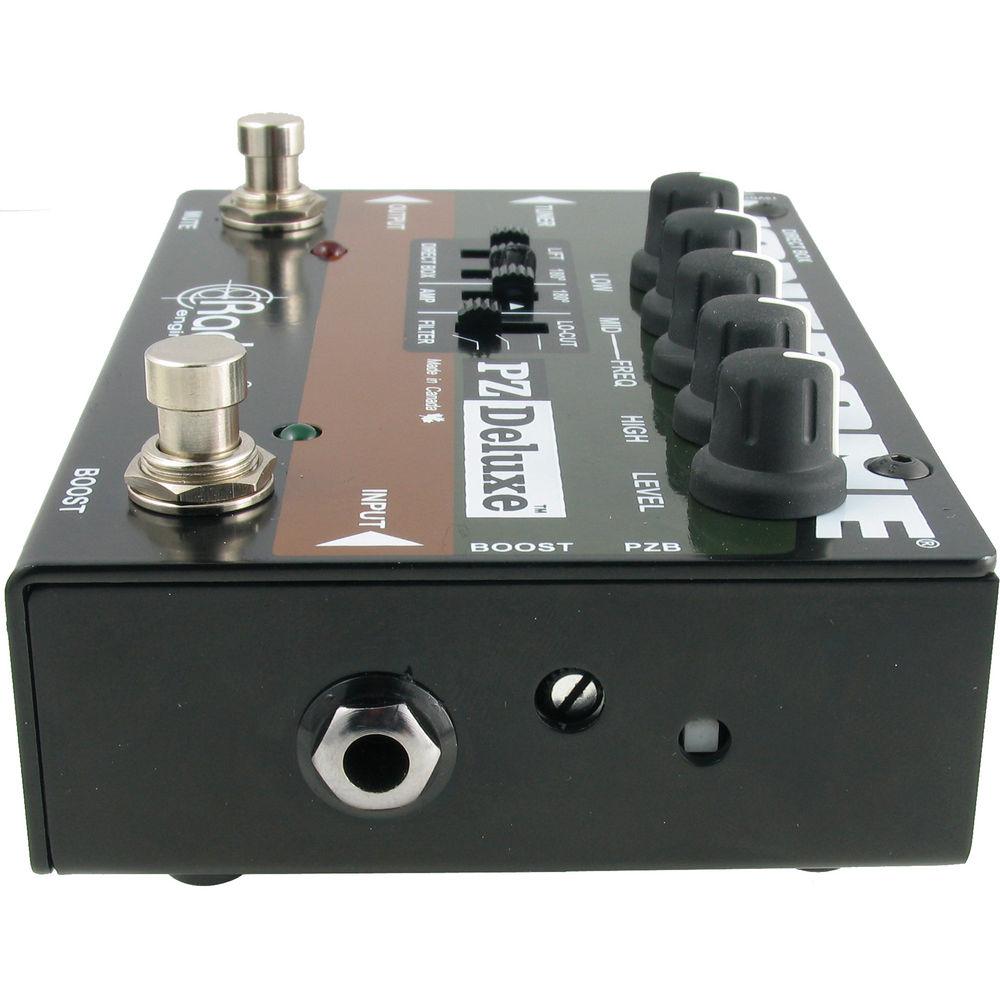

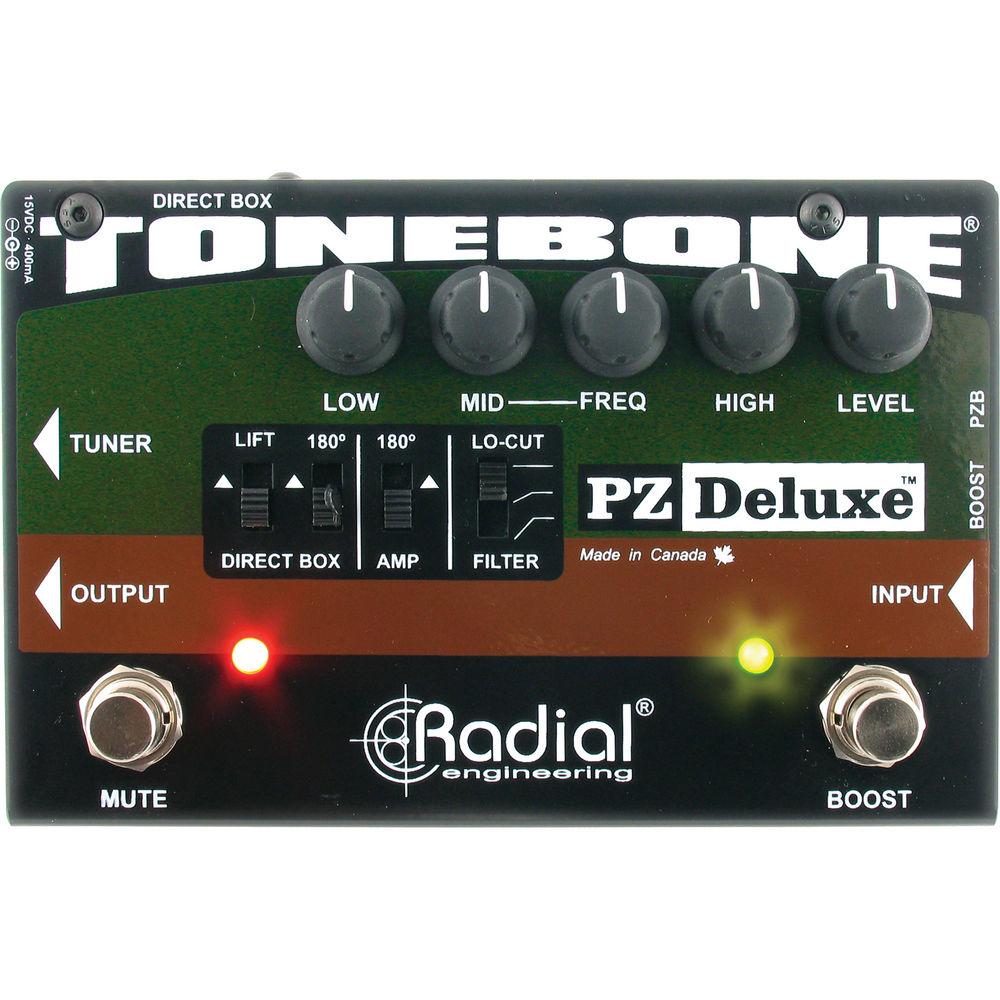

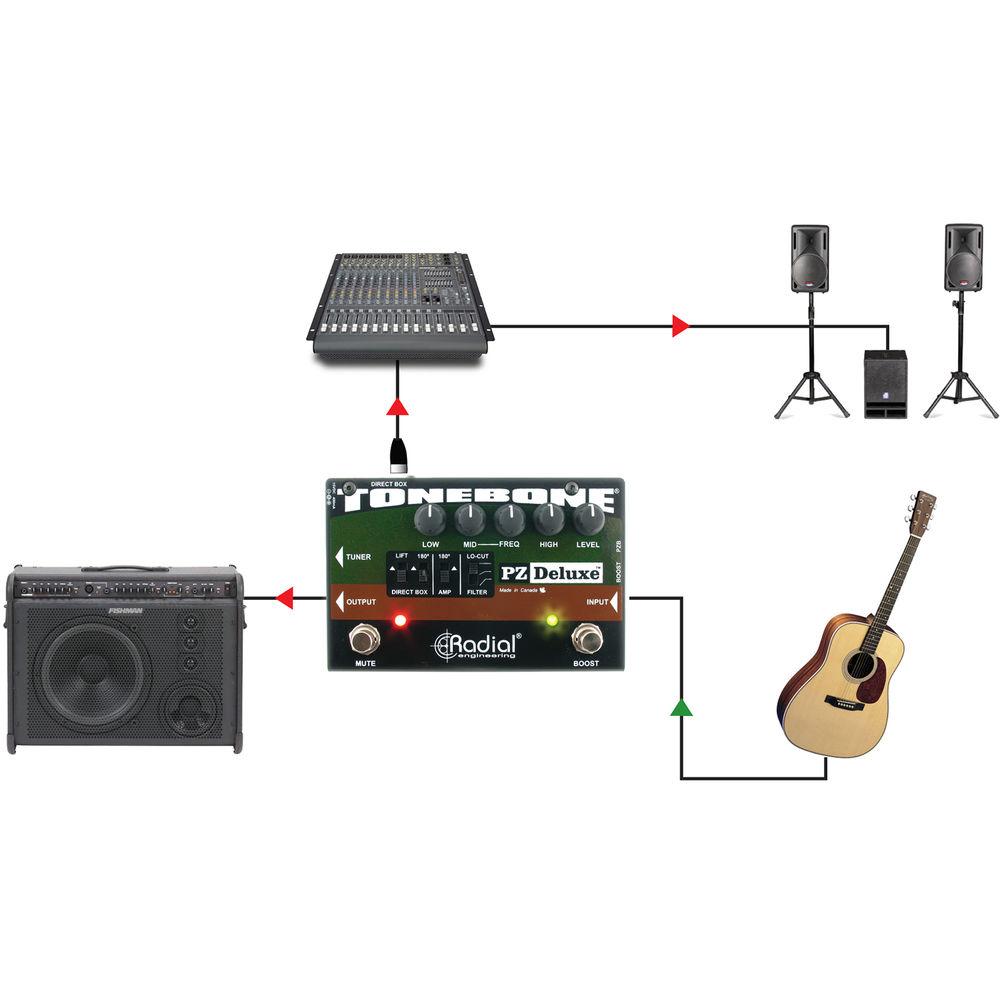

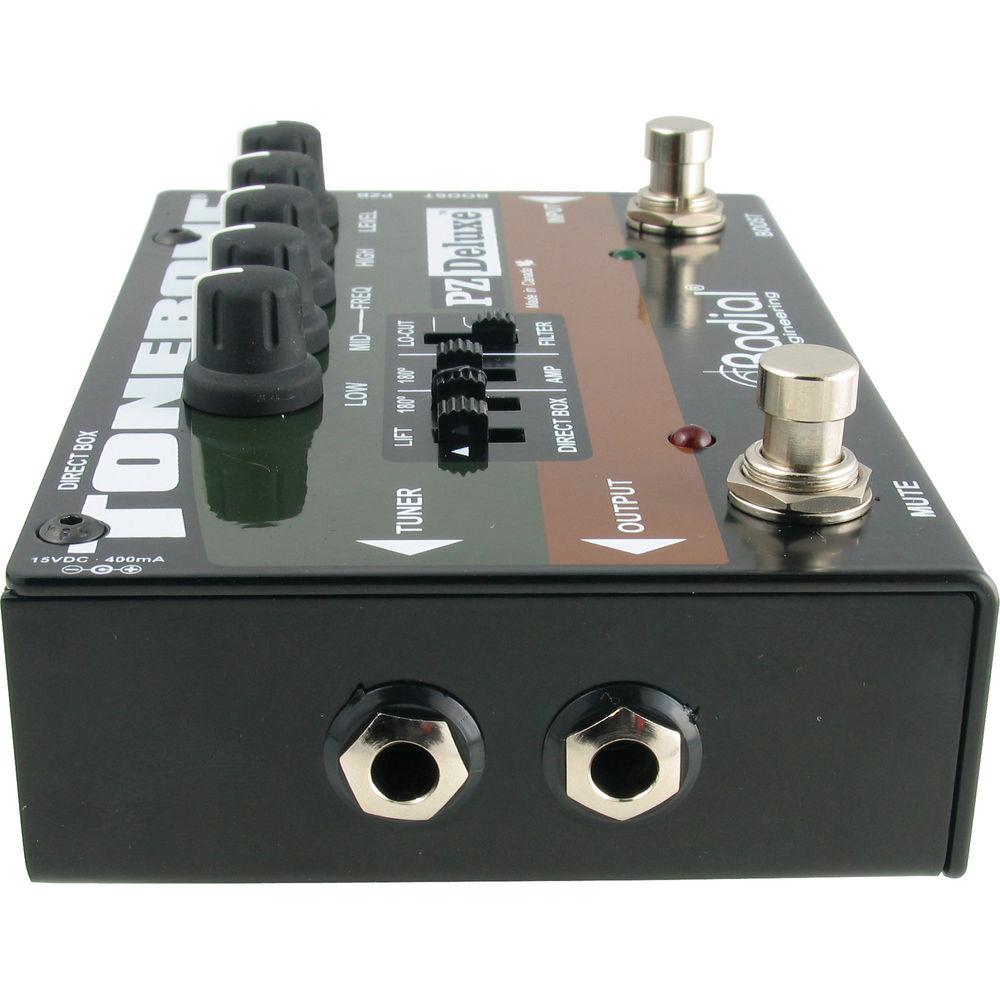

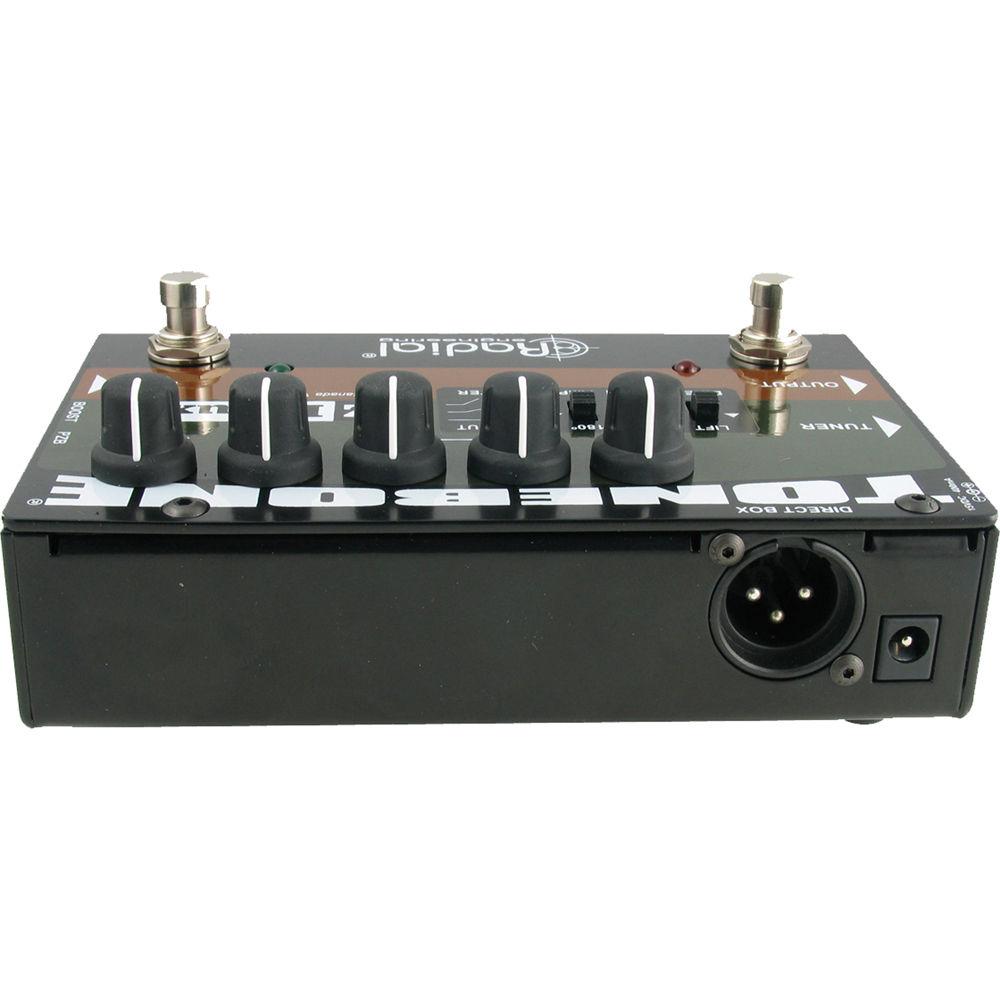

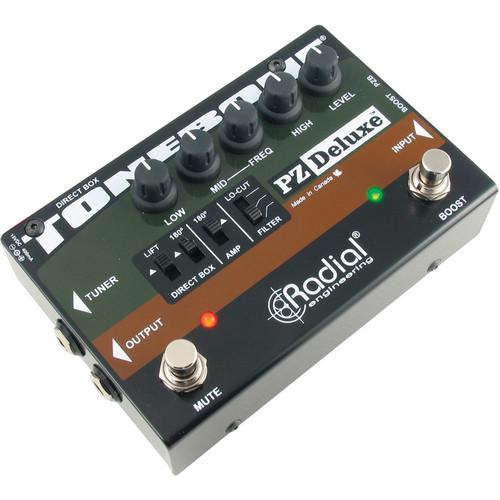

Product description The PZ-Deluxe Acoustic Preamp from Radial Engineering is a studio-quality instrument preamp that jam-packs a full array of features into a compact pedal for live stage and other uses.The PZ-Deluxe begins with a low noise front end that is capable of quality dynamics to adapt to all instruments including acoustic guitar, upright bass, mandolin, and violin irrespective of the type of pickup system that is being used. For piezo transducers, a special PZB gain stage may be engaged that increases the input impedance to 10 MΩ for eliminating squawk and explosive peaks. This eliminates the need for a separate preamp and additional holes in your guitar.The control panel is appointed with an input gain, 3-band semi-parametric EQ with variable mid-frequency, 3-position low frequency resonance filter, and 180° polarity reverse switches to eliminate acoustic hot spots that cause runaway resonant feedback. A guitar level output delivers the sound to the artist's stage amp, while the built-in Radial direct box feeds the PA system. This balanced low impedance output enables this unit to drive long cable runs of over 300’ (100m) without noise. A separate tuner output enables quiet, on-stage adjustments by depressing the mute switch. For solos, a variable power booster with set-and-forget level control lets you punch through the mix when needed.The PZ-Deluxe Acoustic Preamp is compact for ease of transportation, made tough to handle the road, plug-and-play, easy-to-use, and delivers impressive studio quality audio. - Combination instrument preamp and direct box
- Works on all types of pickups and transducers
- Footswitches for muting and power booster
UPC: 676101040384 In the Box Radial Engineering PZ-Deluxe Acoustic Preamp Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering PZ-Deluxe Acoustic Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering PZ-Deluxe Specs | Circuit Type | Class A FET Hybrid Input Stage | | Frequency Response | 20 Hz to 18 kHz (±3 dB) | | Dynamic Range | 105 dB | | Total Harmonic Distortion | 0.03% at -20 dB output | | Equivalent Input Noise | -108 dBu | | Intermodulation Distortion | 0.07% | | Input Impedance | PZB Off: 6.8 kΩ
PZB On: 10 MΩ | | Gain | 1/4" Input to Stage Amp Out: +16 dB (PZB-Off) 1/4" input to XLR Out: +21 dB (PZB-Off)
Boost On: +13 dB maximum
PZB Piezo Booster Circuit: +10 dB | | Output Impedance | XLR Output: 4 kΩ | | Power Requirement | 15 VDC 400 mA (center pin positive) | | Dimensions | 6.1 x 3.8 x 2.1" (154.9 x 96.5 x 53.3 mm) | | Weight | 28.0 oz (793.8 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.0 x 4.5 x 2.0" |
