User Manual for Radial Engineering PZ-DI Orchestral Instrument DI Click to enlarge the picture
Contents of the user manual for the Radial Engineering PZ-DI Orchestral Instrument DI
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering PZ-DI Orchestral Instrument DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

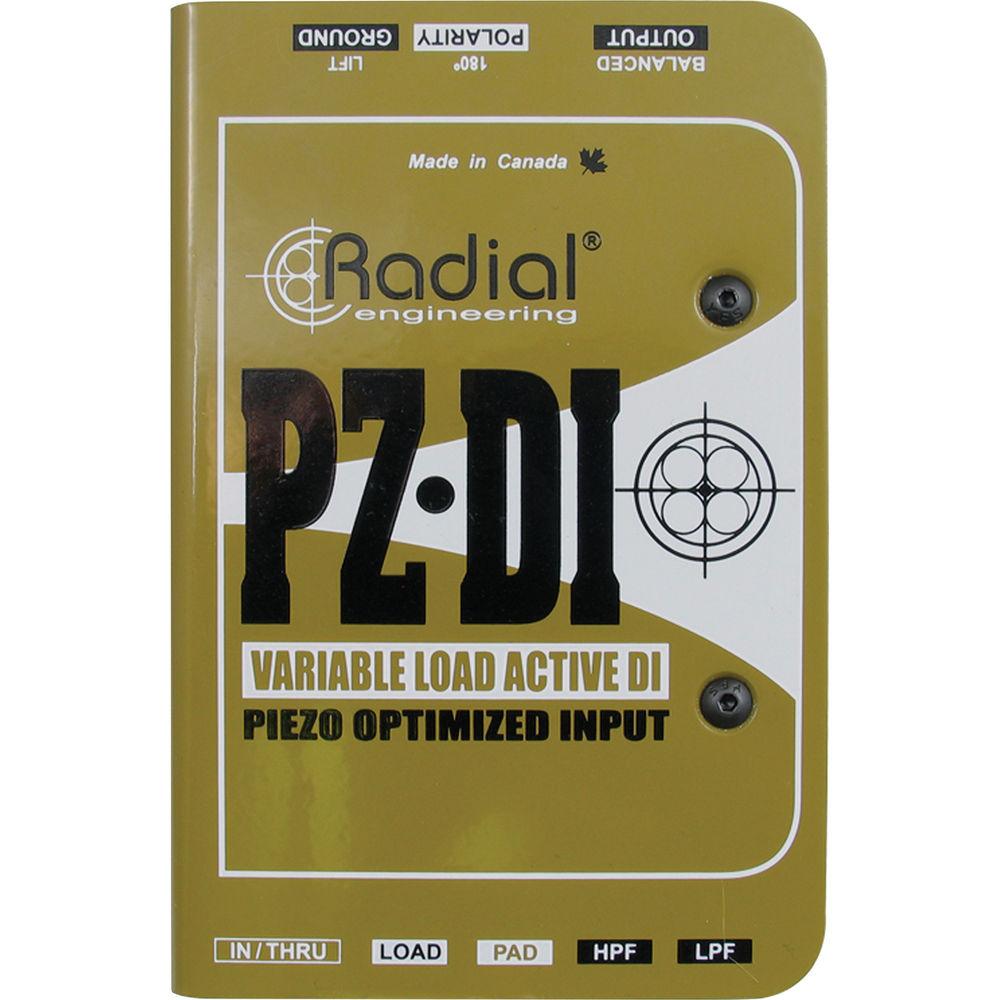

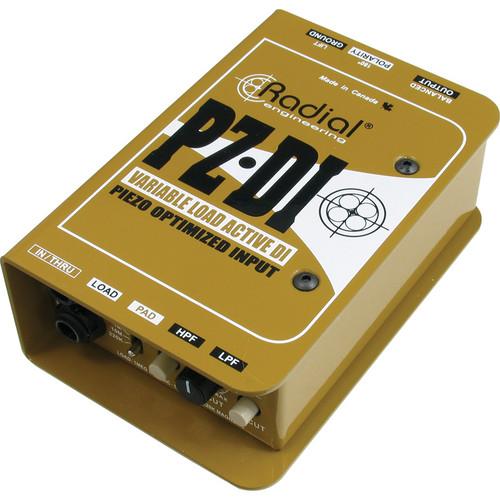

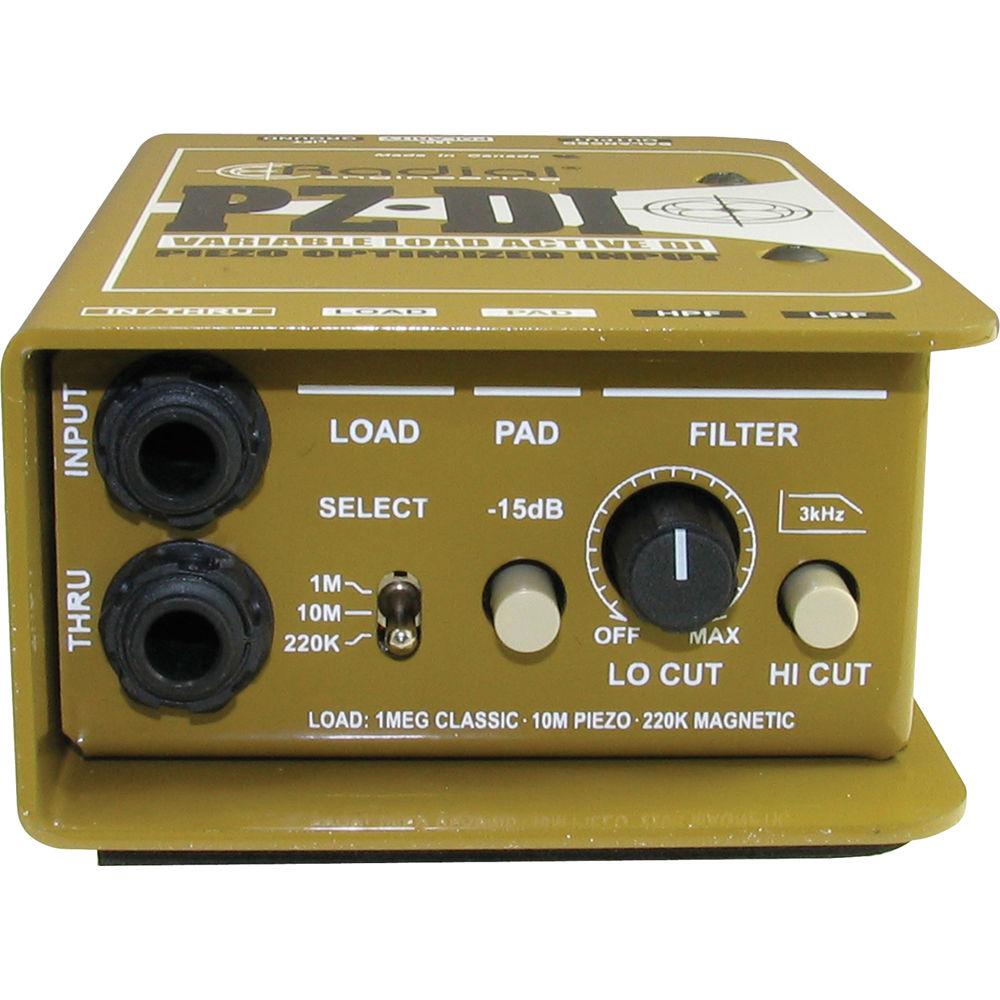

Product description The PZ-DI Orchestral Instrument DI from Radial Engineering is a unique direct box that is specifically designed for acoustic and orchestral instruments. It lets you properly match the input impedance to the source to optimize the frequency response, dynamics and feel so that no matter what type of pickup you employ, you will enjoy smoother, more musically pleasing results.The design begins with a 3-position load adjustment switch. The 1MΩ position delivers the classic impedance found on most active DI boxes. The 220kΩ setting warms up the tone of a magnetic pickup to give you the feel and tone as if connected to a tube amplifier. The ultra-high 10MΩ impedance is used to compensate for the harsh, squawky tone that usually plagues piezo-equipped instruments. This is followed by a fully variable high-pass filter that lets you size the instrument by gently rolling off bass frequencies to eliminate unwanted resonance. You could for instance, retain the low frequencies on a cello or increase the cut-off point to better suit a violin. For active instruments such as acoustic guitars that incorporate a battery powered preamp, you can engage a low-pass filter to gently soften the hard edge for a smoother, more natural tone.To maximize signal handling and reduce distortion, this unit incorporates an innovative DC to DC switching supply that converts the phantom power to deliver extra headroom. This provides ample dynamic range for acoustic instruments. Should an extra loud source such as an active bass or digital keyboard be encountered, simply activate the -15 dB pad to satisfy the situation. It also includes a 180° polarity reverse switch to tame hot spots on stage that can cause feedback and a ground lift switch to help eliminate hum and buzz caused by ground loops.It can instantly adapt to all types of pickups so that you can enjoy the full-frequency response and dynamics of an orchestral string instrument, smooth-out the peaks of bluegrass fiddle, banjo or mandolin, split off a bass guitar without excessive loading, or naturally amplify an acoustic guitar without the usual tone-altering effects. - Optimized for orchestral instruments on a live stage
- Adjustable load for piezo and magnetic pickups
- Variable low-cut filter to control bass resonance
- 48V phantom powered, does not require batteries
UPC: 676101040506 In the Box Radial Engineering PZ-DI Orchestral Instrument DI Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering PZ-DI Orchestral Instrument DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 3005 Specs | Circuit Type | Proprietary analog circuit with low-noise FET op-amp | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 105 dB | | Equivalent Input Noise | -98 dBu | | Total Harmonic Distortion | 0.02% | | Input Impedance | 10 M/1 M/220 kΩ, unbalanced
50 kΩ (with PAD on) | | Output Impedance | 200 Ω (nominal) | | Features | Input Pad: -15 dB
XLR Configuration: AES standard (pin-2 hot) | | Power | 48 V phantom- proprietary digital switching | | Construction | 14 gauge steel chassis and outer shell, baked enamel finish | | Approvals | Complies with section 15 of the FCC Rules | | Dimensions | 2.75 x 4.25 x 1.75" (69.85 x 107.95 x 44.45 mm) | | Weight | 19.20 oz (544.31 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.4 x 4.2 x 2.9" |
