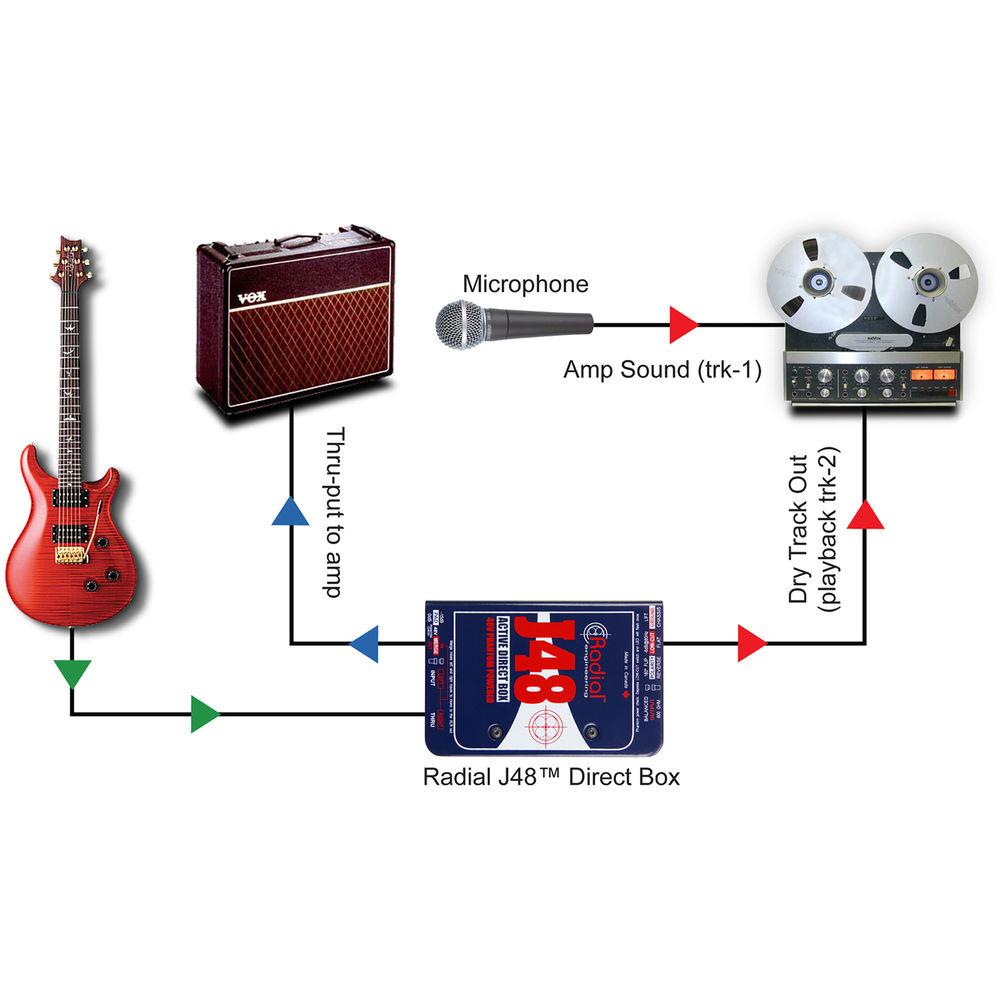

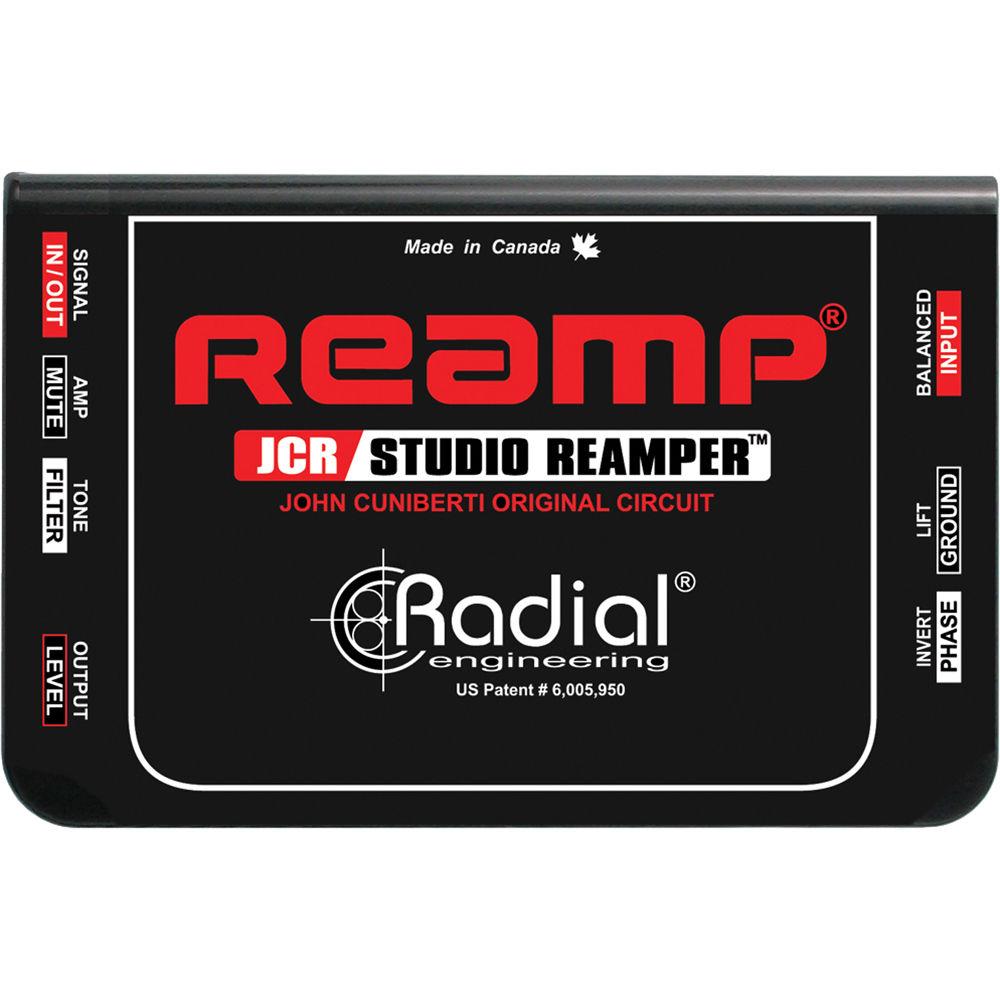

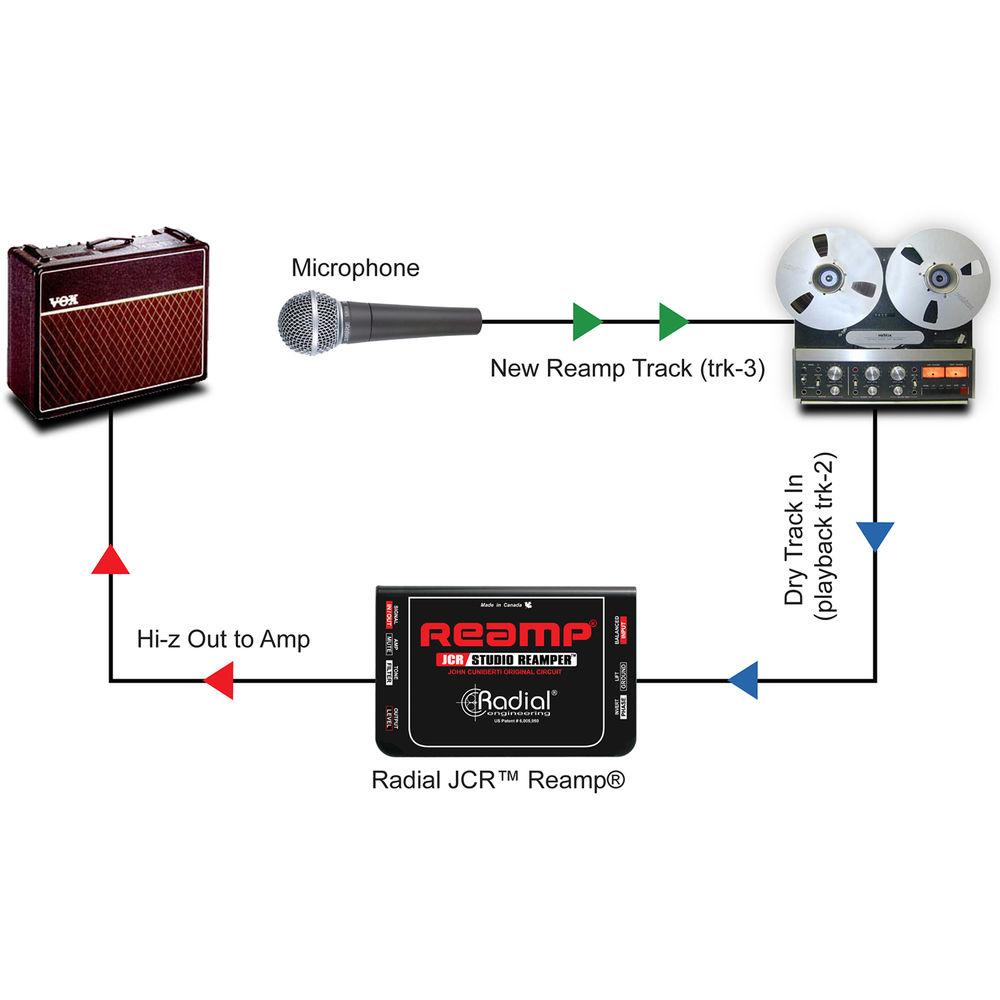

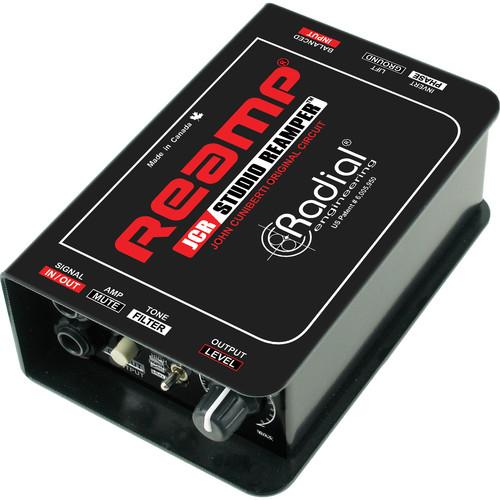

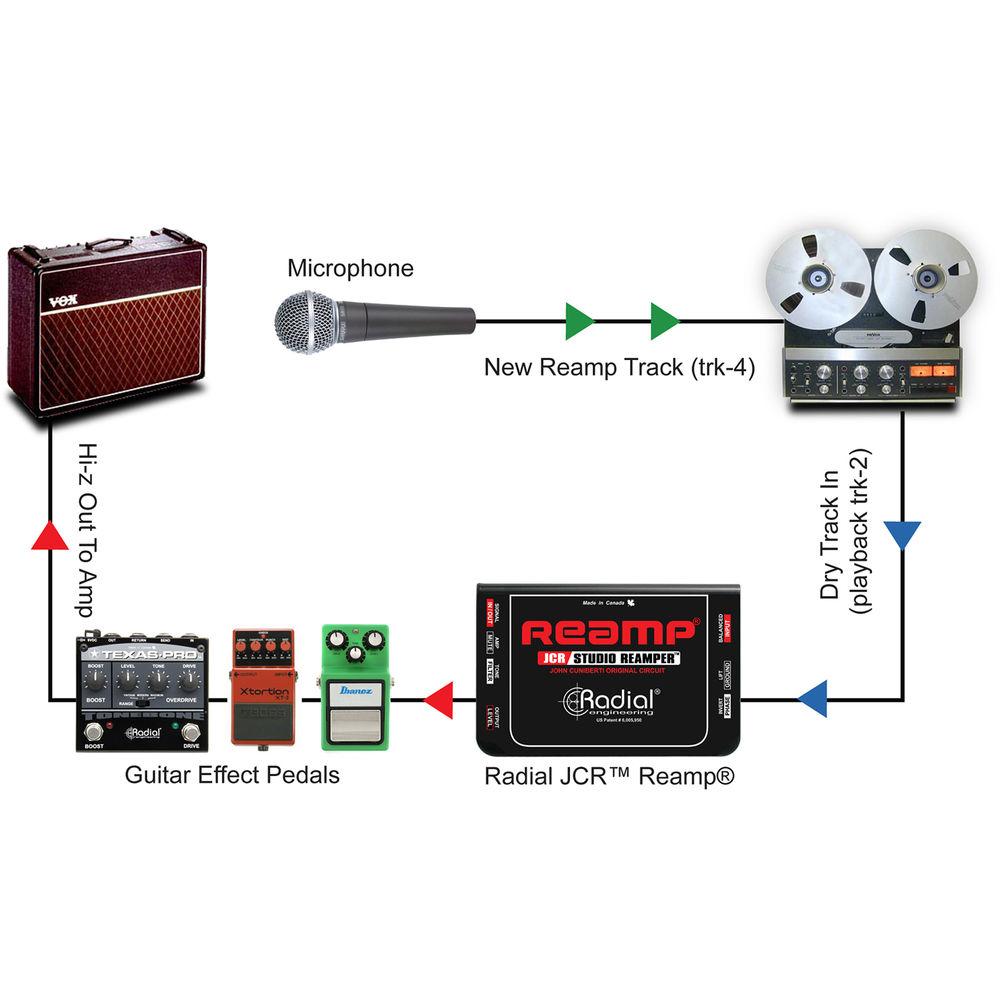

Product description The Radial Engineering Reamp JCR is a passive reamper that allows you to take a prerecorded track and send it back to a guitar or bass amplifier and re-record it. The benefits are tremendous: instead of worrying about the sound of the track, you can focus your attention on getting the best musical performance. Once the performance has been captured, you can reamp the track even in the absence of the guitarist by moving the mics around the room, trying various amplifiers, or introducing effects. Additionally, you can also reamp the track later as the production develops.This reamper features the original reamp circuit designed by John Cuniberti. It features a 100% passive design with John's original custom-wound transformer and circuit that are made in the USA. It also features separate XLR and 1/4" TRS input connectors, variable output level, and a 3-position filter that lets you tame excessive highs, warm up the lows, or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to let you shut off the signal going to the amps while making adjustments or moving mics around the studio. Highlights - Lets you re-record tracks through a guitar or bass amp
- Original reamp circuit designed by John Cuniberti
- Easy-to-use, plug-and-play passive design
- Improves productivity while expanding creative options

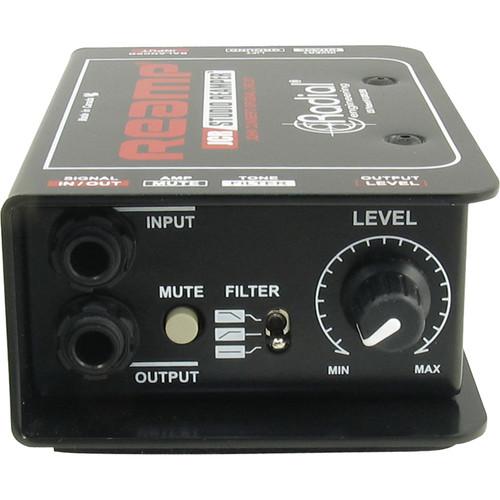

Connections - XLR Input
- Balanced input
Connects from the output of your recording system to the Reamp JCR - 1/4" TRS Input
- Connects from your recording workstation and is suitable for both lo-Z and hi-Z sources
Wired in parallel with the XLR input - 1/4" Output
- Unbalanced instrument level output
Connects from the Reamp JCR to amps and effects
Transformer isolated to eliminate hum and buzz caused by ground loops Control Knobs and Buttons - Mute
- Silences the 1/4" output from the Reamp JCR going to the guitar or bass amplifier
- Level
- Used to control the signal going from the Reamp JCR to the guitar or bass amplifier
Sets the reamping output level to your amp - Filter
- Three-position switch used to select between preset EQ filter
Low-pass (high-cut) setting to warm overly bright amps
High-pass (low-cut) setting to clean up low end mud

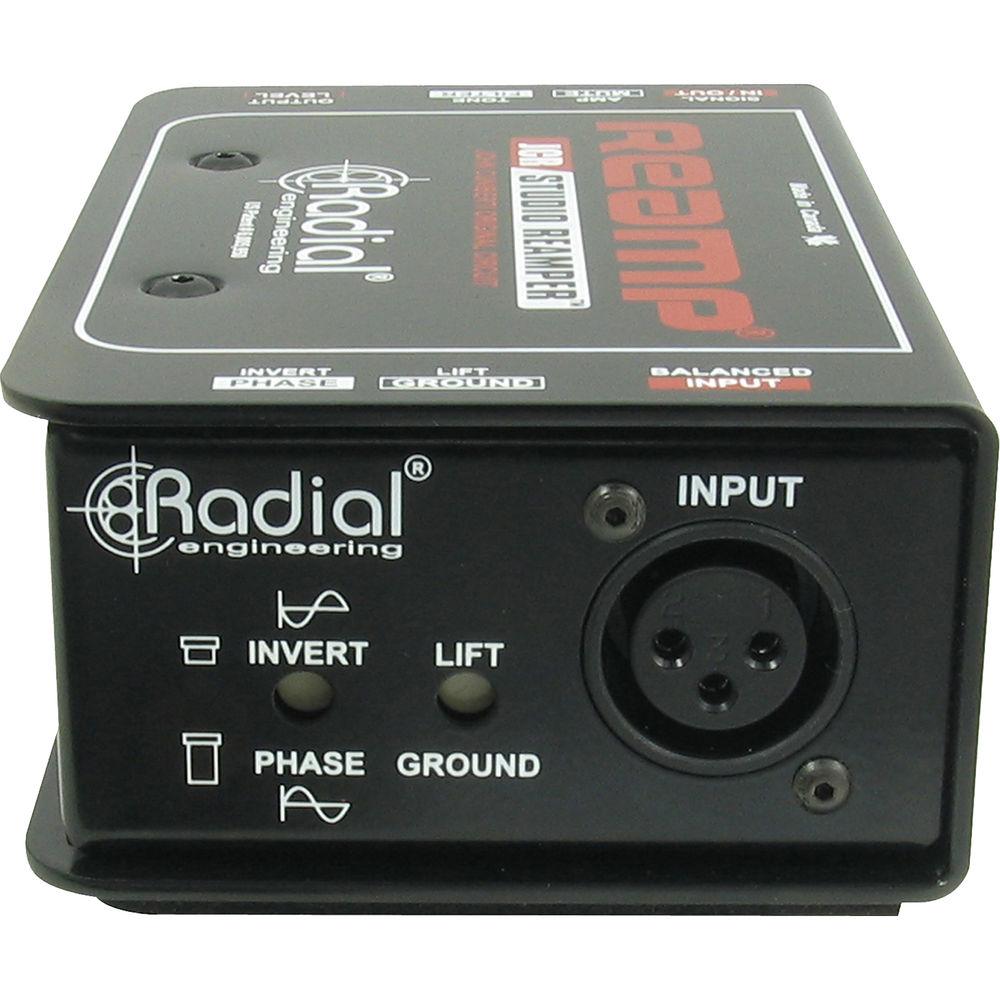

Flat setting to bypass the filters and go back to the original reamp circuit - Ground Lift
- Disconnects ground at the balanced inputs to eliminate hum and buzz caused by ground loops
- 180° Phase Invert
- Flips the electrical polarity of the output to compensate for amps or effects that invert the signal
Construction and Design - Steel Construction
- Heavy-duty 14-gauge steel construction for added durability and extra shielding against electromagnetic fields
- Mil-Spec Circuit Board
- Double-sided PCB and full ground plane to assure low noise and high durability for trouble-free performance
- Book-End Design
- Creates protective zone around connectors, switches, and potentiometers for added protection
- Push Switches
- Feature durable metal outer casing
Rated at over 20,000 cycles - Transformer
- Isolates and converts the impedance to properly feed the guitar amp
Custom made in USA - No Slip Pad
- Full bottom surface neoprene pad provides electrical isolation and mechanical insulation
Keeps the JCR Reamp from moving around when placed on the guitar amp - Baked Enamel Finish
- Keeps your JCR Reamp looking great for years
UPC: 676101040315 In the Box Radial Engineering Reamp JCR Studio Reamper Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Reamp JCR Studio Reamper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 1030 Specs | Circuit Type | Passive, transformer isolated | | Frequency Response | 20 Hz to 20 kHz (±0.2 dB) | | CMRR | -55 dB @ 55 Hz | | Dynamic Range | 140 dB | | Noise Floor | -115 dBu | | Maximum Input Level | +21 dBu @ 20 Hz | | Output Level | Adjustable | | Total Harmonic Distortion | 0.05% @ 20 Hz, 0.006% @ 1 kHz | | Intermodulation Distortion | 0.0025% @ 1 kHz/-10 dB input | | Deviation from Linear Phase | 2º @ 100 Hz; 0º @ 800 Hz | | Input Impedance | 600 Ω | | Output Impedance | 5 kΩ | | Input | XLR, 4 dB balanced line-level, AES standard (pin-2 hot) | | Output | Instrument-level (variable), unbalanced | | Ground Lift | Disconnects pin-1 at the XLR input | | Mute | Mutes the output at the 1/4" unbalanced out | | Filter | Hi-Cut: -3 dB down @ 1 kHz
Low-Cut: -3 dB down @ 180 Hz | | Polarity | 180º polarity reverse at 1/4" output | | Power | Passive, no power required | | Construction | 14 gauge steel chassis & outer shell, baked enamel finish | | Operating Conditions | 41 to 104°F (5 to 40°C), for use in dry locations | | Dimensions | 3.3 x 5.0 x 1.9" (8.4 x 12.7 x 4.9 cm) | | Weight | 1.75 lb (0.79 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.25 x 4.15 x 2.95" |
