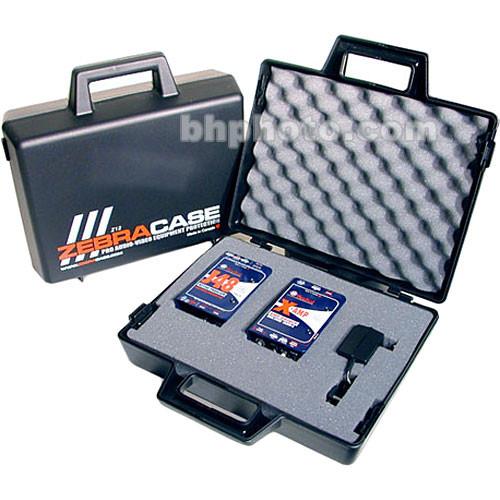

User Manual for Radial Engineering Reamping Kit - J48 Direct Box, X-Amp Reamplifier & PSU Combo Click to enlarge the picture
Contents of the user manual for the Radial Engineering Reamping Kit - J48
- Product category: Effects Pedal Accessories Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Effects Pedal Accessories
|
User manual for the Radial Engineering Reamping Kit - J48 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|
Product description The Reamping Kit from Radial Engineering is a kit that consists of the X-Amp reamplifier, a J48 active direct box, an AC power adapter, and a carrying case. The idea behind the kit is to supply you with everything you need to carry out the reamping recording technique. An example of reamping is recording an electric guitar with no amp or effects direct into a recorder (using the J48 direct box), and sending the guitar's signal out of the recorder at line-level into the X-Amp, and then sending the guitar's signal to two separate amplifiers. The X-Amp is an active reamping device that allows an engineer or producer to take a pre-recorded guitar track that would be typically at line level, and output a guitar level signal that can then be sent back to an amplifier/speaker or an effects box. This opens the door to explore new musical sounds and spur on the creative process since the unit will drive a guitar amplifier as if the player was still plugged into it. The J48 is an active direct box. It's been designed for professional stage and recording studio use. It can be powered from 48V phantom power or batteries, has rugged 14-gauge steel construction and extended, distortion-free headroom via a 10V internal rail voltage capacity. Ground lift, phase reverse and 80Hz recessed filter switches are also standard. - Radial X-Amp Active Re-Amplifier
- Active re-amping device
- Two outputs to drive two amps
- Input level overload LED indicator
- Isolated output eliminates ground loops
- Variable output level control
- J48 Active Direct Box
- Active 48-Volt phantom powered direct box
- Minimal power draw with high rail voltage
- Will not choke when driven hard
- Low inter-modulation distortion
UPC: 676101035663 In the Box Radial Engineering Reamping Kit - J48 Direct Box, X-Amp Reamplifier & PSU Combo X-Amp Re-Amplifier J48 Direct Box Power Adapter Carrying Case 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Reamping Kit - J48 Direct Box, X-Amp Reamplifier & PSU Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering Re-Amping Kit Specs | Inputs | X-Amp:
1 x XLR J48:
2 x 1/4" TS In, Thru | | Outputs | X-Amp:
2 x 1/4" TS J48:
1 x XLR | | Input Level | X-Amp:
+4dB Balanced Line-Level | | Output Level | X-Amp:
Continuously Variable | | Impedance | J48:
Input: 220 k Ohms
Output: 600 Ohms | | Controls | X-Amp:
Level Control
Ground Lift Switch
Polarity Reverse Switch | | Frequency Response | X-Amp:
Not Specified by Manufacturer J48:
10 Hz to 40 kHz | | Signal to Noise Ratio | X-Amp:
Not Specified by Manufacturer J48:
119dB @ 100Hz | | Dimensions | X-Amp:
3 5/16 x 5 x 1 7/8" (84 x 127 x 47.62 mm) J48:
6.5 x 4 x 3" (165.1 x 101.6 x 76.2mm) | | Weight | X-Amp:
2.6 lbs (1.179 kg) J48:
1.87 lb (848.2 g) | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 14.7 x 13.9 x 5.0" |
