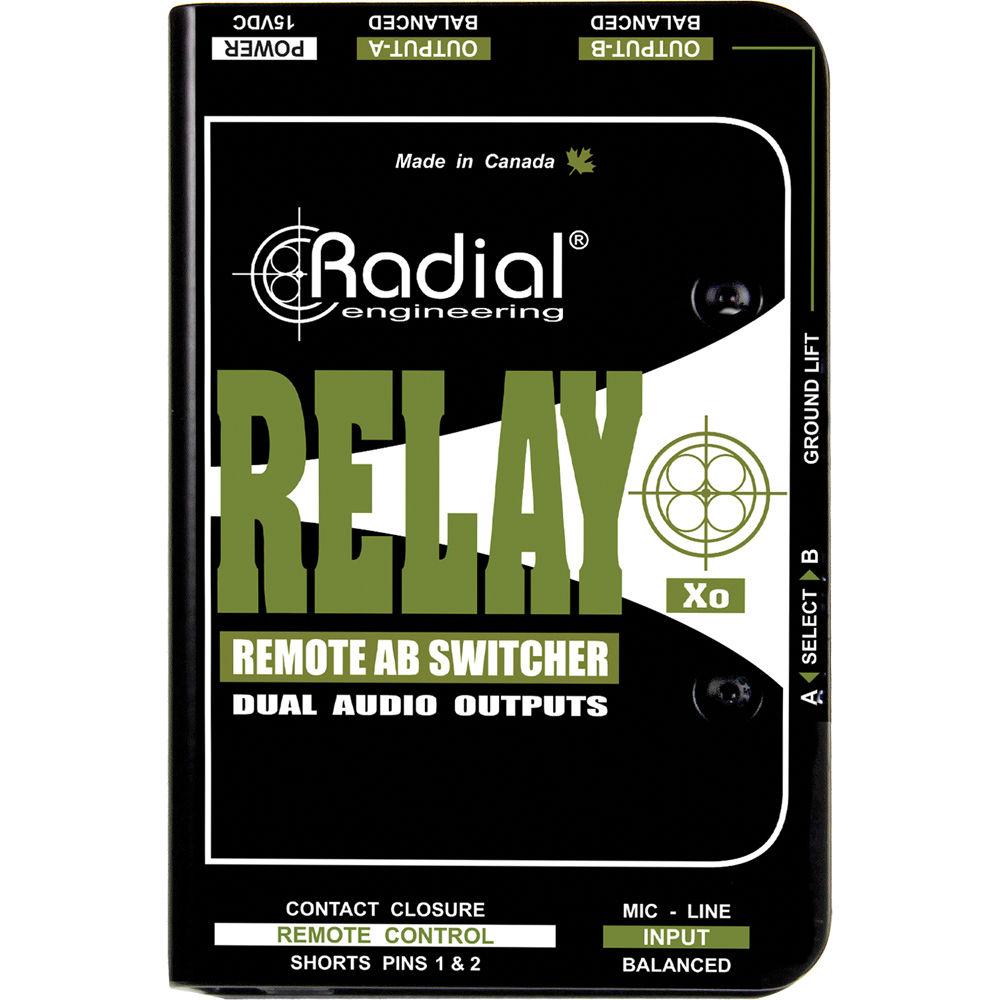

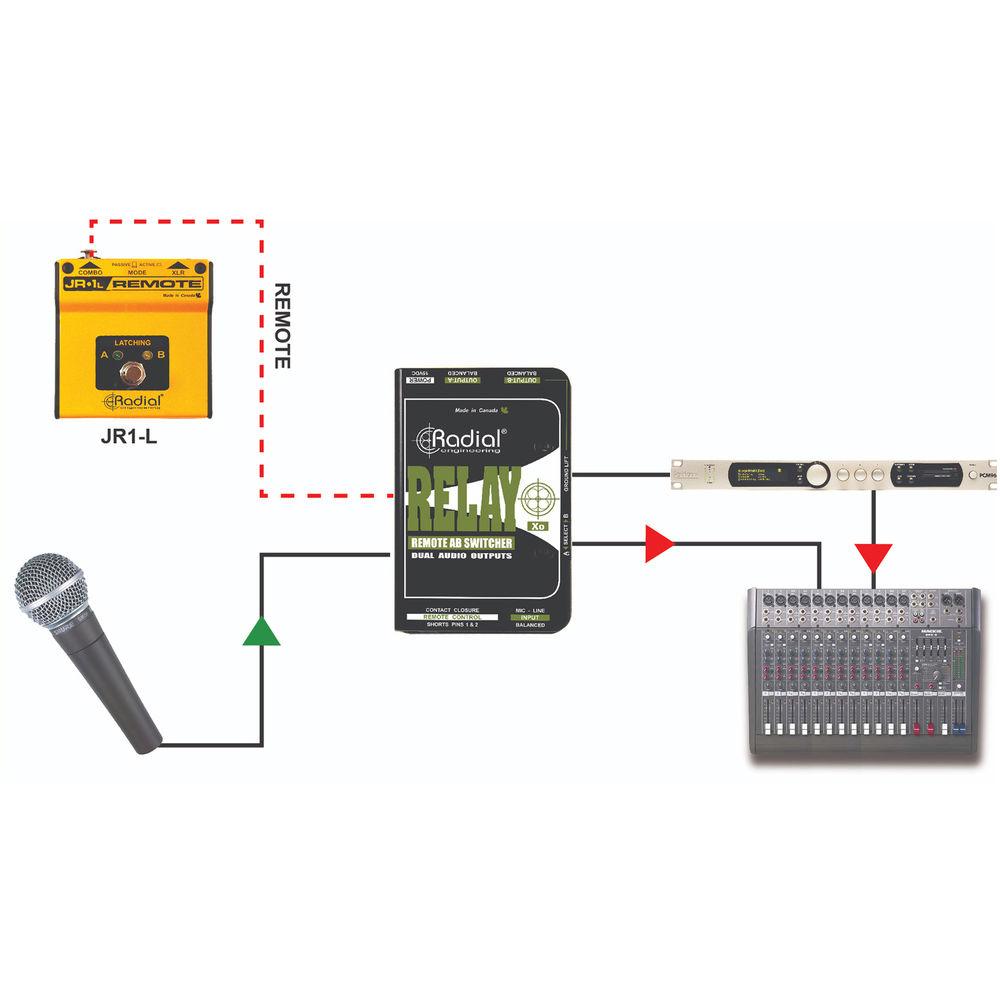

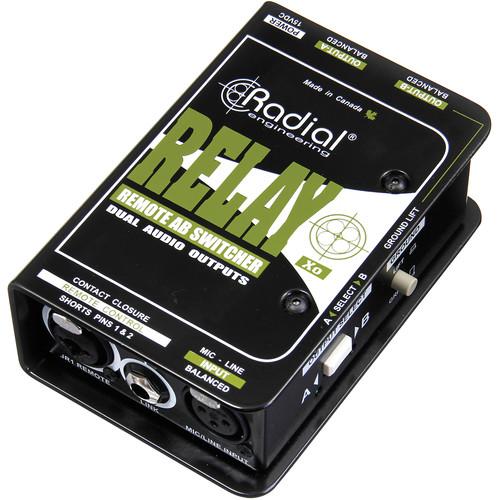

Product description The Radial Engineering Relay Xo Balanced Remote AB Switcher is a 1 input, 2 outputs balanced audio switcher designed to route the output of a microphone to two different audio inputs. This enables a vocalist to switch his mic between the main PA system and the monitors for discreet communication. This is of particular importance for artists that employ in-ear monitors. You can also use the Relay Xo to send the output of a microphone to two channels on the PA. The first channel could be set dry to speak to the audience between sets, while the second channel could be set wet with reverb and echo to enhance the voice. This enables the vocalist to control effects and deliver a more professional performance.The Relay Xo features a balanced XLR input and two balanced XLR outputs. The audio signal path is a passive wire. There are no transformers or electronic buffers inside that could introduce distortion or color the tone. The Relay Xo employs military-grade gold-contact sealed relays to do the switching. This makes it suitable for both mic and line level signals. Switching may be done using the side-access pushbutton switch or by remote control via the XLR and 1/4" input jacks using either the Radial JR1-L latching or JR1-M momentary footswitch (not included). A remote link enables multiple units to be used in tandem. - Switches vocal microphone from PA to intercom
- Allows artist to speak with musicians and techs
- Remote control using footswitch, MIDI contact closures, or the Radial JR1 (not included)
- Routes any balanced signal to two destinations

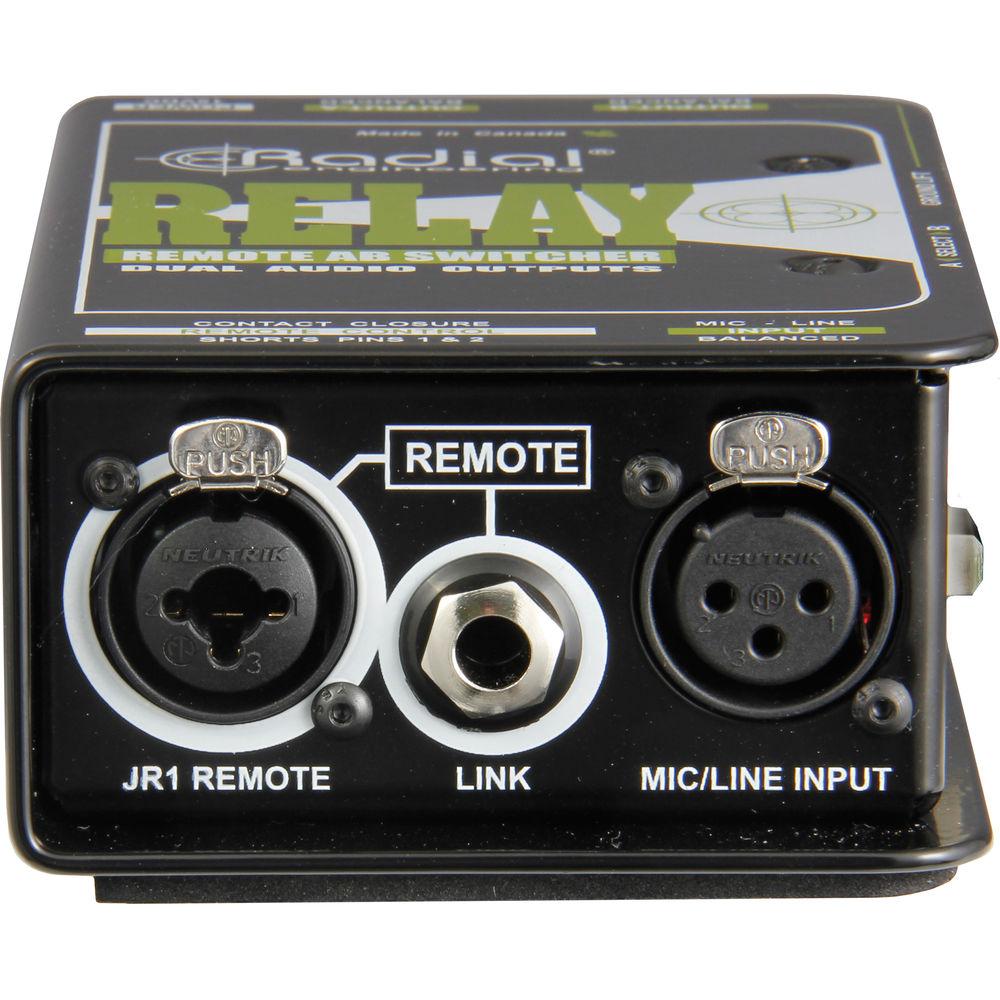

- Locking XLR and 1/4" combo jack used to connect a remote switch
- Features remote link capabilities to link the switching of additional Relay Xo units
- Supports stereo and multichannel switching systems
- Signal path is a passive copper wire that ensures audio signals pass-through without any change or added noise or distortion

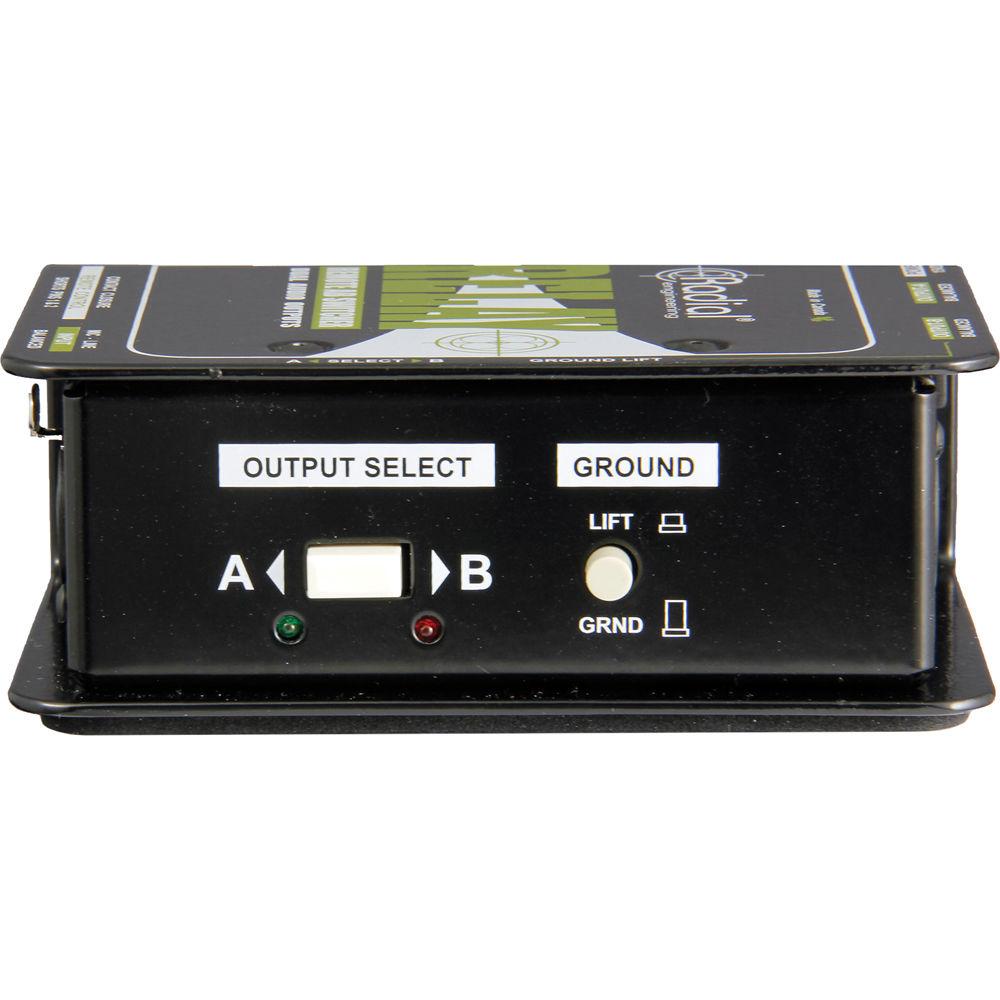

- Output select switch toggles the Relay Xo's outputs
- Two LED indicators display which output is active
- Ground lift disconnects pin-1 (ground) on the input XLR jack to help reduce hum and buzz caused by ground loops
- Features heavy duty glass-filled XLRs with nickel-silver contacts
- Military grade relays are used to switch the audio signal and provide a straight wire signal path
- Discrete full size, hand inserted parts ensure the audio signal flows without impediment from input to output without distortion or artifact
- Double sided military spec for greater durability and full ground plane to reduce radio frequency interference
- Book end design creates a protective zone around the jacks and switches
- Switches feature metal outer casing are rated at over 20000 cycles for durability
- Features a cable clamp to prevents accidental power disconnection by locking down the AC adapter cable
- Full-bottom no-slip pad provides electrical isolation and holds the Relay Xo in one place
- I-beam enclosure eliminates cold solder joints from developing
UPC: 676101041312 In the Box Radial Engineering Relay Xo Balanced Remote AB switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Relay Xo Balanced Remote AB switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800 8030 Specs | Audio Circuit Type | Remotely controlled mechanical relay | | Frequency Response | 10 Hz to 100 kHz | | Total Harmonic Distortion | <0.0005% | | Dynamic Range | >140 dB | | I/O Impedance | Source dependent | | Common Mode Rejection | -106 dB | | Maximum Input | 26 dBu | | Phase Shift | <1° at all frequencies | | Gain | 0 dB | | Noise Floor | -115 dBu | | Intermodulation Distortion | 0.001% | | Switches | A/B switch, ground lift | | Ground Lift | XLR Output B only | | Audio Connectors | XLR-F input, 2 x XLR-M outputs | | XLR Configuration | AES standard pin-1 ground, pin-2 (+), pin-3 (-) | | Remote Connection | Combo (XLR-F and 1/4"), 1/4" loop-through | | Contact Closure | With 1/4" TRS jack, short tip and ground to switch
With XLR, short pin-1 ground and pin-2 Hot to switch | | Construction | 14 gauge steel with internal I-beam | | Power | 15 VDC, 30 mA, center-pin (+) | | Operating Conditions | For use in dry locations only between 41 to 104°F (5 to 40°C) | | Dimensions (L x W x D) | 5.0 x 3.3 x 1.8" (12.7 x 8.4 x 4.5 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 10.8 x 4.9 x 2.6" |
