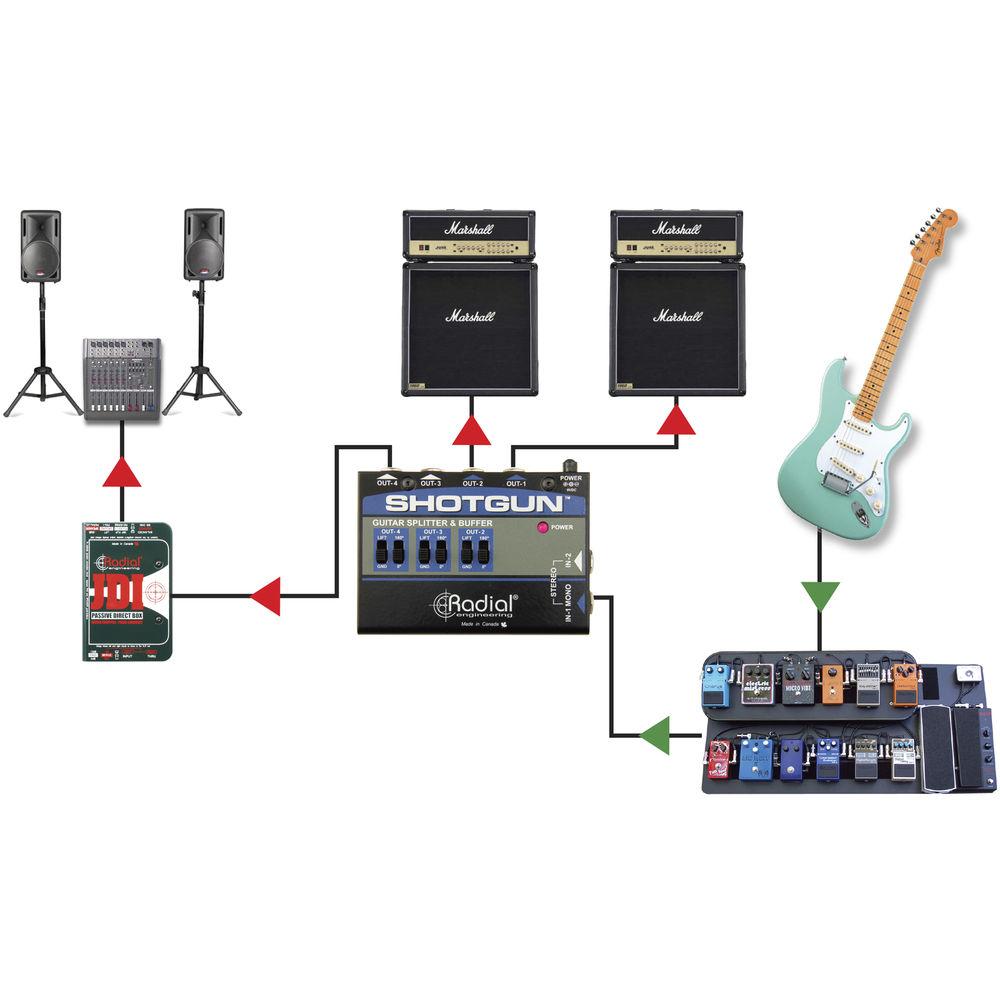

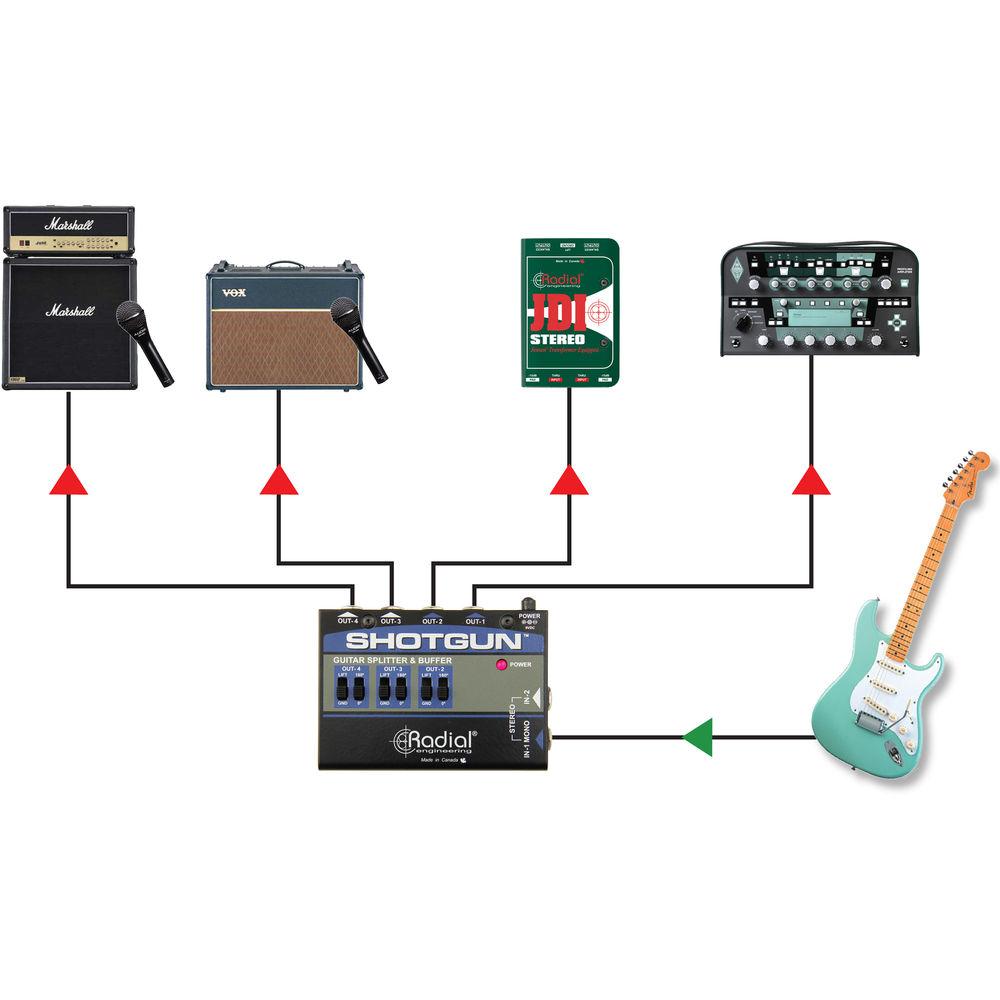

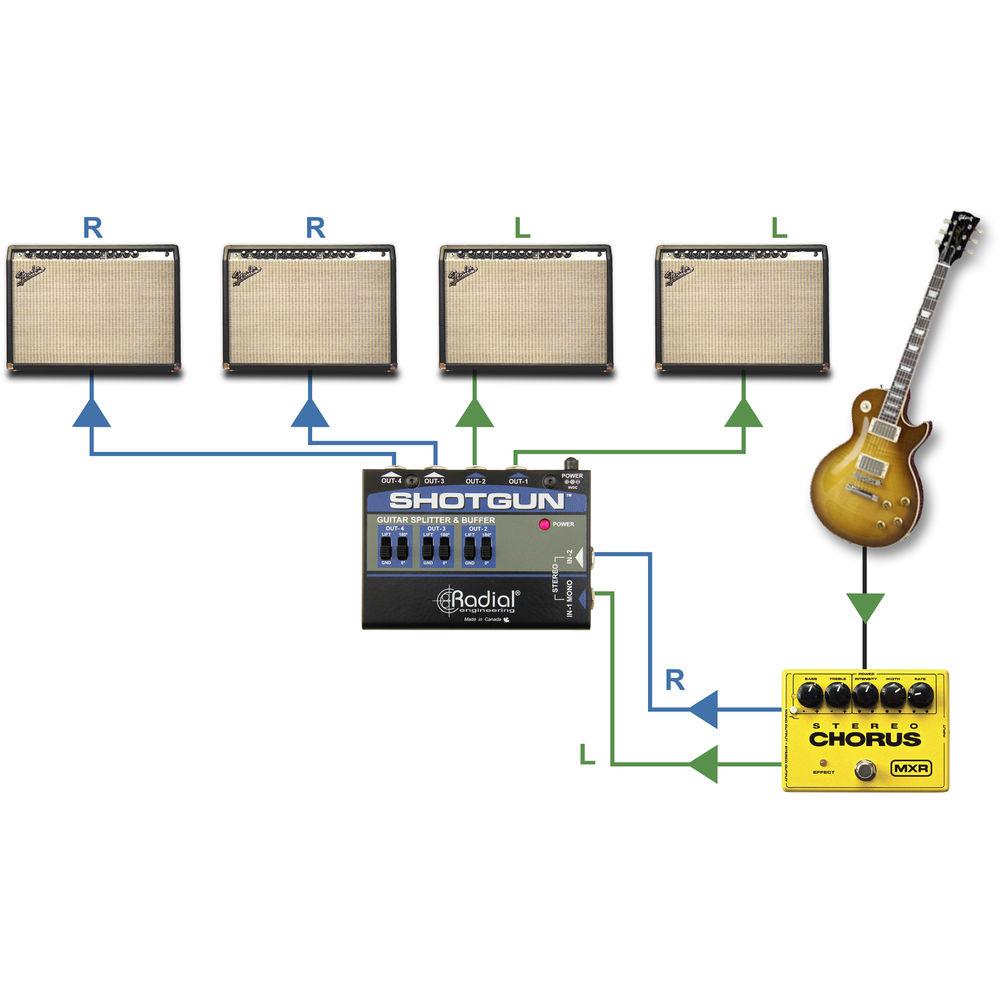

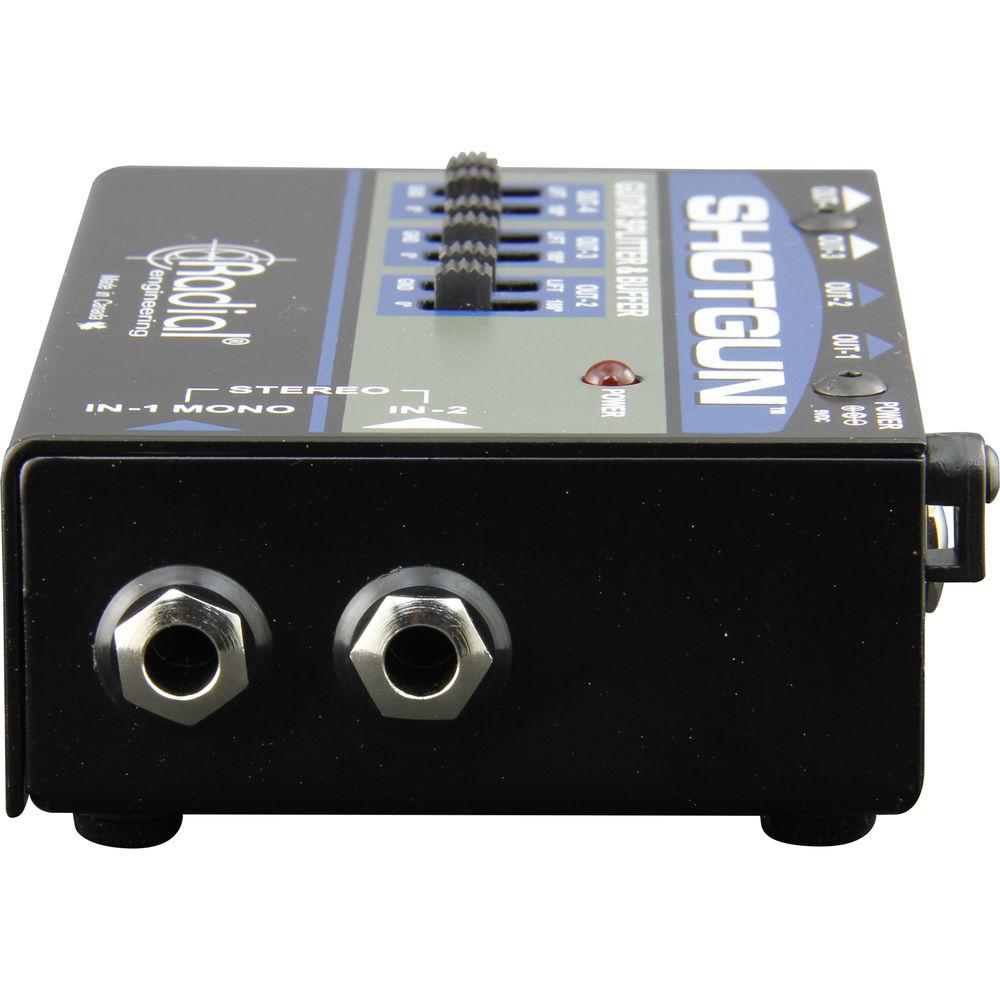

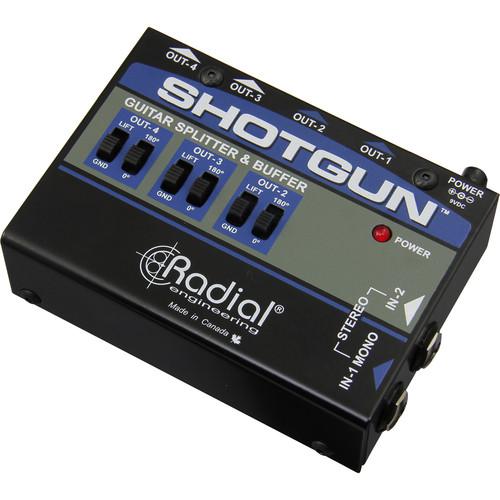

Product description The Tonebone Shotgun Four-Channel Amp Driver by Radial Engineering is a guitar-level buffer and routing system designed to distribute the high-impedance signal generated by electric guitars to up to four outputs without any sonic degradation. It operates in two configurations: mono—which pushes one signal to four separate outputs—or stereo, in which stereo inputs can be routed to two separate pairs of outputs, or four unique outputs.
This unit is especially advantageous to those who routinely use two or more amplifiers onstage at any one time. Its three transformer-isolated outputs have ground lift switches for eliminating hum, while its buffered outputs are capable of driving cable lengths in excess of 50' without audible signal ebb. - Direct and Transformer-Isolated Outputs

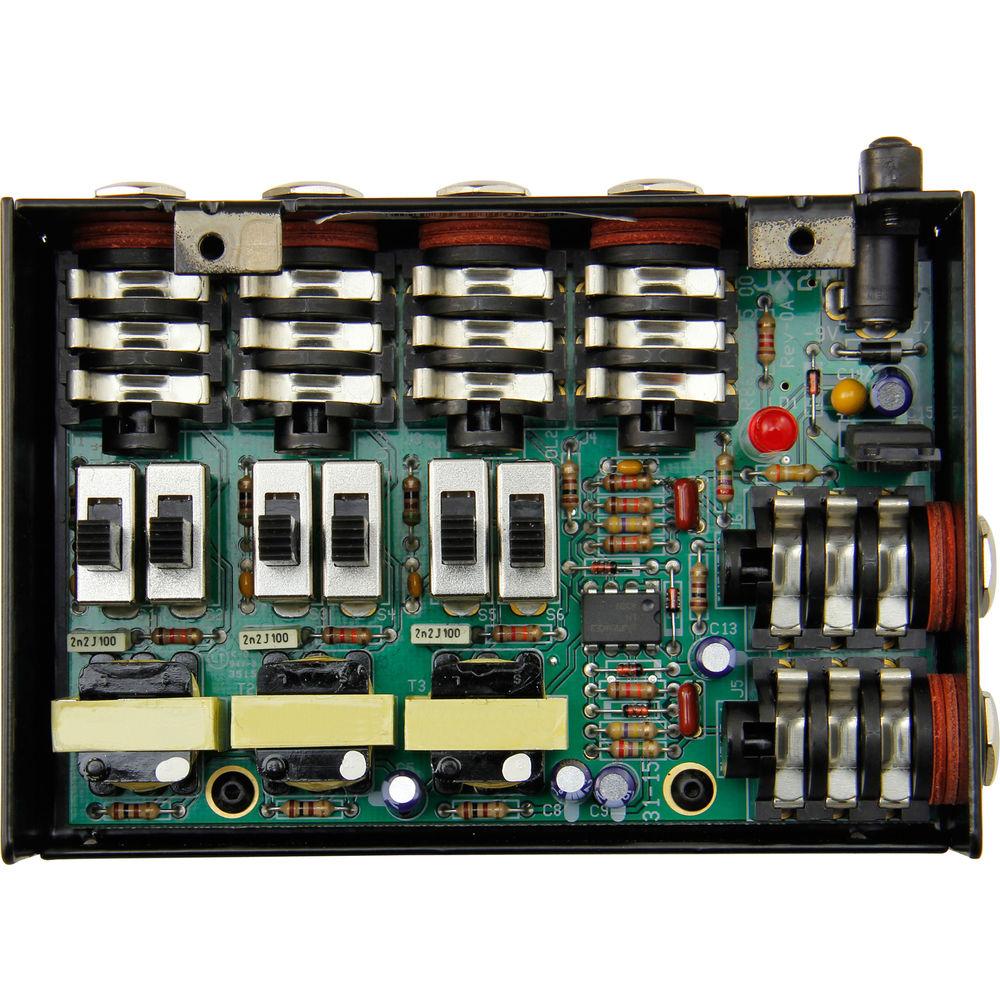

- The first output is direct, while the other three are transformer isolated in order to reduce ground noise contamination
- Distortion Where You Want It, Fidelity Where You Need It
- The Shotgun exhibits less than 0.01% distortion while delivering a linear frequency response from 20 Hz to 20 kHz. Using the shotgun, your signal will only distort from your stompboxes—not from signal degradation

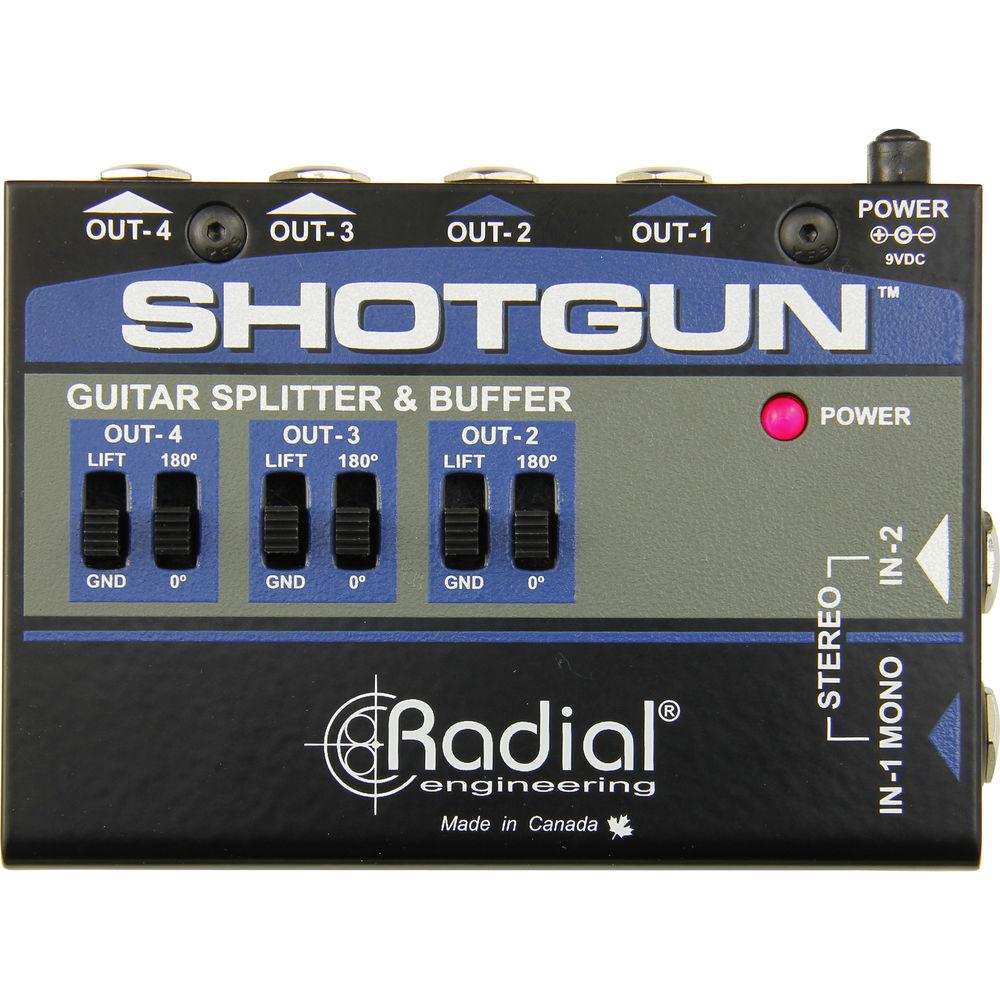

- Phase Switches
- You can flip the phase on outputs 2 through 4
- Proprietary Consistent Load Compensation Circuit
- The Consistent Load Compensation ("CLC") circuit retains a stable input impedance to ensure the character of the signal remains unchanged
- Durable Casing
- Case is fashioned from 16-gauge steel, shielding the power supply and providing protection for the electronics
UPC: 676101044191 In the Box Radial Engineering Shotgun 4-Channel Amp Driver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering Shotgun 4-Channel Amp Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering R800-7215 Specs | Audio Circuit Type | Buffered signal distribution with 3x isolated outputs | | Frequency Response | 20 Hz to approximately 20 kHz | | Dynamic Range | 92 dB | | Noise Floor | -86 dBu | | Equivalent Input Noise | -90 dBu | | Maximum Input | 8 dBu | | Total Harmonic Distortion | < 0.02% at -20 dB | | Inter-Modulation Distortion | Approximately 0.02% | | Input Impedance | 220 kOhms | | Output Impedance | 1.8 kOhms | | Gain | 0 dB / -0.2 dB | | Output Clip Level | +4 dBu | | Switches | 3x Ground Lift
3x Phase Invert | | Power | 9 VDC - 25 mA, center negative | | Construction | 16-gauge steel chassis and outer shell | | Environmental Conditions | For use in dry locations between 41 to 104°F / 5 to 40°C | | Dimensions (L x W x H) | 4.5 x 3.5 x 1.4" / 111.4.3 x 92.0 x 34.8 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.375 lb | | Box Dimensions (LxWxH) | 6.4 x 4.25 x 2.95" |
