User Manual for Radial Engineering StageBug SB-1 Active Acoustic Direct Box Click to enlarge the picture
Contents of the user manual for the Radial Engineering StageBug SB-1 Active Acoustic
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering StageBug SB-1 Active Acoustic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

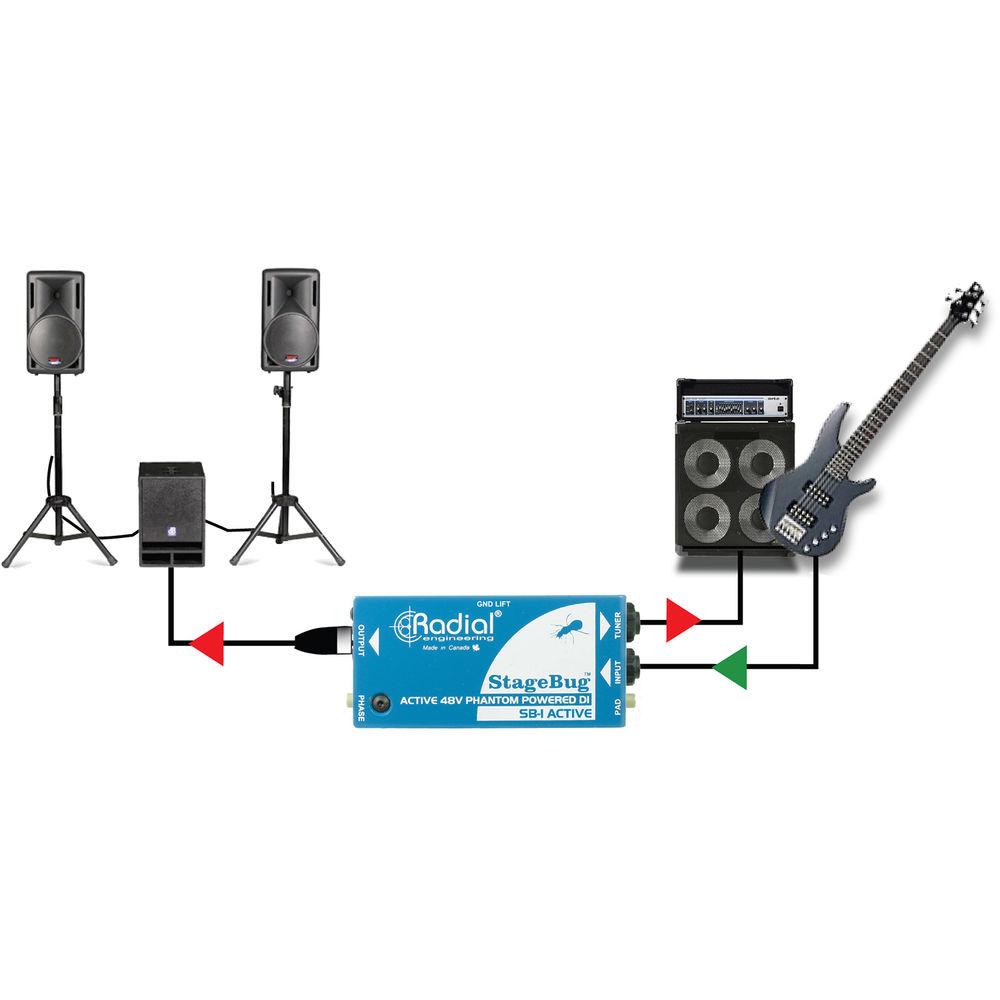

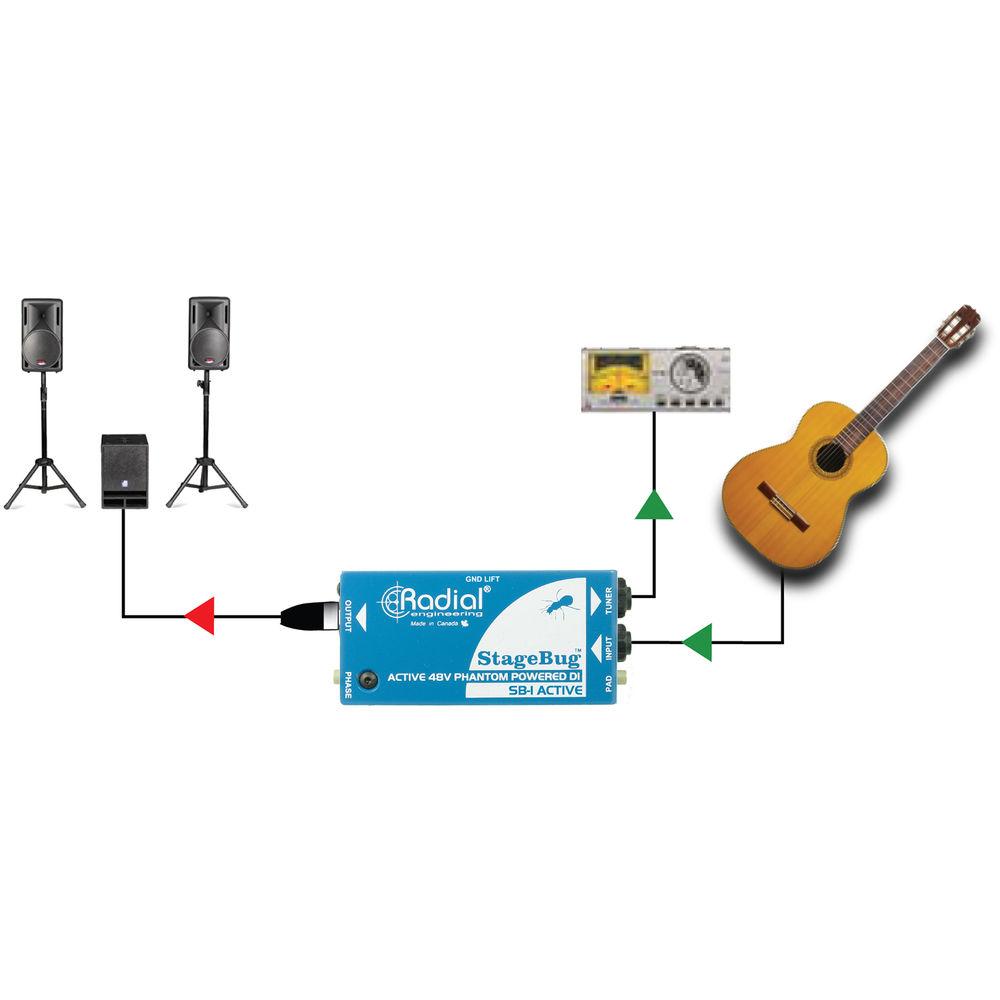

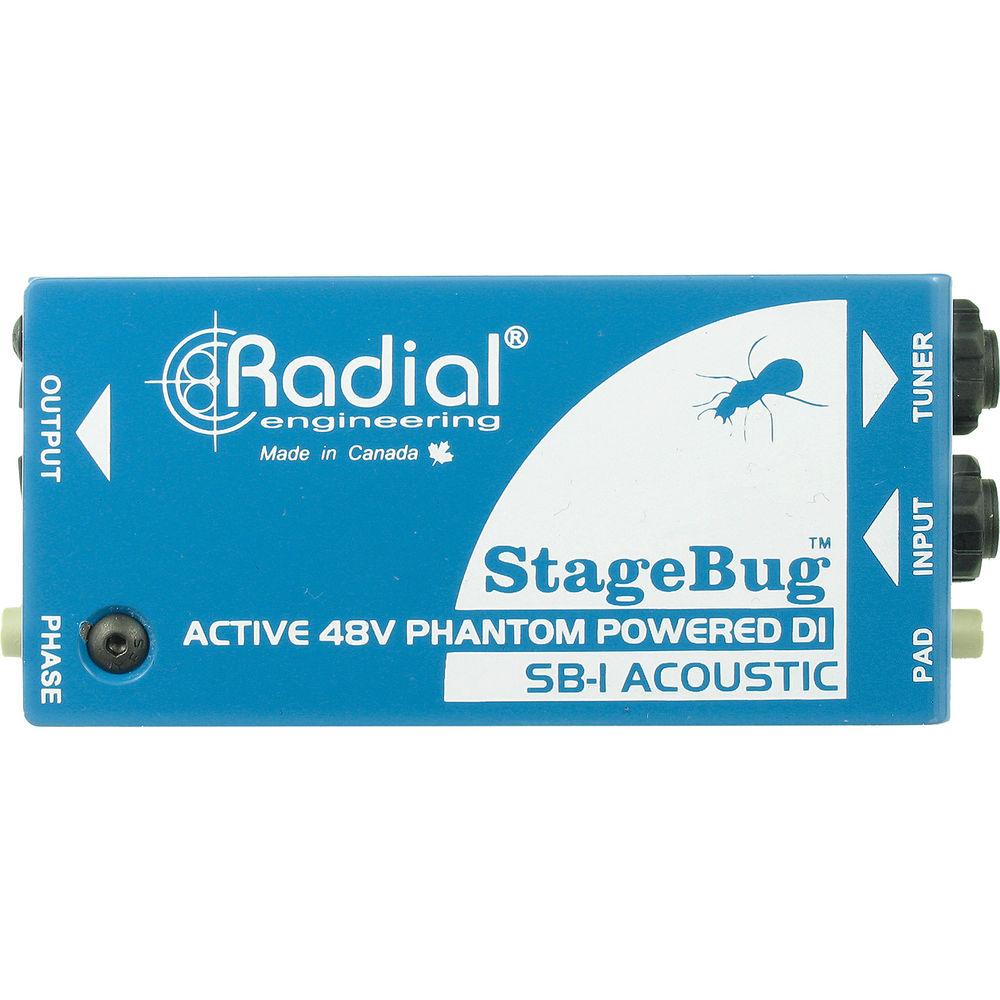

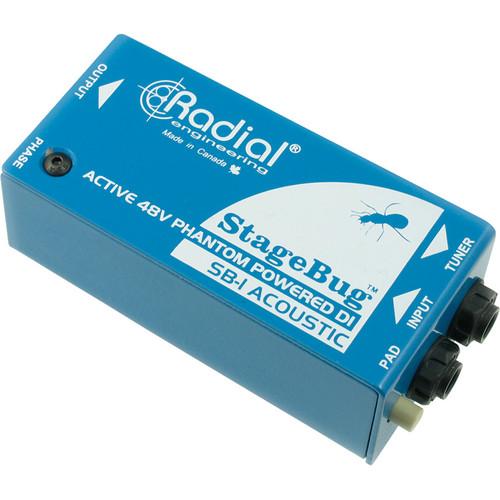

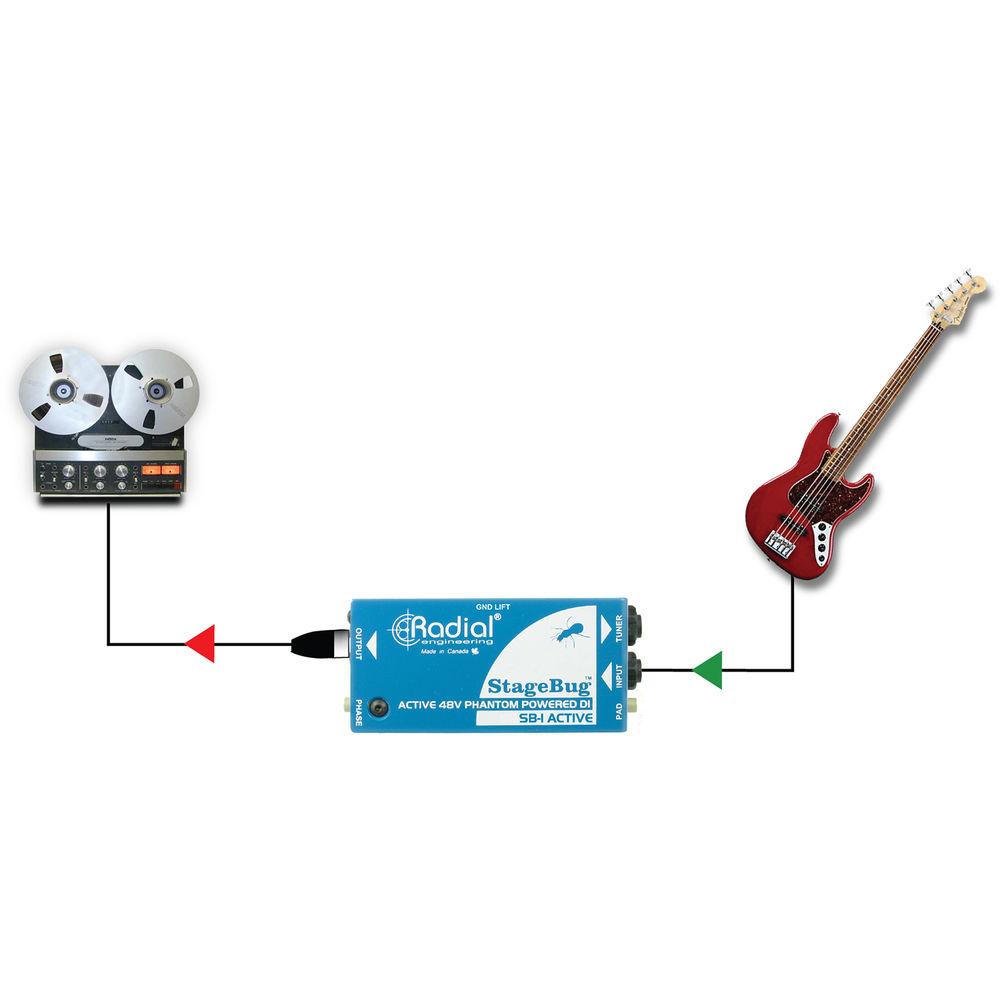

Product description The Radial Engineering StageBug SB-1 Acoustic is an active direct box that has been specifically designed to provide a quick and dependable connection from your instrument to the PA. In other words, it converts the hi-Z output from your instrument--typically a 1/4" guitar jack--to a balanced low-Z signal via standard 3-pin XLR connectors. Balancing the signal reduces noise, enables longer cable runs, and improves the sound quality by properly matching the instrument's impedance with that of the PA. And with 48 volt phantom powering, the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are set to go. The active circuit features 220kΩ input impedance to eliminate problems with loading while delivering a smooth, warm sound to the audio system. This is particularly important when interfacing vintage guitars with low output pickups when you plan to do some recording or re-amping. This unit is also equipped with a -12 dB pad, which reduces input sensitivity of the circuit to enable louder instruments to be used without distortion. To reduce feedback, toggling the 180° polarity switch helps eliminate hot spots on stage that can cause low-frequency resonance. Made to fit inside a guitar case for players that are on the move, this compact DI box delivers enhanced sound throughput. Although the SB-1 has been optimized for use with acoustic guitars, it is also well-equipped to handle electric bass guitars and keyboards. - Highlights
- Active direct box for acoustic guitar
Compact to fit in your guitar case
Plug-and-play and easy-to-use
48V phantom powered; no batteries needed - Input
- Unbalanced hi-Z input for your guitar or bass
- Input Pad
- Reduces the sensitivity by 12 dB for louder instruments such as an active bass guitar or keyboard so that they can be used without distortion
- Output
- Sends the lo-Z balanced output signal to the PA system or audio workstation
- Tuner Out
- Always on, this thru connector is used to feed your tuner or your on-stage amplifier
- Phase Reverse
- 180° polarity reverse helps tame hot spots on stage that can cause feedback
- Connectors
- Glass-filled nylon connectors are insulated for reduced noise and feature nickel-silver contacts that will not tarnish
- Stand-Offs
- Made from steel and pressed into the outer casing to ensure proper retention of the circuit board
- Durable Switches
- With metal outer casing, the switches are rated at over 20,000 cycles for added durability
- Circuit Board
- Double-sided military grade with through-hole solder points for durability
Full surface ground plane to reduce susceptibility to noise - Enclosure
- Made from 14 gauge steel to protect sensitive electronics inside while shielding against magnetic fields
- Baked Enamel Finish
- Keeps your StageBug looking new for years
UPC: 676101040643 In the Box Radial Engineering StageBug SB-1 Active Acoustic Direct Box Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering StageBug SB-1 Active Acoustic Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering SB-1 Specs | Circuit Type | Active buffer with phase splitter | | Frequency Response | 20 Hz to 20 kHz | | Total Harmonic Distortion | <0.006% | | Dynamic Range | >100 dB | | Input Impedance | 800 k / 23 k | | Maximum Input | +2 dBu / +8 dBu | | Gain | +1.3 dBu / +4.4 dB | | Clipping Level | Output: +3.3 dBu / +12.3 dBu | | Output Impedance | 330 Ω | | Equivalent Input Noise | -101 dBu | | Noise Floor | -97 dBu | | Intermodulation Distortion | <0.01% | | Deviation from Linear Phase | 25 / 12° maximum | | Switches | Pad, Phase | | Functions | Automatic merge | | Input Pad Switch | -12 dB | | XLR Configuration | + = Pin 2, - = Pin 3, Ground = Pin 1 | | Polarity Reverse | Yes, 180° | | Construction | 16 gauge steel chassis and outer shell | | Finish | Baked enamel | | Power | 48 V phantom power | | Dimensions (L x W x D) | 4.50 x 1.85 x 1.35" (11.40 x 4.70 x 3.40 cm) | | Weight | 0.55 lb (0.25 kg) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 7.3 x 4.6 x 1.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
