User Manual for Radial Engineering StageBug SB-5 Laptop DI Click to enlarge the picture
Contents of the user manual for the Radial Engineering StageBug SB-5 Laptop DI
- Product category: Direct Boxes Radial Engineering
- Brand: Radial Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Radial Engineering Direct Boxes
 |
User manual for the Radial Engineering StageBug SB-5 Laptop DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Radial Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Radial Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Radial Engineering product will considerably shorten its lifespan!
|

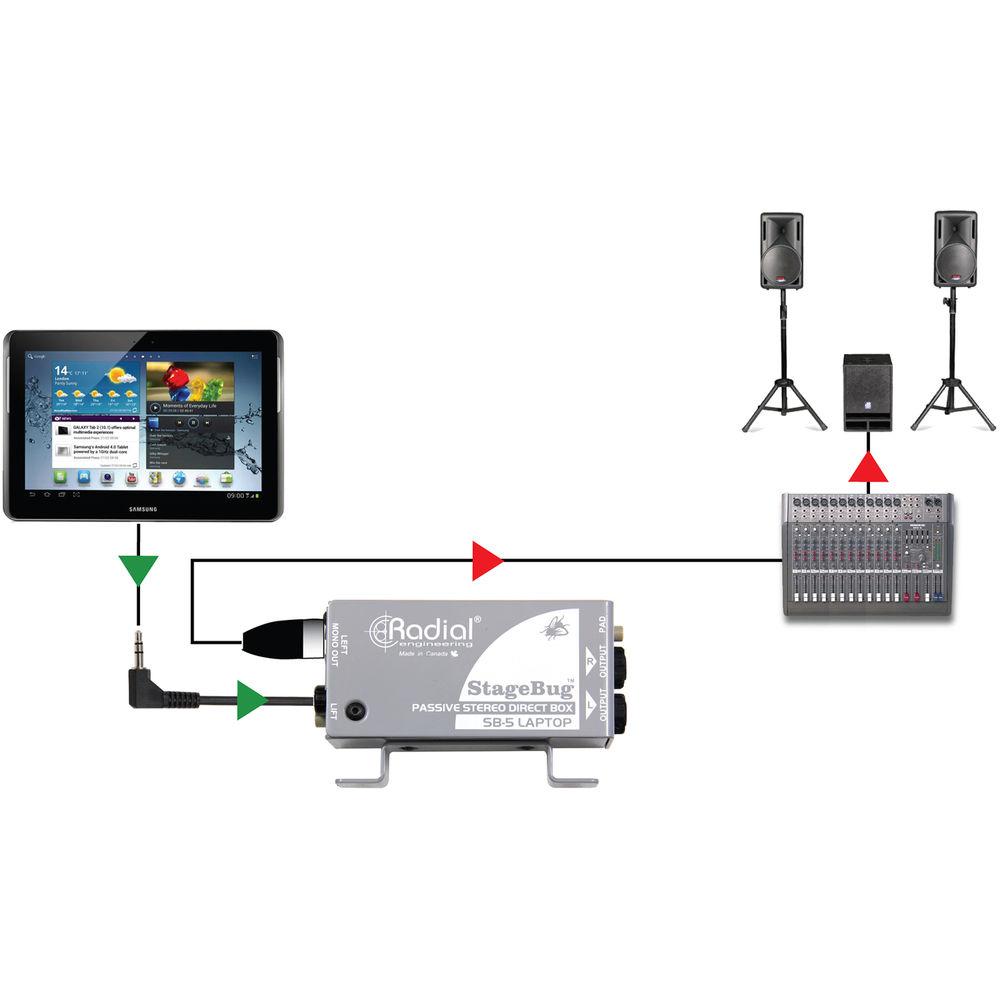

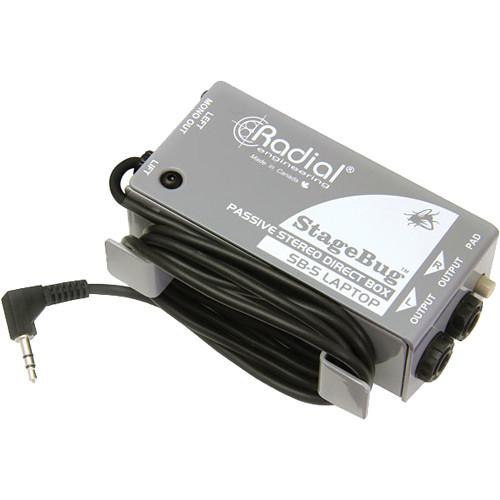

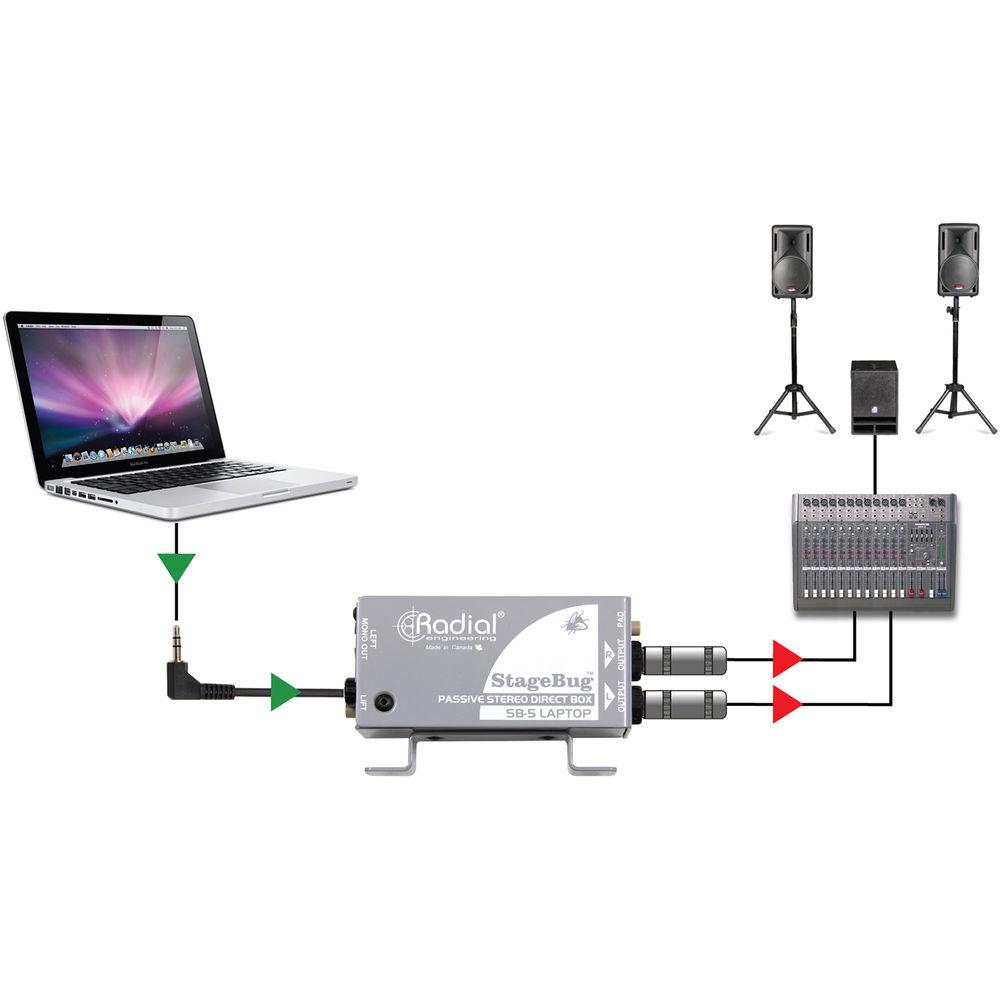

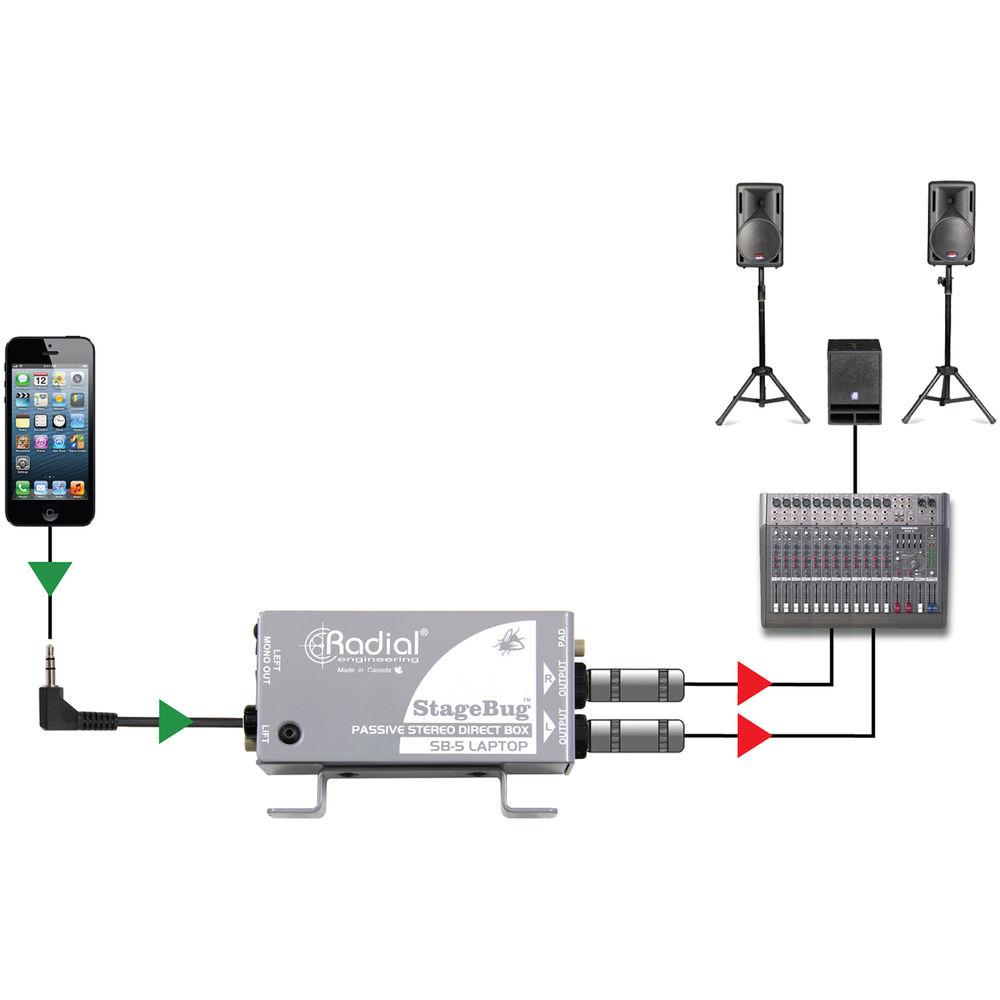

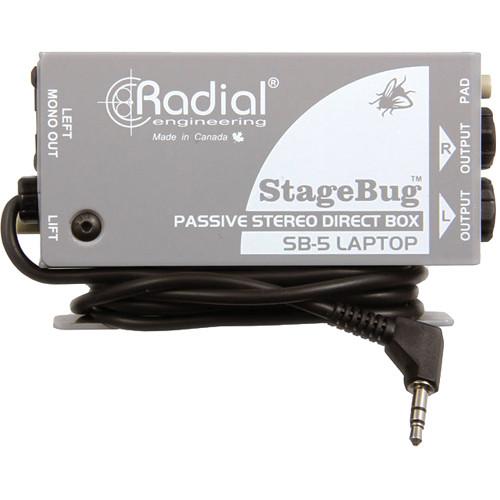

Product description The StageBug SB-5 Laptop DI from Radial Engineering is a compact stereo direct box designed to accommodate laptop computers, tablets, and other consumer audio products when amplifying the signal through a PA system.The passive design begins with an integrated input cable that connects from the headphone out via a flexible 5’ (1.5m) cable that is terminated with a standard 1/8" (3.5mm) stereo connector. The cable is secured via a clamping strain relief and is wrapped using the sidewinder cleat for easy storage. This eliminates the need to locate a cable, thereby making it easy to deploy in fast-paced work environments. Inside, the signal is sent to a pair of custom-wound transformers where the impedance is lowered and the signal is balanced for long cable runs, upwards to 300’ (100m). The transformers further benefit by isolating the computer from the PA system to help eliminate hum and buzz caused by ground loops. This is augmented with a ground lift switch to further reduce ground contamination.A choice of output connectors is available including a stereo set of 1/4" TRS jacks for full stereo operation or an XLR out that automatically sums the left-right program material to mono. This can save valuable channels on the PA system and makes setup easy in situations where full stereo reproduction is not required. A -15 dB input pad can be engaged to reduce sensitivity and enable extra high output sources to be connected without distortion.These features combine to make the unit suitable for the AV technician, media manager, or traveling musician equipped with a computer. - Stereo direct box for laptop computer
- Integral 5' (1.5m) cable with sidewinder cleat
- Transformer isolation eliminates noise
- Plug & play, easy to use, no power required
UPC: 676101040674 In the Box Radial Engineering StageBug SB-5 Laptop DI Limited 3-Year Transferable Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Radial Engineering StageBug SB-5 Laptop DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRadial Engineering SB-5 Specs | Circuit Type | Passive, transformer based | | Number of Channels | 2 channels, mono or stereo outputs | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | Dynamic Range | 100 dB | | Maximum Input | +20 dB | | Total Harmonic Distortion | <0.006% | | Input Impedance | 0.01% at 1 kHz | | Deviation | 2° at 100 Hz; 5° at 50 Hz | | Input Impedance | 40 kΩ, unbalanced | | Output Impedance | 2.8 kΩ, balanced | | Transformer | Custom design | | Features | Input Pad: -10 dB
Auto Merge: Sums left & right sources to mono at XLR
Ground Lift: Disconnects pin-1 at 1/4" TRS outputs

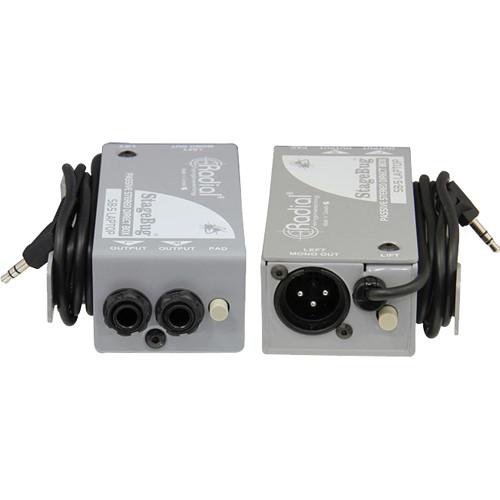

XLR Configuration: AES standard (pin-2 hot) | | Input Connector | 1/8" (3.5 mm) integrated 5.0' (1.5 m) cable | | Output Connector | 1/4" TRS stereo / XLR-M mono merge | | Construction | 14-gauge steel chassis & outer shell | | Finish | Baked enamel | | Power | Passive, no power required | | Dimensions (L x W x D) | 4.50 x 1.85 x 1.35" (114.3 x 46.99 x 34.29 mm) | | Weight | 8.8 oz (249.5 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.0 x 4.6 x 2.5" |
